SWAMP Premium 8-way XLR(f) to 1/4" Audio Snake Cable Loom

SWAMP Premium 8-way XLR(f) to 1/4" Audio Snake Cable Loom

$89.99
  In Stock
or interest free for up to 6 months with
-
+

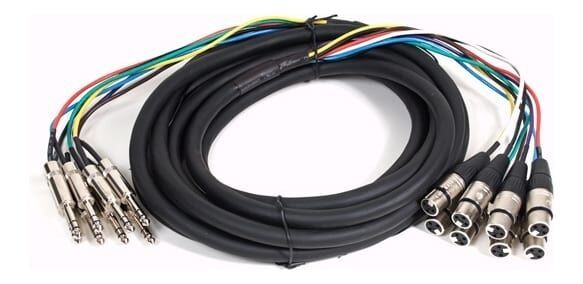

3m Length - Premium series 8 Channel XLR female to 1/4" TRS balanced audio snake / loom. This cable features industry standard Yongsheng connectors.

Dispatch

SWAMP Premium Series 8 Channel XLR(f) - 1/4" TRS Balanced Multicable Loom / Snake.

Why choose a Premium Series Cable?
Our premium balanced looms feature industry standard Yongsheng connectors suited for demanding usage in professional environments. Each channel consists of a pair of OFC conductors, encased with a thick spiral wrapped ground shield. Our loom cables are designed to eliminate interference whilst maximising signal flow.

When to use a loom?
Suitable for carrying mic and line level signals between devices with numerous inputs/outputs such as mixing desks and rack gear. Useful for stage and studio set-ups to save time and cable mess.

Features:

  • 8 way, Twin Conductor / Balanced Multicore Cable Roll
  • Each channel has isolated conductors and ground
  • Conductors: 2*(28x 0.10mm) / 24AWG
  • Ground: 1*(34x 0.10mm) Tinned Copper spiral-wrapped shield + Aluminium Foil shield
  • Outer Diameter: 15mm

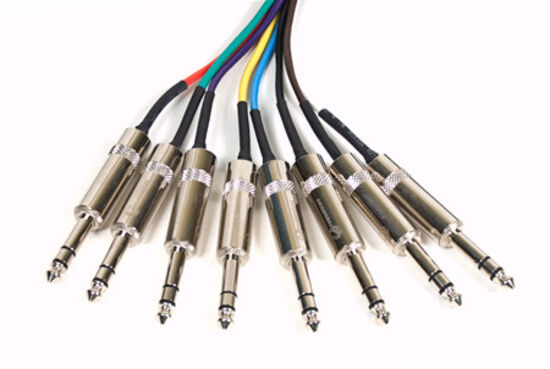

  • Connectors: 3pin XLR(f) to 1/4" TRS (Yongsheng YS136 and YS228)
  • Length: 3m
View PDF brochure for SWAMP Premium 8-way XLR(f) to 1/4" Audio Snake Cable Loom - 3m
By: Mr. Peter knight on 29 March 2013
Great, does just what it should
(5)

Write a product review


MPN: M 8x YS136N 8x YS228 3m

SKU: M-8x-YS136N-8x-YS228-3m

ID: 31607
