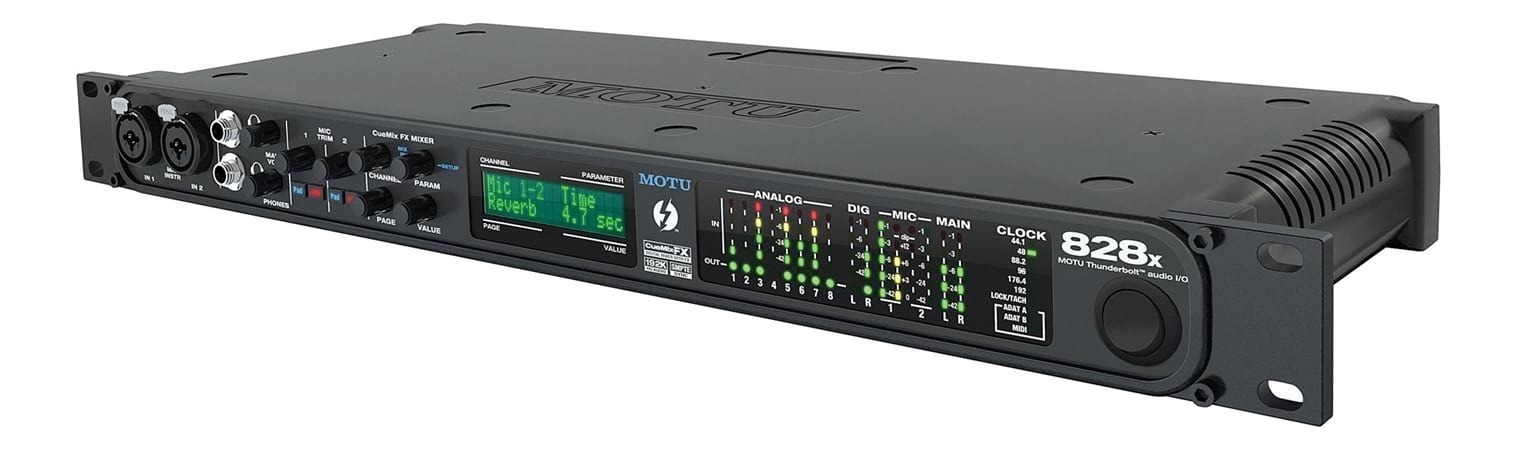

MOTU 828x - Audio Interface with Thunderbolt

High Performance, Lighting Fast Recording Interface
If you in the market for high performance audio interface with ultra low latency for multi-track recording, and you have a computer with a 'Thunderbolt' connection on your studio computer, the 828x is the interface for you. Thunderbolt connections allow for a level of performance previously only seen on PCIe interface systems. The in-built DSP gives you high quality reverb, EQ and compression on inputs, outputs and headphones mixers meaning even less strain for your computer's processor. All these features be controlled via an iPad using MOTU's CueMix software!

Thunderbolt technology - The future of connectivity
Thunderbolt fulfills the promise of a truly state-of-the-art connectivity standard for personal computers. With massive bandwidth, Thunderbolt allows you to connect displays, hard drives, and other peripherals to your computer, along with the 828x, up to six devices total (with the 828x at the end of the chain), and the Thunderbolt bus won't even break a sweat. Thunderbolt combines plug-and-play convenience with massive bandwidth and low latency for truly professional audio interface performance.

28 inputs and 30 outputs - How can one audio interface offer this much I/O?
We pack it in, like no one else can: two combo-style mic/guitar inputs with preamps, 8 balanced analog in/out, XLR main outs, 16 channels of ADAT optical (8 channels at 96 kHz), plus S/PDIF, word clock and MIDI. Connect all of your studio gear, including microphones, guitars, synths, keyboards, drum machines and even effects processors.

Recording up to 192 kHz - Audio quality without compromise
Now in its fifth generation, the 828 has become a benchmark for the industry, setting the bar by which others are judged. How has this level of respect been earned? Through consistent design

Studio-grade mic channels - Enjoy extras like sends and optional hardware limiting
Do you work with outboard EQs and compressors? Each 828x mic input offers a pre-converter send for mono or stereo mic channel outboard processing. The 828x's unique V-Limit™ hardware limiter employs a proprietary design to offer an additional 12 dB of headroom over digital zero with no digital clipping or harsh artifacts, for that added protection in dynamic recording situations. The 828x's preamps are clean and neutral, allowing you to use your favorite plug-ins and host software to color the sound just the way you want for each recording application.

On-board digital mixer with effects - Mixing and effects for monitoring and live mixing
Record, monitor, route and process all live inputs using the professional on-board CueMix FX digital mixer – with no latency and no processor strain on your computer. Apply DSP-driven compression, EQ and reverb to every input and output, independent of your host computer.

Stand-alone operation as a mixer - Go instantly from studio to stage
After programming the on-board mixing in the studio, unplug the 828x from the computer and take it on the road for operation as a stand-alone mixer with effects. All mixing and effects parameters are adjustable using the front panel backlit LCD.

Solid metal chassis - MOTU interfaces are built to last, and last, and last…
We still get calls and Facebook posts from happy users of the original 828, introduced more than 10 years ago! Like all MOTU interfaces, the 828x's aluminum alloy chassis is lightweight, yet incredibly sturdy and durable, and designed to withstand the rigors of the studio, stage, and road. In a world awash with cheap plastic, the cool feeling of the 828x's metal exterior in your hands is a reassuring reminder that you are holding quality engineering and construction.

Support for Mac OS X and Windows - Run all your favorite audio apps
The 828x provides time-tested drivers for Mac OS X and Windows (8, 7 and Vista) for cross-platform compatibility with virtually all audio software via WDM, ASIO, and Core Audio drivers.


  • Highly-flexible 28-in/30-out audio interface with Thunderbolt and USB connectivity
  • Easily manage complex routing configurations with CueMix FX software mixer
  • Built-in DSP gives you high-quality reverb, EQ, and compression on inputs, outputs, and headphone mixes
  • Can be used as a standalone mixer with complete front panel control
  • Separate XLR main outs and front-panel headphone jacks, each with independent volume control


Converters 24-bit
Sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
Analog inputs 2 x XLR/TRS combo-style mic/guitar inputs
8 x 1/4" TRS line inputs (balanced/unbalanced)
Analog outputs 2 x XLR balanced main out
8 x 1/4" balanced TRS line out
2 x 1/4" TRS stereo headphone
Digital I/O 16 channels of ADAT optical at 1x sample rates
8 channels of SMUX optical at 2x sample rates
2-channel TOSlink (optical S/PDIF) up to 96 kHz
2-channel RCA S/PDIF up to 96 kHz
Total I/O 28 inputs and 30 outputs at 1x sample rates
20 inputs and 22 outputs at 2x sample rates
10 inputs and 10 outputs at 4x sample rates
Computer I/O 1 x Thunderbolt (compatible with 1 and 2)
1 x USB 2.0 (compatible with 3.0)
Sync I/O 1 x SMPTE time code in (LTC)
1 x SMPTE time code out (LTC)
1 x word clock in
1 x word clock out
Headphone output 1 x 1/4" TRS stereo phone (assignable)
1 x 1/4" TRS stereo phone (mirrors main outs)
Phantom power 2 x individual +48V
Front panel 2 x XLR/TRS combo mic/guitar in
2 x 1/4" TRS phone
2 x digital rotary encoders • phone/main volume
2 x digital rotary encoders • mic trim
4 x switches • Pad and 48V Phantom
4 x digital rotary encoders for LCD control
2 x 16 character LCD
8 x 4-segment ladder LEDs • 1/4-inch analog in
8 x activity LED • 1/4-inch analog out
2 x 4-segment ladder LEDs • RCA S/PDIF in
2 x activity LED • RCA S/PDIF out
2 x 10-segment LEDs • mic in with V-Limit
2 x 5-segment ladder LEDs • main outs
6 x LED • sample rate indicator
1 x LED • LOCK/TACH indicator
2 x activity LEDs • optical bank A/B
1 x activity LED • MIDI in/out
1 x AC power switch
Power International 100-240V autoswitching supply
50-60 Hz • 20 Watts

PDF Manual
