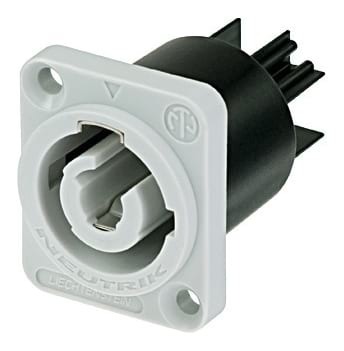

Neutrik NAC3MPB-1 powerCON® "Power OUT" Power Connector

$4.99
$5.30
In Stock

Neutrik's NAC3MPB is a lockable chassis connector, designed for use as the "Power Out" connector on a power cable chassis. Features 3/16'' flat tab terminals for simple cable creation and coloured grey to distinguish from Speakon cables.

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review

Neutrik's NAC3MPB is a lockable chassis connector, designed for use as the "Power Out" connector on a power cable chassis. Features 3/16'' flat tab terminals for simple cable creation and coloured grey to distinguish from Speakon cables.

Secure Locking Power Solution
The powerCON® is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON® is a connector without breaking capacity, i.e. the powerCON® should not be connected or disconnected under load or live!

Features:

  • Locking 20 A / 250 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety ground

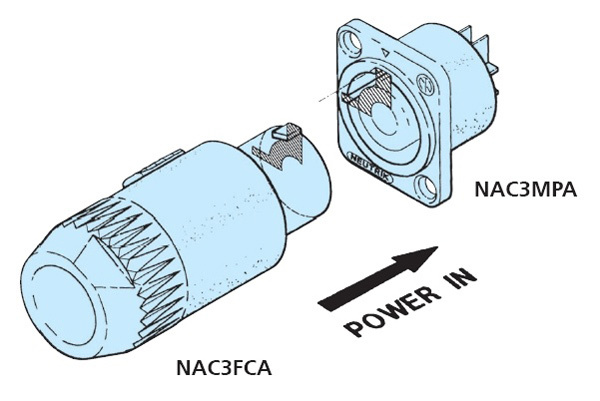

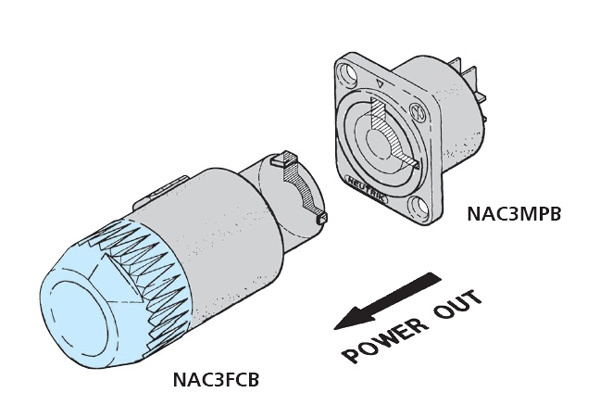

  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling
  • UL, cUL recognized components
  • VDE certified
  • SEV approved
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
  • Coding: A-type for power inlet (color coding blue)

Custom Label: NU-NAC3MPB-1

SKU: NU-NAC3MPB-1

Shipping Weight: 0.0400
