SWAMP Microphone Cable XLR(f) to 1/4" Mono

Useful when required to connect a balanced XLR output from a microphone to an unbalanced 1/4" input socket. Unbalanced 1/4" mic inputs are often found on home theatre and karaoke systems.

Cables

By: on 3 August 2016
The usual, TOP quality at unbeatable prices, from the Swamp team........................................................again \m/
(4)

Write a product review

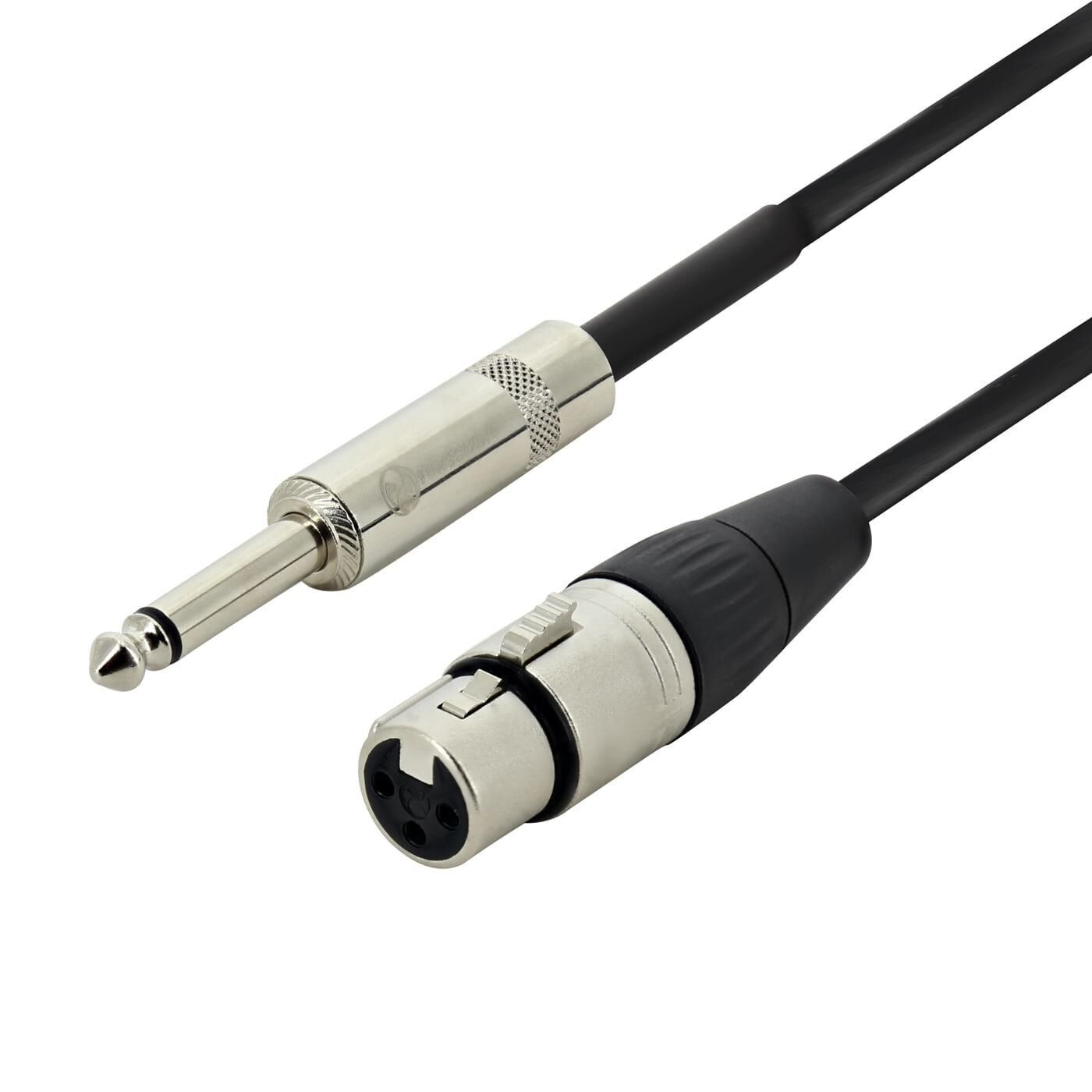

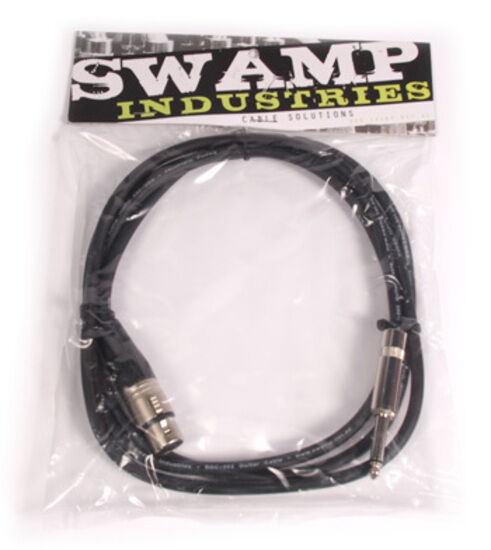

Swamp XLR(f) - 1/4" Mono / Unbalanced Microphone cable.

Unbalanced / Mono Mic Cables
Useful when required to connect a balanced XLR output from a microphone to an unbalanced 1/4" input socket. Unbalanced 1/4" mic inputs are often found on home theatre and karaoke systems.

Quality Connectors and cable
This cable features industry standard Yongsheng connectors. Suited for demanding usage in professional environments. Built using a thick 0.22mm2 oxygen free copper conductor with a thick spiral wrapped ground shield and encased in a tough outer jacket.

The end result is robust but flexible cable with excellent interference rejection, suited to live performance and general use.

Features:

  • Cable Core: 0.12mm*20(Conductor) + 0.12mm*50(Ground)
  • Conductor Gauge: 24 AWG / 0.22mm2
  • Connectors: 3pin XLR(f) to 1/4" / 6.35mm Mono/TS (Yongsheng YS136 and YS224)
  • Wiring: Pin3 bridged to Pin1 within XLR connector

Custom Label: YS136N YS224

SKU: YS136N-YS224

Shipping Weight: 0.1200
