SWAMP DI-48 Active DI Box - Pad, Thru, and Merge functions
Quality Active Direct Box

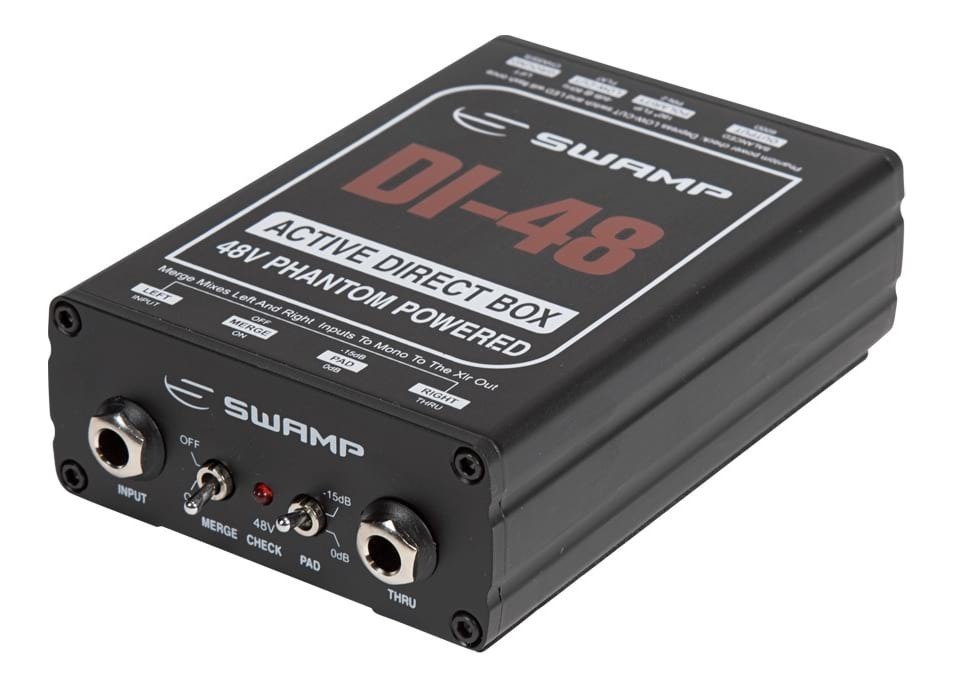

The SWAMP DI-48 Mono Direct Box (DI box) is a quality active direct box for transforming high-impedance (Hi-Z), unbalanced guitar/instrument outputs into low-impedance, balanced inputs. Requires 48V phantom power, usually supplied from a mixing desk.
When to use a active DI?
An active DI box utilises a buffering circuit that boosts the signal going to the balanced XLR output. Instruments that output a passive signal, with no internal buffer circuit (e.g. guitar with no battery) benefit most from using an active DI, ensuring a strong, clear signal that reaches the mixing desk. While instruments with higher outputs and internal buffers such as electronic keyboards and active basses are better suited to a passive DI.
Great for Acoustic Guitars
Most sound technicians will also prefer to use an active DI box on acoustic guitars, even though most acoustic guitar pick ups have built in volume control, the result gives extra presence and sparkle to the sound. The DI-48 is perfectly suited for use with acoustic guitars.
Pad, Polarity, Low Cut, Ground Lift , Link or Merge Outputs
The DI-48 has plenty of features, including a low cut to stop those rumbly frequencies coming through and a phase reverse. The link / thru output allow the musician to also connect to their regular stage amps as well as sending a signal to the mixing desk. Hit the Merge button and the Thru output becomes an input for occasions where you need two inputs for keyboard for example. Selectable pad settings will dampen hot signals and a ground lift switch for each channel can remove ground loop noises.
- Frequency Response: 10Hz-40
- Signal to Noise: [email protected]
- Maximum input: 10v
- Dynamic Range: 130db
- Linear Response: +/- 1db from 20Hz-20Khz
- Phase Coherence: 10deg @ 20Hz, 0 @ 1Khz
- Distortion: <.5%@20Hz
- Input Impedance: 220K Ohms
- Output Impedance: 600 Ohms
- Input: 1/4" Jack, Unbalanced
- Output: One XLR connectors, Balanced
- Link Output: 1/4" Jack, Unbalanced
- PAD switch: -15db
- Dimensions: 140x90x40 mm
- Ground Lift, Merge, Low Cut, Polarity Switches
- Rubber Feet Pad
Great value DI Box28 August 2017Very nice Di Box. The pad is perfect for recording with my interfaces preamp allowing a nice strong and dynamic recording without clipping, and it doesn't pad the output to the amp unlike my fender di box. The merge function is a nice feature though I don't have a use for it ATM. Same with polarity switch. The low cut is nice to for stomping on a heavy handed palm muting track. All these switches are short enough to not protrude out party the housing edges and feels very sturdy. Not as heavy as the radial boxes but I think they use still not aluminium housing. Totally recommend if you are looking for a great active DI box that wont break the bank and works like ones that do. Great work swamp and keep it up!
