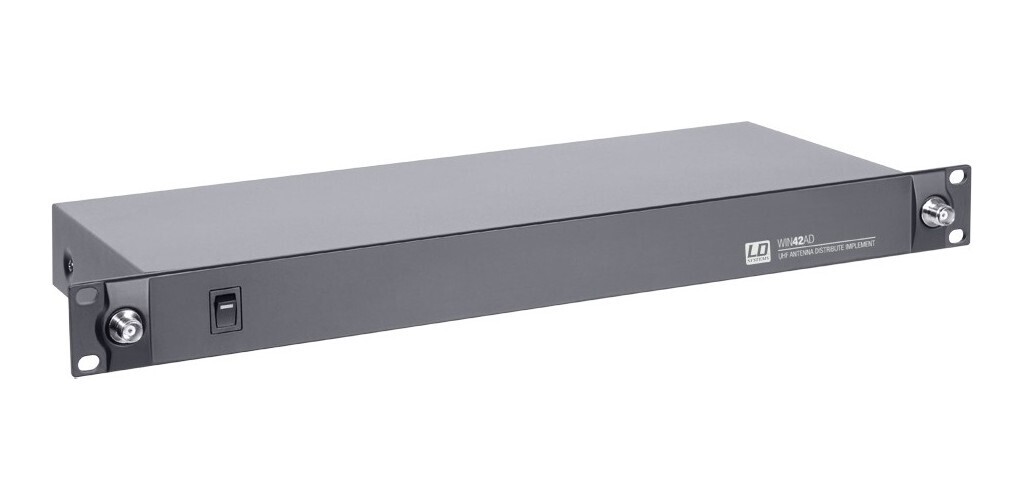

LD Systems LDWIN42AD Antenna Split Box 4-Way

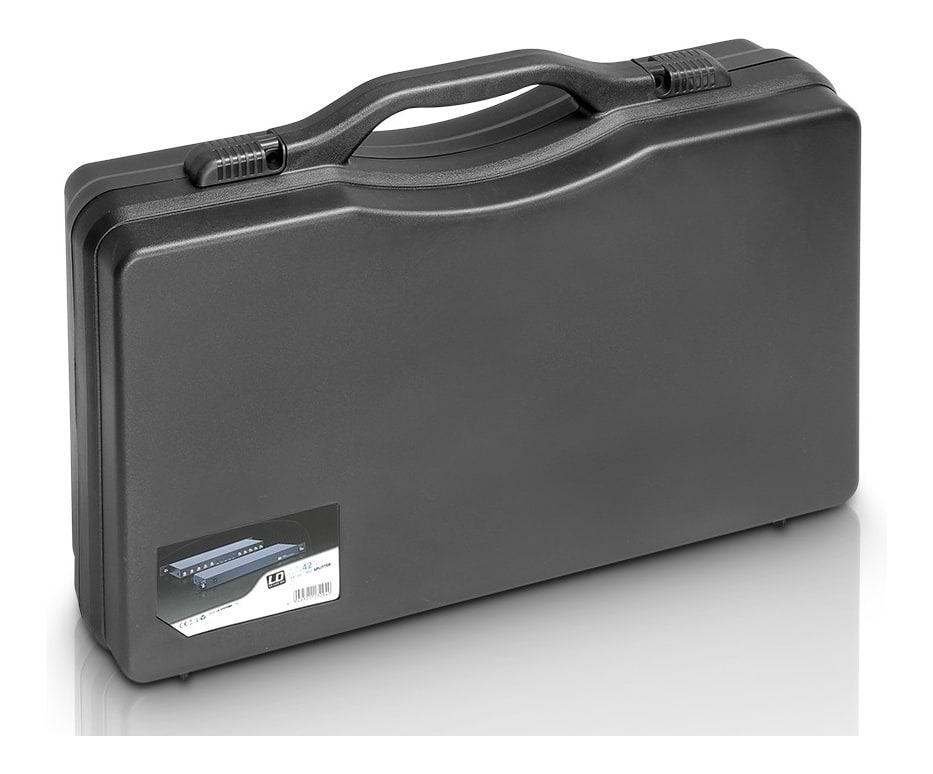

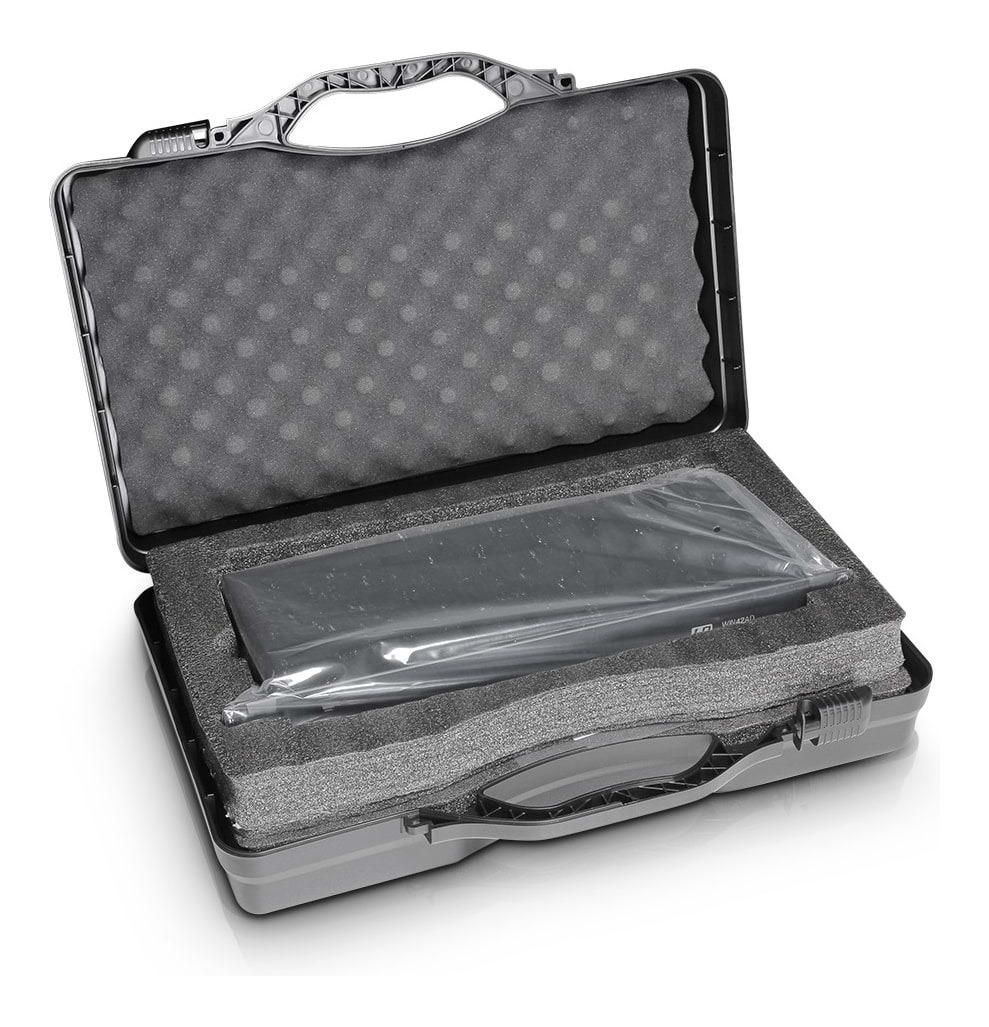

If you need a high performance antennae and power distribution system, which is also cost effective, then the WIN42AD by LD Systems is ideal. It works with all types of wireless systems, range is 500-900 MHz. Complete with aerial cables, in a hard case.
LD Systems LDWIN42AD Antenna Split Box 4-Way
If you need a high performance antennae and power distribution system, which is also cost effective, then the WIN42AD by LD Systems is ideal. It works with all types of wireless systems, range is 500-900 MHz. Complete with aerial cables, in a hard case.
Compatible with All Wireless Systems
The LD Systems LDWIN42AD Antenna Split Box 4 Way is engineered be LD Systems to work with all types of wireless microphone systems. Within a working in a range between 500 and 900MHz.
Features:
- Active antenna splitter for wireless microphone systems
- 500MHz to 900MHz ranges

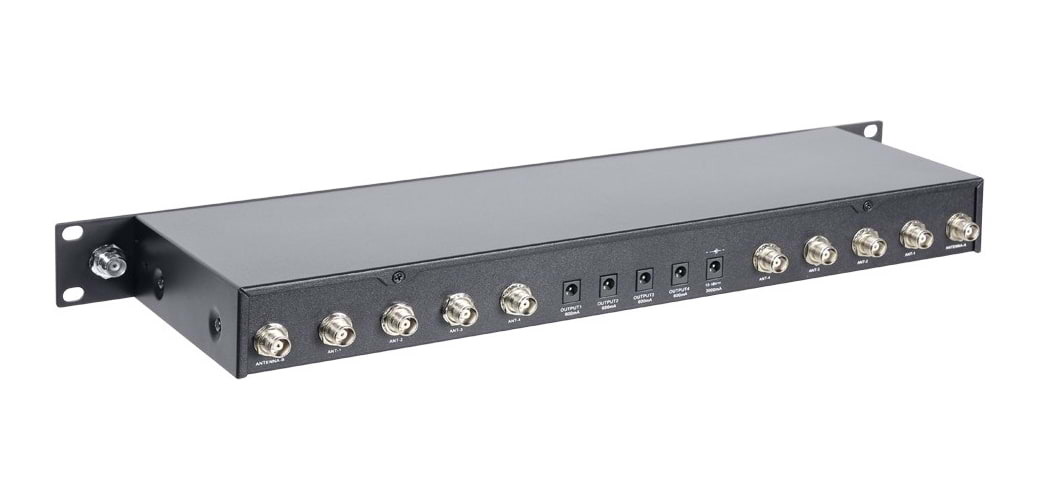

- 19″ rack-mountable design with front mounting antenna
- Supplied power for your compatible wireless receivers
- Supports up to 4 wireless microphones systems
Specifications:
- Product type: Wireless Microphone System Accessories
- Type: Antenna Splitter
- Frequency band: 500 – 900 MHz
- Frequency bandwidth: 400 MHz
- Signal gain: 3 dB
- Antenna inputs: 2
- Antenna input connection: TNC
- Input impedance: 50 Ohm(s)
- Power supply for antenna booster: 9 V
- Antenna outputs: 4 x 2
- Antenna output connection: TNC
- Output impedance: 50 Ohm(s)
- Power supply for radio receiver: 4 x 12 – 18 V DC V
- Operating voltage: 12 – 18 V DC, 3A
- Operating voltage: 12 V DC – 18 V DC (100 mA)
- Width: 482 mm
- Height: 44.4 mm
- Depth: 160 mm
- Weight: 4,8 kg

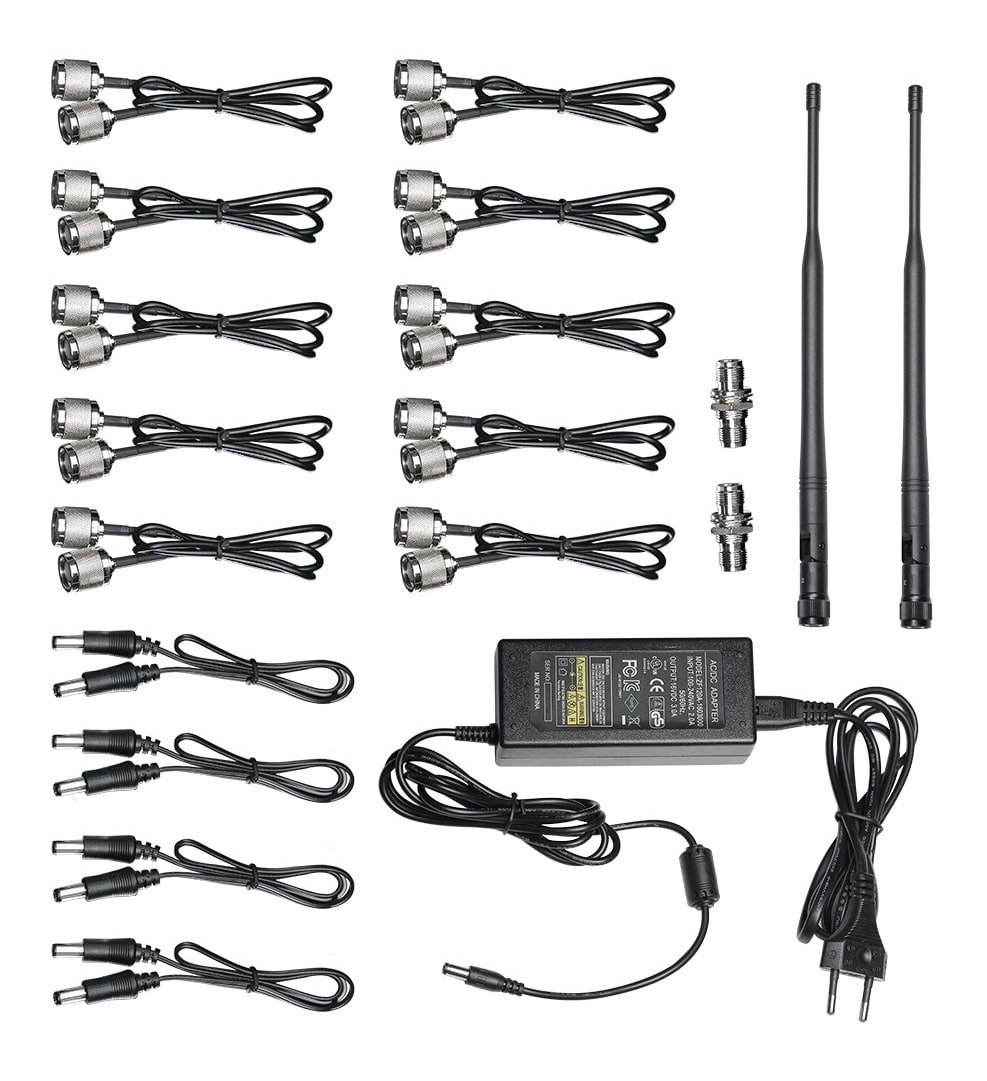

- Accessories (included): 10 x TNC cable, 0.5m , 2 x antenna , 2 x TNC adapter , 4 x DC cable, 0.5m , 4 x Output 600 mA , Plastic case , Power supply
