SWAMP 40 Channel Multipin Multicore Cable Monitor Split - 28 Sends + 12 Returns

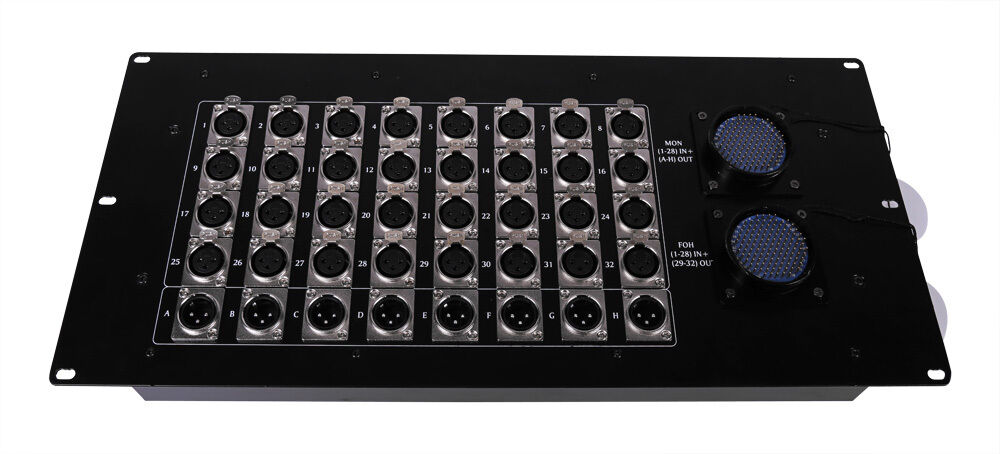

IMPORTANT: Channels 29 to 32 on the stagebox are 'return channel' for the 'Monitor Split'. The image contained on this page shows 4 return channels on the stagebox (Ch. 29-32) are XLR FEMALE, however this is the incorrect gender for a return channel. The product has been refurbished by our expert technician and now includes XLR MALE plugs on the stagebox for ALL return channels (29-32, A-H). The fan end is manufactured correctly. 1 year warranty Included.
SWAMP 40 channel Multicore Cable with 10m Monitor Split
Allows for 28 input channels to be split to both a FOH (front of house) and MON (monitor / side of stage) mixing desk. 4 FOH return channels (29-32 on the box) can carry the main output signals from the mixer back to the stagebox, while there are also 8 individual return channels (A-H on the box) on the 10m MON cable that can be used to carry the foldback / monitor signals.
19" Rack Mountable + Multi-pin Cable
Constructed in a robust metal stage box that's mountable in any 19" rack case or frame, taking up 4U of space. Featuring multi-pin connectors allowing for each tail to be disconnected after use. Allows for simplified set up and safely secures the unit during transport. A professional solution for touring applications.
FOH - Front of House Application
Instruments (DI Box) and microphones are plugged into the send inputs marked 1 to 28 on the stage box. All 28 XLR balanced inputs (sends) are sent through the main multicore cable, designed to be taken to a mixing desk directly in front of a stage. The cable also features 4 return channels for carrying the main mix signals from the FOH mixer back to the stage for connecting to power amplifiers and speakers.
MON - Side of Stage / Monitor Desk Application - 10m Cable
All 28 XLR balanced inputs (sends) are split inside the stage box and sent through the 10m multicore cable, designed to be taken to a mixing desk beside the stage. The 10m cable features 8 return channels, allowing for up to 8 individual monitor mixes to be sent back to the stage box for connecting to monitors / foldback speakers.
Why have a Monitor Mixing Desk Side of Stage?
Professional musicians require, or at least prefer to, receive there own individual monitor "mix" in their foldback speaker. Which is tweaked to include only instruments they need to hear to perform. These mixes are usually set up during sound check but often need to be "tweaked" throughout a show. Having the sound technician in close proximity to the musicians allows for simplified communication to adjust monitor mixes (AUX Channels) mid-performance.
Why Purchase a SWAMP Multicore?
Swamp has been designing and manufacturing analog multicores for over 7 years. Selecting quality connectors and dual layer foil + copper shielding for high quality balanced multicore cable, ensures a SWAMP multicore is noiseless, durable and reliable.
- 19 inch rack case mountable stage box (4U)
- High quality, locking multi-pin connectors
- 28 input (send) channels
- 12 output (return) channels
- FOH multicore cable tail
- 10m MON multicore cable tail
- Cable Conductors: 0.15mm*7*2 (Bare Cooper Conductors)
- Cable Shield: 0.15mm*7 (Tinned Copper - Ground) + Aluminum Foil Shield
- Inner cotton filler
- Polyethylene insulated conductors
- Outer Diameter: 29mm OD
Custom Label: SBL74-A
Shipping Weight: 38.0100
