SWAMP 5pin DMX Cable 110 ohm - Dual Shielded - Per Meter

$2.09
In Stock

Swamp 5pin "Digital Lighting" DMX cable is designed to carry the DMX512 digital data protocol, commonly used for stage lighting and effects equipment such as digital light controllers, consoles, dimmers, lasers and fog machines.

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review

1 Meter of Swamp 5 pin DMX Cable- 110 ohm Dual Shielded.
Swamp 5pin "Digital Lighting" DMX cable is designed to carry the DMX512 digital data protocol, commonly used for stage lighting and effects equipment such as digital light controllers, consoles, dimmers, lasers and fog machines.

110ohm cable - Dual Shielded

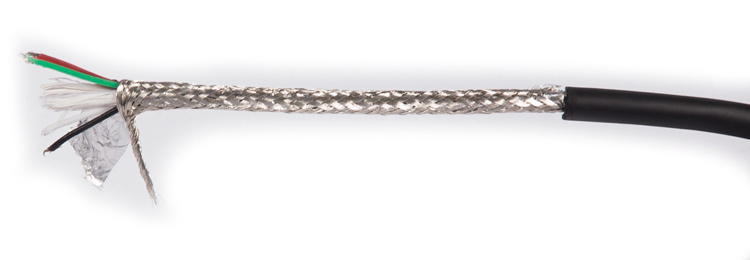

Built from 110-ohm rated, thick 22AWG OFC copper conductors suited to carrying DMX (DMX512) digital signals. An outer BRAIDED copper shield plus inner aluminum FOIL shielding around the conductors cores ensures signal integrity and eliminates RFI and EMI interference which can result in DMX errors.

5-pin DMX Cables
Standard DMX512 protocol specifies each cable should have "two twisted pair data paths", meaning 4 conductors + 1 ground, with 5-pin connectors. Though often only a single twisted pair (2 conductors) are utilised by DMX512 equipment, so often manufacturers have opted for 3pin XLR sockets to enable the use or regular mic cables. This has downfalls, as many mic cables do not have the shielding capabilities of rejecting interference, only "braided" shield microphones are really suitable for DMX512 signals.

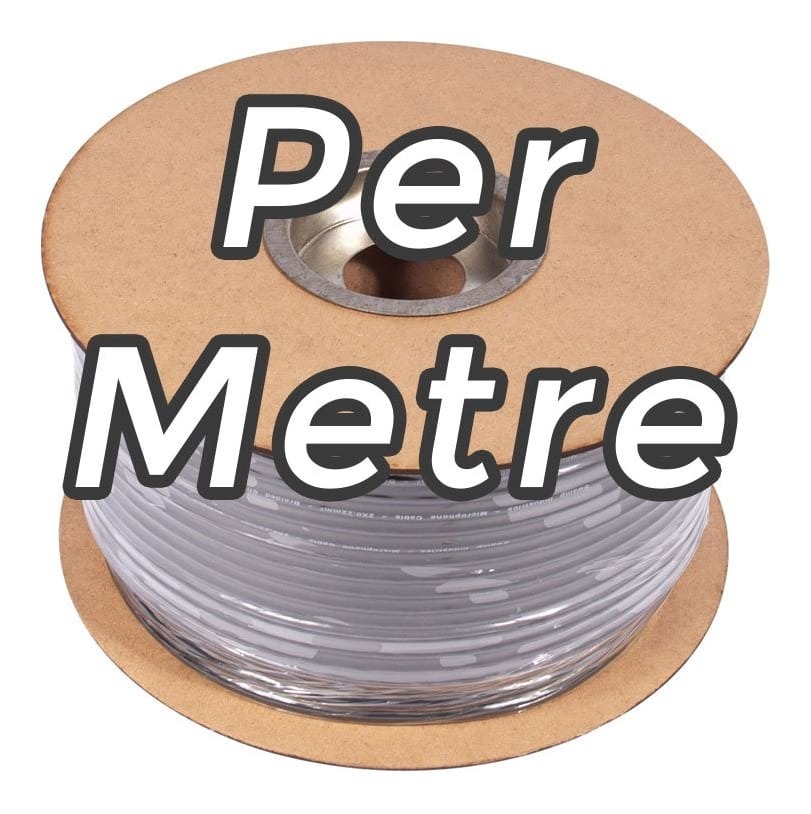

How do I order 10m (meters) of cable?
Simply enter a QTY of 10 and we will ship a 10m length of cable.
Enter a QTY of 20 and we will ship a 20m length of cable, etc.

Features:

  • Length: 1m
  • Conductor Cores: 4x (0.15*19) - 22AWG (thick)
  • Ground Core: Braided (16*8*0.12)
  • Extra shield: Aluminum Foil
  • Cable Colour: Black
  • Outer Diameter: 7.5mm
  • Per Metre Length

Custom Label: DMX010-5p-1m

SKU: DMX010-5p-1m

Shipping Weight: 0.0600
