Zoom B3n | Bass Effects Pedal And Amp Simulator | SWAMP

Zoom

ZOOM B3n Bass Effects Pedal And Amp Simulator

$369.00
  In Stock
Found a better Price? Price match now
or interest free for up to 6 months with
-
+

The Zoom B3n bass pedal with effects and amp simulators allows you to make your own unique bass sound, thanks to the many stompbox effects and amp simulators suitable for either in the studio or on the road.

Dispatch

ZOOM B3n Bass Pedal
The Zoom B3n is a bass pedal that stands out from the crowd, allowing you to make your own unique sound. It has tons of stompbox effects and amp simulators that you can use either in the studio or during a concert. And you can still adjust your stored effects after the initial setup.

67 Built-In Stompbox Effects for Monster Tone
The B3n is pre-loaded with 67 high-quality stompbox DSP effects, including 19 dynamics and filter effects, 15 overdrive and distortion effects, 17 modulation effects, 11 delay and reverb effects and more.

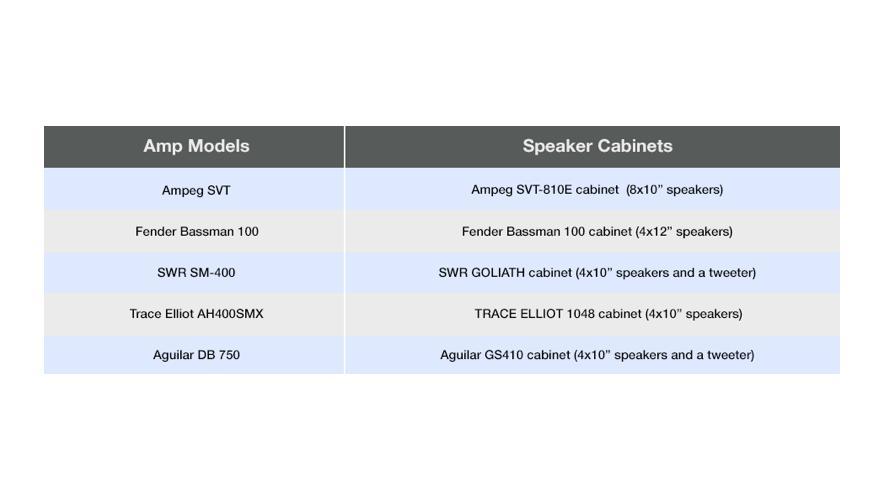

Faithful Bass Amp and Cabinet Emulations
The B3n’s newly created emulations include five classic bass amps and five matching cabinets that have been modeled to sound and respond like the real thing. To adjust the sound of each model, simply use the B3n’s parameter knobs just as you would with analog gear.

Create Custom Effects Chains
Chain up to seven effects, amps, and cabinets together simultaneously in any order you like to experiment with and create new sounds. You can also store up to 150 of your custom effects chains as patches.

Master Your Sound

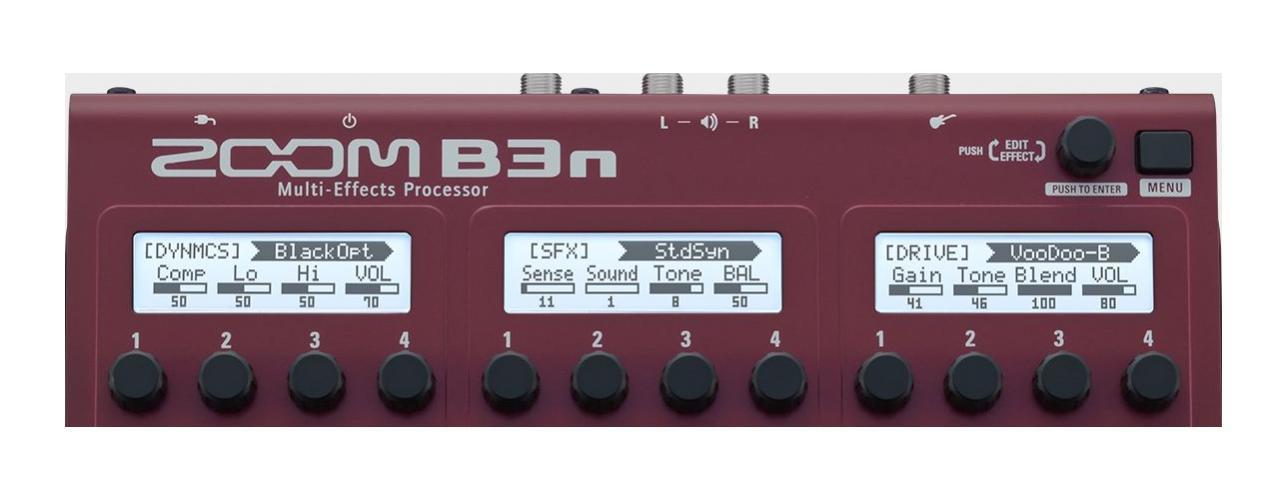

The B3n’s simple layout and controls make for faster and more intuitive editing. Its three independent LCD screens display your entire effects chain at a glance, and its tactile knobs and switches give you effortless control over adding, editing, deleting, or changing the order of effects.

Just Plug It In and Play
There’s no complex setup with the B3n—just plug in and start playing. Thanks to its 68 built-in rhythm patterns, the B3n is great for both practice and solo performances. With the onboard looper, you can record and overdub phrases up to 80 seconds long, creating textured layers of sounds using the effects of your choice.

The looper, rhythm patterns, and delay effects can all be synchronized using a tap tempo function. And a built-in chromatic tuner lets you bypass the currently selected patch while tuning, or mute the signal altogether.

Connect, Perform, and Record

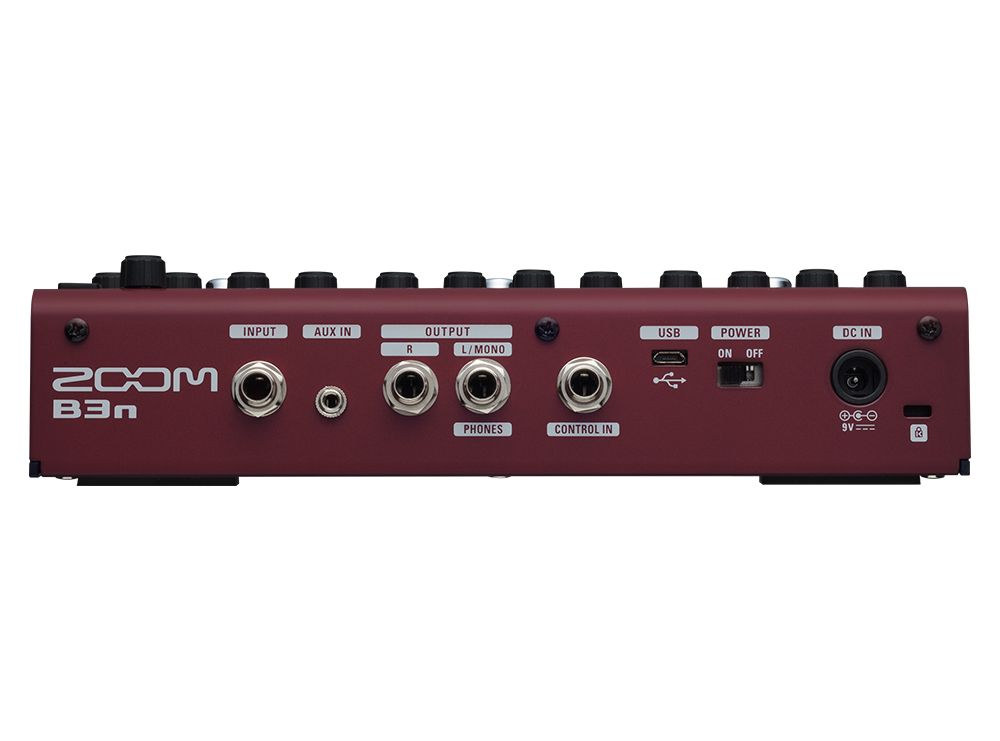

It’s easy to integrate the B3n into any live performance or studio rig. In addition to a standard 1/4" input, there's an auxiliary 1/8" stereo input for connecting smartphones or music players. There’s also a dedicated headphone jack for practice, and dual outputs for mono or stereo L/R connection to bass amps, PA systems, and audio interfaces. Add the ZOOM FP02M expression pedal via the dedicated control input for real-time control over effects parameters.

ZOOM Guitar Lab Software
Our free ZOOM Guitar Lab Mac/Windows software lets you to manage your patches and download new effects and amp/cabinet emulators via a USB connection to your B3n. It includes both a Patch Manager for effects chains and an Effects Manager, with a simple graphic user interface that provides point-and-click control over re-naming or re-ordering your custom patches.

Features:

  • 67 high-quality stompbox DSP effects
  • 5 amp emulators plus 5 cabinet emulators
  • Free ZOOM Guitar Lab Mac/Windows software
  • allows for downloading of additional effects
  • and patch management
  • Use up to 7 effects simultaneously, chained
  • together in any order
  • 3 stompbox switches allow effects to instantly
  • be brought in and out
  • Intuitive user interface with 3 independent
  • editing displays
  • Onboard chromatic tuner with dedicated footswitch
  • supports all standard bass tunings, including open
  • and drop tunings (tuner range of 435 - 445 Hz)
  • Stereo/mono looper allows recording of up to
  • 80 seconds of phrase recording
  • 68 built-in rhythm patterns that can be used in
  • conjunction with the looper
  • Tap Tempo with dedicated footswitch
  • Auxiliary stereo input jack for connection of
  • smartphones and music players
  • Dual output jacks for connection to bass amps
  • and mono or stereo PA systems
  • Dedicated stereo headphone output
  • Control input for ZOOM FP02M external
  • expression pedal

Specifications:


Effect types:

80
(70 DSP effects, 5 amp emulators, 5 cabinet emulators)

Number of simultaneous effects:

7

Number of user banks/patches:

150

Sampling frequency:

44.1 kHz

A/D conversion:

24-bit with 128x oversampling

D/A conversion :

24-bit with 128x oversampling

Signal processing :

32-bit

Frequency characteristics :

20 – 20 kHz +1 dB, -3 dB (10 kΩ load)

Display:

128 x 32 dot-matrix LCD (x3)

INPUTS
INPUTS:

Standard monaural phone jack
Rated input level: -20 dBu
Input impedance (line): 470 kΩ

AUX IN:

Stereo mini jack (3.5 mm)
Rated input level: -10 dBu
Input impedance (line) : 10 kΩ

OUTPUTS
Output R:

Standard monaural phone jack

Maximum output level:

Line +5 dBm
(with output load impedance of 10 kΩ or more)

L/Mono/Phone:

Standard stereo phone jack
(combined line/headphone)

Maximum output level:

Line +5 dBm
(with output load impedance of 10 kΩ or more)
Headphones 15 mW + 15 mW (into 32 Ω load)


Equivalent input noise:

-119 dBu

Noise floor (residual noise) :

-100 dBu

Control input:

Zoom FP02M

Power:

AC adapter DC9V (center minus plug), 500 mA
(ZOOM AD-16)

USB:

USB MIDI  USB Micro-B

Dimensions:

181 mm (D) X 234 mm (W) X 58 mm (H)
7.1 in (D) X 9.2 in (W) X 2.2 in (H)

Weight:

1.28 kg / 2.8 lbs



* 0 dBm=0.775 Vrms

View PDF brochure for ZOOM B3n Bass Effects Pedal And Amp Simulator
