MOEN Regulated 9v AC Adapter + Daisy Chain + Accessories Pack
By: Matthew Morgan on 3 January 2014This is a nice little package to get if you have multiple pedals. It's helps a lot only having to power it off of one Outlet for 5 pedals instead of 5. The battery clip adapter is probably my favorite as of now. It's just so nice being able to have the choice of the 1/8" or battery clip power and i have noticed different tones when using one or the other, so mixing it up is fun

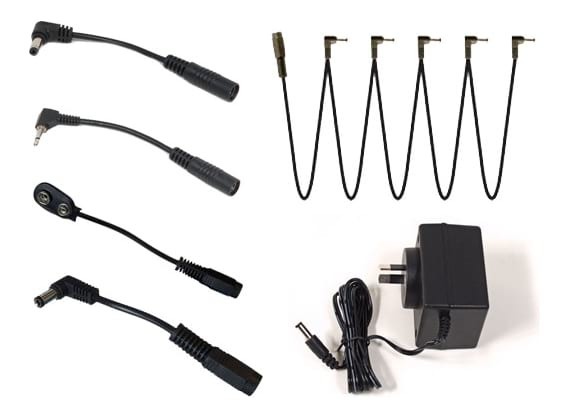

The MOEN regulated 9v AC adapter w/ daisy chain + accessories pack comes with everything you need to power just about anything that has a 9v DC power input. And with the 5 plug daisy chain included, it can power your entire pedal board from just a single AC adapter. Eliminating the need for expensive batteries.
- MOEN regulated 9v AC adapter
- 5 plug daisy chain
- MOEN battery clip converter
- MOEN polarity converter
- MOEN 3.5mm converter
- MOEN Line 6 converter
The 5 plug daisy chain connects to the end of the AC adapter plug and branches out into 5 individual plugs allowing the adapter to power 5 guitar effect pedals.
The AC adapter and daisy chain plug size is the common size found on guitar effect pedals (2.1mm ID x 5.5mm OD), suiting almost all brands including Boss, Daphon, Vox and Behringer.
Just make sure the total current draw of your 5 pedals does not exceed the 500mA outputted by the AC adapter. Most pedals draw between 5 and 40mA each(40mA x 5 =200mA). Though a wah-wah pedal can draw a lot more. No damage is done if the total current draw exceed that of the AC adapter, just pedals at the end of the chain may not get power.
The MOEN Line 6 converter allows a standard effect pedal 9v AC adaptor / power supply (2.1mm ID, 5.5mm OD plug, negative center) to power Line 6 devices. Useful when Line 6 pedals are combined in a setup with other brands, using standard 9v adapters.
The MOEN 3.5mm converter allows a standard effect pedal 9v AC adaptor / power supply (2.1mm ID, 5.5mm OD plug, negative center) to power devices accepting a 3.5mm / 1/8". 3.5mm plugs are most commonly found on Electro-Harmonix and older guitar effects.
The MOEN battery clip converter allows a standard effect pedal 9v AC adaptor / power supply (2.1mm ID, 5.5mm OD plug, negative center) to power anything that runs on a 9V battery. Useful for powering pedals with odd power plugs that also can run of battery, eliminating the need for an extra AC adapter.
The MOEN polarity converter allows a standard effect pedal 9v AC adapter adaptor (2.1mm ID, 5.5mm OD plug, negative center) to power pedals requiring a positive center plug. Useful for odd pedals requiring a positive center plug, eliminating the need for an extra AC adapter.
- Regulated 9v DC output
- 2.1mm (ID) x 5.5mm (OD) plug with "negative center" polarity
- 500mA current (can power ~10 guitar pedals at once. Using 2 daisy chains together)
- Works for MOEN, Daphon, Boss and Behringer pedals
- Cord Length: 2m (2 meters)
