  • Cable Techniques CT-BX3FL-K Low-Profile Right Angle Female XLR Connector - Black

    B-Shell, Large Cap

    $15.99
    Sold Out
    Contact us for an ETA
    Buy In Bulk & Save!
    Buy 2 to 10: Pay $15.33
    Buy 11 to 19: Pay $14.73
    Buy 20 or more: Pay $14.17
    Quantity

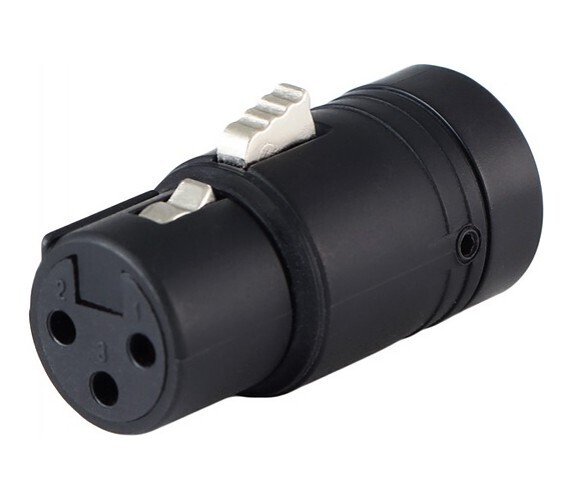

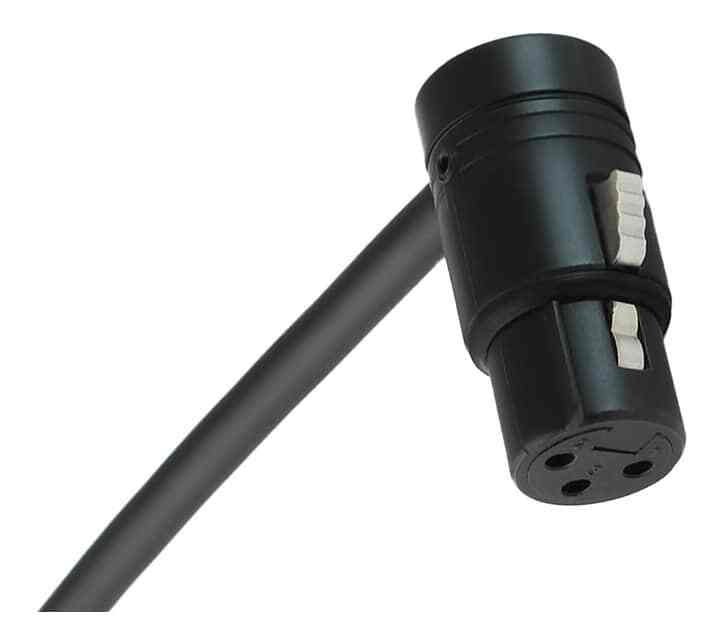

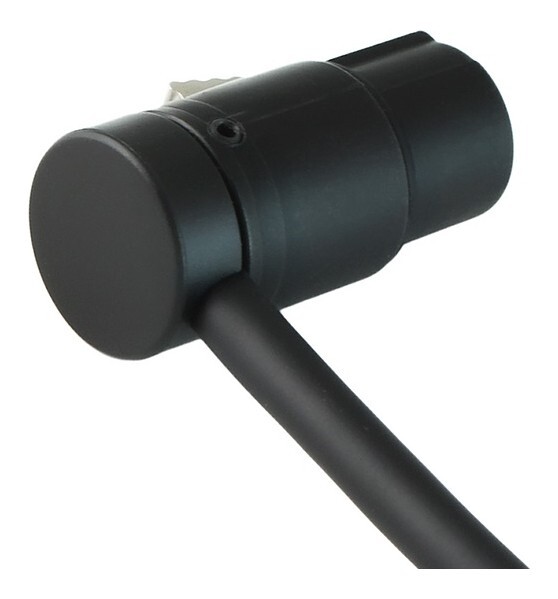

    The Cable Techniques CT-BX3F-K is a low profile, right angle female XLR 3-pin connector, allowing you to have a cable exiting 120 degrees at around 3 o'clock or 9 o'clock. Matte black shell, gold pins. Black cap colour. Accepts cable diameters up to 6mm.

    Cable Techniques CT-BX3FL-K Low-Profile Right Angle Female XLR Connector - Black
    The Cable Techniques CT-BX3F-K is a low profile, right angle female XLR 3-pin connector, allowing you to have a cable exiting 120 degrees at around 3 o'clock or 9 o'clock. Matte black shell, gold pins. Black cap colour. The large cap accepts cable diameters from 3.8mm to 6mm.

    Available in 10 optional interchangeable Cap colours: Black, Red, Blue, Green, Yellow, Orange, White, Gray, Purple and Brown.

    The supplied large cap is compatible with super popular Mogami W2549, W2534, W2893, W2552, Canare L-4E6S and many more.

    Included Components:

    • 1x Shell
    • 1x 3-pin Insert
    • 2x set screws
    • 1x zip-tie
    • 1x colour cap

    Specifications:

    Termination Style Solder
    Contact Material Bronze B shell
    RoHS Yes
    Cable Outlet Diameter +/- 5.8mm, 6mm MAX
    Shell Zinc Diecast
    Voltage Rating 50V
    Current Rating 10A
    Weight 34g
    Dimensions 37mm x 19mm x 19mm w/ Cap
    In-Use Length 25mm exposed length in-use
    Set Screw Hex Size 1.5mm
    Set Screw Material Anodized Stainless Steel
    Cap Angle Adjust 60° to 120° and 240° to 300°
    Plastic Cap Material Molded ABS thermoplastic
    Shell Colour Black
    Life >1,000 operations
    Thermal Range -50°C to + 80°C
    View PDF brochure for Cable Techniques CT-BX3FL-K Low-Profile Right Angle Female XLR Connector - Black
