JOYO JBA-70 Compact Bass Guitar Amplifier - 70W


JOYO JBA-70 Compact Bass Guitar Amplifier - 70W

12" Speaker

  In Stock
Found a better Price? Price match now
or interest free for up to 6 months with

The JOYO JBA series offer a great sounding, portable solution for all kinds of bass musicians.


JOYO JBA-70 - 70W Bass Guitar Combo Amplifier
The JOYO JBA series offer a great sounding, portable solution for all kinds of bass musicians. The JBA-70 comes with a 7-band graphic equalizer to achieve that ideal tone, a headphone input for quiet practices, and you can even play along to your own music with the auxiliary/CD input. Speaker and direct outputs as well as an effects send and return open up the possibilities for any type of music and any level of playing skill.

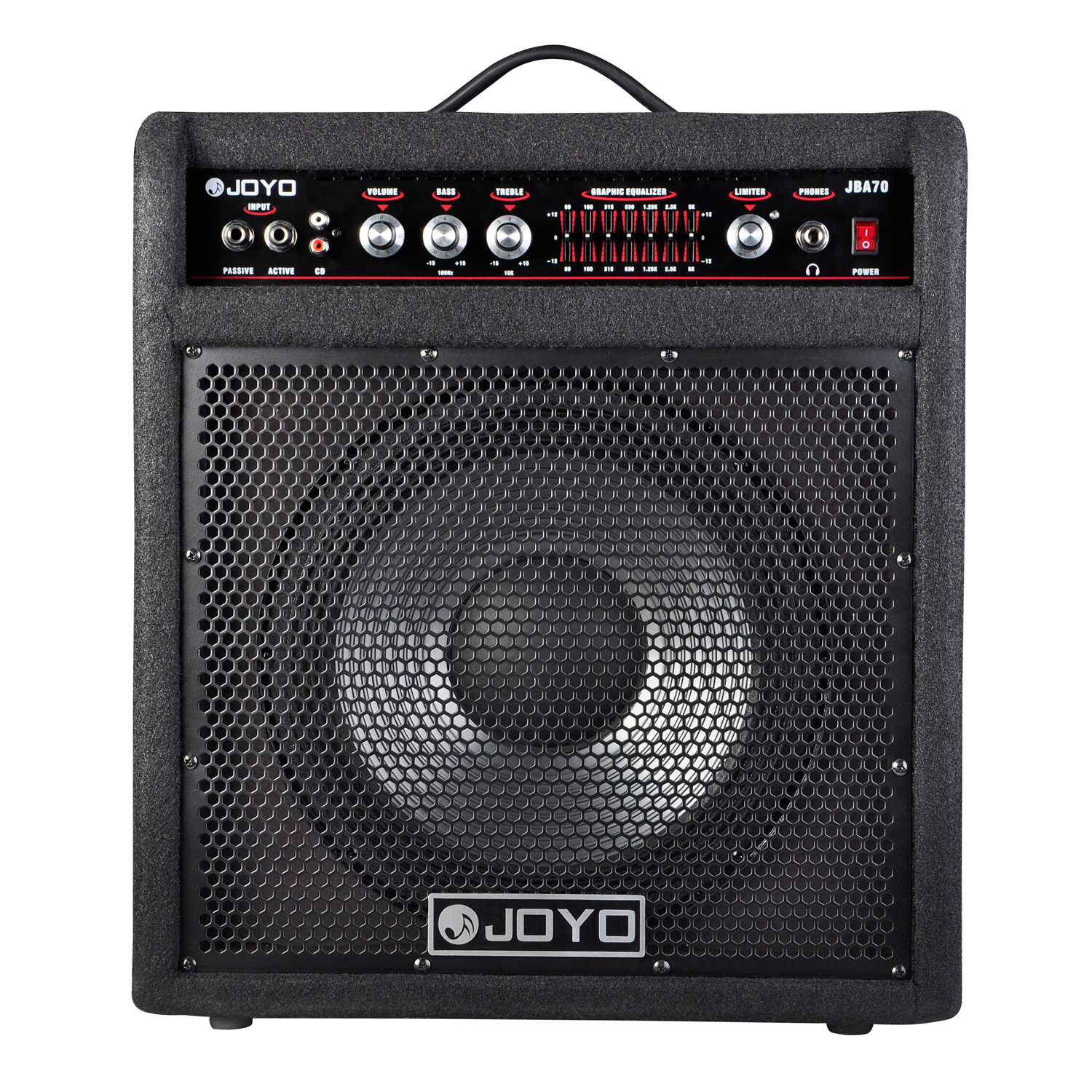

Onboard Graphic EQ
To add to the large list of features, the JBA-70 comes with a 7-band EQ, ranging from 80Hz to 5kHz. Easily create your own perfect tone by making fine adjustments, and further boost these with the separate bass and treble controls.

Auxiliary, Headphones and More!
Featured on the JBA-70 are a huge number of inputs and outputs - making this the ideal go-to amp. On the front, the auxiliary/CD input allows you to connect up any phone, iPod or external music source, so you can play along with your favourite songs, or even your own backing tracks. The headphone input is great for when you need to keep the noise down, and for late night at home practices.

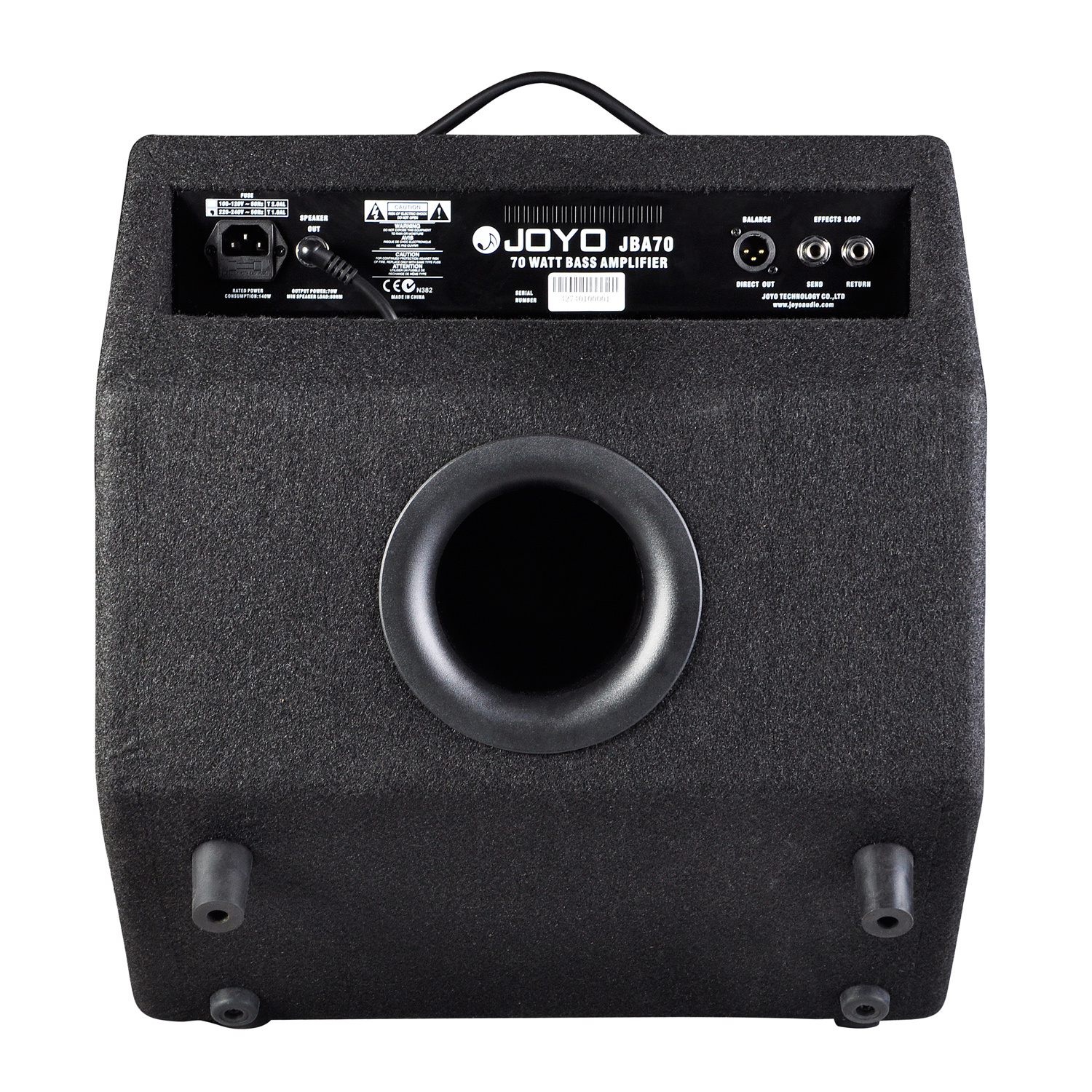

On The Back
The JOYO JBA-70 has even more features on the back: effects loop, direct output and speaker output. The effects loop is great for those who have a number of effects - patch your pedals directly in for a different sound. The amplifier itself can be connected to other speakers through the rear speaker output. You can also directly feed the amplifier into another source using the direct output. Perfect for connecting to a mixer in a live situation. The large rear bass port increases the efficiency of your low frequencies, giving you that floor-rumbling thump.

Portable and Perfect For Any Situation

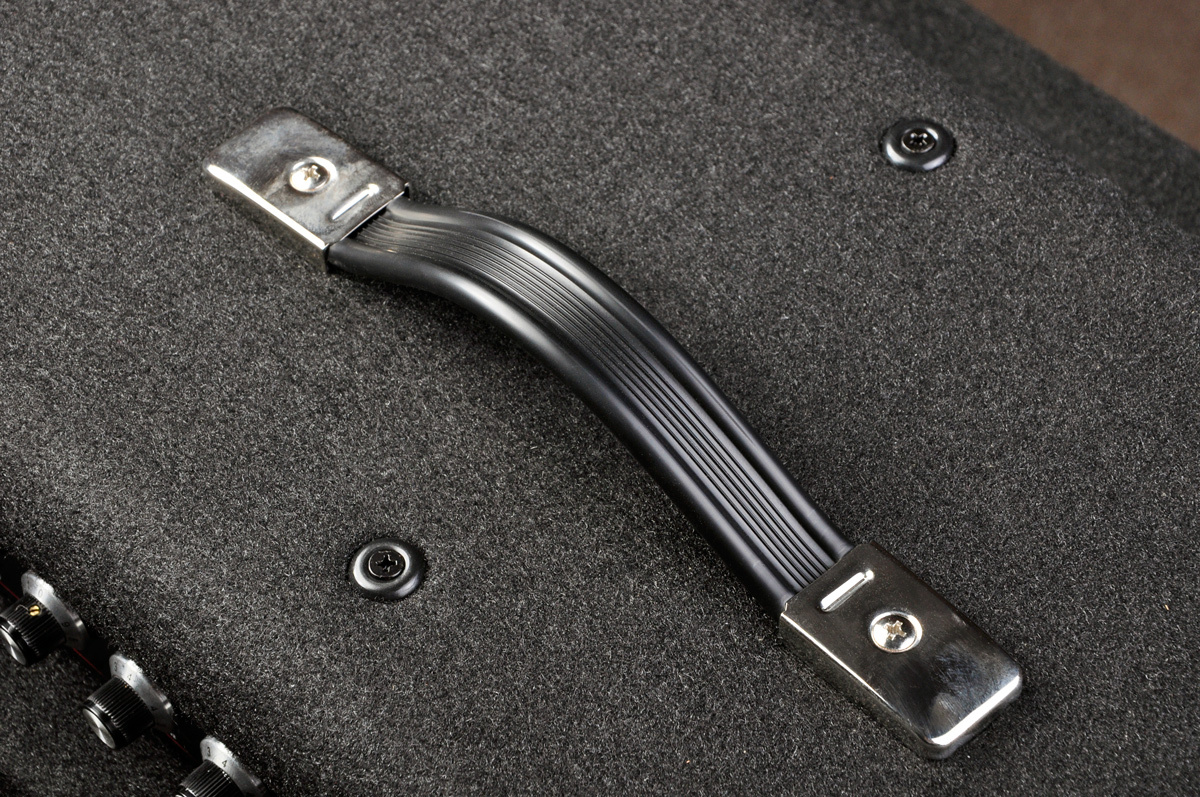

JOYO have designed the JBA-70 to be easy to use, move and hear. The angled tilt design allows the user to lean the amp back, directing the sound higher so it can better be heard while practicing. The top mounted carry handle makes this amp easily portable, so you can transport the JBA-70 with no hassle at all.


  • Bass and Treble Contols, with a 7-Band Graphic EQ
  • Volume and Limiter Control Knobs
  • Limiter Indication Light

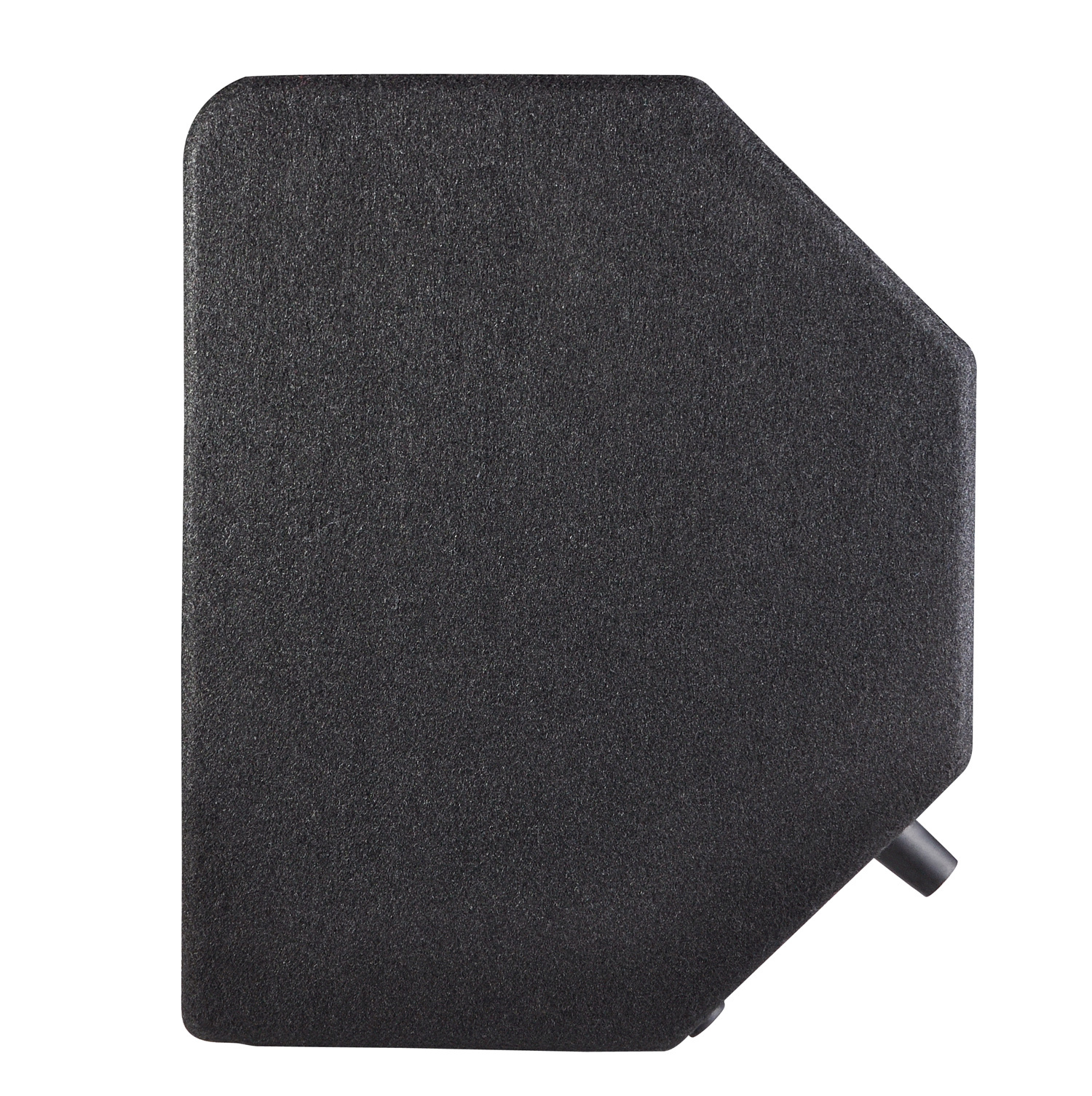

  • Angled Tilt Design
  • Top Mounted Carry Handle


  • Model: JBA-70
  • Speaker Size: 12"
  • Active/Passive Instrument Inputs: 1/4" (6.36mm) TS
  • Headphone Input: 1/4" (6.35mm) TRS stereo
  • Auxiliary: 2x RCA
  • Effects Send/Return: 1/4" (6.35mm) TS
  • Direct Output: XLR(m)
  • Rated output power: 70W (@ 1kHz, 8ohm, 5% THD)
  • Rated input level (@1kHz):
    • Passive: -20dBu
    • Active: -10dBu
  • Total Harmonic Distortion: 0.3% (@ 1dB, 1kHz)
  • Signal to noise ratio: 65dB (@1dB, 1kHz)
  • Dynamic range: 64dB (Rated output @1kHz)
  • Signal gain:
    • Input to direct out: -20dB
    • Input to preamp out: +20dB
    • Input to speaker out: +50dB
  • Equalizer:
    • Base (100Hz): +/-15dB
    • Treble (10kHz): +/-15dB
  • Graphic EQ (+/-12dB): 80Hz, 160Hz, 315Hz, 630Hz, 1.25kHz, 2.5kHz, 5kHz
  • Headphone output: 500mW @600 ohms
  • Dimensions: 435 x 390 x 495mm
  • Weight: 21kg
View PDF brochure for JOYO JBA-70 Compact Bass Guitar Amplifier - 70W
