NUX NDS5 Fireman Dual Channel Distortion Effects Pedal
NUX NDS5 Verdugo Series Fireman Dual Channel Distortion Effects Pedal

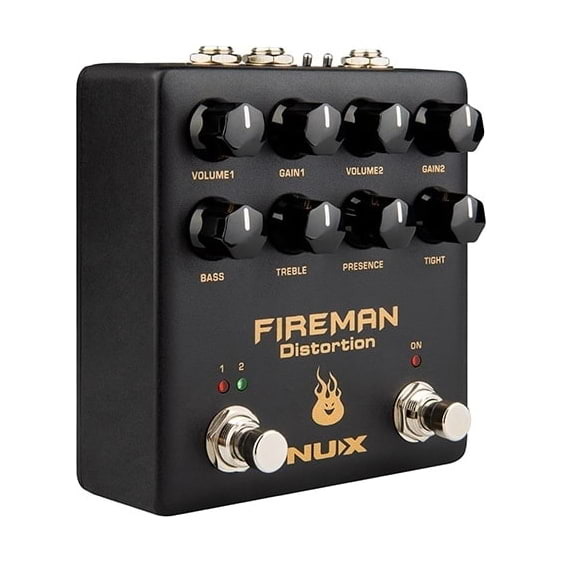

The NUX Fireman is built on a very amp-like distortion pedal with inspired "Brown Sound". It is designed with 2 independent volume and gain control knobs. With its presence, low, high EQ, and "tight" controls, you can go from classic rock to metal tones.
Brown Sound Tone
The Fireman is based on the legendary amplifier builder's famous distortion pedal. It offers a True-bypass / Buffer-bypass toggle switch, and a 9V / 18V toggle switch. The 18V position doubles the working voltage inside to give you wider dynamic range. The buffered/true bypass setting is actually a great addition to the circuit as it can help conserve your tone through a long cable or crowded pedalboard on stage or at home. This is a very gig-friendly pedal with the tough enclosure and design, certainly recommended for the active guitar player, for playing live shows and jamming.

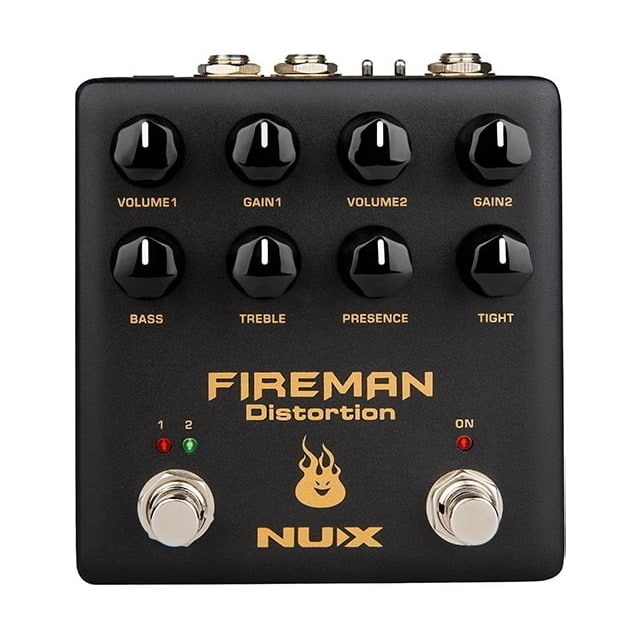

- BASS: Adjusts the low-end response of distortion sound
- TREBLE: Adjusts the high-end response of distortion sound
- PRESENCE: Adjusts the ultra-high-end frequency of distortion sound
- TIGHT: Shapes the low frequency content. ( Turn it down to tighten the sound.)
- VOLUME1: Adjusts the output level while in Channel1
- GAIN1: Adjusts the distortion situation of the sound while in Channel1
- VOLUME2: Adjusts the output level while in Channel2
- GAIN2: Adjusts the distortion range of the sound while in Channel2
- 1/2 Foot-switch: Chooses the current Channel for 1 or 2
- ON Foot-switch: Engages or disengages the distortion sound

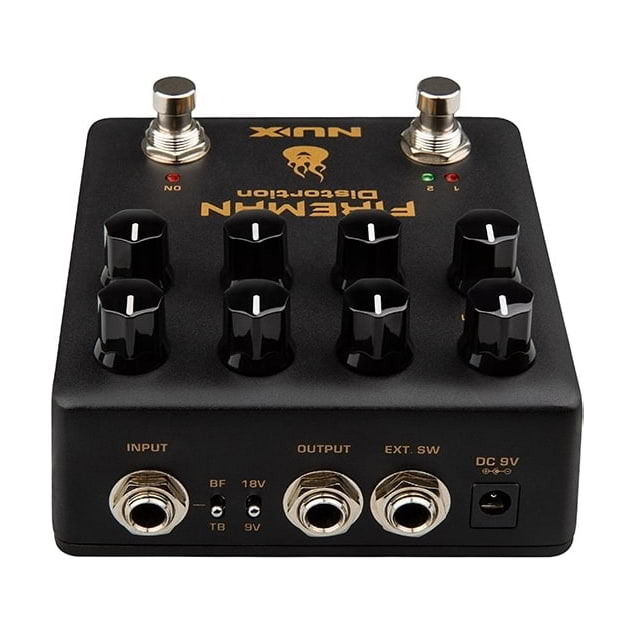

Input and Output
- INPUT: Connects with your guitar or the signal from guitar side
- OUTPUT: Connects with the amplifier or to the amp side
- EXT. SW: Connects with TRS dual foot-switches to replace the 2 foot-switches function on the pedal
- BF/TB Toggle Switch: BF means Buffer-bypass, TB means True-bypass
- 18V / 9V Toggle Switch: The pedal uses 9V power, you can choose 18V position to double the working voltage inside to get wider dynamic range
- DC Jack: Connects with 9V Negative Tip power with 100ma adaptor
- Modern Brown Sound in a box
- True-bypass / Buffer-bypass toggle switch
- 18V / 9V toggle switch to get different dynamic range
- 2 independent GAIN, VOLUME knobs for rhythm / solo application.
- Frequency Response: 20Hz~20kHz-±1dB
- Input Impedance: 2.2MΩ
- Output Impedance: 1MΩ
- Power Supply: 9V DC, Negative Tip (ACD-006A)
- Dimensions: 105mm(L) x 115mm(W) x 58mm(H)
- Weight: 460g
