Pasgao PR-51R Bodypack Wireless Receiver for PV70

Pasgao

Pasgao PR-51R Bodypack Wireless Receiver for PV70

$209.99
  Sold Out
or interest free for up to 6 months with
Contact us for an ETA

The Pasgao PR-51R is a a receiver unit which can be added to the PV70 transmitter / receiver solution. If using it as an in-ear monitoring system, or for setting up more than one wireless speaker, then you require an additional PV-51R.

Dispatch

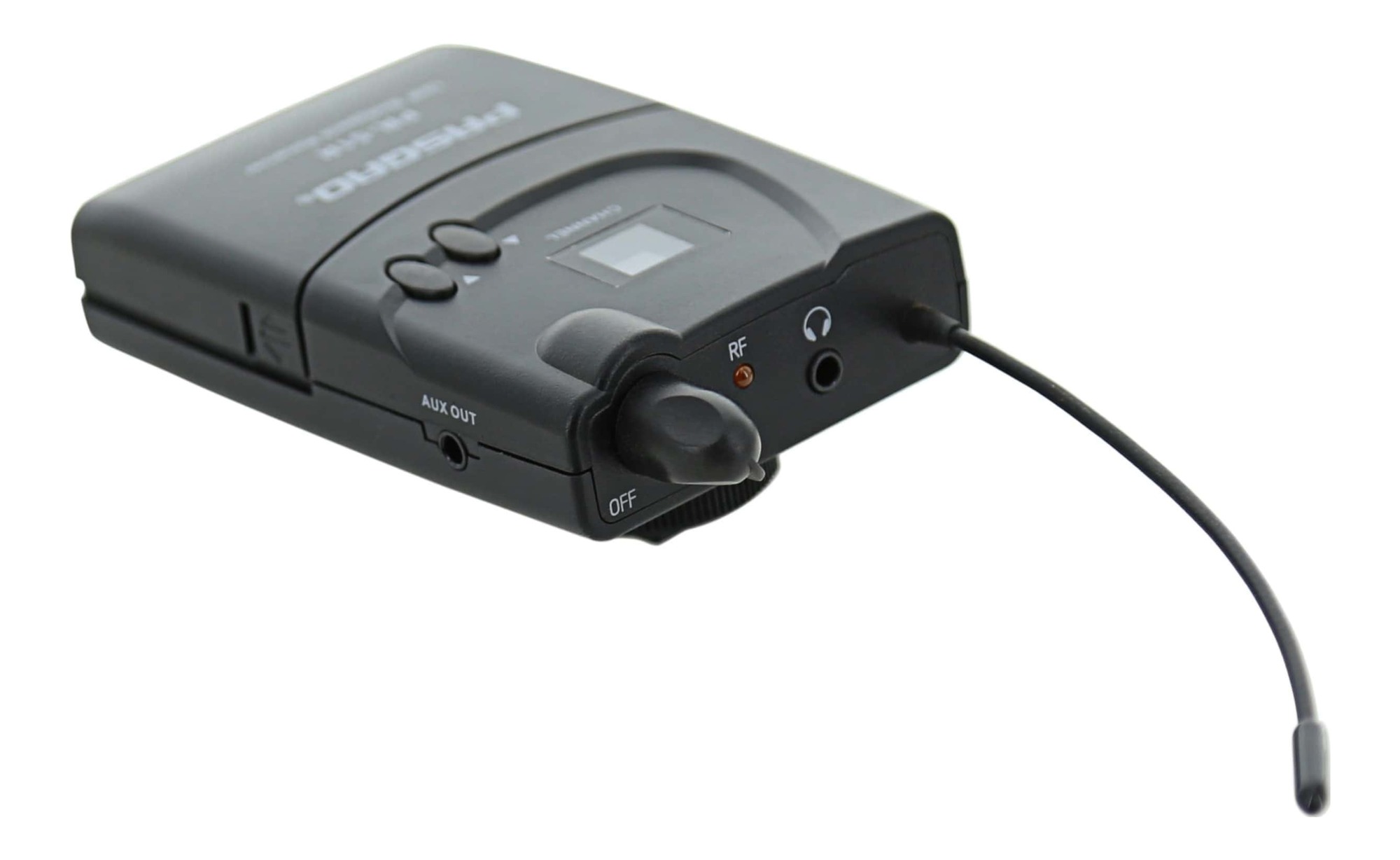

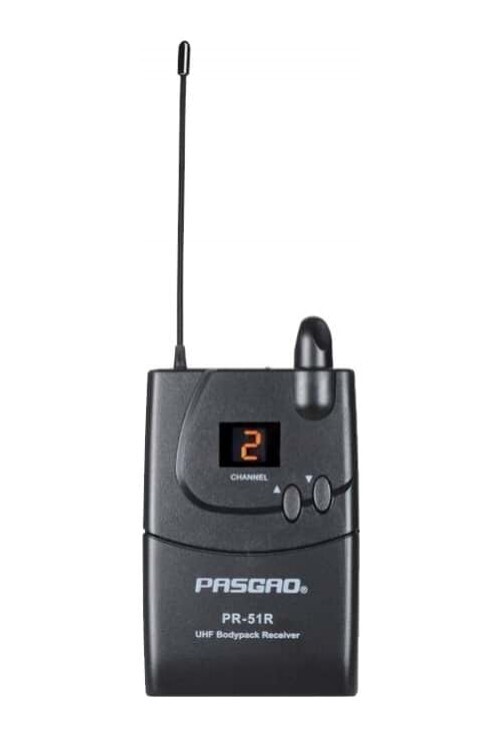

PR-51R Bodypack Receiver for PV70
The Pasgao PR-51R is a a receiver unit which can be added to the PV70 transmitter / receiver solution. If using it as an in-ear monitoring system, or for setting up more than one wireless speaker, then you require an additional PV-51R.

An Additional Receiver for your PV70
The PR-51R is used with the corresponding transmitter PR-51T. Multiple receivers can be used in order to utilise the wireless comms system as an in-ear monitor, microphone to more than one receiver for recording, and also for multiple wireles speaker setups.

Features:

  • Backlit LCD displays working channel
  • Up to 16 channels can be used simultaneously
  • Receiver has IP type audio output
  • Integrated with l ine in/out design and rechargeable
  • Professional dynamic companding technique and low noise component to ensure the good frequency response and S/N ratio
  • Portable system with l ight and smal l size design

Specifications:

  • RF Carrier Frequency Range: 584 ~ 608MHz
  • Oscillation Pattern: PLL
  • Working Range: 60m  in ideal condition
  • Modulation: FM
  • Pilot Tone: 32.768KHz
  • Max Channel Number: 16
  • System Compatibility:  8pcs
  • Audio Frequency Range: 60Hz ~ 12KHz(±3db)
  • Dynamic Range: > 102db
  • System Distortion: THD < 0.6%
  • S/N Ratio: > 98db(A)
  • RF Sensitivity < -92dbm for 30db S/N ratio
  • Image Rejection: > 50db

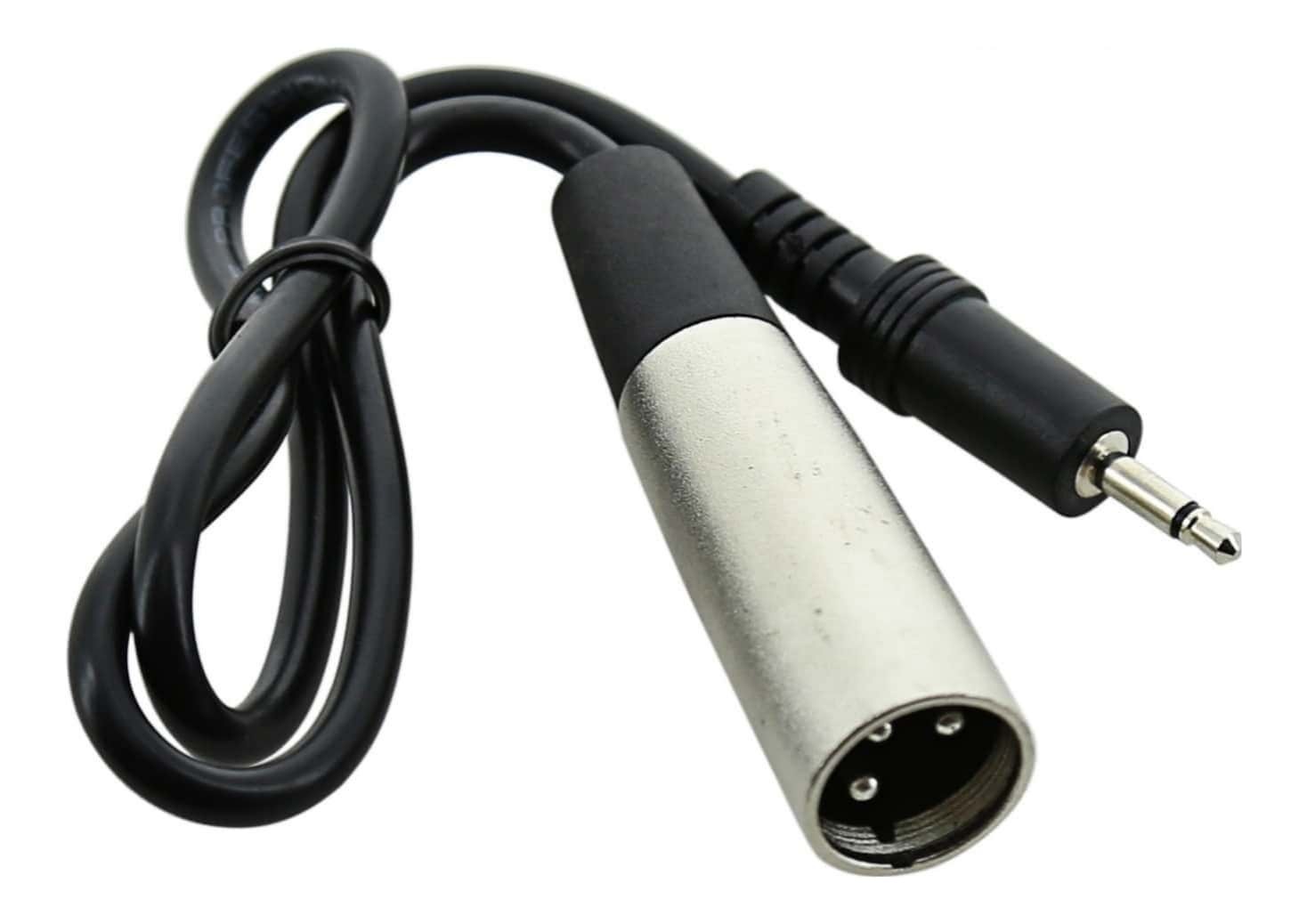

  • Output Connectors: Φ3.5mm  JACK
  • Audio Output Level: +6dbV
  • Output Impedance: 600Ω
  • Display: LED

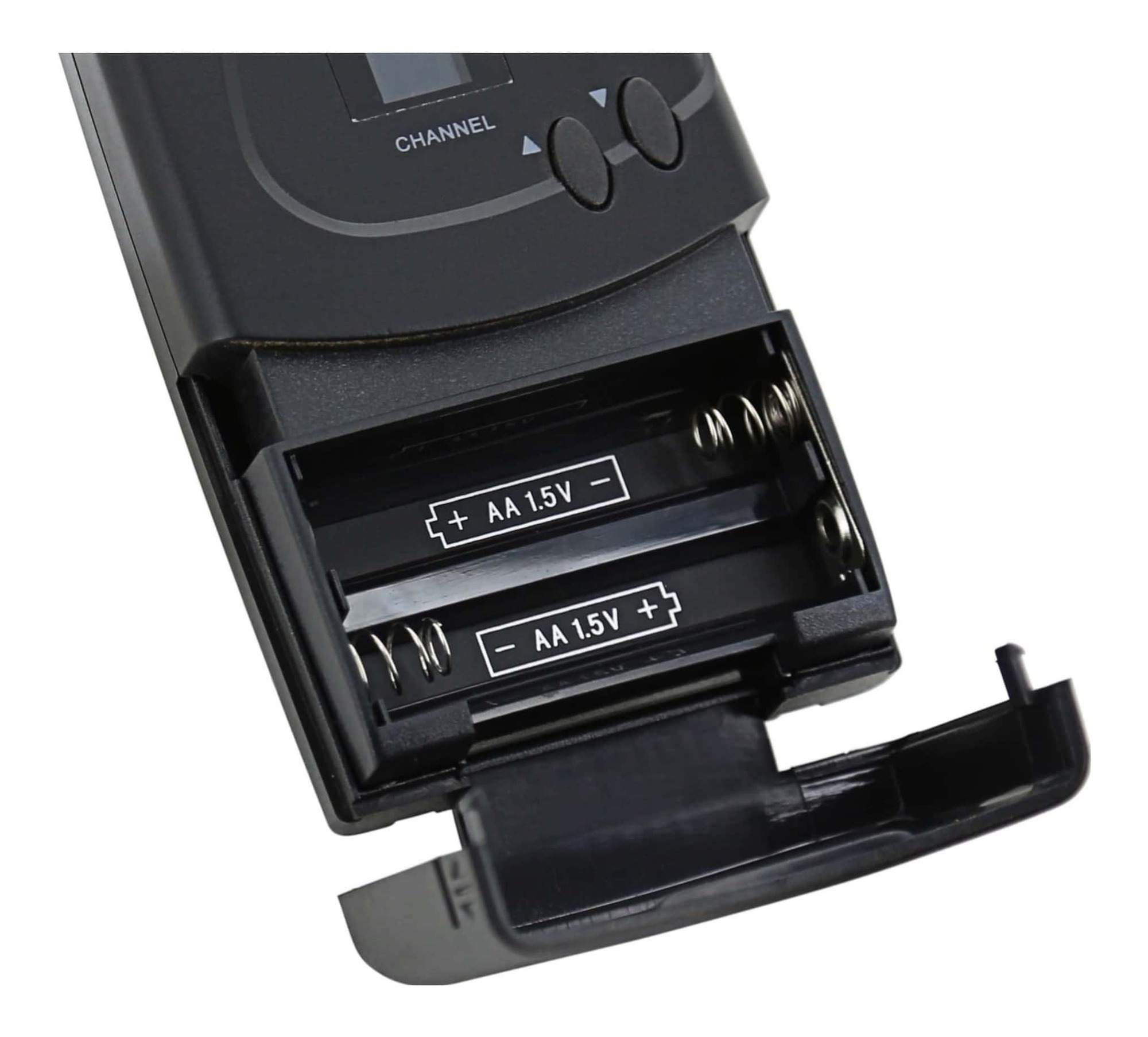

  • Power Requirments:1.5V×2(AA)
  • Battery Life:> 8h/1300mAH
  • Operating Temperature Range: 0-50 ℃
View PDF brochure for Pasgao PR-51R Bodypack Wireless Receiver for PV70
