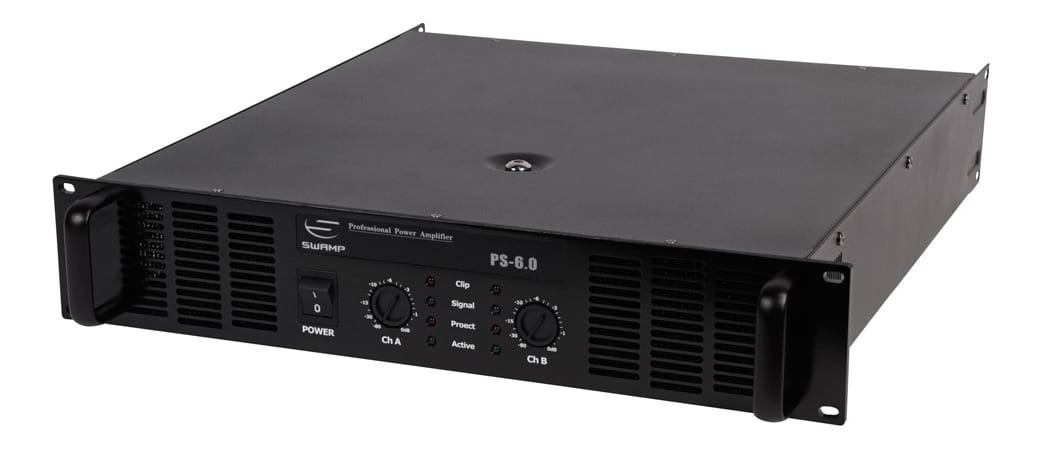

• SWAMP PS-6.0 Power Amplifier - Dual Channel - 2x 600W at 8Ohm

    $549.99
    Sold Out
    Contact us for an ETA

    The SWAMP PS-6.0 is a dual channel power amp capable of delivering 600W of continuous power to (2x) two 8 ohm passive speakers. Given a load of 4 ohm the amp outputs 900W, whilst in bridge mode, the amp outputs 1200W at 8 ohms.

    SWAMP PS- 6.0 (2 x 600W per channel) Stereo Power Amplifier
    The SWAMP PS-6.0 is a dual channel power amp capable of delivering 600W of continuous power to (2x) two 8 ohm passive speakers. Given a load of 4 ohm the amp outputs 900W, whilst in bridge mode, the amp outputs 1200W at 8 ohms.

    SWAMP PS Series Power Amplifiers
    Despite the recent trends in the development of powered speakers, the demand for robust and reliable power amplifiers for standard passive speaker and point source systems has not waned. Which is why SWAMP has released its own brand of quality and affordable power amplifiers suitable for small to medium size PA systems that are comprised of passive front of house and monitor speakers. Each SWAMP power amplifier can be matched with a specific passive speaker from the SWAMP range, or with any other passive speaker on the market.

    Switchable Functions - Limit, LPF, Ground Lift, Voltage, Mode
    The PS-6.0 has 5 easily accessible switches on the rear that all have an important function. It is recommended to set the Limit Mode switch to ON, which will protect the amp from any accidental or potentially damaging spikes in signal. In addition, there is an LPF function in case of the need to eliminate the bottom end frequency range from the signal, a Ground Lift to assist in eliminating any ground hums, Input Voltage selector (to match to +4dB and -10dB line level signal types) and a Mode Selector that allows use in bridge, mono or the standard stereo channel mode.

    Simple to Connect with Speakon Outputs
    The SWAMP PS-6.0 has 2 XLR inputs to accommodate a Left and Right FOH signal, or two separate AUX inputs. Output wise, you have the choice of using either the 2 Speakon outputs, or if you don't have a connector, you can connect the cable directly to the binding post outputs. Furthermore, the amp has a link output, which allows you to run multiple amps from the same input signal. This is perfect for running multiple speaker set ups and delay speakers where each speaker set requires the same input signal, but also requires its own amplifier.

    Features:

    • Two Channels (Stereo)
    • 19" Rack mountable
    • Solid Metal construction
    • Bridge mode
    • Internal cooling fans
    • 14 pairs of Toshiba plastic sealed transistors
    • LED indicator lights, for power, signal, protect and clip
    • Limit Mode, LPF, Ground Lift, Input Voltage, Bridge selector switches
    • Ideal power output for speakers rated between 400W - 600W RMS

    Technical Specifications:

    • Power Rating Stereo: 600W @8Ohm, 900w @4Ohm
    • Bridge Mono: 1200W @8Ohm
    • Signal to Noise: 105dB
    • Slew Rate: 80V/uS
    • Damping Factor: 500:1
    • Frequency Response: +/-0.1dB,20Hz+20KHz
    • THD: less than 0.01% Rated Power@8Ohm 1KHZ
    • IMD: less than 0.01% Rated Power@8Ohm
    • Input Sensitivity: 0.775V, 1.0V, 1.55V
    • LPF :20Hz-180Hz
    • HPF:130Hz-20KHz
    • Input Impedance: 10K/20KOhm unbalanced/balanced
    • Input CMRR: less than -75dB
    • Crosstalk:less than -70dB
    • LED Indicator: Signal, Protect, Detective, Clip/Limiting
    • Input Connectors: XLR
    • Link Connectors: XLR
    • Output Connectors: Speakon and Binding post
    • Power Supply: Switch Mode ~220V 50/60Hz Fuse:T12A
    • Weight : 22Kg
    • Dimensions: 483(W) x 490(D) x 88(H)mm

    PS Series Specifications:

    Model   PS-3.0 PS-4.5 PS-6.0 PS-8.0
    Stereo power 8Ohm 300W 450W 600W 800W
    1KHz 0.1%THD 4Ohm 450W 600W 900W 1200W
      2Ohm N/A N/A N/A N/A
    Bridge mono power 8Ohm 700W 800W 1200W 1400W
    1KHz 0.1% THD 4Ohm N/A 1200W 1600W 2000W
    Signal to Noise   103dB 105dB 105dB 106dB
    Slew Rate   60V/uS 60V/uS 80V/uS 81V/uS
    Damping factor   400:1 450:1 500:1 550:1
    Frequency response   +/-0.1dB,20Hz+20KHz
    THD   less than 0.01 Rated Power@8Ohm 1KHZ
    IMD   less than 0.01 Rated Power@8Ohm
    Input sensitivity   0.775V, 1.0V, 1.55V
    LPF   20Hz-180Hz Valid
    HPF   130Hz-20KHz Valid
    Input impedance   10K/20KOhm unbalanced/balanced
    Input CMRR   less than -75dB
    Crosstalk   less than -70dB
    LED Indicator   Signal,Protect,Dective,Clip/Limiting
    Main power supply   ~220V 50/60Hz
    Fuse:T8A
    ~220V 50/60Hz
    Fuse:T10A
    ~220V 50/60Hz
    Fuse:T12A
    ~220V 50/60Hz
    Fuse:T12A
    Net weight   16Kg 17Kg 22Kg 23Kg
    Dimensions(mm)   483x420x88 483x490x88
    View PDF brochure for SWAMP PS-6.0 Power Amplifier - Dual Channel - 2x 600W at 8Ohm
