8 Channel Multicore Cable w/ SLIM STYLE Stage Box - 20m
In Stock
KF-SBL008-20m
Enter Post Code to Calculate Shipping Cost & ETA
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE
20m Length - SWAMP 8 channel multicore cable with stage box. SLIM STYLE Stage Box, Features a slim style stage box which is great for studio set ups and small stages.
Dispatched Tuesday
| Loading... | ||||||

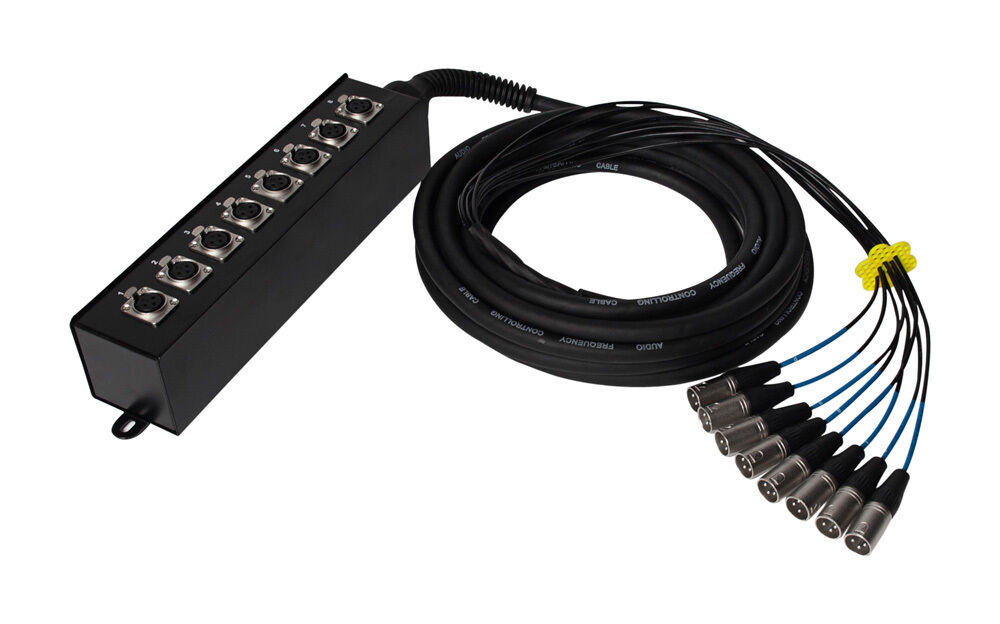

SWAMP 8 channel, 5m multicore cable with stage box.

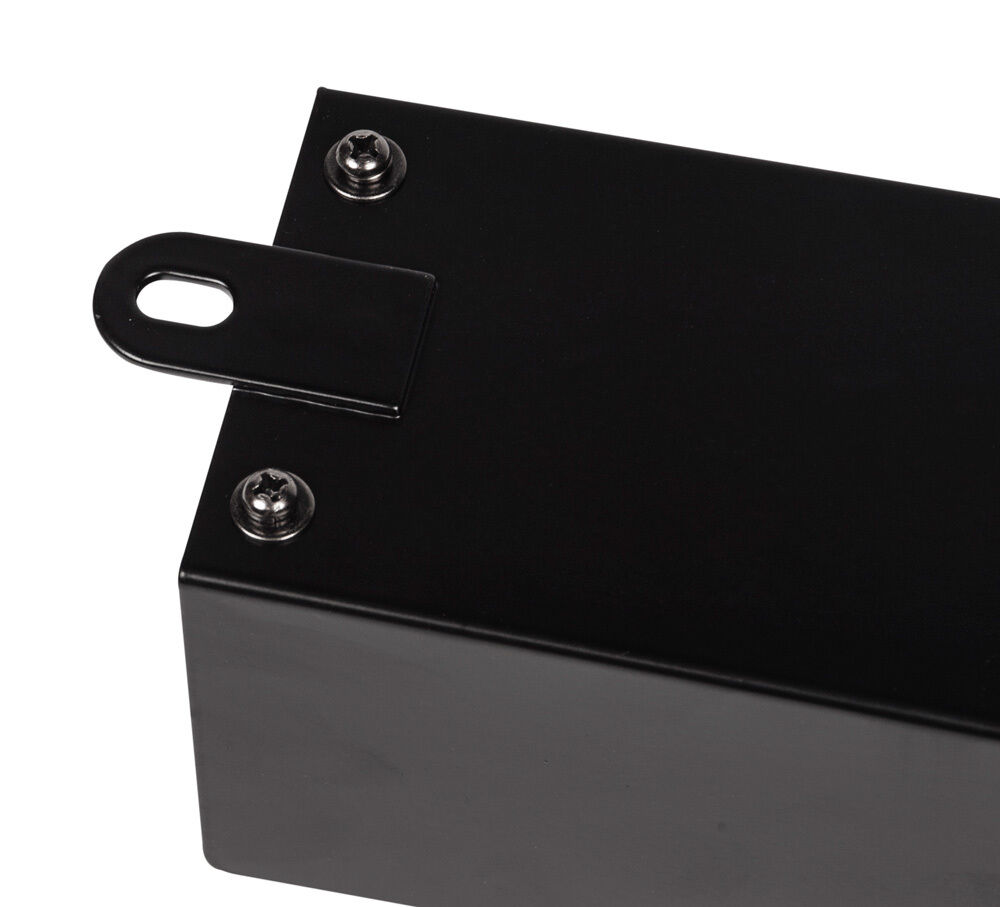

SLIM STYLE Stage Box

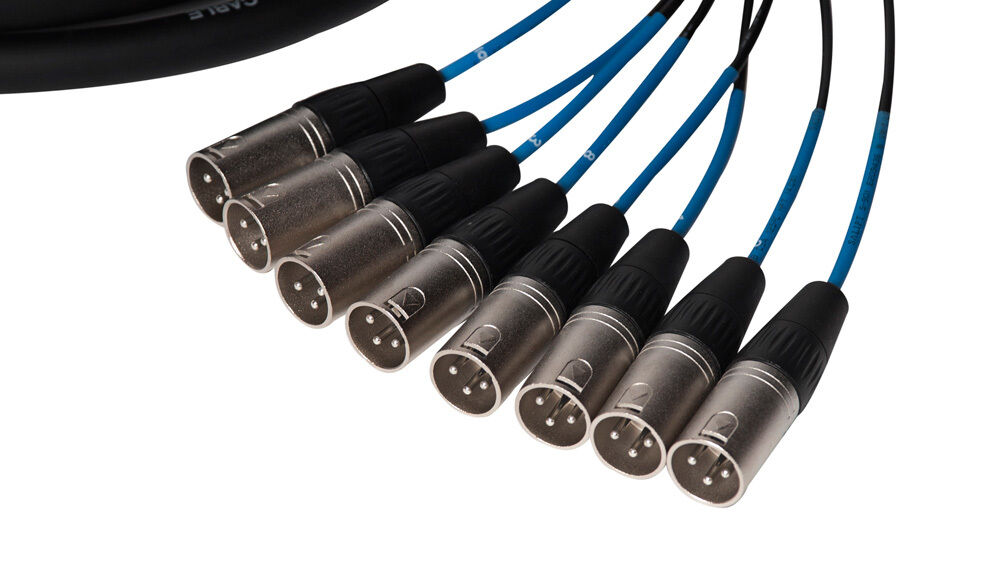

Features a slim style stage box which is great for studio set ups and small stages. Instruments (DI Boxes) and microphones are plugged into the send inputs marked 1 to 8 on the stagebox. The signals are carried through the multicore to 8 corresponding XLR(m) number coded connectors, usually connected to a mixing console.
Use SEND channels as RETURNS
It is possible to use "send" channels as "returns". Simply use a XLR(m) to XLR(m) adapter on stage box end, and a XLR(f) to XLR(f) adapter on the fan end. Or if your equipment accepts 1/4" jacks, then XLR(m/f) to 1/4" cables can work for this purpose without the need for adapters.
Typically used to connect performers on stage or in a recording studio to a mixing desk.
Features:
- 8 Balanced Microphone Cable Send Channels
- Ningbo Neutrik Connectors - Stage box (YS145) - Fan (YS137N)
- Cable Core: 0.15mm*7*8 (Conductors) + 0.15mm*7 (Ground) + AL-Foil (Shield) + Cotton
- Cable Outer Diameter: 14mm OD (Outer Diameter)
- Box Dimensions: L 320mm x W 70mm x H 75mm
- Length: 20m
