  • Alctron PC02 Phase Checker

    $79.99
      Sold Out
    or interest free for up to 6 months with
    Contact us for an ETA

    The Alctron PC02 is a professional and sophisticated sound engineering installation and commissioning testing tool. Accurately test out a variety of phase differences in an audio sound system. Save time and increase your efficiency. Two hand-held units.

    Alctron PC02 Phase Checker
    The Alctron PC02 is a professional and sophisticated sound engineering installation and commissioning testing tool. Accurately test out  a variety of phase differences in an audio sound system. Save time and increase your efficiency. Two hand-held units.

    Accurate and Professional

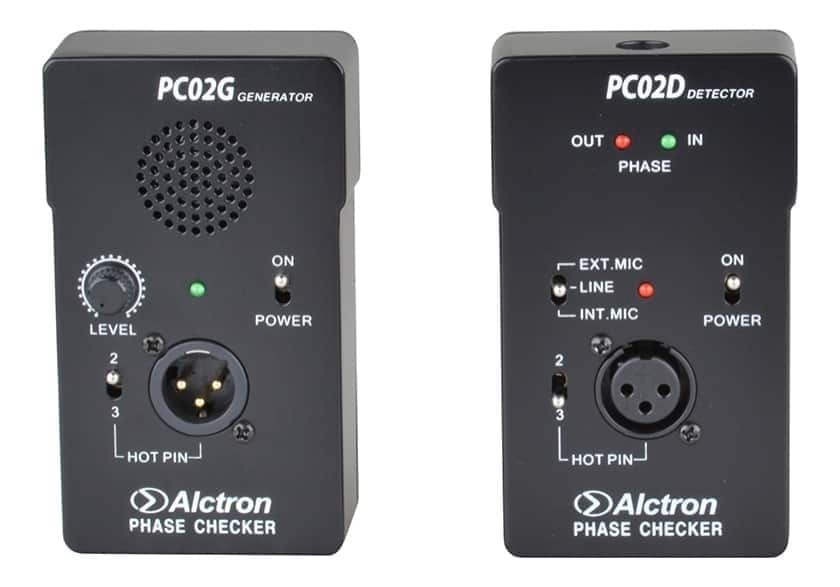

    Versatile enough to be used for testing systems such as standard PA systems and installations, line arrays, HiFi stereo systems, car audio, and home theater setups. The Alctron PC02 phase checker consists of two units, a detector and generator. The PC02 generator creates a pulse that is sent through an audio system. The detector then picks up the signal at various intervals in the system and indicates whether or not the system is in or out of the phase (the same LED, the phase is the same, otherwise the phase is different). When begin testing, it is very important that the mic face the PC02G speaker directly at 90 degree angle and the distance between speaker and testing devices should keep the same distance. The units are powered via 9V batteries.

    Features:

    • Phase checker - a detector and generator
    • Generator sents signal through an audio system
    • Detector picks up the signal
    • Phase LED indicator indicates if the phase is same or not
    • Power by 2x 9V DC batteries

    Specifications:

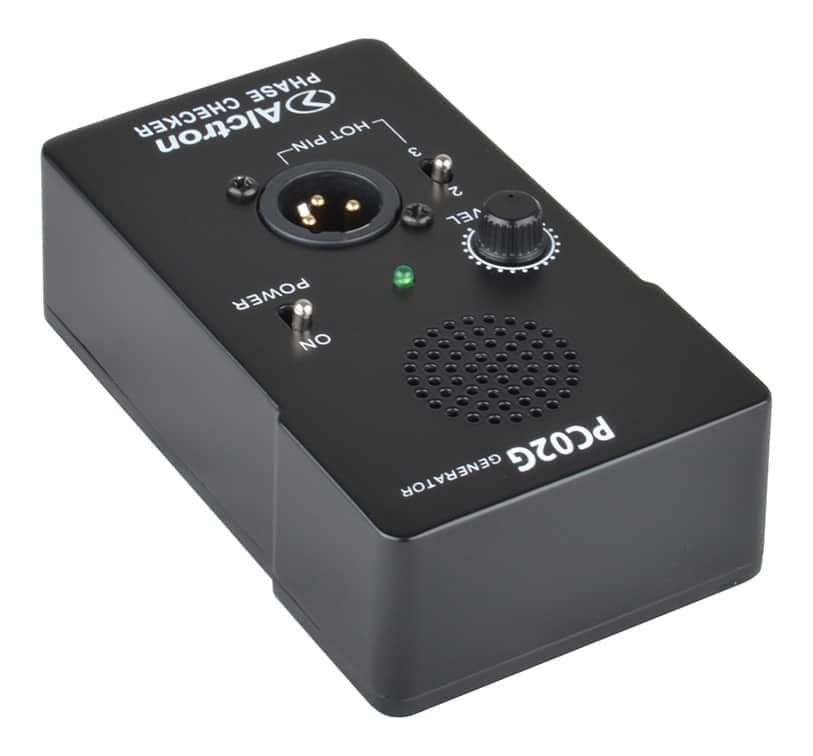

    PC02G
    Output leve >6dBv
    Min acoustic impedance <10ohms

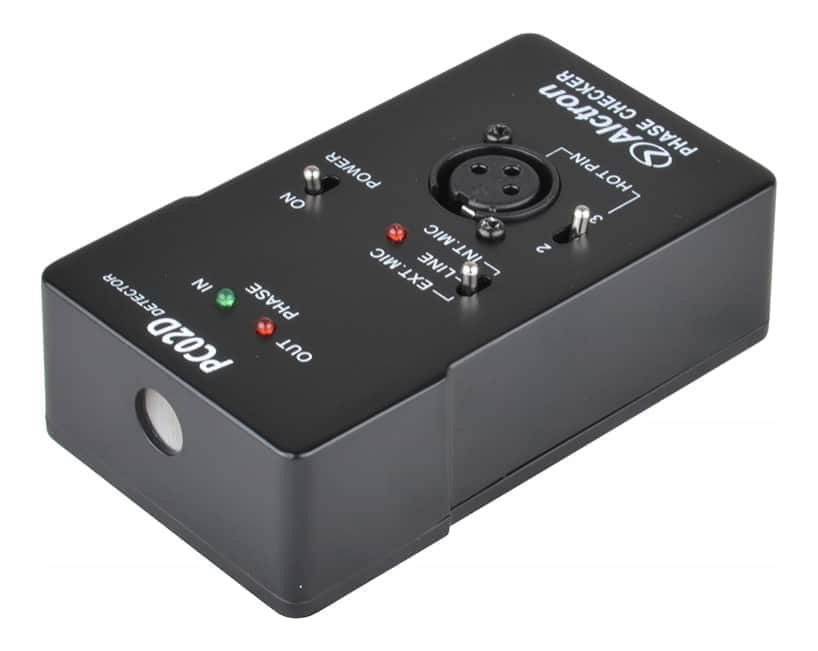

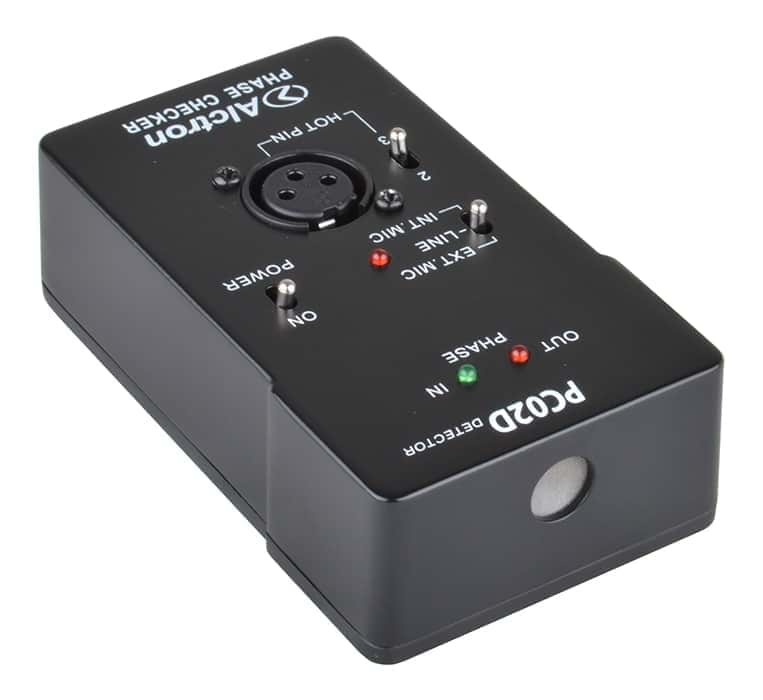

    PC02D
    Line input impedance 10k ohms
    Ext mic input impedance 1k ohms
    Min mic input voltage 10mv
    Min line input voltage 250mv
    Max line input voltage 50v
    View PDF brochure for Alctron PC02 Phase Checker
