Alctron MP73X2 Dual Channel Microphone Preamp

$689.99
  In Stock
or interest free for up to 6 months with
-
+

A perfect choice of pre-amp for dual inputs in your home or professional studios. The Alctron MP73X2 provides a Class-A high-end dual microphone preamplifier which can accommodate mic, line and instrument signals directly, with independent transformers.

Dispatch

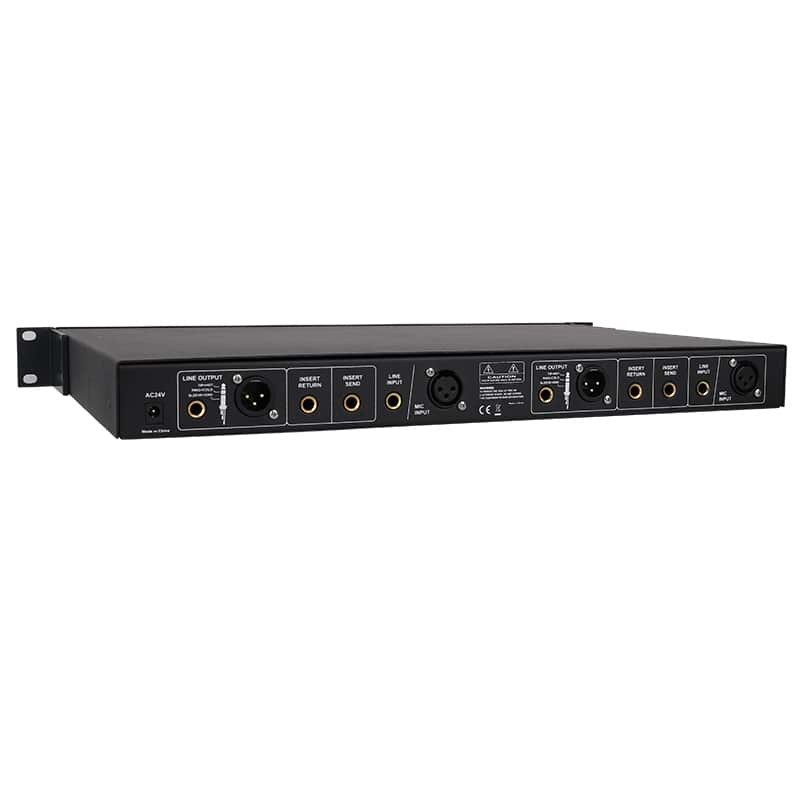

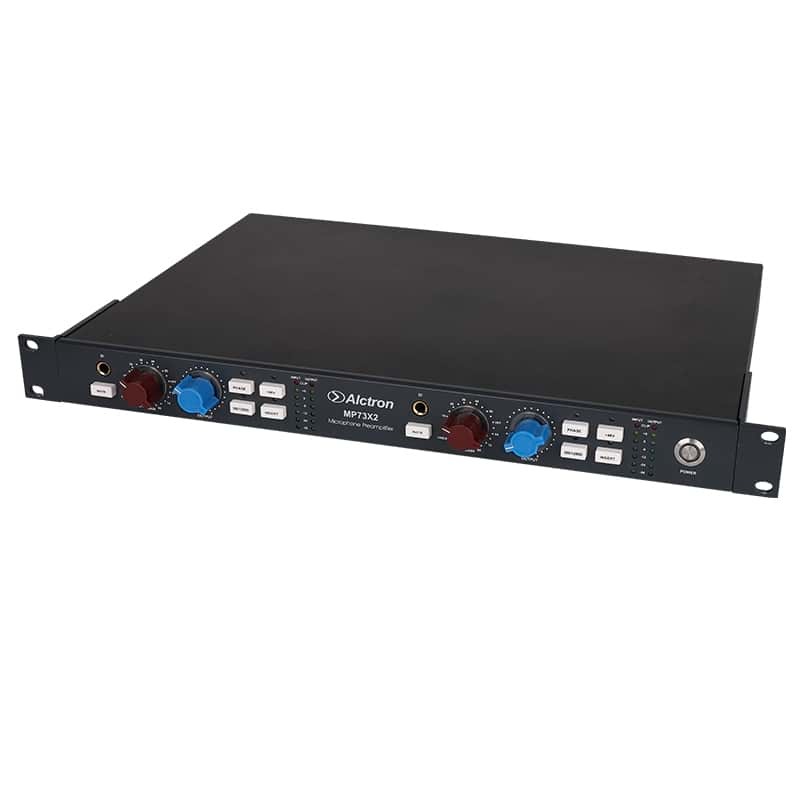

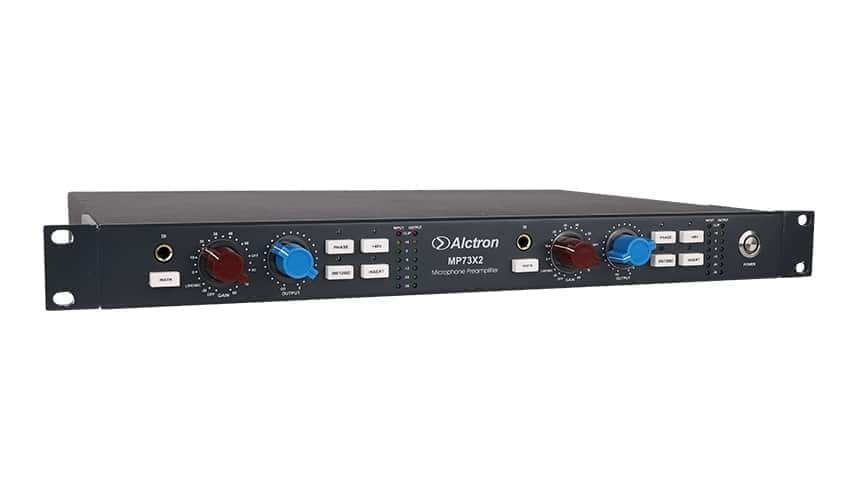

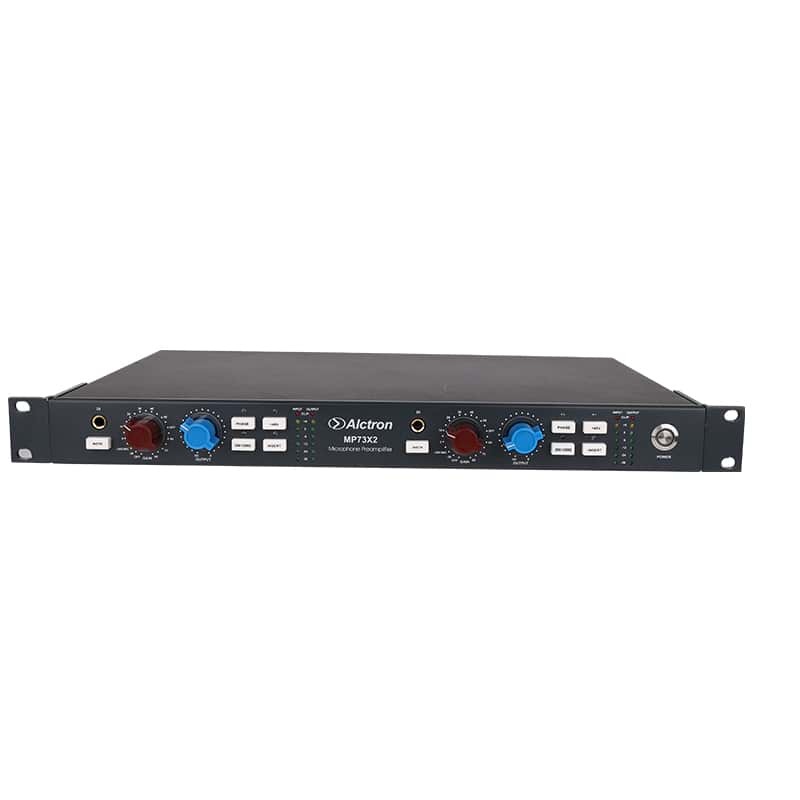

Alctron MP73X2 Dual Channel Microphone Preamp
A perfect choice of pre-amp for dual inputs in your home or professional studios. The Alctron MP73X2 provides a Class-A high-end dual microphone preamplifier which can accommodate mic, line and instrument signals directly, with independent transformers.

Classic Preamp
Based off the Classic Rupert Neve 1073 preamp, the Alctron MP73X2 is a dual channel, discrete, transformer coupled preamp that sounds excellent on any number of sources, with excellent headroom and warmth. It is ideal for stereo recordings as well. It comes complete with custom transformers from Alctron for both the line and mic inputs as well as the XLR output. It features a fully discrete signal path with two separate transformers for the input and output that offer a tone of analog warmth and further enhances the MP73X2’s performance. The discrete path is a tried and true classic and coveted design in the audio industry for a reason. Also, the chassis is made from high quality steel to provide extra shielding against stray electromagnetic and RF interference.

Features:

  • Class-A mic preamp
  • Dual channel mic input, Dual channel instrument input, Supports mic, line and DI input.
  • Mic input, line input and line output have independent transformers
  • 23-level, 80dB adjustable mic gain adjustable control
  • Changeable 300/1200Ω impedance
  • Phantom power, phase, and Insert buttons
  • Input, Output and Clip indicators

Specifications:

  • Line input: Connector: 6.35mm TRS
  • Input impedance: 10kohm balanced
  • Gain: -10dB~+20dB
  • Mic input: Connector: XLR
  • Input impedance: 300/1200ohm balanced
  • Gain: +20dB~+80dB
  • Instrument: Connector: 6.35mm TS
  • Input impedance: more than 100kohm
  • Analog output: Connector: XLR/6.35mm TRS
  • Output impedance: 75ohm balanced
  • Max output level: +21dBu
  • Distortion: less than 0.07% @1khz
  • Frequency response: 20hz-20khz±0.5dB
  • Power: DC 24V
  • Net weight: 3550g
  • Product size: 482mm x 300mm x 42mm
View PDF brochure for Alctron MP73X2 Dual Channel Microphone Preamp
