• ART PB4x4 PRO Power Distribution System with Advanced Power Filtering

    $226.99
    Pre-order - Released 6 December 2020
    If your prefer to wait until the stock has arrived:
    CLICK HERE TO 'GET NOTIFIED' once we have stock on hand
    Product Type

    Standard - Presenting the 4×4 PRO Series 19" rack mountable power distribution systems from ART. Built on the foundation of the popular 4x4s, the PRO Series are durably constructed, reliable power conditioners for use in many applications.

    ART PB4x4 PRO Power Distribution System
    Presenting the 4×4 PRO Series power distribution systems from ART. Built on the foundation of the popular 4x4s, the PRO Series are durably constructed, reliable power conditioners for use in many applications. Wherever the power management system is required, the 4×4 PRO SERIES provide the surge protection you need to keep your rack safe from unwanted disruption.

    All PRO Series models have an additional internal discrete module called APF™ (Advanced Power Filtering) which filters out digital and dimmer hash as well as any high-frequency noise that is above the audio range. Some off-the-shelf add-on modules saturate and lose their filtering effectiveness as the load increases, but by using a high power discrete design we were able to create a filter that stays effective over the full operating range.

    Features:

    • APF – Advanced Power Filtering
    • Surge & Spike Protection

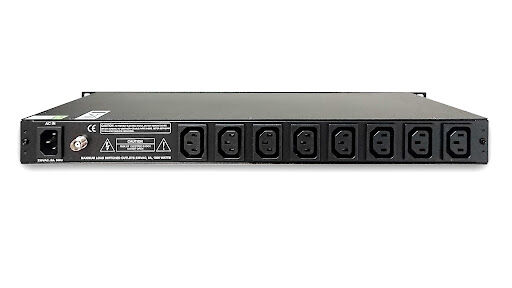

    • 8 Rear Outlets with Power Adapter Friendly Positioning
    • Rear Mounted Gooseneck Light Source
    • Power Capacity of 1800 Watts
    • EMI & RFI Filtering
    • One Front-mounted Unswitched Power Outlet

    Specifications:

    • Power Capacity: 1800 Watts
    • Circuit Breaker: 15 Amp
    • Power Outlets: Eight Rear Outlets
    • Power Switch: Front Location - On/Off
    • Power Switch Illumination: Yes - In “On” Position
    • Circuit Breaker: Front Location
    • Filtering: EMI, RFI, Common Mode Passive
    • Differential Mode in Series
    • Protection Circuit: Surge & Spike Protection
    • Construction: All-Steel Chassis
    • Light Pipes: (SP, PS only) 2 Front Pull-Out, Shock Mounted
    • Metering: (SP, PS only) Input Voltage
    • Metering: (PS only) Current Voltage
    View PDF brochure for ART PB4x4 PRO Power Distribution System with Advanced Power Filtering
