BMZ-BLAZE-800
The Beamz BLAZE800 Vertical Fogger combines an 800W fog machine with 12 x 4W RGBA LEDs to create vibrant illuminated smoke effects. Designed for vertical or horizontal use, it features DMX control, wireless remote operation and a large 2.8L fluid tank.
Cable Filter: Alternative Options

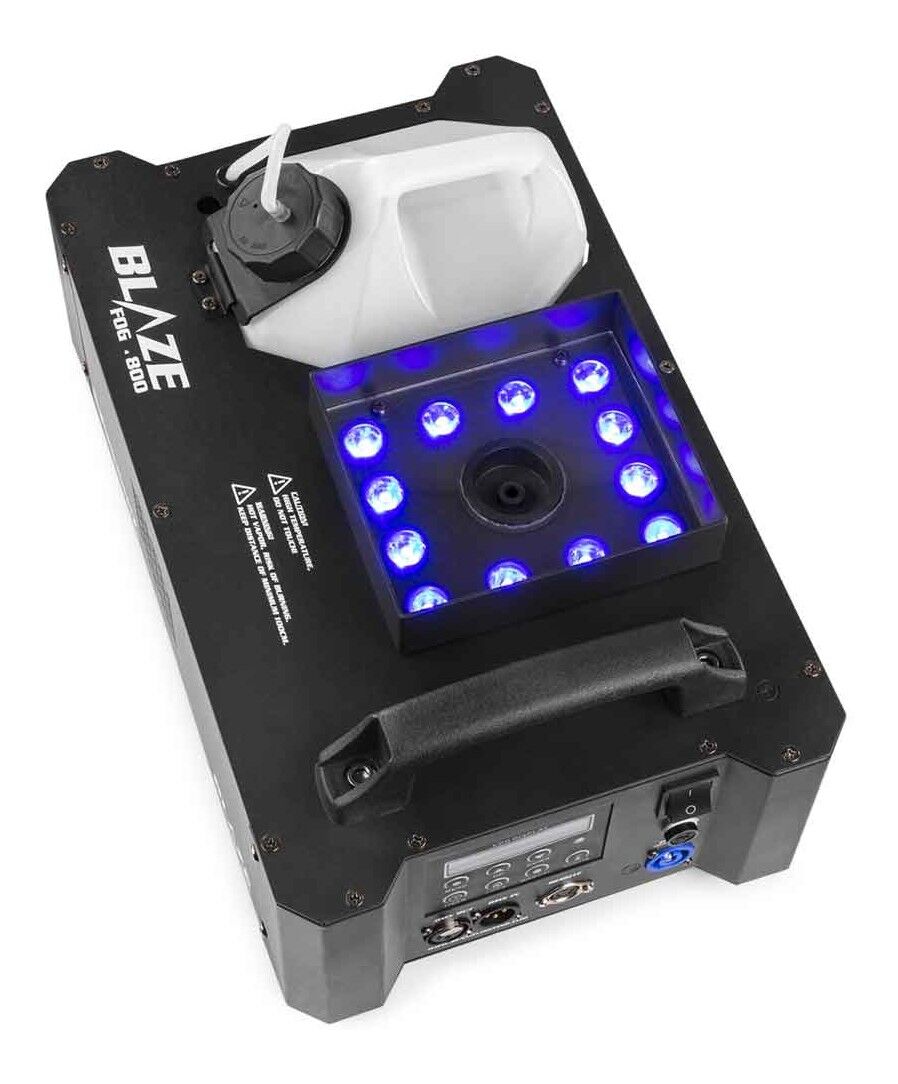

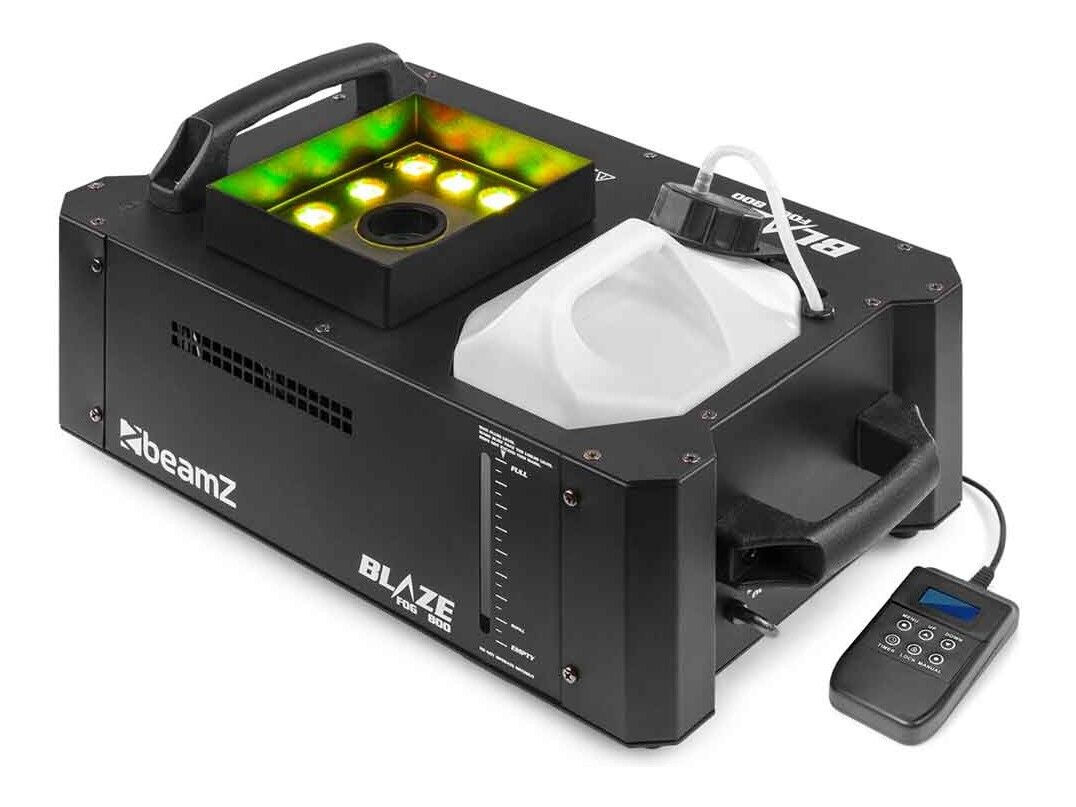

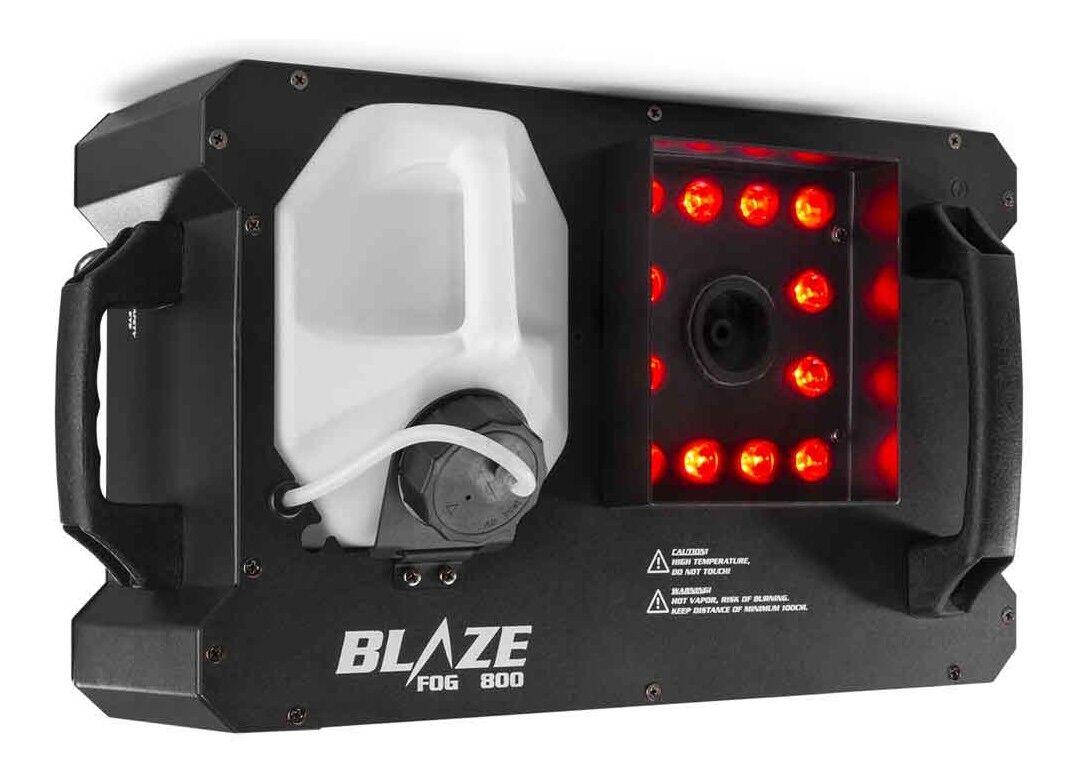

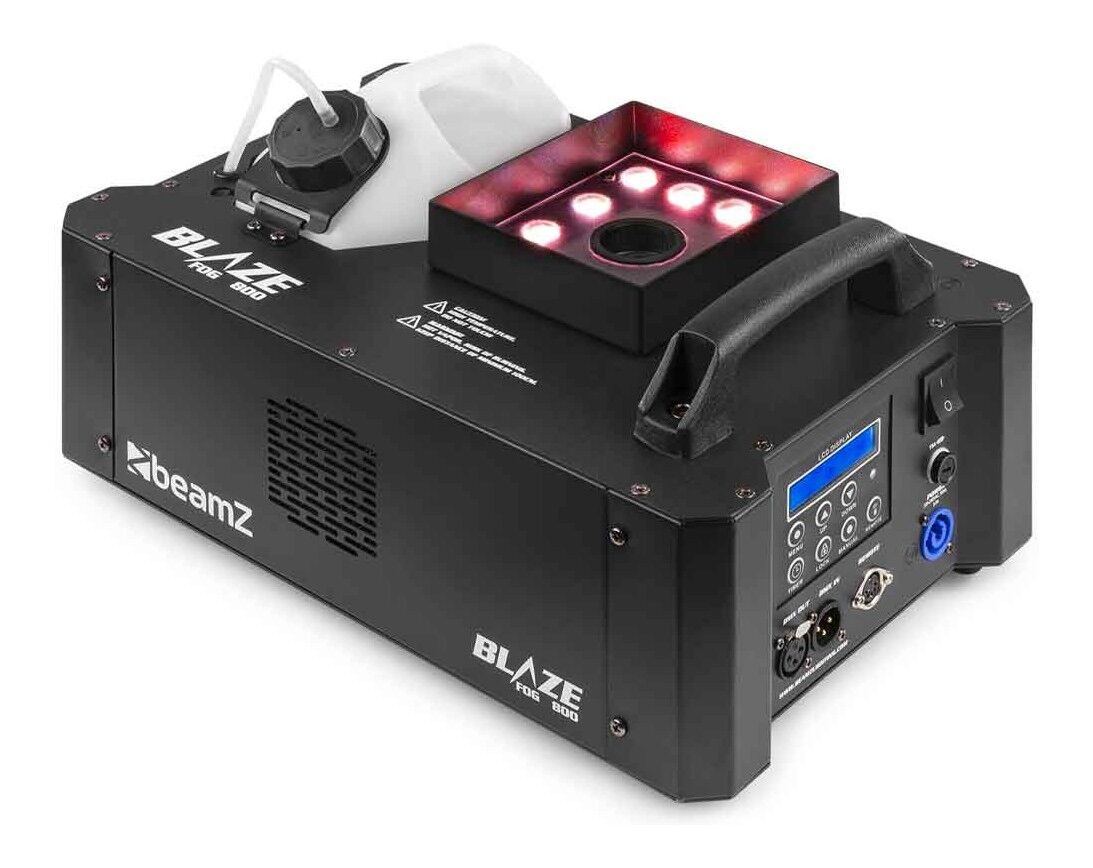

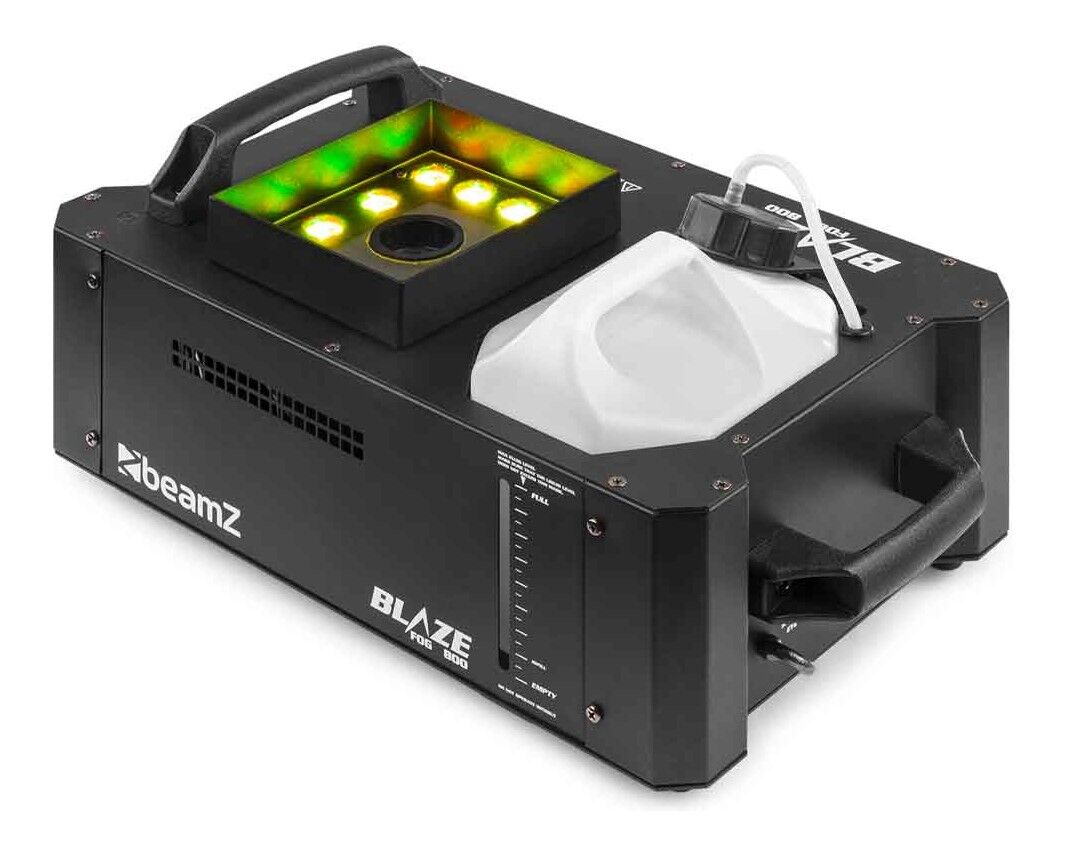

Beamz BLAZE800 LED Vertical Smoke Machine
The Beamz BLAZE800 is an 800W vertical fogger that fires columns of smoke straight up through 12x 4W 4-in-1 RGBA LEDs, turning every burst into a glowing pillar of colour - and thanks to its redesigned fluid piping it works lying flat as a conventional horizontal smoke machine too. A 2.8L removable tank, onboard LCD control panel, wired LCD timer remote and extra wireless remote make it a complete effect for DJs, stages and venues.
Vertical Colour Blasts
Aimed upward, the BLAZE800 delivers the dramatic jet-style plumes usually reserved for much bigger productions, with red, green, blue and amber mixed right at the nozzle for intense, saturated colour. Output is 125m3 per minute, the heater is ready in about 3 minutes, and re-heat takes only around 50 seconds, so bursts stay punchy all night.
Flexible Control

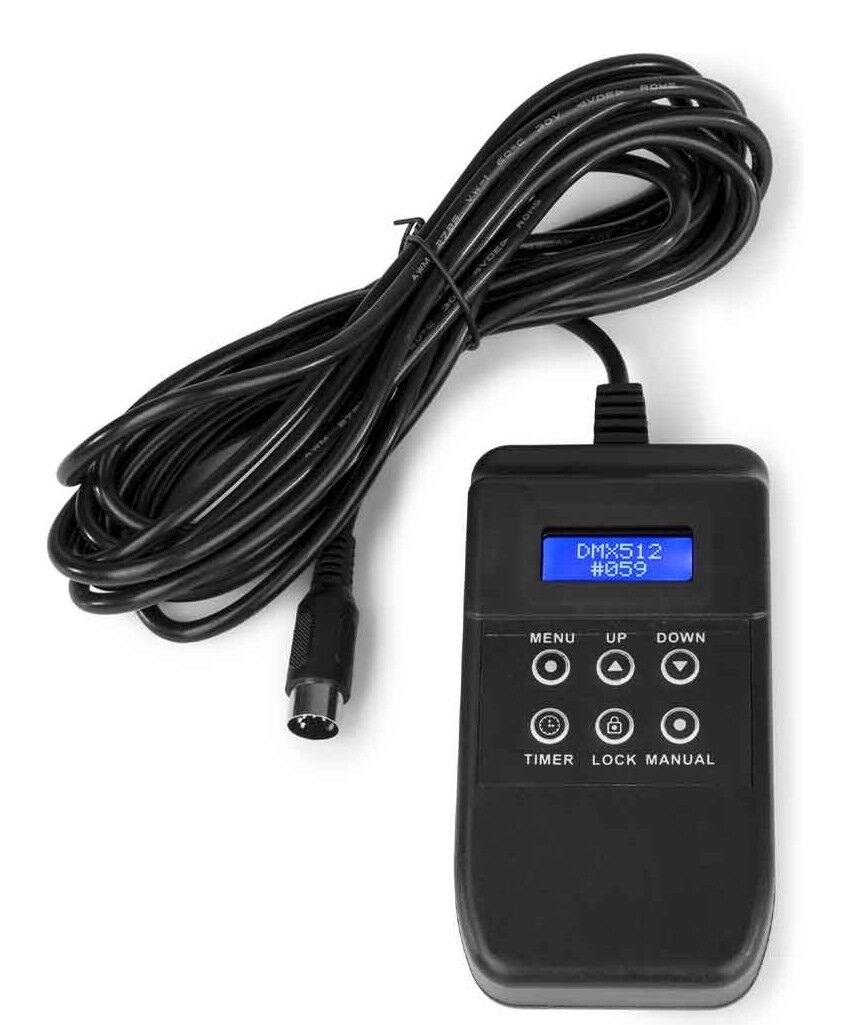

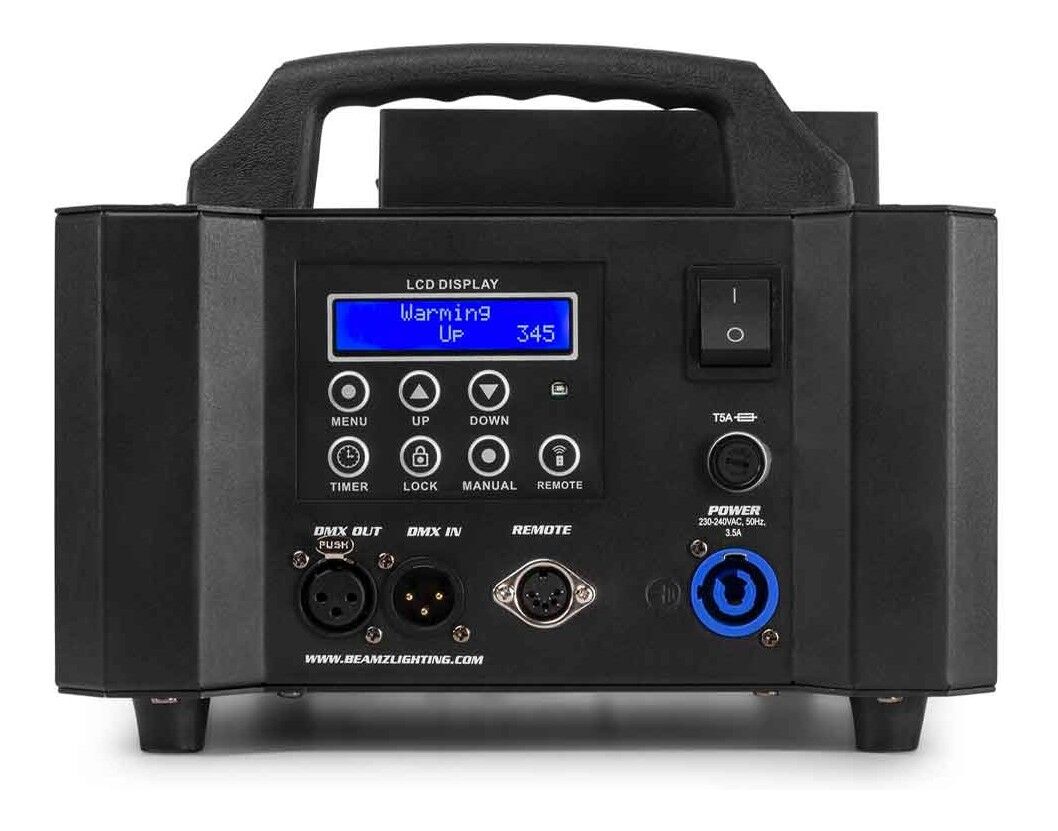

Drive it from the built-in control panel with LCD display, the wired LCD timer remote on a 5m cable, the included wireless remote, or over DMX via 3-pin XLR in/out for full show integration. A locking power connector input keeps the mains lead secure in transit-heavy mobile rigs.
Practical Touches
The 2.8L smoke fluid tank is removable for easy filling, a fluid level window on the housing shows full-to-empty at a glance, the blue LED-illuminated reservoir stands out in the dark, and carry handles at both ends make load-in simple at 6.1kg.
Features:
- 800W smoke machine with 12x 4W 4-in-1 RGBA LEDs
- Fires illuminated vertical smoke columns or classic horizontal fog
- Red, green, blue and amber colour mixing at the nozzle
- Built-in control panel with LCD display
- Wired LCD timer remote (5m) and extra wireless remote included
- DMX or standalone mode via 3-pin XLR in/out
- 2.8L removable smoke fluid tank with level window
- Blue LED-illuminated reservoir
- Locking power connector input
Specifications:
| Heating Element | 800W |
| Heat-up Time | 3 minutes |
| Re-heat Time | 50 sec |
| Output Volume Per Minute | 125m3 |
| Tank Capacity | 2.8L |
| Light Source | 4-in-1 LED |
| LED Colours | Red, Green, Blue, Amber |
| LED Power | 4W |
| Quantity of LEDs | 12 |
| Modes | DMX, Manual |
| DMX Connector | 3-pin XLR |
| Power Supply | 230/240VAC 50/60Hz |
| Dimensions (L x W x H) | 410mm x 270mm x 210mm |
| Weight | 6.1kg |
| Accessories | Power cable, Wireless remote control, Wired timer remote control |
