  • Canare L-4E6S Star Quad Microphone Cable - RED - 100m Roll

    $339.99
    RRP $409.00
    BACK-ORDER - DISPATCHED AFTER 30 days
    Found a better Price? Price match now
    ETA confirmed in <24hr - option to cancel
    If your prefer to wait until the stock has arrived:
    CLICK HERE TO 'GET NOTIFIED' once we have stock on hand
    or interest free for up to 6 months with
    -
    +

    The premier Star Quad cable for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR-type audio connectors.

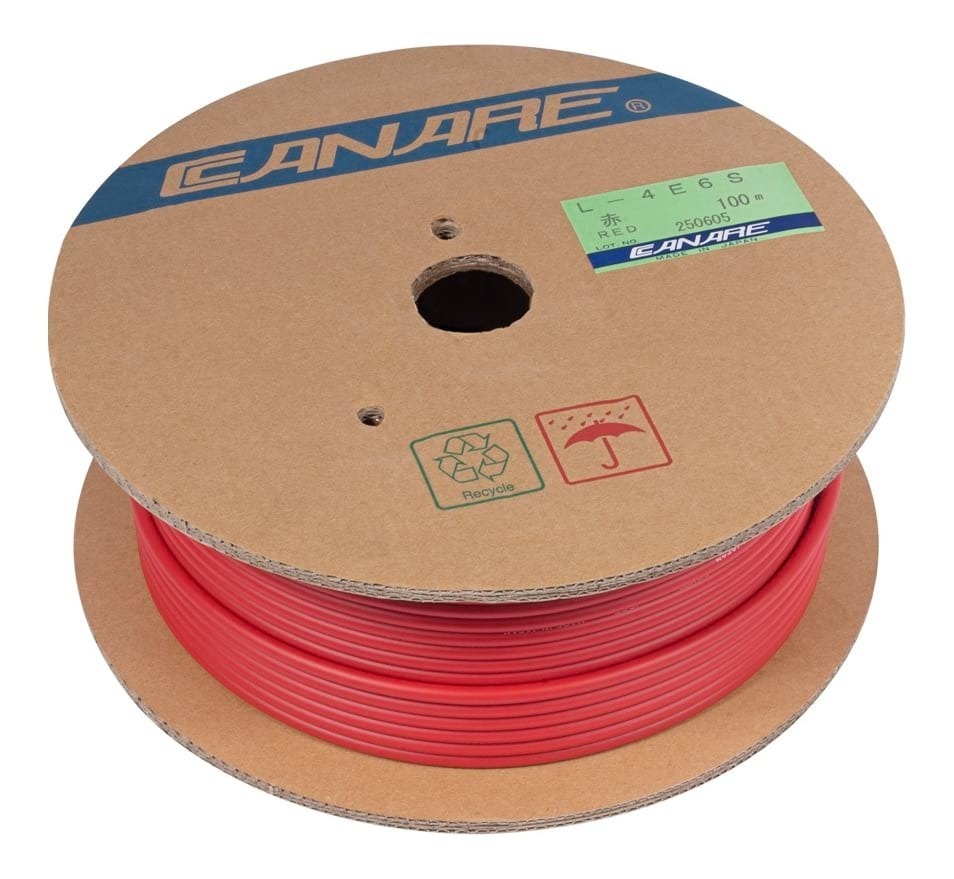

    Star Quad Microphone cable (L-4E6S) - Red - 100 meter roll

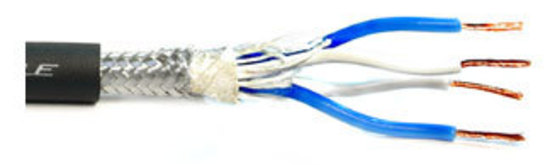

    The premier Star Quad cable for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing. Available in 10 beautiful matte finish color jackets.

    Features:

    • Braided Copper Shield
    • Flexible in Extreme Cold Weather
    • Cross Linked PE Insulation
    • Reduced Handling Noise
    • Rejects EMI and RFI
    • 10 Matte Color Jacket Selections

    Applications:

    • Microphones
    • Portable Applications
    • Audio Rack Wiring
    • PA Systems
    • Audio Patch Cords
    MECHANICAL SPECIFICATIONS
    Model Std.
    Lng.

    ft.
    (m)
    Wt
    Std.
    Lng.

    lbs
    (kgs)
    Nom.
    O.D.

    in.
    (mm)
    Jacket
    Nom.
    Thick.

    in.
    (mm)
    Brittle
    Point


    (C°)
    No.
    of
    Cond.
    Insul.

    Type*
    Thick
    mil
    Cond-AWG
    (Qty./mil)
    Cross Sec.
    Area
    mil.²
    **Quad
    AWG
    Pitch
    Twist
    Quad
    in.
    (mm)
    Shield
    Cover-
    age
    L-4E6S 656ft
    (200m)

    1000ft
    (305m)
    24
    (11)

    35
    (16)
    .236
    (6.00)
    PVC
    .044
    (1.12)
    -56
    (-49)
    4
    2 Blue
    2 Wht
    IPE
    15.7
    AC - #24
    40/3.15
    310
    #21
    .79
    (20)
    >95%
    TAC
    Braid

    *Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
    **Effective AWG of combined twin conductors.

    ELECTRICAL PERFORMANCE/QUAD
    Model Cond.
    D.C.R.

    ohm/1000ft
    (ohm/100m)
    Shield
    D.C.R.

    ohm/1000ft
    (ohm/100m)
    Nom.
    Cap.
    ***
    pF/ft
    (pF/m)
    Nom.
    Cap.

    pF/ft
    (pF/m)
    Nom.
    Imp.

    (ohm)
    Nom.
    Atten.

    V/1000ft
    (V/100m)
    Group
    Delay
    Time
    nS/ft
    (nS/m)
    L-4E6S <29.9
    (<9.8)
    <9.1
    (<3.0)
    46
    (150)
    57
    (185)
    44 0.9
    (0.3)
    1.80
    (5.9)

    ***Capacitance between twin Blue and twin White conductors.
    †Capacitance between conductors to shield.

    View PDF brochure for Canare L-4E6S Star Quad Microphone Cable - RED - 100m Roll
