CHV-EVEF-50Z
The Chauvet EVE F-50Z is a compact 50W warm white LED Fresnel with manual zoom (17°-50°), high CRI output, and soft-edged beam, DMX and stand-alone operation, D-Fi USB compatibility, and includes barn doors for precise stage and theatre lighting control.
Cable Filter: Alternative Options
Chauvet DJ EVE F-50Z Warm White LED Fresnel Stage Light

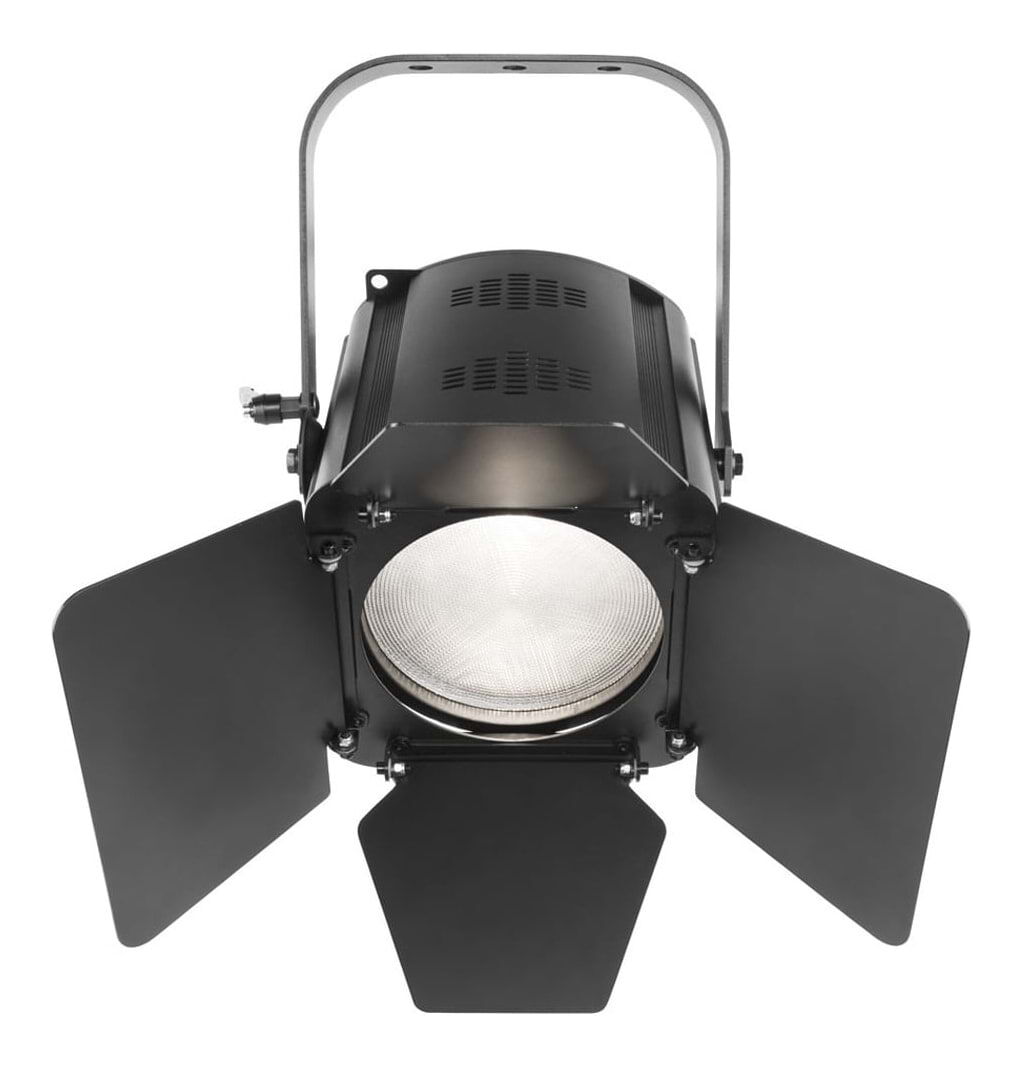

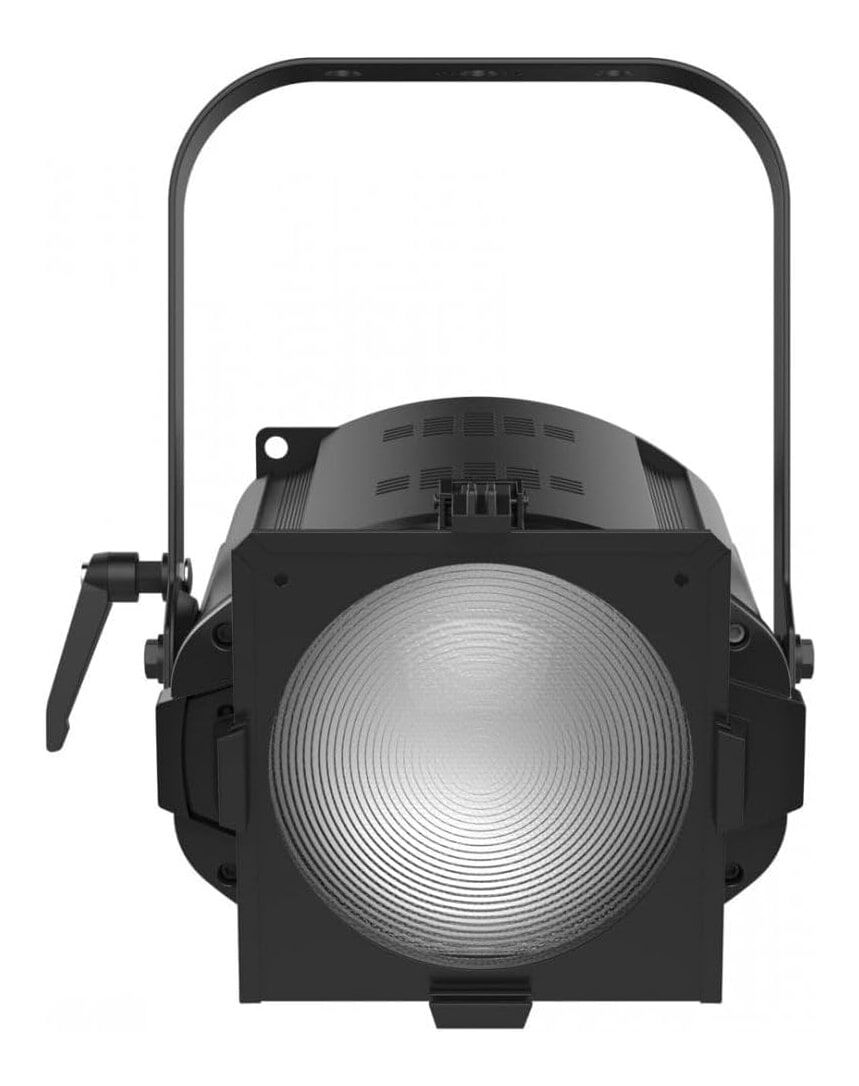

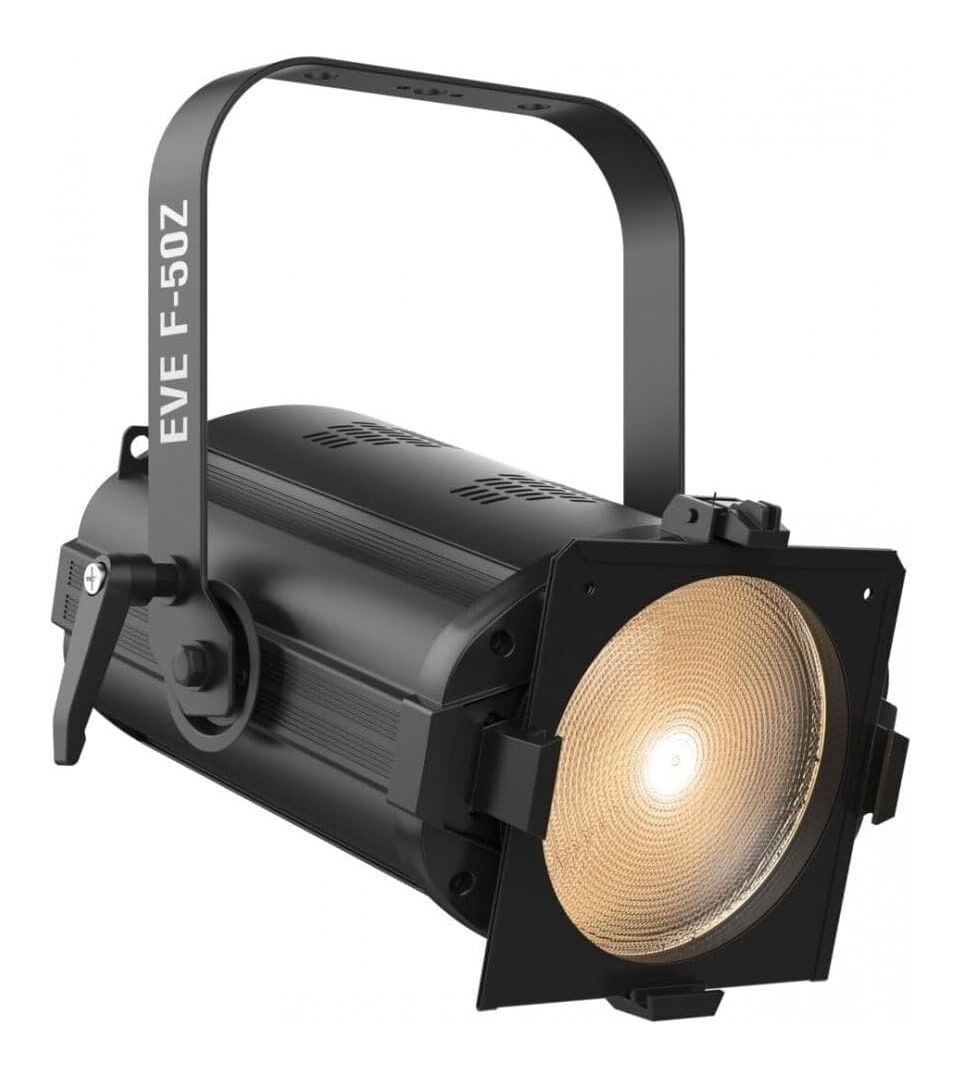

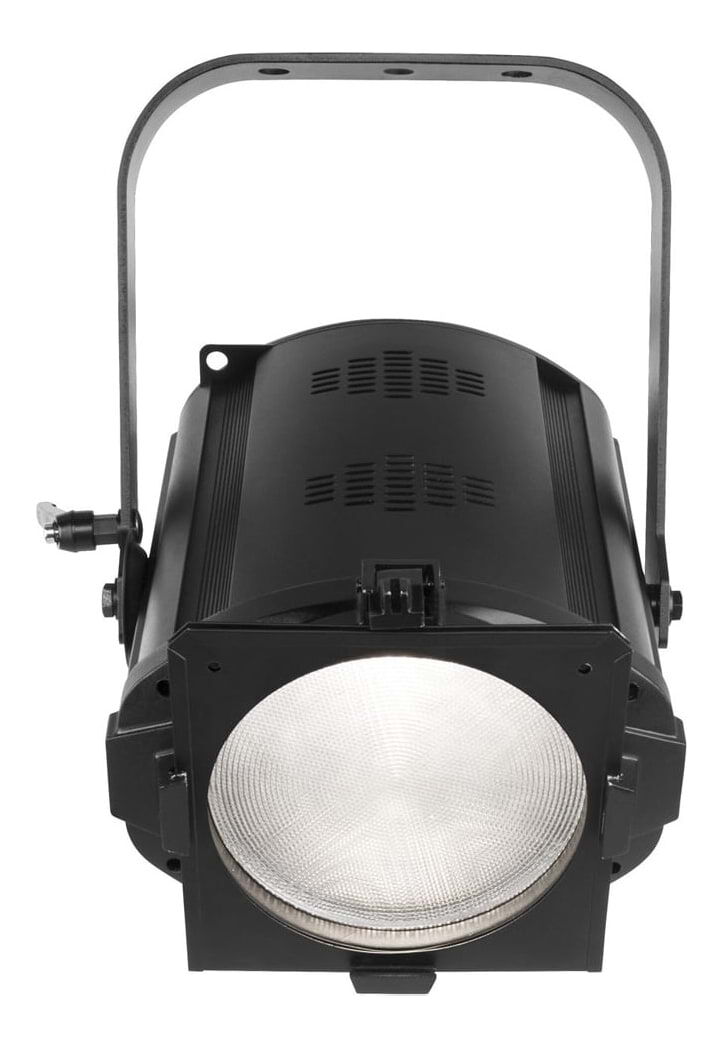

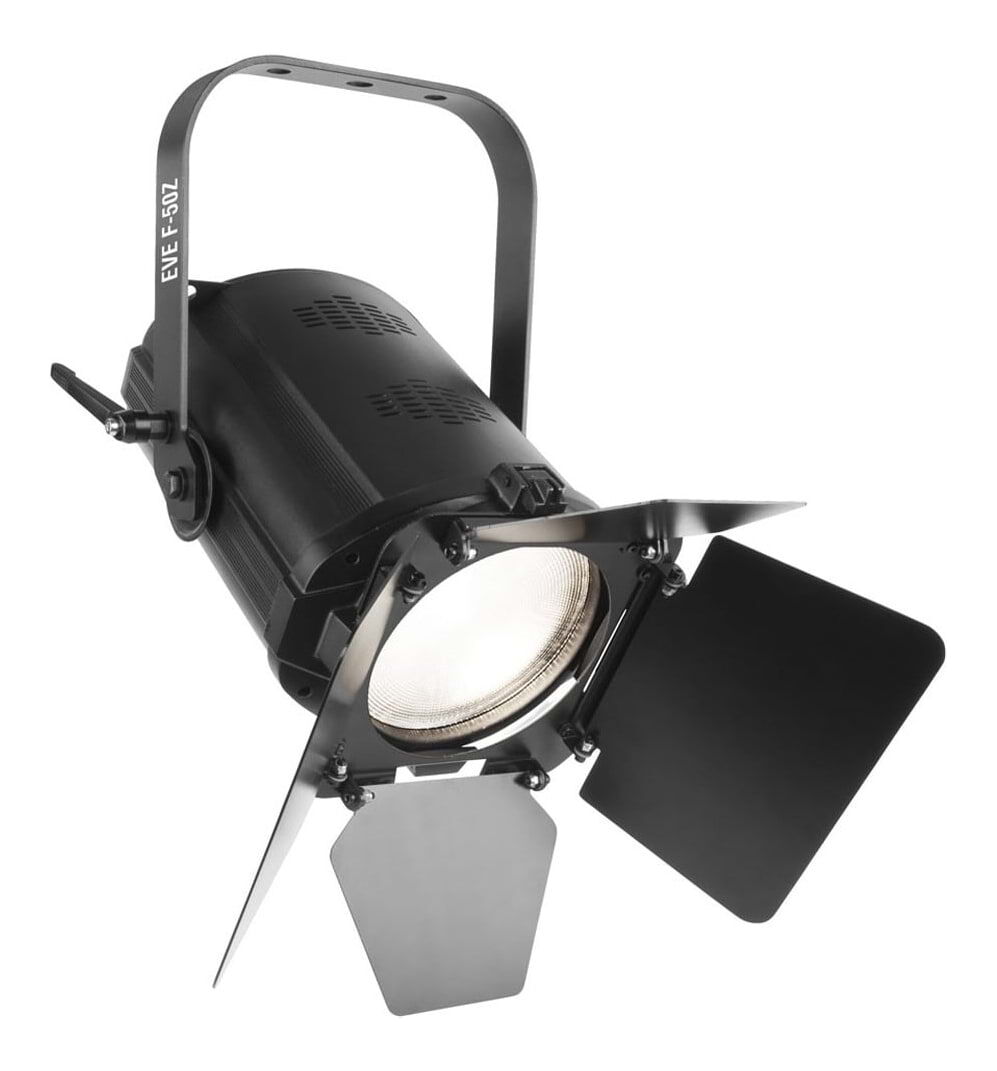

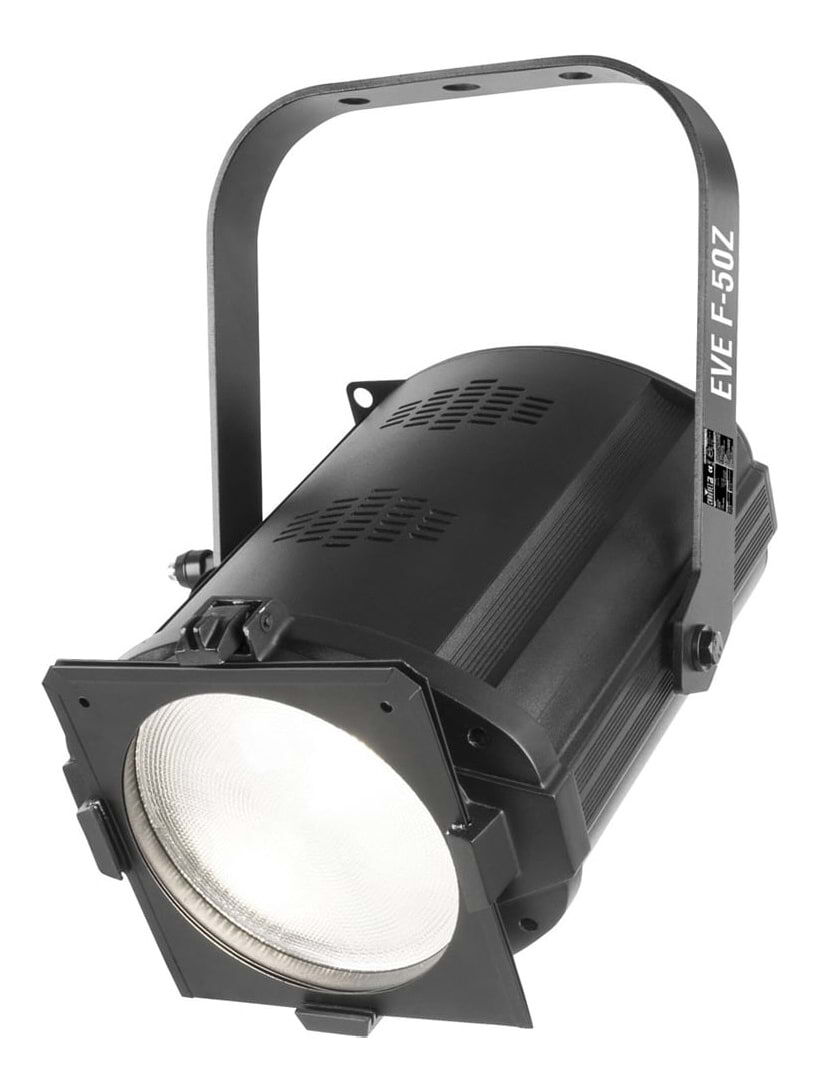

The Chauvet DJ EVE F-50Z is a compact LED Fresnel that throws a soft-edged, warm white (3500K) beam for stage, theatre and video work. Its 50W LED delivers a high 92 CRI for natural skin tones, a rear zoom knob adjusts the beam from 17 to 50 degrees, and the included barn doors and gel frame give precise control over spill and colour.
Soft, Accurate Front Light
A Fresnel lens produces a soft-edged pool of light that blends seamlessly with neighbouring fixtures, which is why this style of fixture is the standard choice for front light and key light in theatres and on camera. The EVE F-50Z pairs that character with a 92 CRI warm white LED, so faces, costumes and scenery keep their natural colour instead of the washed-out look of low-CRI sources, with output up to 4,780 lux at 2m in narrow zoom.
Zoom, Shape and Colour Control
The manual zoom knob on the rear panel sweeps the beam angle from a tight 17 degrees for lifting a performer out of the background to a broad 50 degrees for washing a stage area. The included 4-leaf barn doors fold in to keep light off walls, screens and audience eyes, and the 158mm gel frame takes standard colour gels for quick scene changes.
Wired or Wireless Control

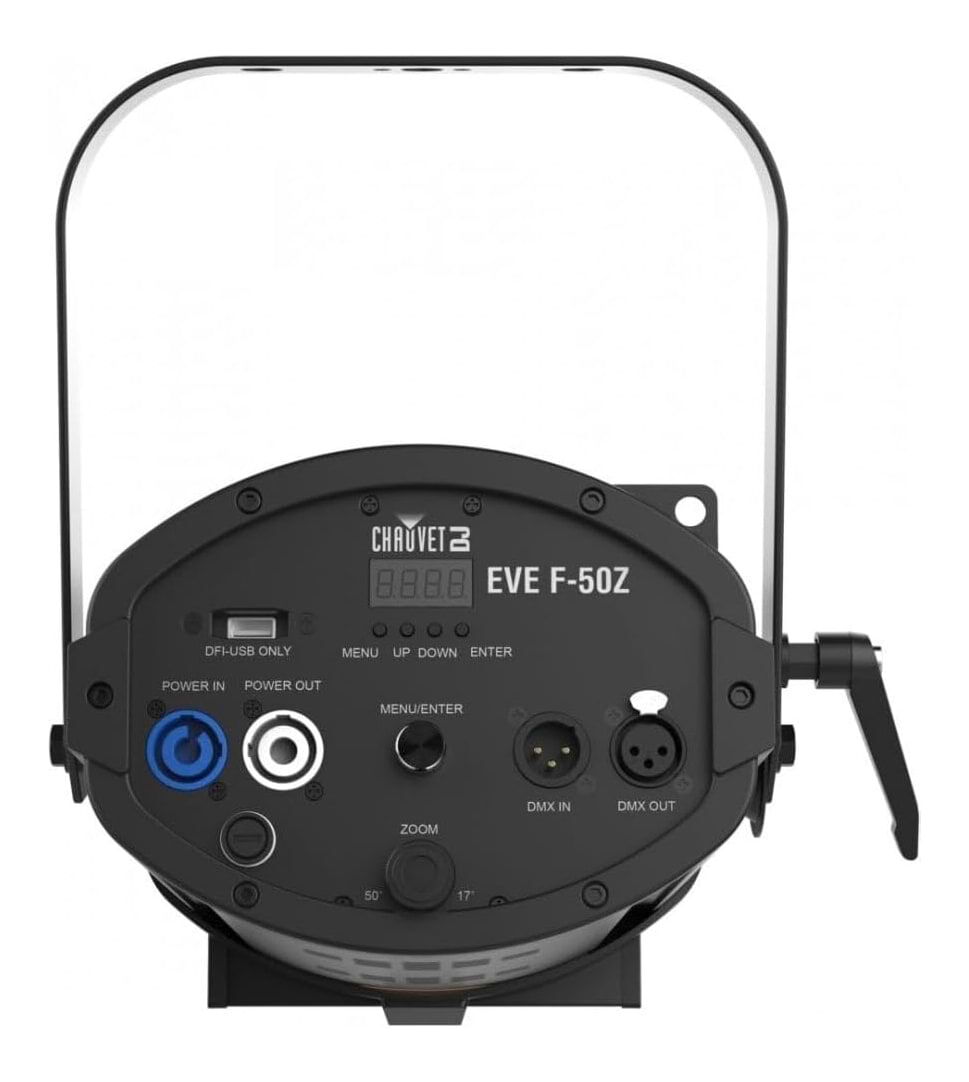

Run the fixture on 1 or 3 DMX channels via 3-pin XLR in/out, dim it locally in standalone mode with no controller at all, or add a Chauvet D-Fi USB transceiver (sold separately) to its dedicated USB port for wireless DMX. Power linking connectors chain up to 26 units from one outlet at 230V, keeping installs and quick stage setups tidy.
Features:
- 50W warm white LED Fresnel fixture (3500K)
- High CRI of 92 for accurate skin tones and scenery
- Manual zoom from 17 to 50 degrees via rear knob
- Soft-edged beam ideal for front and key lighting
- Included barn doors for beam shaping
- Included gel frame for colour effects
- DMX control (1 or 3 channels) via 3-pin XLR
- Standalone operation with local dimming
- D-Fi USB compatible for wireless DMX (sold separately)
- Power linking for up to 26 units @ 230V
- Compact, durable housing for touring or installation
Specifications:
| Light source | 1x 50W warm white LED, 50,000 hours life expectancy |
| Colour temperature | 3500K |
| CRI | 92 |
| Zoom angle (manual) | 17° to 50° |
| Beam angle | 17° (narrow) to 50° (wide) |
| Field angle | 33° (narrow) to 69° (wide) |
| Illuminance | 4,780 lux @ 2m (17°); 998 lux @ 2m (50°) |
| DMX channels | 1 or 3 |
| DMX connectors | 3-pin XLR |
| Strobe rate | 0 to 28Hz |
| Power linking | 26 units @ 230V |
| Input voltage | 100 to 240 VAC, 50/60Hz (auto-ranging) |
| Power consumption | 58W @ 230V, 50Hz |
| Gel frame size | 158mm (6.25 in) |
| Weight | 3.9kg |
| Size | 281 x 212 x 328mm |
| Optional controllers | D-Fi USB |
