MOEN Guitar Effects Pedal Bridge / Pedal Board with Flight Case and Power Supply

MOEN

MOEN Guitar Effects Pedal Bridge / Pedal Board with Flight Case and Power Supply

$399.99
Pre-Order Est. Dispatch 17 April
If your prefer to wait until the stock has arrived:
CLICK HERE TO 'GET NOTIFIED' once we have stock on hand
or interest free for up to 6 months with
-
+

A must have for the gigging guitarist, this package deal includes everything you need to run your guitar effects control station. Included is a heavy duty, angled, velcro pedal bridge that fits snugly inside a protective carry case.

Dispatch

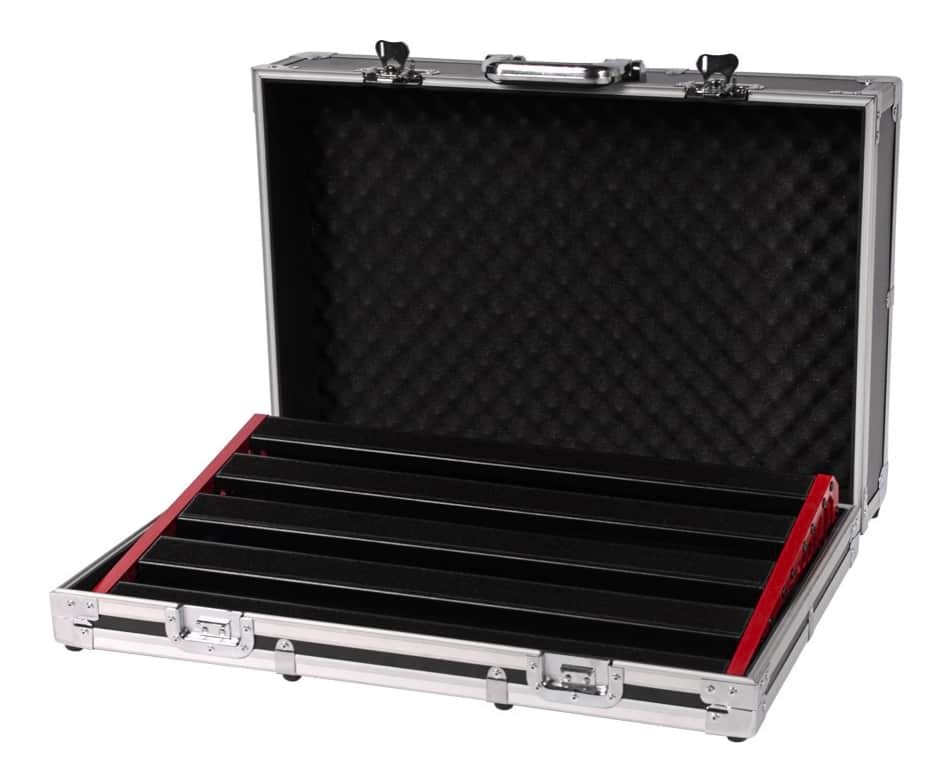

MOEN Pedal Bridge with Hard Case and Power Supply Brick
A must have for the gigging guitarist, this package deal includes everything you need to run your guitar effects control station. Included is a heavy duty, angled, velcro pedal bridge that fits snugly inside a protective carry case. This pack also includes a MOEN ISO-PA8 power supply brick to with isolated outputs power up to 8 effects pedals.

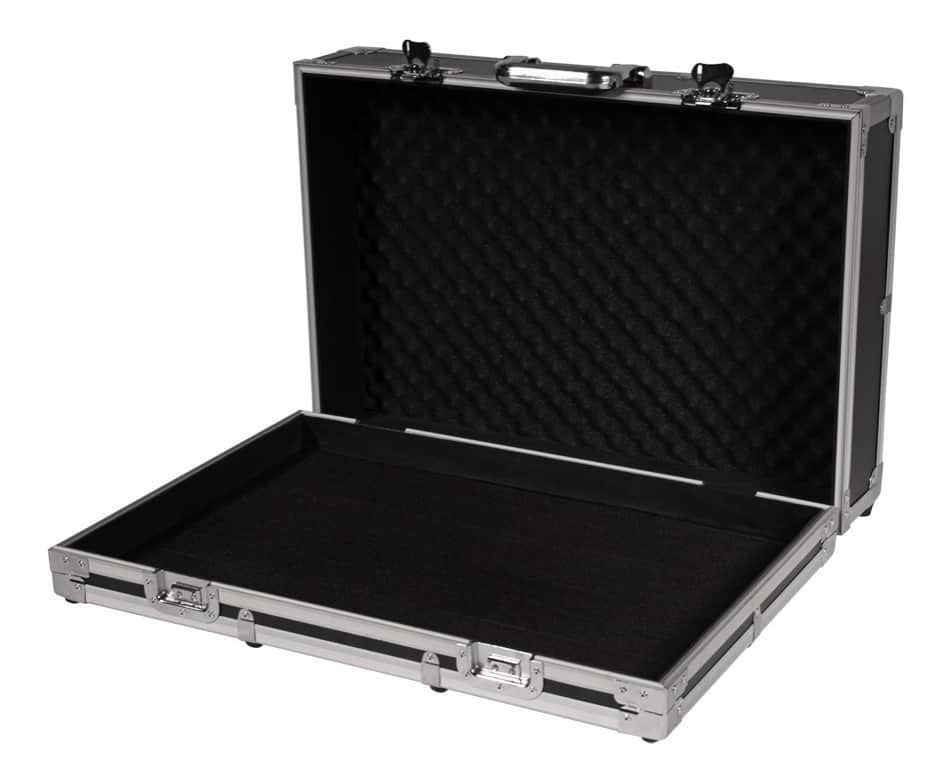

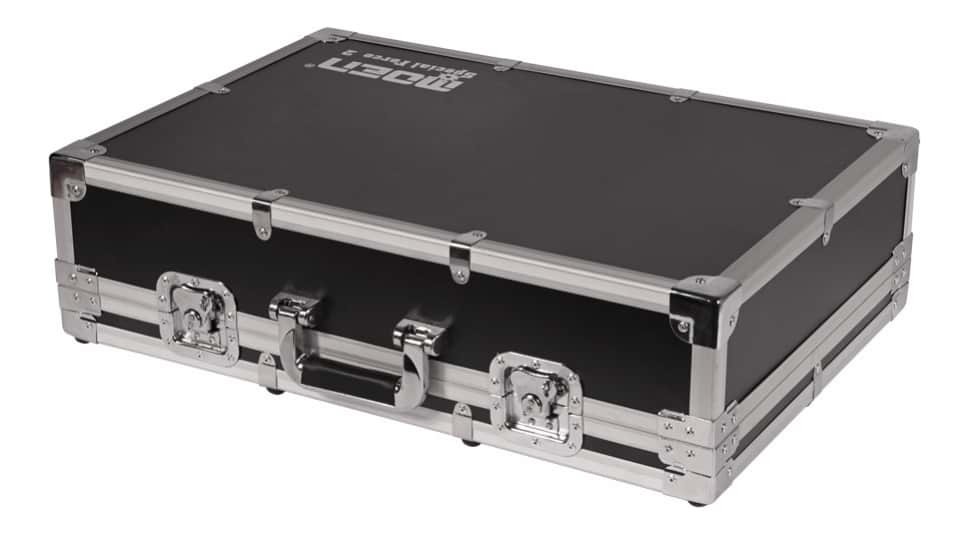

MOEN PB-SF Guitar Effect Pedal Board Hard Case
Designed for guitar pedal board set ups, the PB-SF one of the best ways to store and carry your guitar effect pedals. Save time and effort by having your pedal board set-up and ready to go whenever you open the case.

Velcro Base Surface
Features a velcro attracting surface on the bottom of the board. Apply velcro strips (included) to the underside of your pedals for easy and secure pedal board layout.

Plywood Construction with Chrome Trims
MOEN have constructed the PB-SF to be robust and durable as as well protect against fire. Finished with chrome metal gaskets and protection pieces. Protect your hardware from wear and tear and carry your effects rig to your next gig, in style!

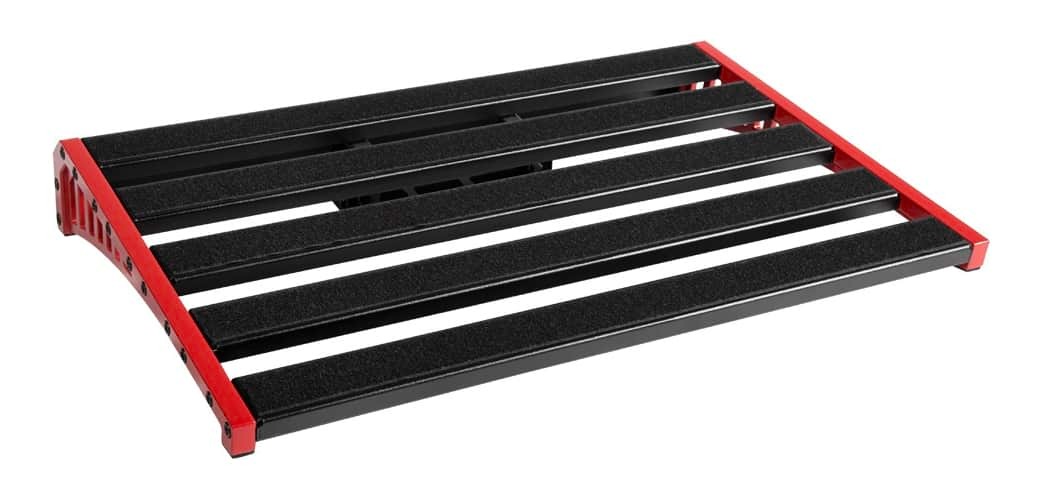

MOEN Pedal Station Bridge
This MOEN Pedal Bridge is designed to slot perfectly into the MOEN "Special Force 1" Hard Case or in the Pedal Bridge Soft Case, keeping your pedals securely in place, and raising them on an angle. This makes them easier to see and easier to activate.

Custom Velcro Stripping
Comes with everything you need to set up a great looking and impressive pedal board. Once it's assembled, you can use the supplied velcro tape cut into strips of your choosing to attach to the bottom of your pedals. The rungs are completely lined with velcro, giving you maximum customization of your pedal positioning.

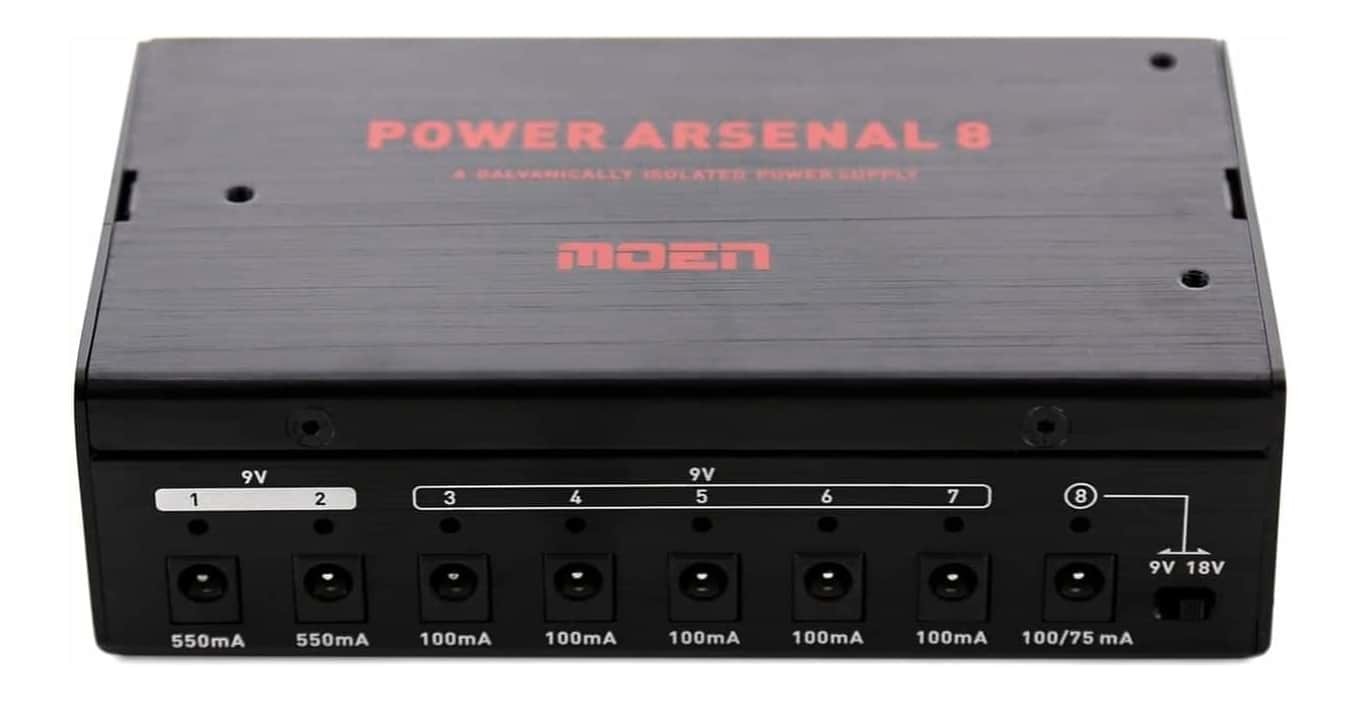

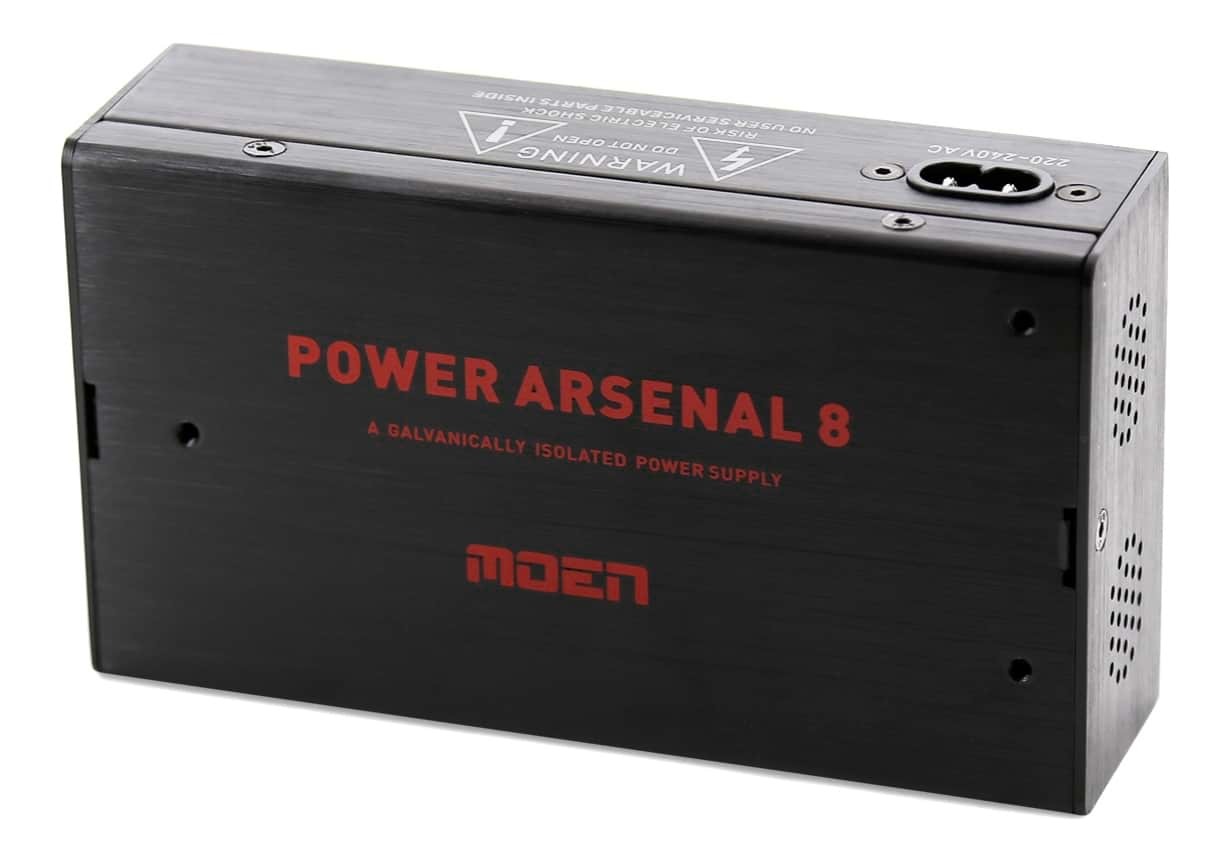

MOEN Isolated Pedal Board Power Supply
The ISO-PA8 will power your guitar effects pedals from one power point reliably and without noise, thanks to the onboard transformer isolation. The unit supplies up to 8 dedicated 9V DC electrical currents. Unlike some power stations, the MOEN ISO-PA8 provides the user with plenty of options with the inclusion of 4x 9V 100mA power outs, 2 9V 550mA outputs and 1 switchable 9V/18V output.



MOEN Pedal Case Features

  • Inner Dimensions: 60 x 40 x 14cm
  • Weight: 3.9kg
  • Body Material: 9mm plywood plus 1mm fireproof plywood
  • Frame: Galvanized Aluminum Alloy
  • Heavy Duty Chrome-plated Butterfly Latches and Corners
  • Two 50cm velcro strips included

MOEN Pedal Bridge Features

  • Aluminium Construction
  • Velcro Stripping Tape Included
  • 5 Rungs
  • Fits the "Special Force 1" Hard Case
  • Padded Gig Bag Available (Sold Separately)
  • Dimensions: 59cm x 40cm x 8.5cm
  • Weight: 2.2kg

MOEN ISO-PA8 Power Supply Features:

  • 8x Output Power Brick

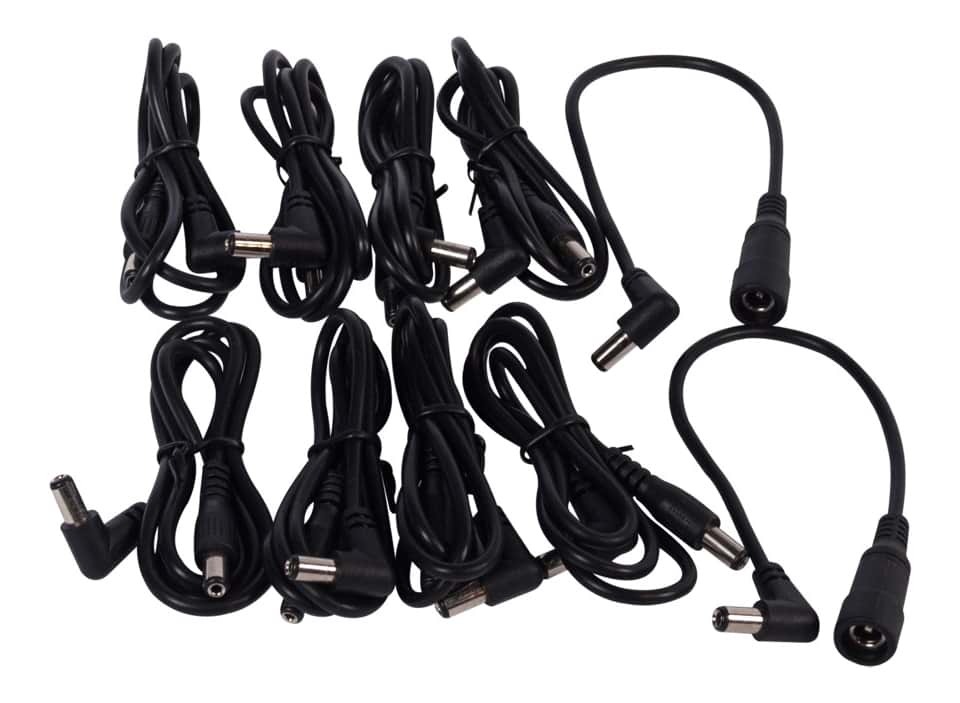

  • 8x DC Power Cords
  • 2x Line-6 Converter Cables

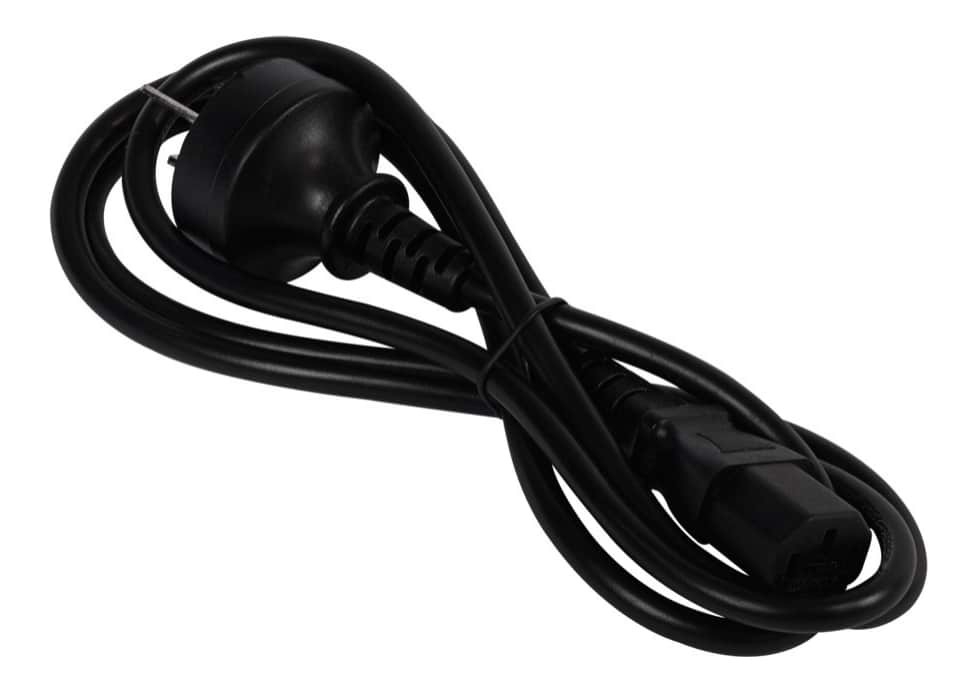

  • 1x 240V IEC-C7 Power Cable
  • Flashing LEDs Indicate Current Overdraw
  • Isolated 'Negative Centre' Outputs

Specifications:

  • 220-240V input
  • Dimensions: 152 x 86 x 44mm
  • Weight: 700grams
  • Maximum Current Output per Channel:
    • 1-2: 9V 550mA
    • 3-7: 9V 100mA
    • 8: 9V / 18V 100mA / 75mA
    • Negative Centre Polarity on all outputs
View PDF brochure for MOEN Guitar Effects Pedal Bridge / Pedal Board with Flight Case and Power Supply
By: Drew Kemp on 22 May 2015
Great so far sturdy construction hard case is reasonable power supply good low noise on/off switch would have been good great product for $$$
