• HDMI to USB 3.0 External Video Capture Card

    $159.99
    Sold Out
    Contact us for an ETA

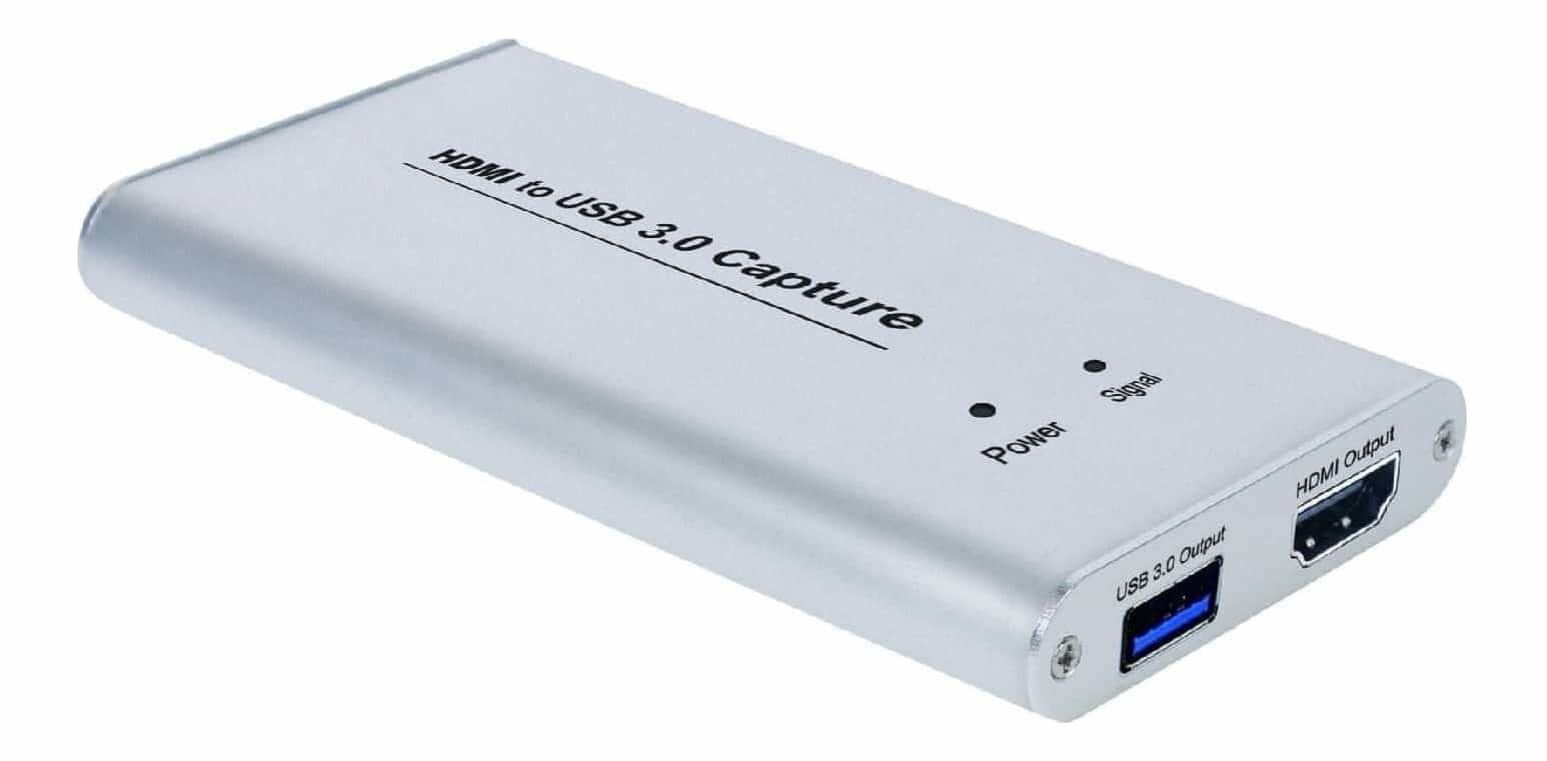

    White - The HDMI to USB 3.0 Capture is a cost-effective external solution for capturing video! Perfect for live streaming and recording from a camera, Xbox, PlayStation or Nintendo console, direct to your Mac/PC.

    HDMI to USB 3.0 External Portable Video Capture Card for Cameras and Gaming Consoles

    The HDMI to USB 3.0 Capture is a cost-effective external solution for capturing video! Perfect for live streaming and recording from a console or camera, the HDMI to USB 3.0 Capture suits any current and previous generation game console. Simple USB connectivity makes this device easy to use and compatible with practically any common software on the market. Connect direct from your camera, Xbox, PlayStation or Nintendo console straight to your PC/Mac to begin streaming or capturing live video in full HD 1080!

    Package Includes:

    • HDMI to USB 3.0 External Capture Card
    • 1x USB A to USB A Cable for PC connection
    • 1x USB A to Micro USB for device power
    • Instruction manual

    Features:

    • HDMI Input Interface
    • Mic Input Interface
    • Micro USB Power Interface
    • USB 3.0/2.0 Compatible Output
    • HDMI Through Output for External Monitor/Screen
    • Audio via HDMI Input Accepted

    Specifications:

    Input Interface 1x HDMI
    1x Mic
    1x Micro USB Power Input
    Output Interface USB 3.0, with 2.0 Backwards Compatibility
    1x HDMI Loop Out
    HDMI Input

    1080p @ 60/50/30/25/24
    1080i @ 50/60
    720p @ 50/60
    480p, 576p, 1280x1024, 1280x960, 1014x768, 800x600, 640x480

    HDMI Audio Input 1x LPCM Audio Signal
    HDMI Input Formats Meets HDMI 1.4a Standard and supports 1080p/60Hz 8-Bit (RGB, YUV)
    Output formats Resolutions: 640x480/720x480/720x576/800x600/1024x768/1280x720/1280x960/ 1280x1024/ 1366x768/1360x768/1440x900/1680x1050/1920x1080
    Frame Rate:
    25/29.97/30/50/59/94/60 fps
    Video Sampling Rate HDMI: 165MHz
    Audio and Video Capture Meets UVC (USB Video Class) and AUC (USB Audio Class) Standards
    Output Colour Space YUV, RGB
    Colour Space Switch Hardware Colour Space Switch
    Image Scale Hardware Scale
    OS Support

    Supports x86 and x64 versions:
    Windows 7
    Windows 8
    Windows 10
    Linux (Kernel version 2.6.38 and above)
    Mac OS X (10.8 and above)

    Software Compatability  Windows Media Encore (Windows)
    Adobe Flash Media Live Encoder
    Real Producer Plus
    VLC
    QuickTime Broadcaster
    QuickTime Player
    Wirecast
    OBS
    Development Interface Compatability

    DirectShow(Windows), DirectSound(Windows)
    V4L2 (Linux), ALSA (Linux)
    QuickTime (OS X)

    Upgrade Firmware can be upgraded
    Dimensions 113 x 61 x 13mm
    Power Consumption < 2.5W
    Working Temperature 0.50deg C
    Storage Temperature -20-70deg C
    Storage Humidity 5-90%







    View PDF brochure for HDMI to USB 3.0 External Video Capture Card
