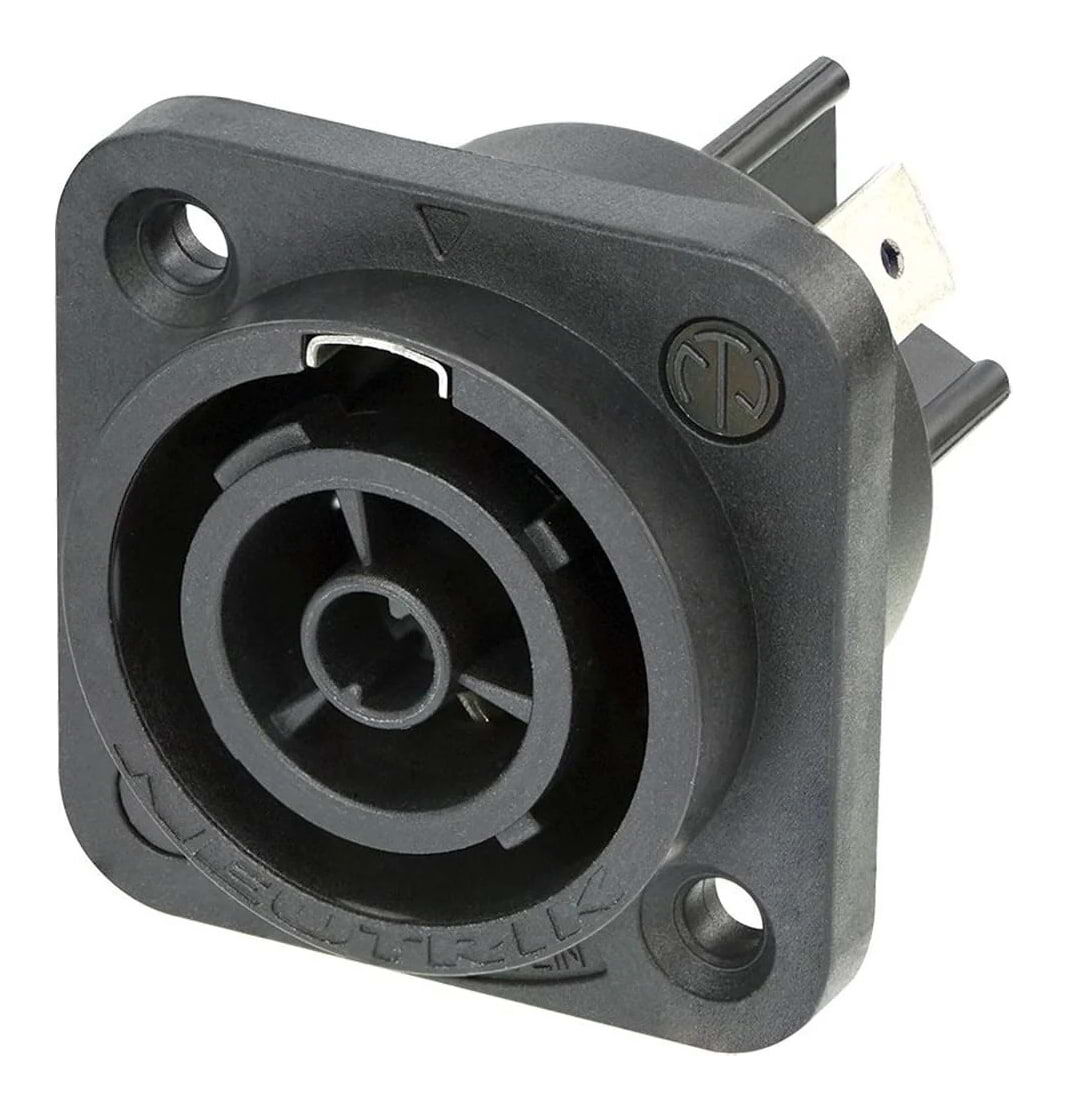

The Neutrik NAC3FPX-TOP is a powerCON TRUE1 TOP appliance outlet connector designed for rugged outdoor applications. It provides a locking, twist-style, true mains connection - serving as a durable and safer alternative to traditional appliance couplers.
Cable Filter: Alternative Options
Neutrik NAC3FPX-TOP powerCON TRUE1 Panel Outlet - Power Out
The Neutrik NAC3FPX-TOP is a powerCON TRUE1 TOP appliance outlet connector designed for rugged outdoor applications. It provides a locking, twist-style, true mains connection - serving as a durable and safer alternative to traditional appliance couplers.
Appliance Outlet Connector
Featuring 1/4" flat tab terminals, the powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live, enhancing flexibility and safety in live environments.
Features:
- Heavy duty sealed power connector for harsh and demanding environment
- IP65, UL50E enclosure type4 rating in combination with SCNAC-FPX (mated or with closed cap)
- Uses high impact UV-resistant materials
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Easy and reliable twist lock system
- Extremely robust and reliable
- Unique Neutrik cable retention
- ENEC certified according to IEC 60320
- UL498 certified
Specifications:
- Contacts: 2 conductors + Protective Earth (PE)
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: 4 kV DC / 2.8 kV AC
- Insulation resistance: > 1 GΩ (after damp heat testing)
- Current rating (EU): 16 A @ 250 V AC (EN 60320-1)
- Current rating (USA): 20 A @ 250 V AC (UL 498)
- Mechanical mating life: > 5,000 cycles
- Wire size compatibility: Up to 2.5 mm² / 12 AWG
- Contact plating: 2 µm Silver (Ag)
- Locking component: Stainless steel
- Shell material: Polyamide (PA 6.6)
- Contact material: Spring Copper CuSn0.2
- Flammability rating: UL 94 V-0
- Operating temperature: –30 °C to +80 °C (IEC 61984); –5 °C to +40 °C per IEC 60320-1
