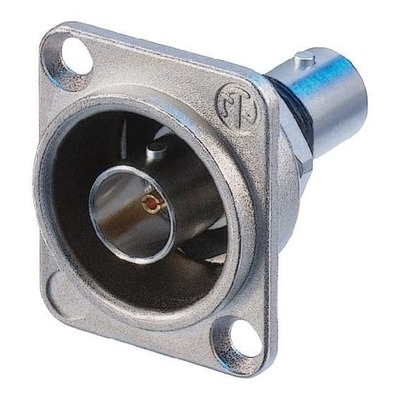

Neutrik NBB75DFIX UHD 4K/8K BNC Chassis Connector - Feed-through

$14.99
Back-order - Dispatched after early Dec
item is on order with our Australian supplier, due early Dec
If your prefer to wait until the stock has arrived:
CLICK HERE TO 'GET NOTIFIED' once we have stock on hand
RRP $19.00
Buy In Bulk & Save!
Buy 2 to 10: Pay $14.57
Buy 11 to 20: Pay $14.17
Buy 20 or more: Pay $13.79
Quantity

Genuine NBB75DFIX Neutrik AG (Liechtenstein) UHD 4K/8K BNC Chassis Panel Mount. It offers low return loss values at high frequencies specific for high resolution video signal transmission. Machined brass connector body. 75-Ohm design.

Neutrik NBB75DFIX UHD 4K/8K BNC Chassis Connector - Feed-through
Genuine NBB75DFIX Neutrik AG (Liechtenstein) UHD 4K/8K BNC Chassis Panel Mount. It offers low return loss values at high frequencies specific for high resolution video signal transmission. Machined brass connector body. 75-Ohm design.

Designed for high-resolution video transmission
Isolated UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing.Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. Recessed and well protected in a D-shape housing.

Features:

  • Optimized gold plated cage type center contact for UHD signals as 4K or 8K
  • Swiss antraloy plating
  • Isolated panel mount
  • Standard D-shape housing provides flush mounting and protection from damage

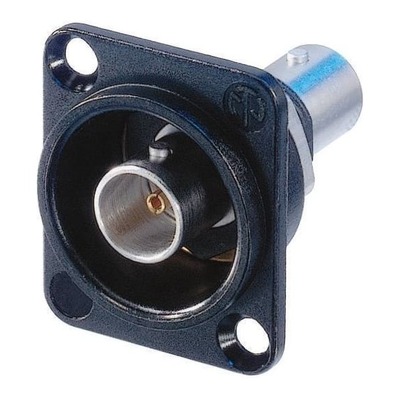

  • Color coding possible
  • Fully compatible with conventional BNC cable connectors

Specifications:

  • Connector Type: BNC 75 Ohms (Female)
  • Signal Type HD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV
  • Contact Resistance: ≤ 3 mOhms (Inner) / ≤ 2 mOhms (Outer)
  • Dielectric Strength: 1.5 kV DC
  • Impedance: 75 Ohms
  • Insulation Resistance: > 5 GOhms
  • Rated Voltage: < 50 V
  • VSWR ≤ 1.06 / > 30 dB up to 6 GHz / ≤ 1.13 / > 24 dB up to 12 GHz / ≤ 1.22 / > 20 dB up to 18 GHz
  • Insertion Force < 25 N
  • Lifetime > 1000 Mating Cycles
  • Mounting Direction Front
  • Chassis D-Shape
  • Contacts Brass, 0.2 µm AuCo (Center Contact)
  • Insert PTFE
  • Shell Polyacetal (POM) (Insulation Shell)
  • Shell Plating Antraloy
  • Housing Zinc Diecast
  • Temperature Range -22 to 185°F /-30 to 85°C
View PDF brochure for Neutrik NBB75DFIX UHD 4K/8K BNC Chassis Connector - Feed-through

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review

Product Enquiry Form Complete this form to email us your enquiry.




MPN: NU-NBB75DFIX
