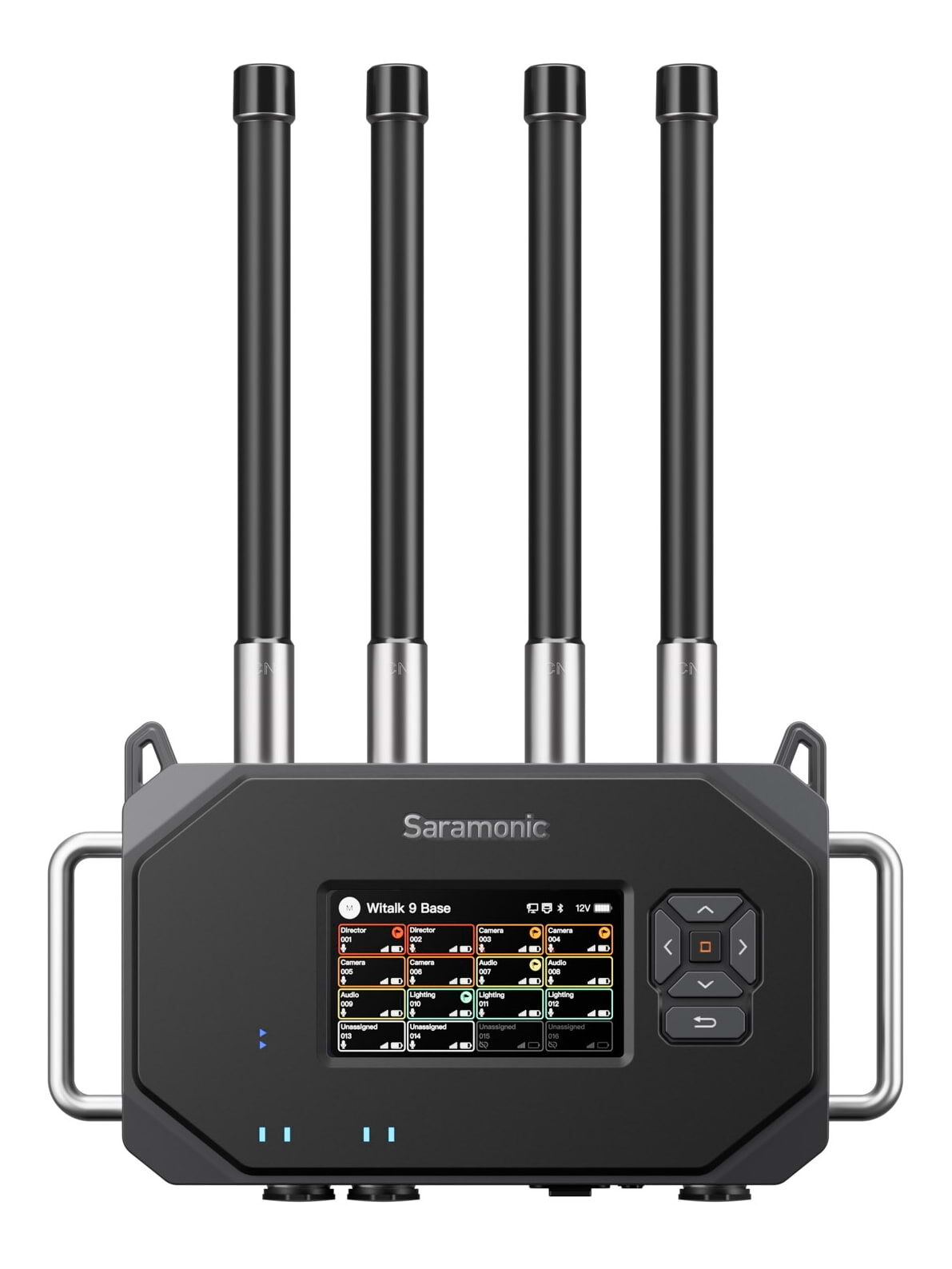

Saramonic WiTalk Base-V Wireless Intercom Base Station - V-Mount

More videos in this series

2:08Introduce Saramonic WiTalk9 X and WiTalk Base2:24Switch Between Single-Ear, Dual-Ear and Helmet-Style2:49Quick Start Guide0:45WiTalk9 X Unboxing

Saramonic WiTalk Base-V Wireless Intercom Hub

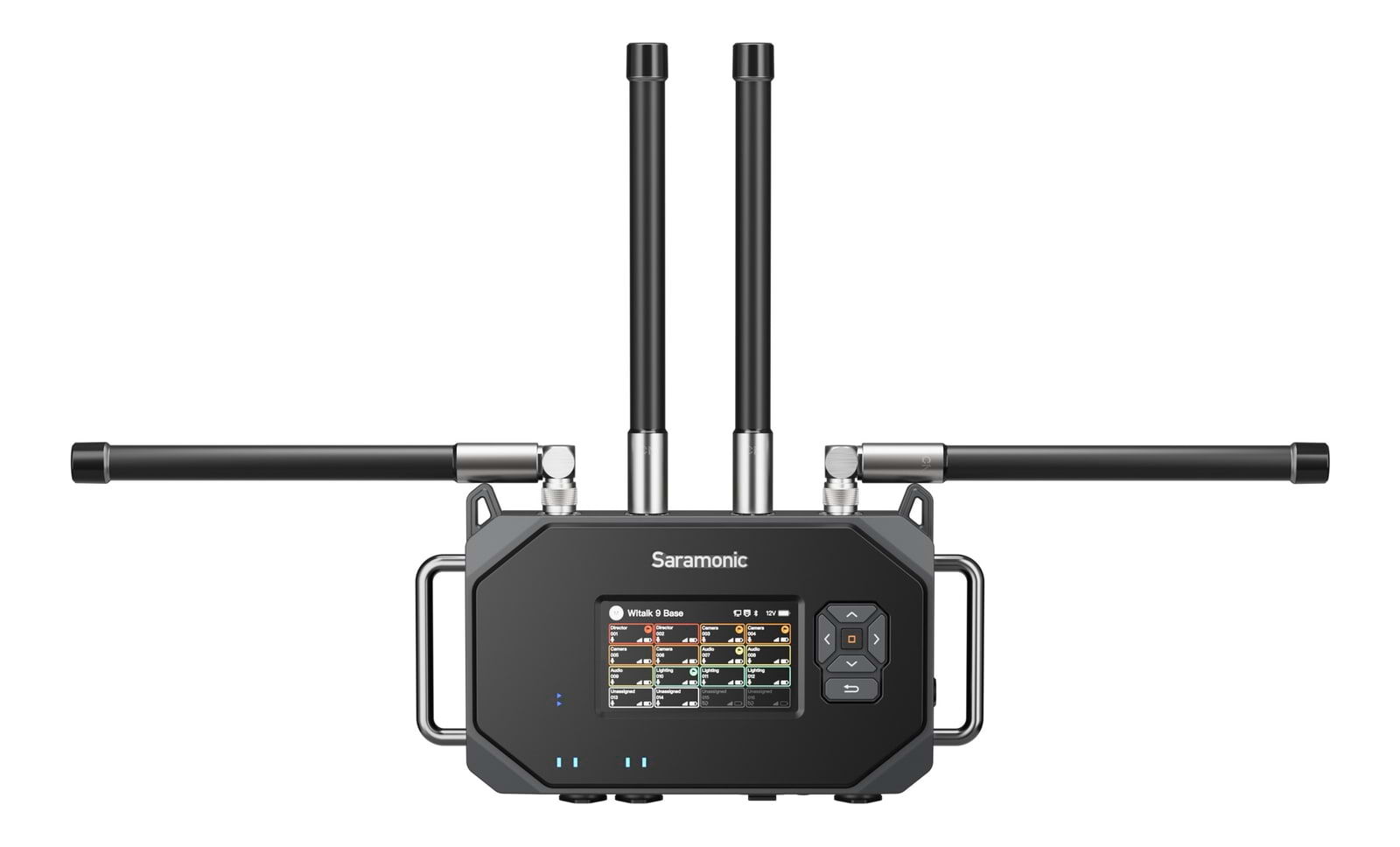

The Saramonic WiTalk Base is the central hub of the WiTalk intercom ecosystem, turning WiTalk9X and WiTalk9 headsets into a large-scale production comms system: 16 full-duplex users per base, up to 64 users across four linked bases, 8 role-based talk groups and roaming between coverage zones. This is the V-mount variant, running from a V-mount battery or DC power for OB truck, stage and field rigs. With up to 700m headset-to-base range (typically 600-700m), a 5-inch sunlight-readable colour display and an IP66-rated alloy body, it is built for large studios, theatres, sports broadcasts and outdoor stages.

16 Users per Base, 64 Across Four
Each WiTalk Base supports up to 16 full-duplex wireless users - up from 9 in a hub-free WiTalk9X system - and bases cascade over standard shielded CAT5e/CAT6 Ethernet (runs up to 100m; three or more bases need a cascade splitter) to 64 users. Headsets roam automatically, connecting to the strongest base signal as crew move between coverage zones, so large venues behave like one seamless channel.

8 Role-Based Groups Plus a Leader Channel

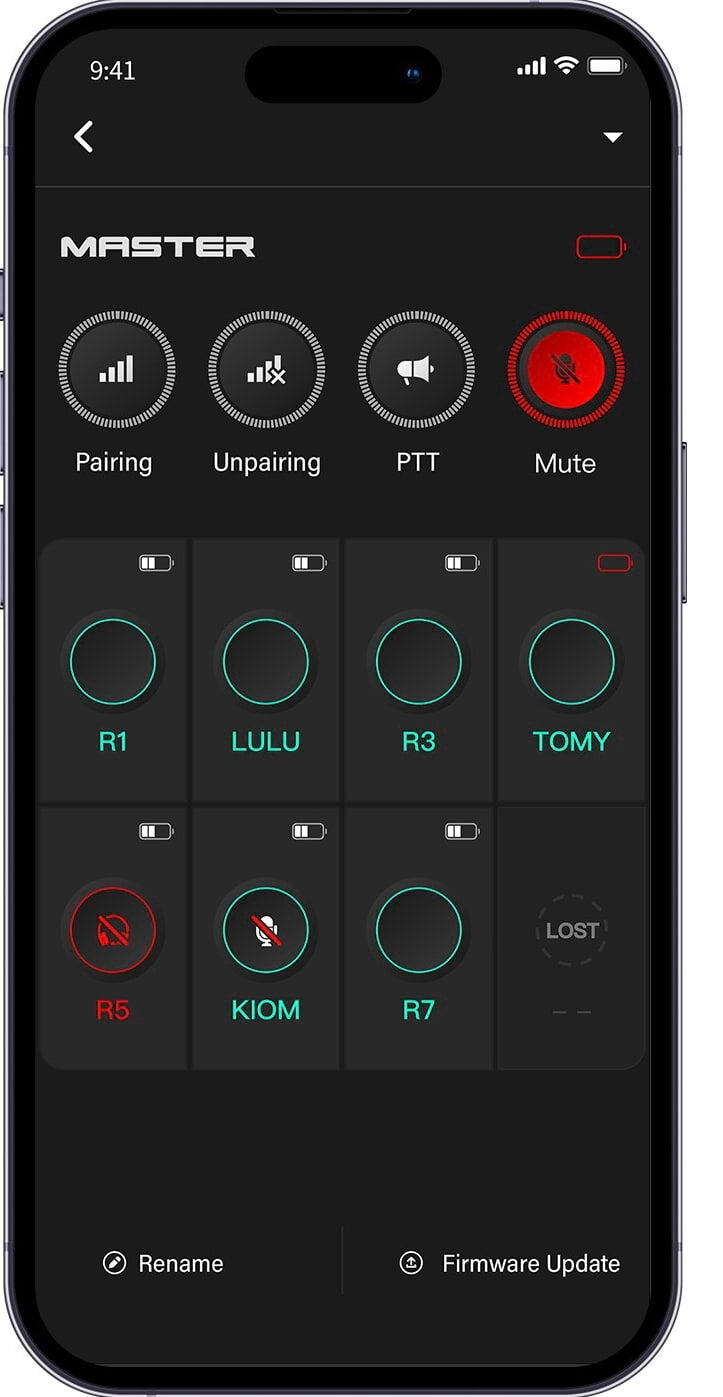

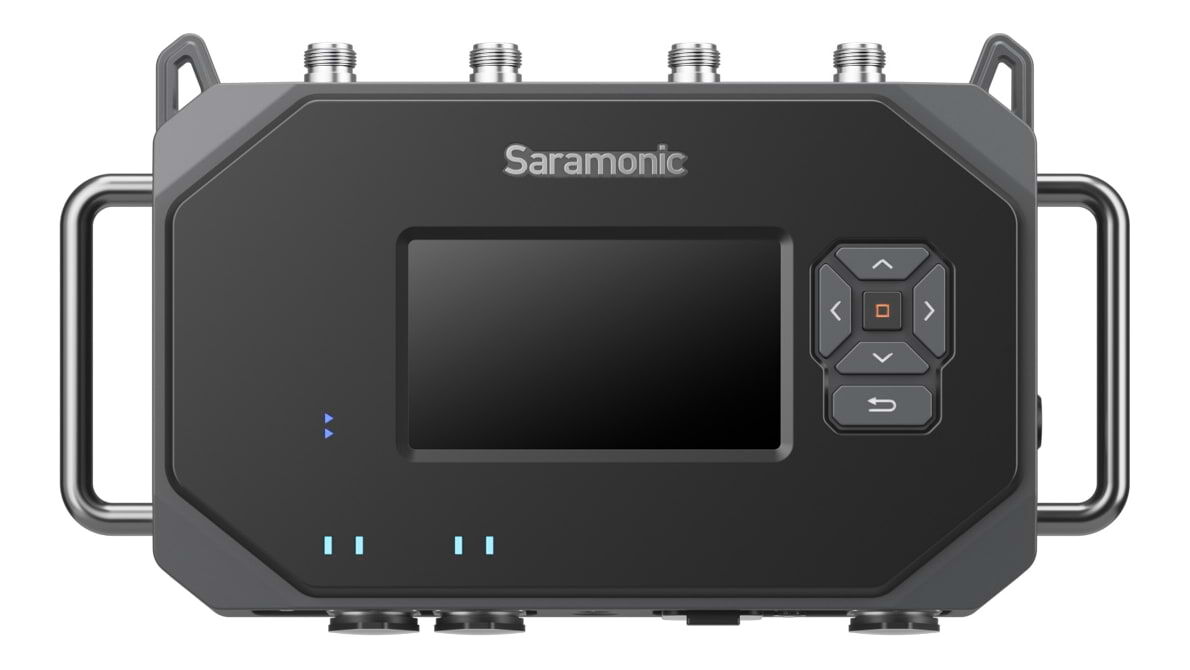

Organise the crew into up to 8 independent talk groups - camera, lighting, stage, front of house - with each user hearing two groups at once and choosing which one to speak into. A dedicated leader channel keeps key roles connected across every group for tiered command flow. Groups and devices are managed from the Saramonic System App, web interface or PC, and the 5-inch colour display shows groups, battery and signal at a glance, even in direct sunlight.

Bridges Into Your Existing Comms

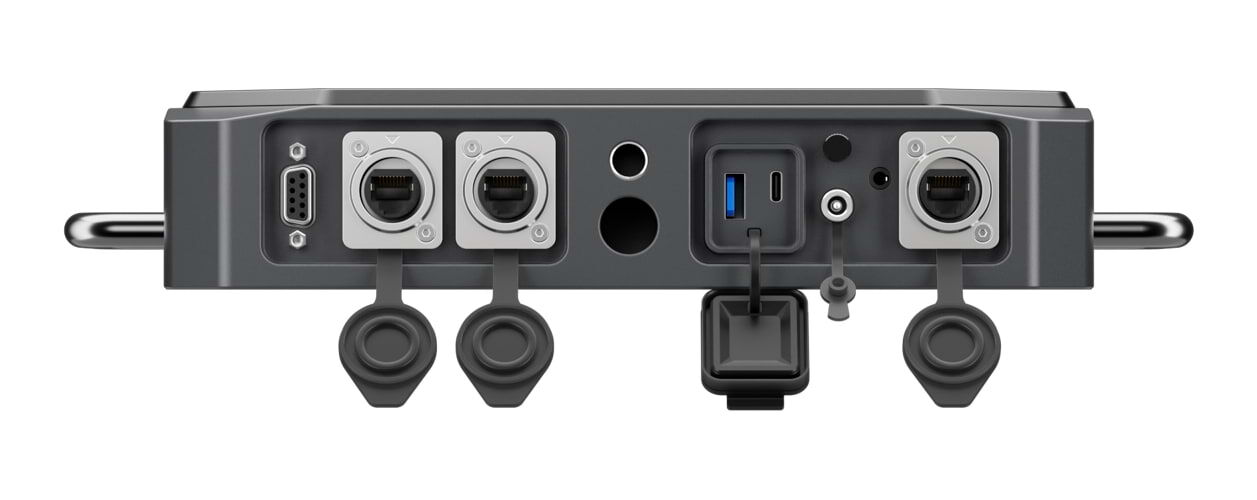

A 4-wire analog interface links the WiTalk Base into Clear-Com, Riedel, RTS, Datavideo and LaON systems, so wireless WiTalk headsets and wired production intercom share one conversation. USB-C (UAC) connects a computer for Zoom or Teams remote collaboration - including over 4G/5G via a connected device - the 3.5mm I/O doubles as a 17th wired headset position, and optical fiber via media converters extends the system across kilometre-scale sites.

Built for the Field

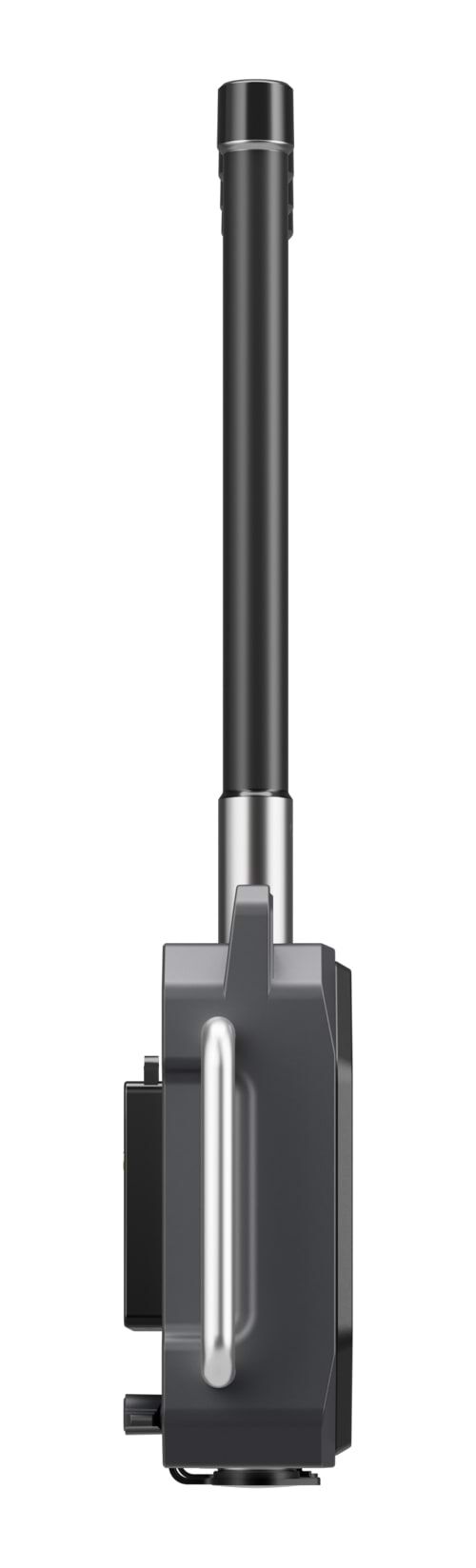

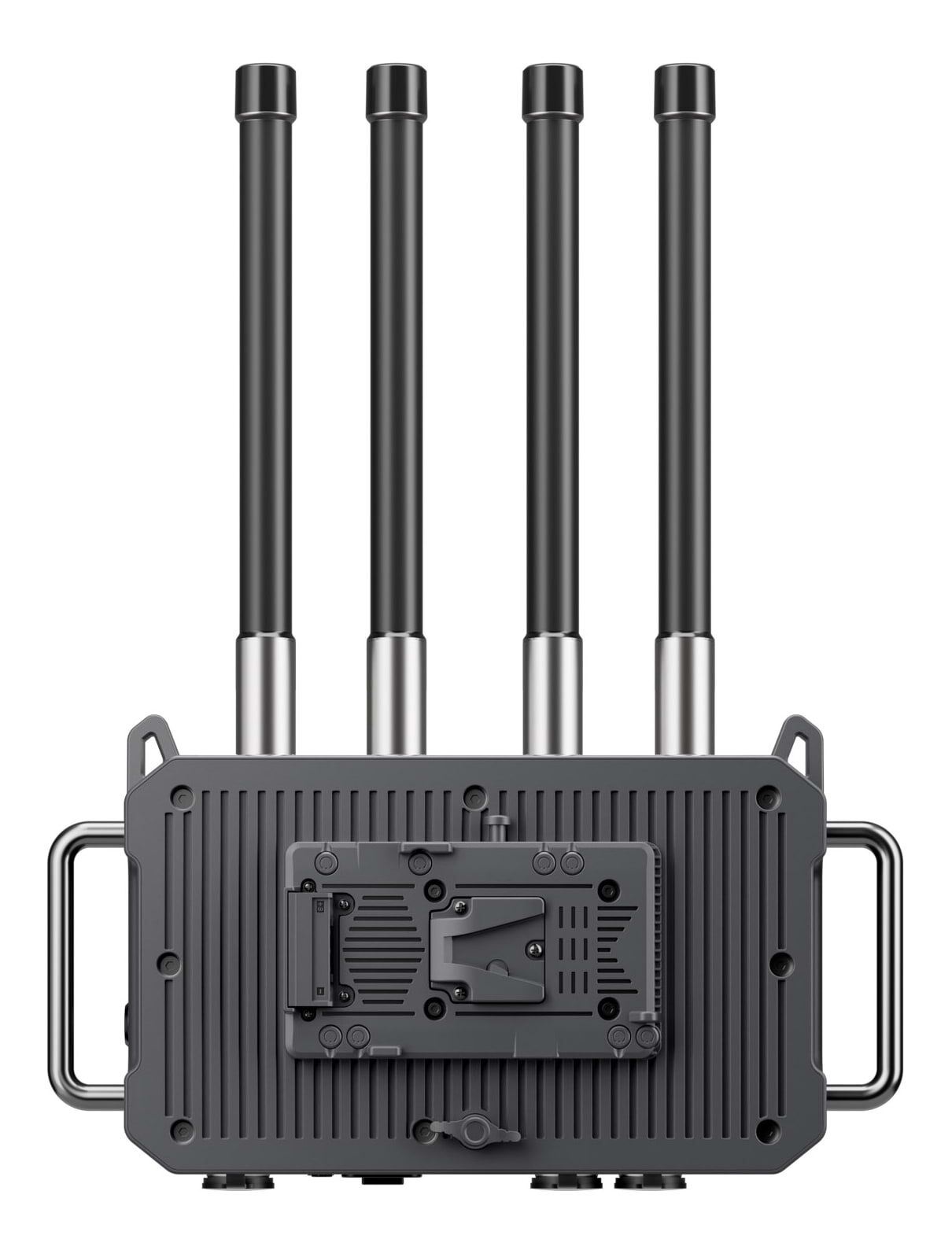

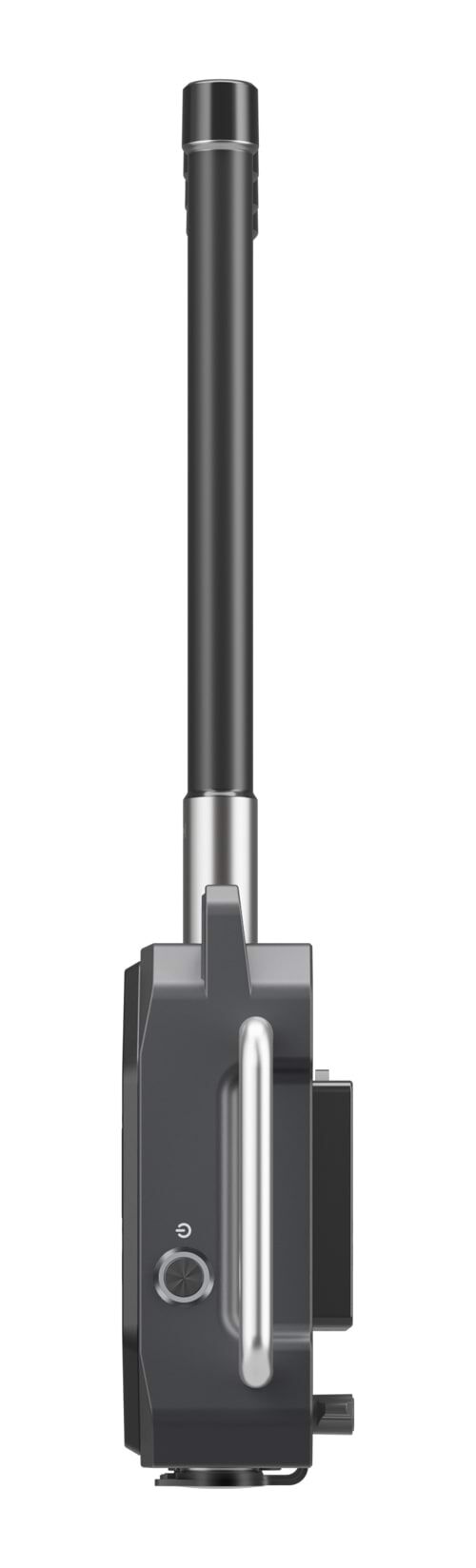

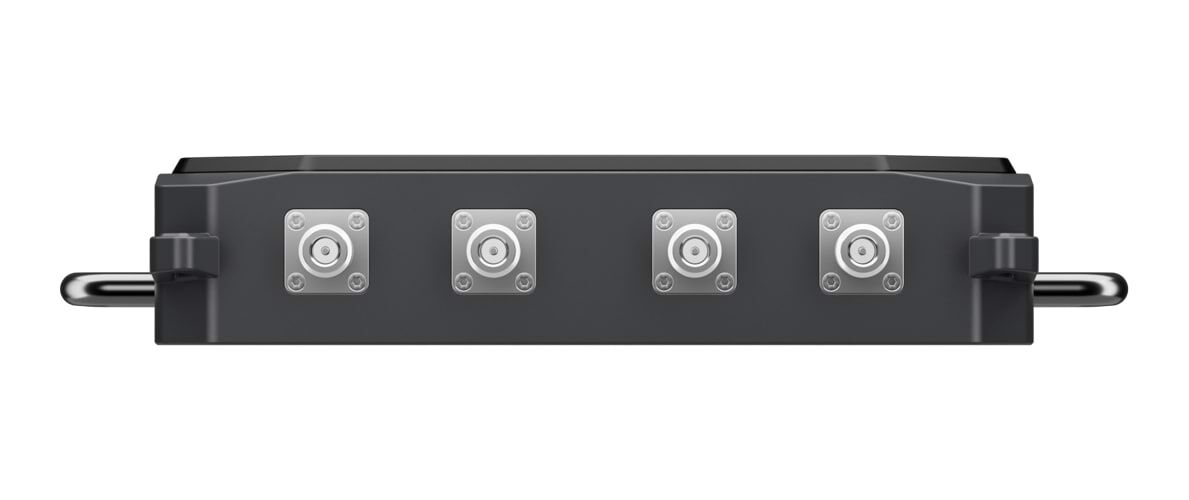

The aluminium-magnesium alloy body carries an IP66 dust and water rating with professional thermal and EMI shielding design, and mounts via 5/8 inch and 3/8 inch threads. Two side antennas can be mounted horizontally to boost vertical coverage in grandstands and multi-storey venues. The base measures 325 x 182 x 79mm without antennas and weighs 1.96kg.

Works With the Whole WiTalk9 Family
Mix single-ear, dual-ear and helmet-ready headsets from both the WiTalk9X and WiTalk9 series on one base, assigning any style to any role (keep all headsets on the latest firmware). The WiTalk Base is not compatible with WiTalk5 or WiTalk9 SE headsets.

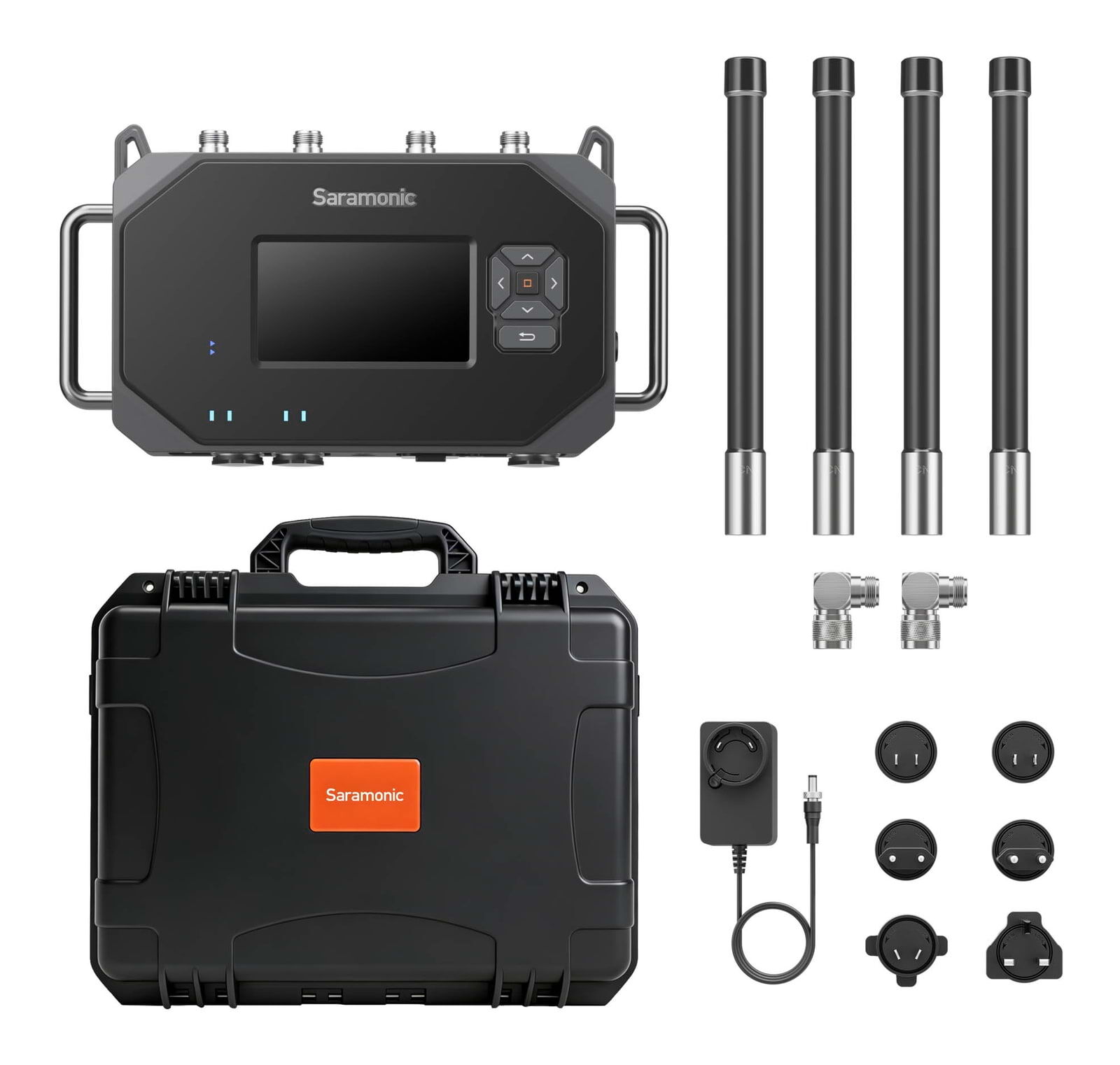

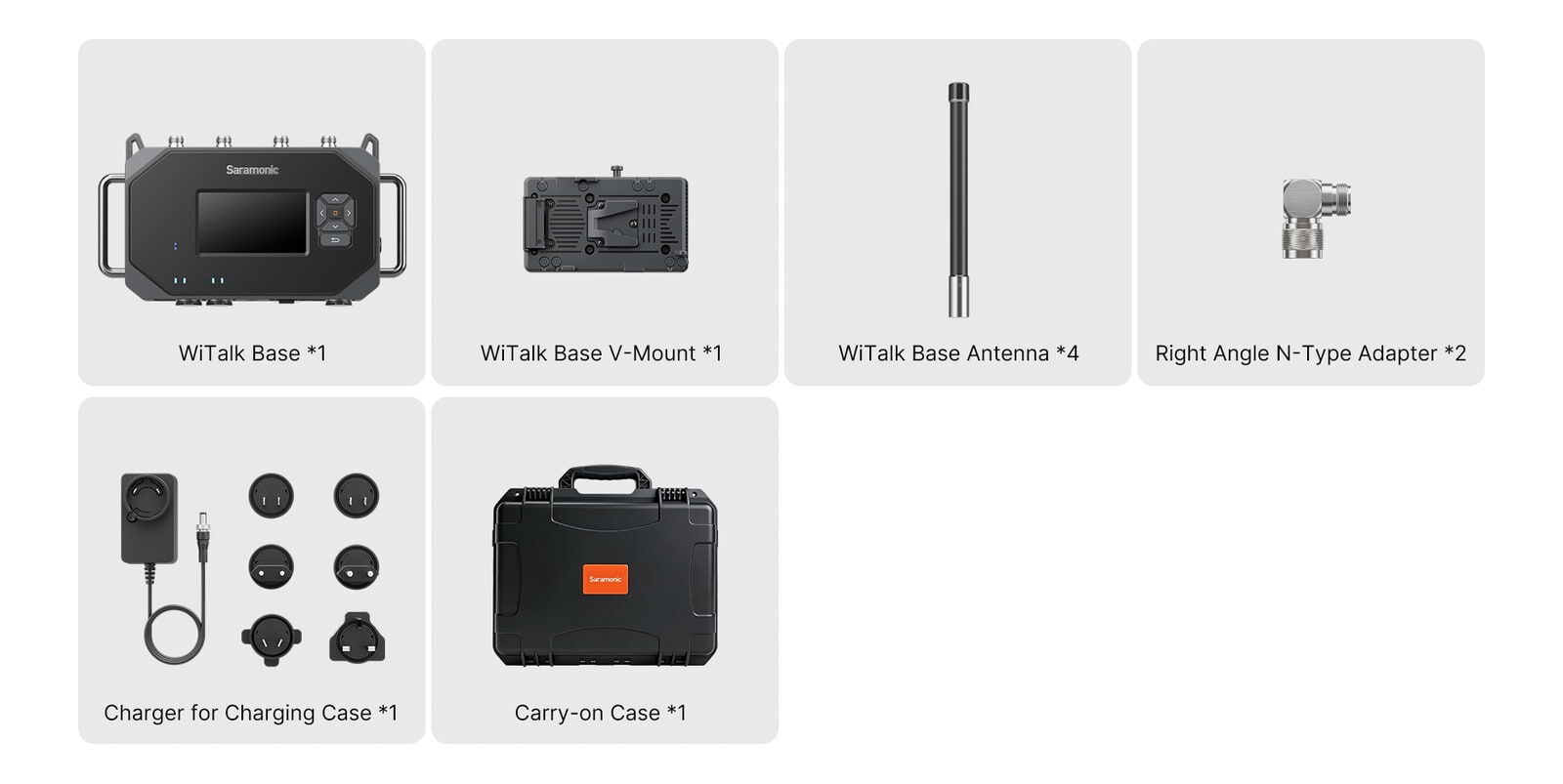

Package Includes:
 - 1x WiTalk Base
 - 1x WiTalk Base V-Mount (battery plate)

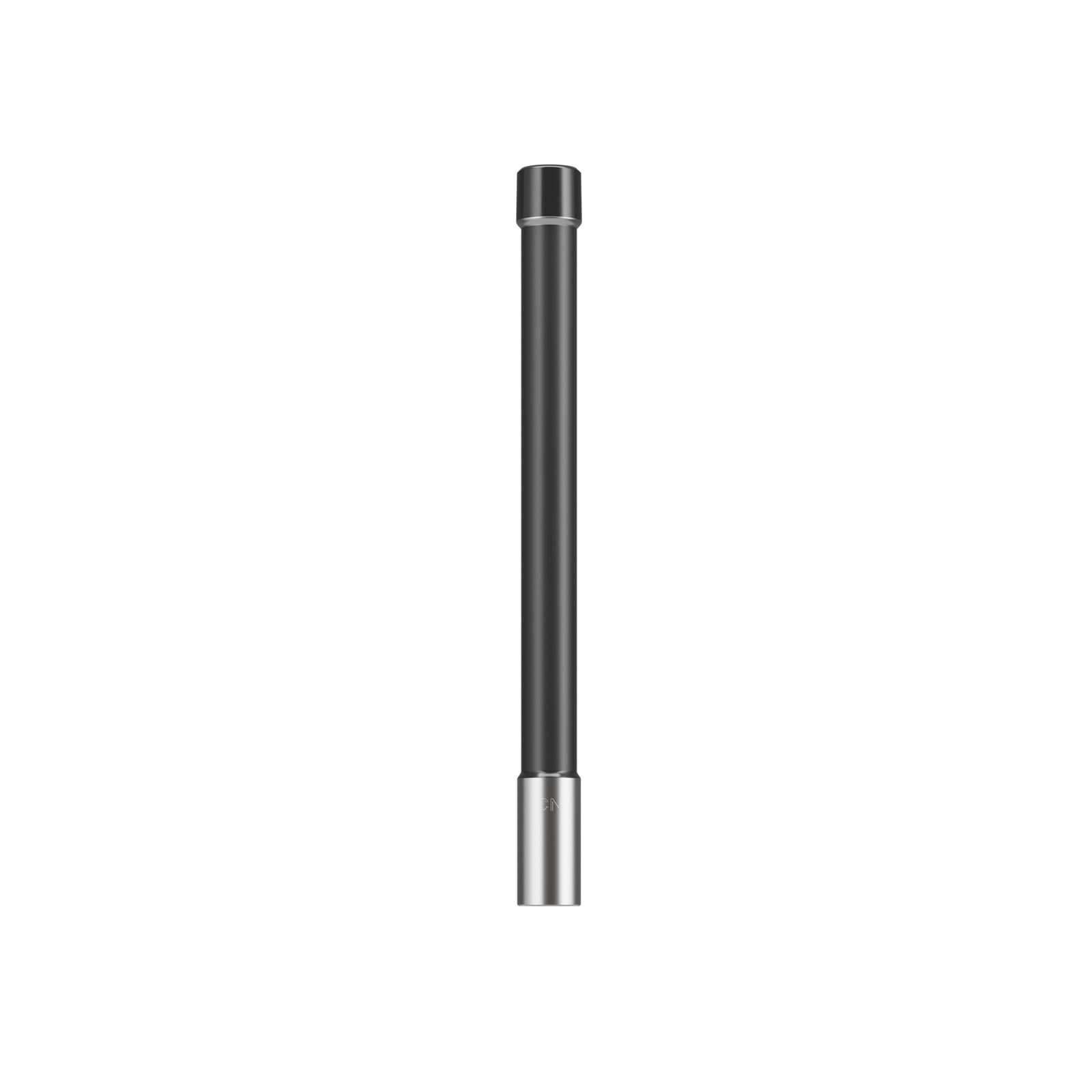

 - 4x WiTalk Base Antenna

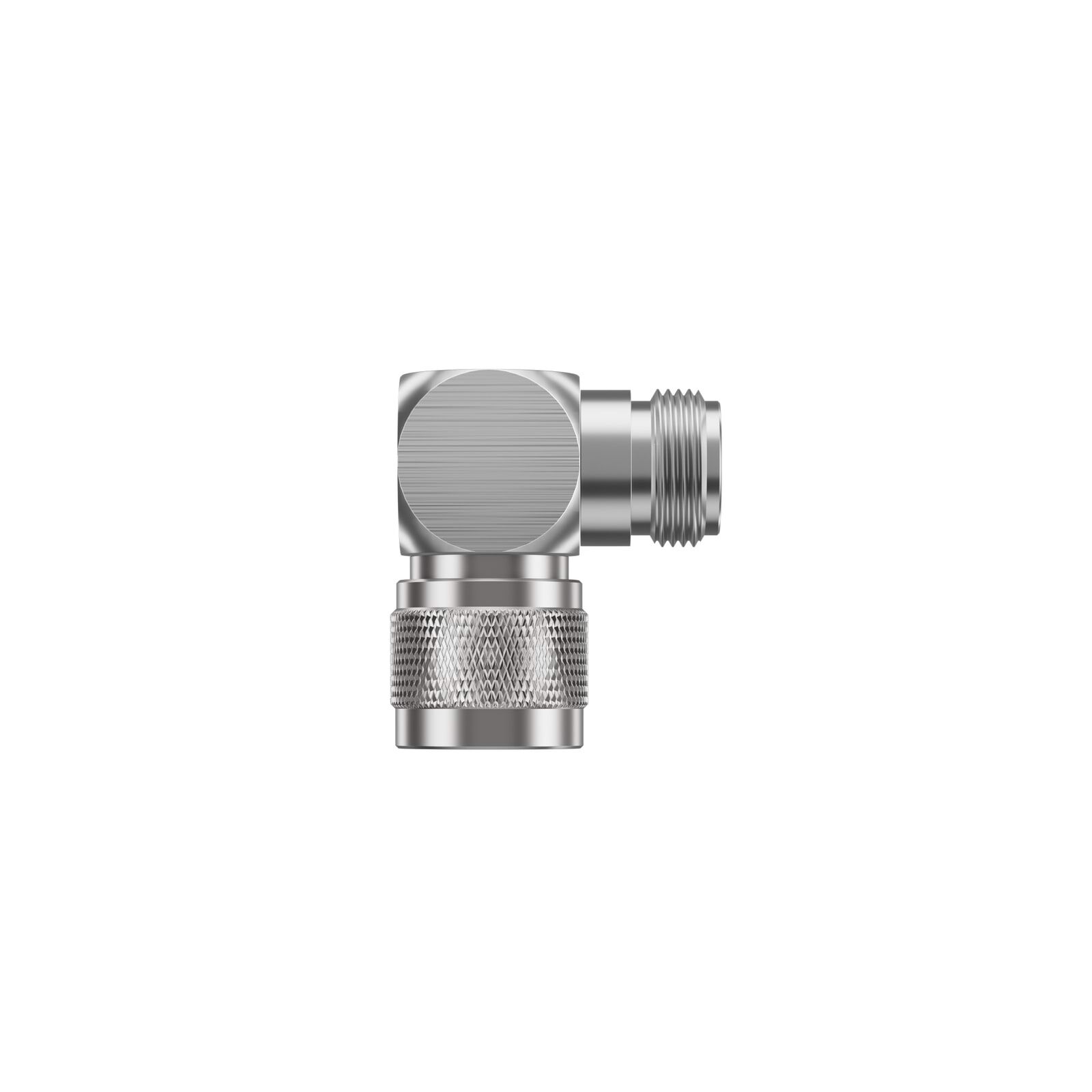

 - 2x Right Angle N-Type Adapter

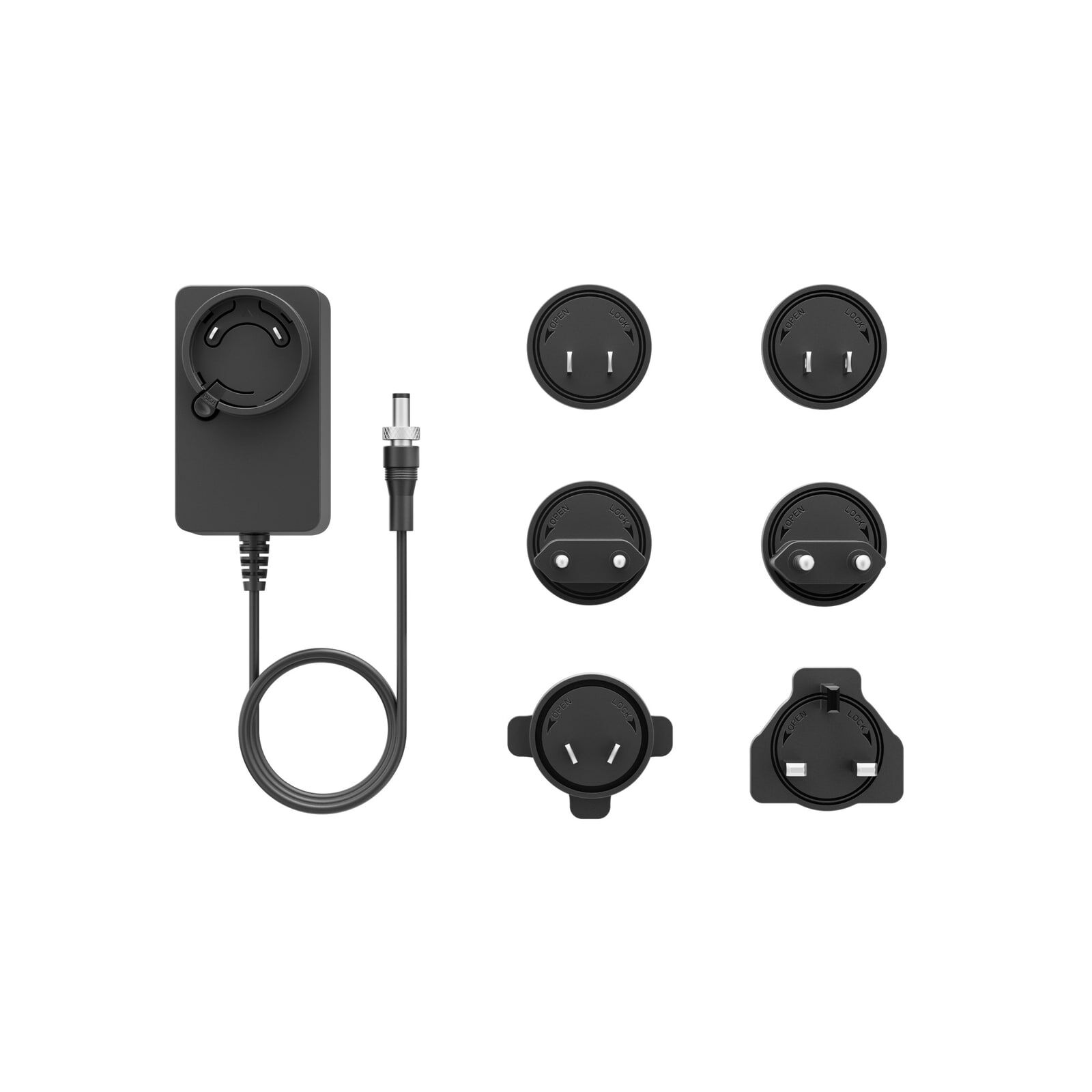

 - 1x Charger for Charging Case (DC power adapter with international plug heads)

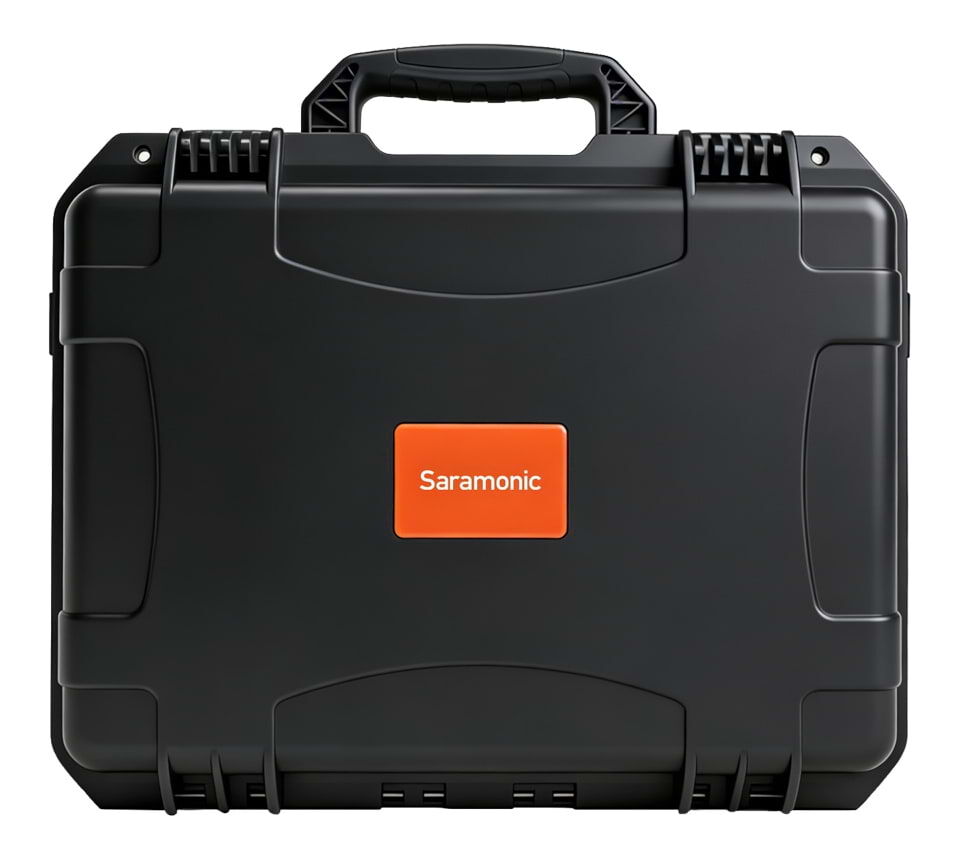

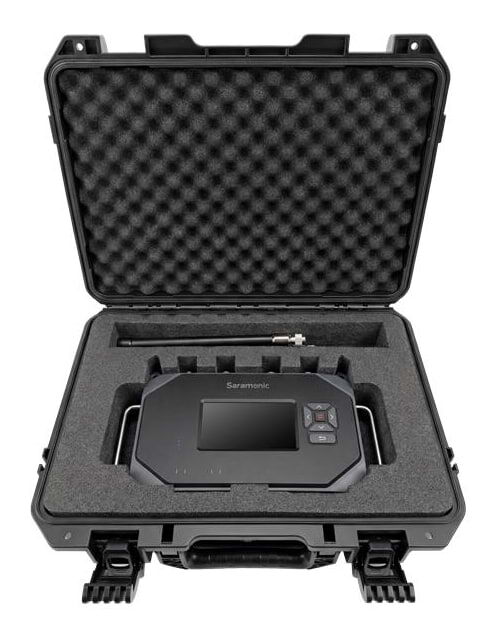

 - 1x Carry-on Case

Features:

• 16 full-duplex wireless users per base; link up to 4 bases for 64 users
• 8 role-based talk groups plus a dedicated leader channel - hear two, speak into one
• Automatic roaming: headsets connect to the strongest base as crew move
• Up to 700m headset-to-base range (typically 600-700m) on encrypted 1.9GHz DECT
• 4-wire analog interface bridges Clear-Com, Riedel, RTS, Datavideo and LaON systems
• USB-C (UAC) computer audio for Zoom/Teams remote collaboration
• 3.5mm I/O doubles as a 17th wired headset position; optical fiber extension via media converters
• Cascades over shielded CAT5e/CAT6 up to 100m per run (cascade splitter for 3+ bases)
• 5-inch sunlight-readable colour display for groups, battery and signal
• IP66-rated aluminium-magnesium alloy body with thermal and EMI shielding
• Powered by V-mount battery or DC; 5/8 inch and 3/8 inch mounting threads
• Works with WiTalk9X and WiTalk9 headsets in any mix of wearing styles

Specifications:

Saramonic's WiTalk intercom range includes the modular WiTalk9X series - the newer tier, sold alongside the WiTalk9 series - and the two work together in a single system.
