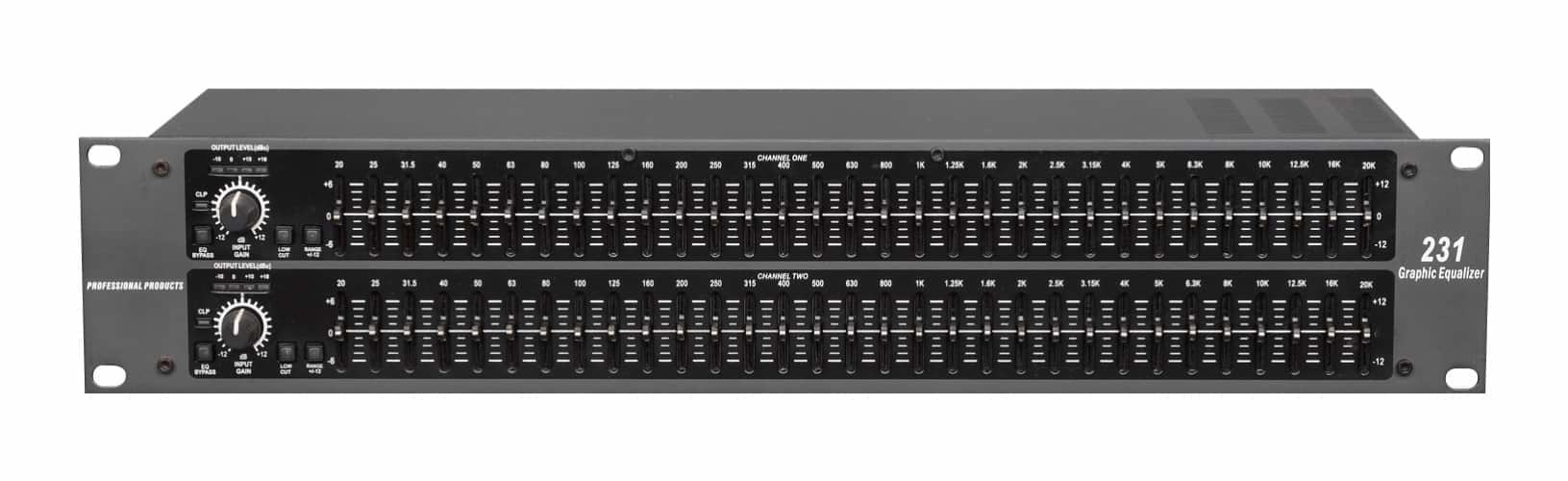

• SWAMP 231 Dual Channel 31-Band Equaliser

    $149.99
    Sold Out
    Stock Due: mid December

    The SWAMP 231 offers two 31-band channels of 1/3-octave equalization, as well as ±6 or ±12 dB boost/cut range, 20mm faders and XLR / 1/4" inputs. Easy to use and delivers exceptional sound, performance, and reliability.

    231 Dual Channel 31-Band Equaliser
    The SWAMP 231 offers two 31-band channels of 1/3-octave equalization, as well as +/- 6 or +/-12 dB boost/cut range, 20mm faders and XLR / 1/4" inputs. Easy to use and delivers exceptional sound, performance, and reliability.

    When to Use a Graphic EQ
    Graphic EQ's are essential for live sound engineering, and are a vital tool for PA systems in any acoustic space. They are used to treat a Main Mix or Foldback Monitor output signal and tailor the sound to suit the room. An Equalizer provides the means to "cut" or reduce frequencies that may cause feedback on stage, or in the room, and eliminate unpleasant and harmful frequencies in the PA system.

    Solid Build Quality
    Rugged construction and solid audio performance make these equalizers particularly well suited to fixed installation as well as touring live sound systems.

    Features:

    • Two 31-band, 1/3-octave Constant Q frequency bands
    • Switchable boost/cut ranges of +/- 6 or +/- 12 dB
    • 12dB per octave 50Hz low-cut filter
    • Front panel bypass switch
    • +/- 12 dB input gain range
    • 4-segment LED ladders for monitoring output levels

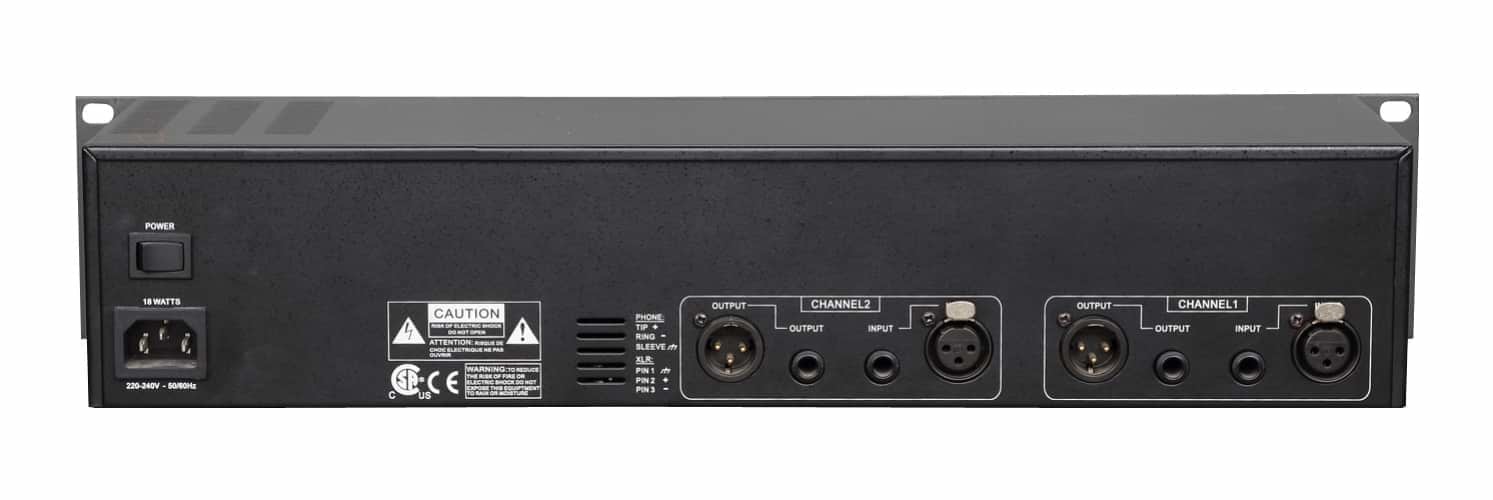

    • XLR and TRS Inpts and Outputs
    • Internal Toroidal Transformer
    • Frequency Repsonse of <10Hz to >50kHz
    • Dynamic range of greater than 108dB

    Specifications:

    Input Connectors 1/4" TRS, female XLR (pin 2 hot)
    Input Type Electronically balanced/unbalanced, RF filtered
    Input Impedance Balanced 40k ohm, unbalanced 20k ohm
    Max Input >+21dBu balanced or unbalanced
    CMRR >40dB, typically >55dB at 1kHz
    Output Connectors 1/4" TRS, male XLR (pin 2 hot)
    Output Type Impedance-balanced/unbalanced, RF filtered
    Output Impedance Balanced 100 ohm, unbalanced 50 ohm
    Max Output >+21dBu balanced/unbalanced into 2k ohm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
    Bandwidth 20Hz to 20kHz, +0.5/-1dB
    Frequency Response <10Hz to >50kHz, +0.5/-3dB
    Dynamic Range 108dB
    Signal to Noise Ratio 90dB
    THD+Noise <0.004%
    Interchannel Crosstalk <-80dB, 20Hz to 20kHz
    Bypass Switch Bypasses the graphic equalizer section in the signal path
    Low cut Switch Activates the 50Hz 12dB/octave high-pass filter
    Range Switch Selects either +/- 6dB or +/-12dB slider boost/cut range
    Operating Voltage 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
    Power Consumption 15W
    Power Connector IEC receptacle
    View PDF brochure for SWAMP 231 Dual Channel 31-Band Equaliser

    Be The First To Review This Product!

    Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

    Write a product review

    Product Enquiry Form Complete this form to email us your enquiry.




    MPN: AO-231
