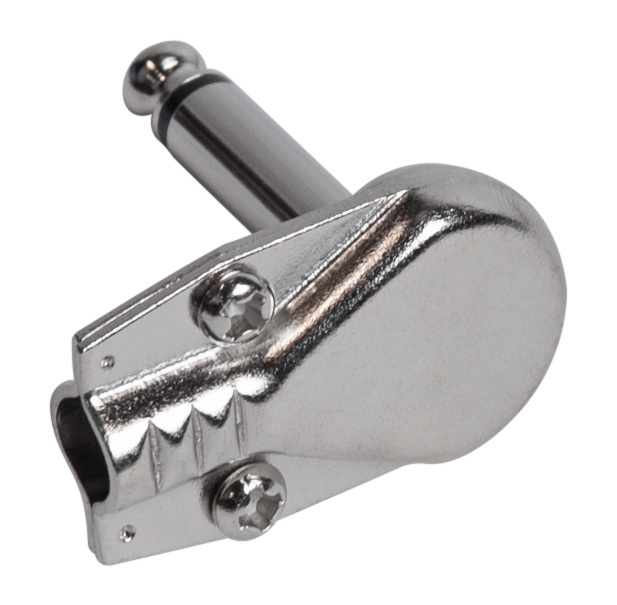

SWAMP Right Angled Guitar Jack Pancake Connector

SWAMP Right Angled Guitar Jack Pancake Connector

$3.59
  In Stock
or interest free for up to 6 months with
Buy In Bulk & Save!
Buy 2 to 5: Pay $2.85
Buy 6 to 14: Pay $2.37
Buy 15 or more: Pay $2.02
-
+

A pancake style 1/4" TS connector used to transfer an unbalanced signal through an audio cable. The connector is angled at 90 degrees to enhance protection from knocks and maximise space on a pedal boards.

Dispatch

SWAMP Flat-Style Generic 1/4" TS audio connector
A pancake style 1/4" TS connector used to transfer an unbalanced signal through an audio cable. The connector is angled at 90 degrees to enhance protection from knocks and maximise space on a pedal boards. Flat 'pancake' style shape is useful for patching and linking guitar effects pedals.

NOTE: Requires soldering to audio cable. Visit this link for a beginners guide to soldering audio cables - http://www.mediacollege.com/misc/solder/

Specifications:

  • 1/4" / 6.35mm TS (Tip, Sleeve) connector
  • 8mm cable entry
  • 47mm length (tip to back)
  • 43mm length (back to cable entry)
  • 13mm diameter (max)
View PDF brochure for SWAMP Right Angled Guitar Jack Pancake Connector

Best flat jacks I've ever used

By: Anonymous on 16 May 2022
I normally hate flat jacks because they're difficult to solder the ground shield and generally not as good quality as other jacks. But I needed them for the limited space on a pedal board I'm putting together. I've never seen a solder tab for ground shield on a flat jack... until now. These are awesome. I'm actually enjoying making patch cables now.
(5)

SWAMP Right Angled Guitar Jack Pancake Connector

By: Chance Lima on 21 January 2021
These jacks are solid and simple to install. They are really tidy replacements for the junk I had previously, well-priced, I will be getting more in the future. Just make sure your cable isn't too thick; my cable was 8mm diameter and fit nicely. Thanks SWAMP Industries!
(5)

Good QualityJacks - fast delivery

By: Richard Dahlenburg on 5 January 2021
They arrived ahead of schedule ! Thanks guys
(5)

Write a product review


MPN: RH-P042

ID: 32884
