  • Tascam US-1x2HR 2-in/2-out USB Audio Interface with 1 Mic Preamp

    24bit/192kHz Resolution

    $198.99
    In Stock
    RRP $239.00

    The new series of Tascam USB interfaces employ an Ultra-High Definition discrete architecture mic preamp design with a new enhanced audio circuit. Simple and intuitive, the 1x2HR model has 1 Mic Preamp and 1 TRS line/guitar input. 24bit/192kHz Resolution.

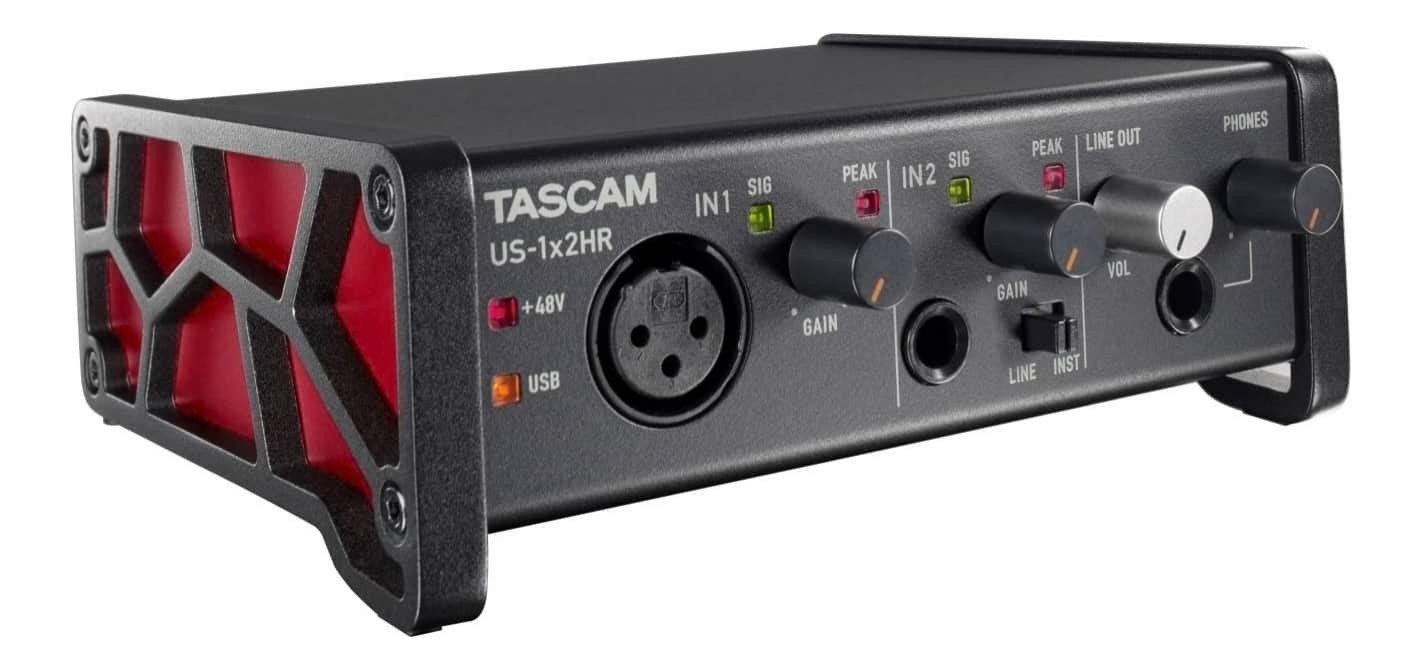

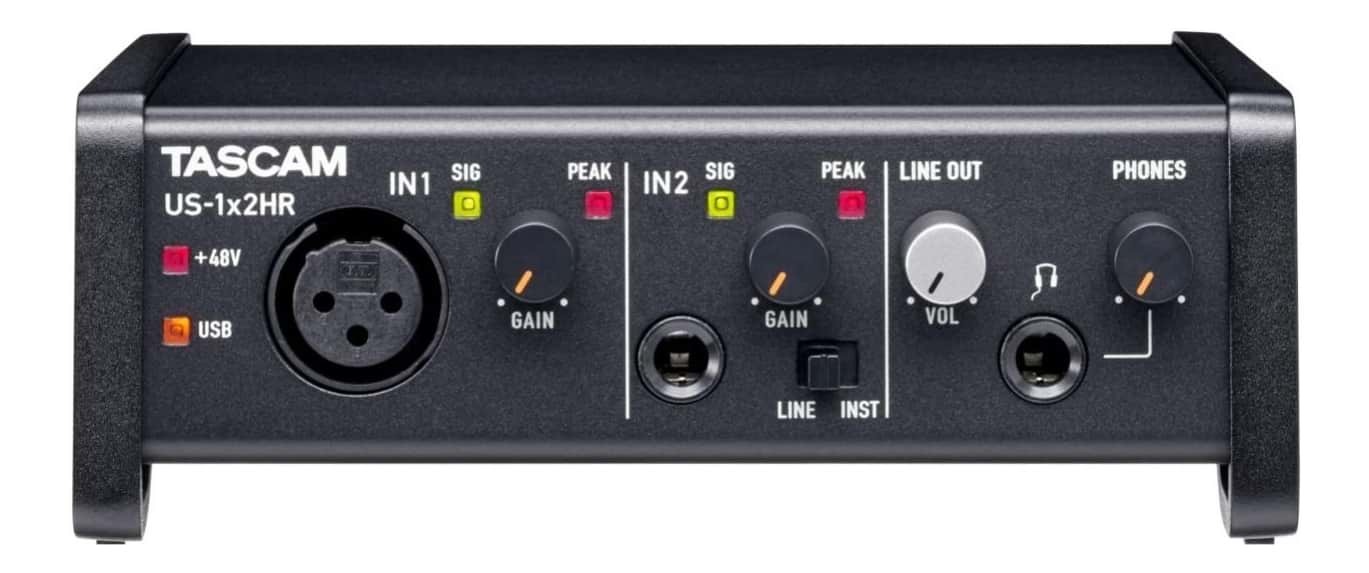

    Tascam US-1x2HR 2-in/2-out USB Audio Interface with 1 Mic Preamp
    The new series of Tascam USB interfaces employ an Ultra-High Definition discrete architecture mic preamp design with a new enhanced audio circuit. Simple and intuitive, the 1x2HR model has 1 Mic Preamp and 1 TRS line/guitar input. 24bit/192kHz Resolution.

    New Enhanced Audio Circuit
    The Tascam US-1x2HR's new Ultra-High Definition Discrete Architecture mic preamp design delivers audio with extremely low self-noise to capture every detail of your musical performances. With 1 XLR mic input and 1 TRS line/guitar input audio interface with 192 kHz support and USB-C bus power connection. The included loopback function and OBS support makes this interface an excellent choice for podcasts and live streaming. The new US-1x2HR offers simple and intuitive operation, sophisticated looks, a rich assortment of software bundles, and improved audio performance, thanks to the newly enhanced audio circuit.

    Ultra-HDDA Mic Preamp with 192 kHz support
    High resolution reproduction in the US-HR series has been pursued based on TASCAM's policy to recreate sound as close to the original as possible. Therefore, the in-house developed Ultra-HDDA mic preamp combined with a newly improved audio circuit delivers enhanced audio performance with the most transparent and low-noise sound. Natural, crisp & clear sound quality.

    Zero-Latency Direct Monitoring Function
    Direct monitoring will diverge signals before sending them to the computer, resulting in smooth, in-time monitoring without any sound delay during both recording and performance.

    Interface for Podcasts and Live Streaming
    The US-1x2HR can be used with computers or smartphones to easily create podcasts or live streams. The audio can be switched between stereo/mono, and the loopback function allows the audio from the computer to be returned to the streaming software for playback during live streams. US-1x2HR also supports OBS, which is popular and used worldwide. This is good for guitar or vocal recording musician, this is the basic interface for musicians and live streamers.

    Quality Bundled Software
    The US-HR models come bundled with world-renowned software that will enhance the user's production workflow. At the core of music production, Steinberg's Cubase LE/Cubasis LE DAW is included, along IK Multimedia's Sample Tank SE, which comes free of charge with a massive 30 GB sound library encompassing more than 2,000 different musical instruments. US-HR models also come with a free 3-month subscription to Auto-Tune Unlimited, a comprehensive suite of industry standard pitch correction and vocal effects.

    Compatible with iPad and other iOS Devices
    The US-1x2HR can be used as an interface for iPad and other iOS devices.

    New Audio Interface Engine
    Capitalizing on our experience being one of the pioneers in manufacturing USB audio interfaces, we achieved further stability in our native driver. The audio buffer size can be set starting from 4 samples (Windows only) to give the best performance to every different environment; maximizing the capability of the computer in use while creating a low-latency environment.

    Robust Metal Casing
    The US-HR models share a solid and practical design intended to withstand long hours of hard use. Its robust metal jacket not only improves its durability but, combined with dye-cast aluminum side panels, provides a sleek, eye-catching design. In addition, all models have just the right weight, so they won't move when cables are connected or disconnected.

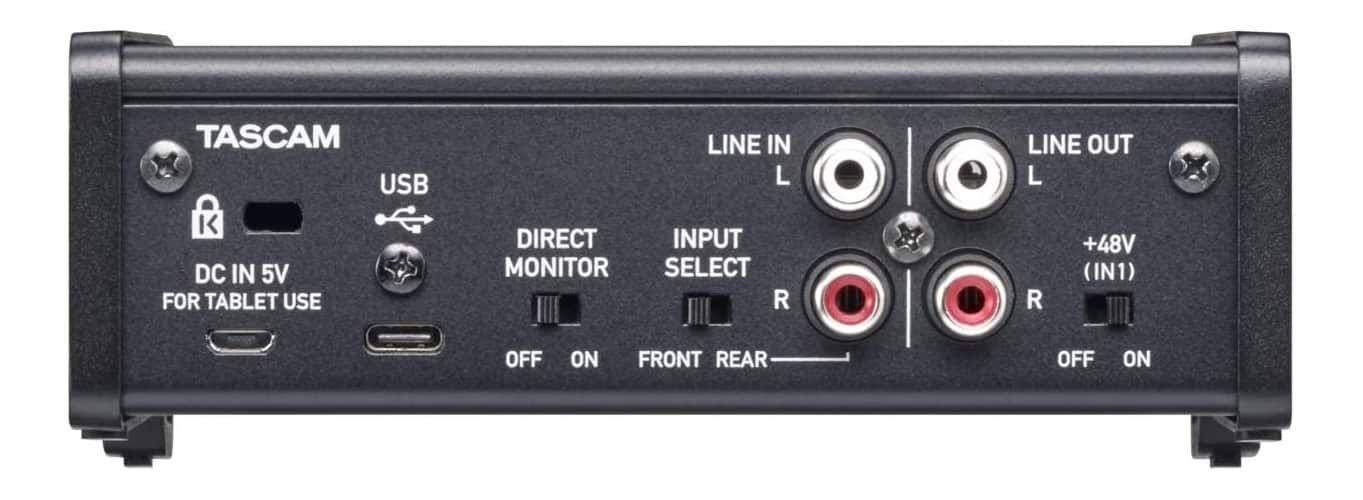

    Features:

    • 2-in/2-out USB audio interface
    • Supports up to 24-bit/192 kHz audio formats
    • Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability
    • 1 XLR input equipped with Ultra-HDDA mic preamp and +48V phantom power
    • 1 TRS line/inst. input
    • RCA line L/R inputs
    • RCA line L/R outputs
    • 1 headphone output
    • USB Type-C connection (USB Type-A to Type-C cable included)
    • Powered by USB bus power
    • Zero-latency direct monitoring
    • Compatible with iPad and other iOS devices
    • Extensive line-up of bundled software
    • Steinberg Cubase LE, Cubasis LE
    • IK Multimedia Sample Tank 4 SE
    • Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)

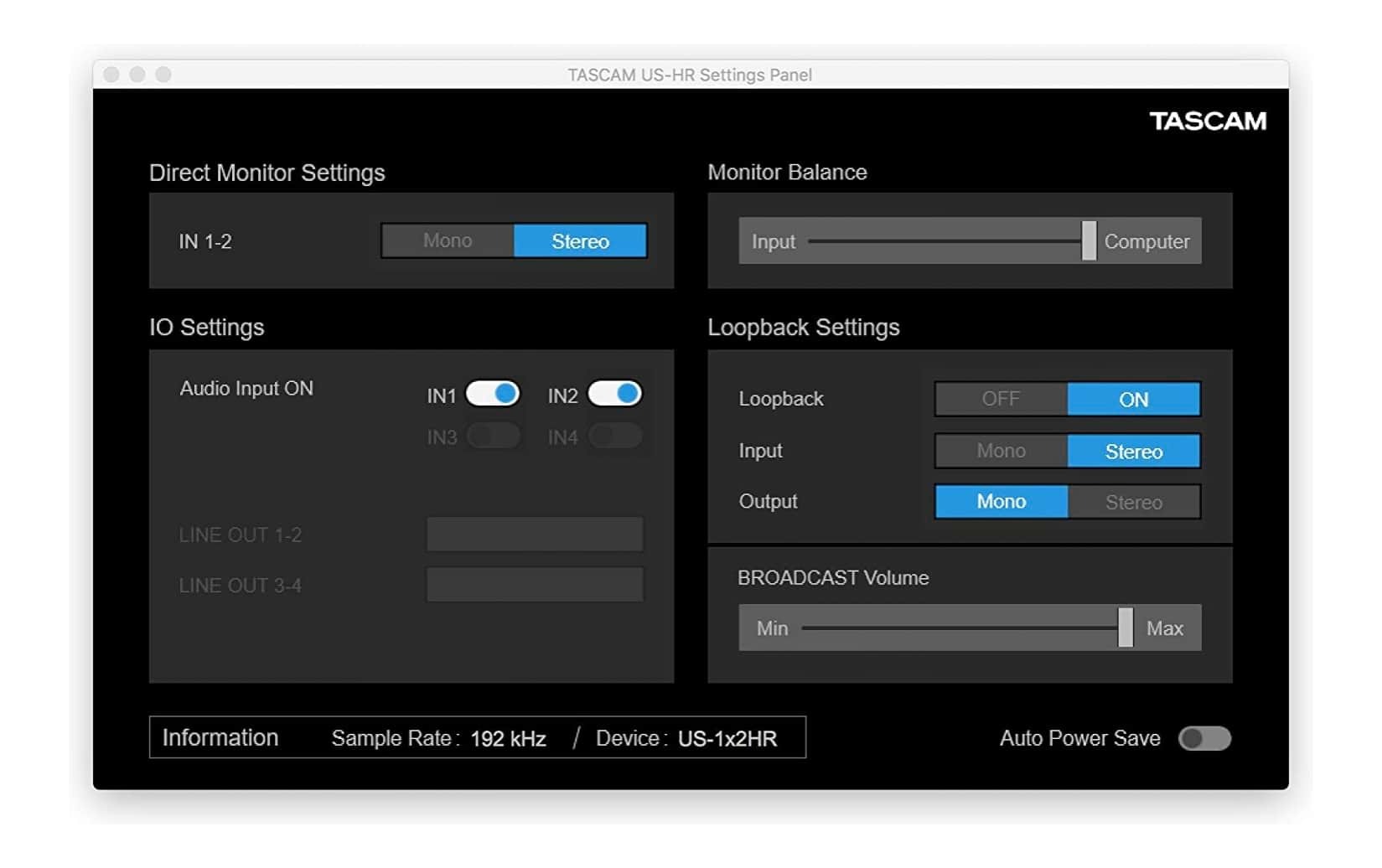

    • Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
    • OBS support

    Specifications:

    Sampling frequency 44.1k/48k/88.2k/96k/176.4k/192k Hz
    Quantization bit rate 24bit
    Analog audio inputs
    MIC IN
    Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
    Input impedance 2.4k ohms
    Maximum input level
    (GAIN:MIN)
    +9dBu (2.183Vrms)
    Gain 58dB
    LINE IN * When set to "LINE" at LINE/INST switch
    Connector 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
    Input impedance 10k ohms
    Maximum input level
    (GAIN:MIN)
    +20dBu(7.75Vrms)
    Gain 45dB
    INSTRUMENT IN * When set to "INST" at LINE/INST switch
    Connector 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED
    Input impedance  10k ohms
    Maximum input level
    (GAIN:MIN)
    +20dBu(7.75Vrms)
    Gain 45dB
    LINE L/R IN
    Connector RCA pin-jack, UNBALANCED
    Input impedance 10k ohms
    Maximum input level +6dBV(1.9953Vrms)
    Analog Audio Outputs
    LINE OUT
    Connector RCA pin-jack, UNBALANCED
    Output impedance 100 ohms
    Maximum output level +6dBV (1.995Vrms)
    PHONES
    Connector 6.3mm(1/4") stereo phone jack
    Maximum output level 18mW+18mW or more
    (THD+N 0.1% or less, 32ohms loaded)
    Control IN / OUT
    USB
    Connector USB Type-C
    Format USB2.0 HIGH SPEED (480Mbps)
    DC IN 5V
    Connector USB Micro B type
    Power
    When connected PC USB bus powered
    When connected iOS

    USB power adapter (that can supply 5V and a current of at least 700mA)*1

    *1 We strongly recommend using TASCAM PS-P520E AC adapter or the USB power adapter included with the iPad/iPhone. No USB power adapter is included with an iPod touch. To use it with an iPod touch, purchase a genuine Apple USB power adapter (that can supply 5V and a current of at least 700mA) separately.
    *2 We strongly recommend using a TASCAM BP-6AA external battery pack. If using another external battery pack or mobile battery, purchase one that can supply 5V and a current of at least 700mA.

    Power consumption 1.8W
    Dimensions 146(W) × 55(H) × 120(D)mm (including protrusions)
    Weight 623g
    Operating temperature 5 to 35°C
    Accessories USB cables (Type-A to Type-C), Set of DAW software installation guides, Set of DAW plug-in software installation guides, Owner's Manual (including warranty)
    View PDF brochure for Tascam US-1x2HR 2-in/2-out USB Audio Interface with 1 Mic Preamp
