TRS Jack to Dual RCA Cable - Insert Y Cable

$18.99
In Stock

2m Length - SWAMP ¼” Stereo to Dual RCA Audio Y Cable. This ¼” TRS to 2x RCA Y cable - transfer a stereo audio signal between devices with dual RCA and ¼” TRS sockets. Common uses include patching from stereo headphone TRS outputs to stereo left and right

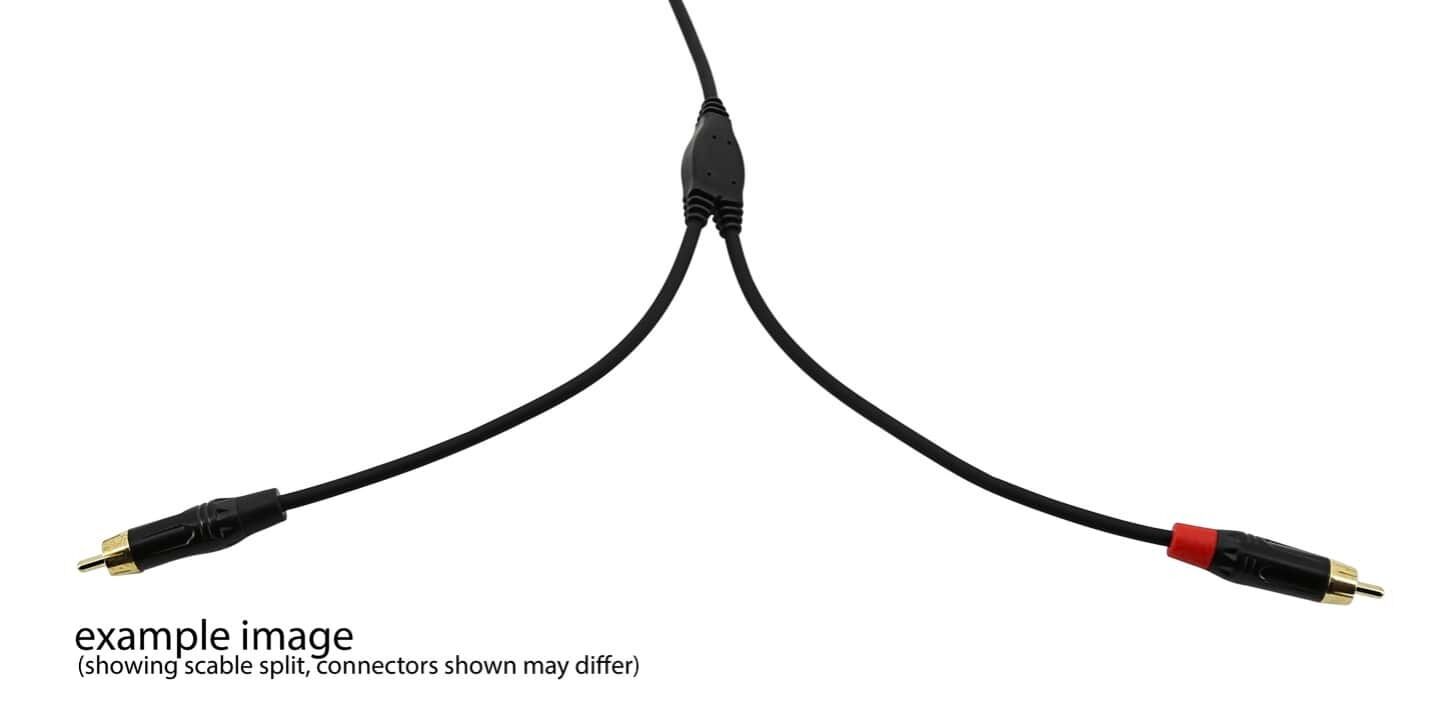

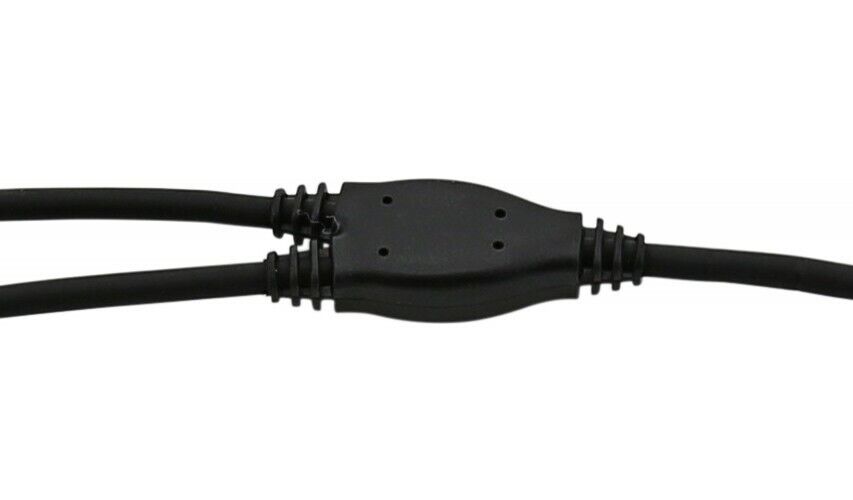

SWAMP ¼” Stereo to Dual RCA Audio Y Cable
​This ¼” TRS to 2x RCA Y cable can be used to transfer a stereo audio signal between devices with dual RCA and ¼” TRS sockets. Common uses include patching from a stereo TRS ¼” jack output, such as headphone outputs on mixers or audio interface, directly to left and right RCA audio input sockets while maintaining true stereo sound. Can also be used as an insert Y cable, to send and receive signals through side-chained equipment.

Quality Cable and Connectors
Our slim 4.4mm diameter cable maintains thick 23AWG conductors and a tight spiral shield, but utilises a thinner outer PVC jacket allowing for a smaller overall diameter. Ideal for patching devices in tight spaces and to minimise cable clutter. Using professional quality connectors, OFC conductors and a tight and thorough spiral shield, this cable is designed to transfer your signal without interference while being flexible and able to withstand the rigours of constant use.

Specifications:

  • Cable Colour: Black
  • Cable Core: 0.12mm*20*2(Conductors) + 0.12mm*48(Spiral Wrapped Shield)
  • Conductor Gauge: 23 AWG / 0.23mm2
  • Outer Diameter: 4.4mm
  • Connectors: 1/4" TRS (male) to 2x RCA (male) - (SWAMP TP145, TR045)

Wiring:

1/4” (Stereo / TRS) RCA (red)  RCA (black)
Tip Tip
Ring   Tip
Sleeve Sleeve Sleeve
View PDF brochure for TRS Jack to Dual RCA Cable - Insert Y Cable
