• Canare Twisted Pair Microphone Cable - L-2T2S - BLACK - 100m Roll

    $279.99
    In Stock
    RRP $347.00

    Standard diameter 2-conductor microphone cable for general purpose audio applications.

    Twisted Pair Microphone cable (L-2T2S) - 100 meter roll

    Standard diameter 2-conductor microphone cable for general purpose audio applications.

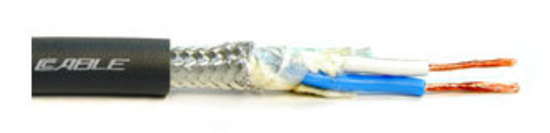

    The high density braided copper shield and two inner conductors (composed of 60 thin strands of copper wire), allow for maximum flexibility and reduced handling noise. A special compound PVC outer jacket resists cracking and tears even in sub-zero environments.

    Features:

    • Braided Copper Shield
    • Flexible in Extreme Cold Weather
    • Reduced Handling Noise
    • Rejects EMI and RFI

    Applications:

    • Microphones
    • Portable Applications
    • Audio Patch Cords
    • PA Systems
    MECHANICAL SPECIFICATIONS
    Model Std.
    Lng.

    ft.
    (m)
    Wt
    Std.
    Lng.
    lbs
    (kgs)
    Nom.
    O.D.

    in.
    (mm)
    Jacket
    Nom.
    Thick.
    in.
    (mm)
    Brittle
    Point

    (C°)
    No.
    of
    Cond.
    Insul.

    Type*
    Thick
    mil
    Cond-AWG
    (Qty./mil)
    Cross Sec.
    Area
    mil.²
    Pitch
    Twist
    Quad
    in.
    (mm)

    Shield
    Cover-
    age

    L-2T2S 656ft
    (200m)
    20
    (9)
    .236
    (6.00)
    .039
    (1.0)
    -56
    (-49)
    2 IPE
    19.7
    AC - #23
    (60/3.15)
    465
    Less than 0.79
    (less than 20)
    greater than 94%
    TAC
    Braid

    **Effective AWG of combined twin conductors.

    ELECTRICAL PERFORMANCE
    Model Cond.
    D.C.R.
    ohm/1000ft
    (ohm/100m)
    Shield
    D.C.R.
    ohm/1000ft
    (ohm/100m)
    Nom.
    Cap.
    ***
    pF/ft
    (pF/m)
    Nom.
    Cap.

    pF/ft
    (pF/m)
    Nom.
    Imp.
    ohm
    Nom.
    Atten.
    V/1000ft
    (V/100m)
    Group
    Delay
    Time
    nS/ft
    (nS/m)
    L-2T2S less than 19.8
    (less than6.5)
    less than 9.4
    (less than 3.1)
    22
    (70)
    33
    (106)
    88 0.9
    (0.3)
    1.83
    (6.00)

    ***Capacitance between &nbsp conductors.
    †Capacitance between conductors to shield.
