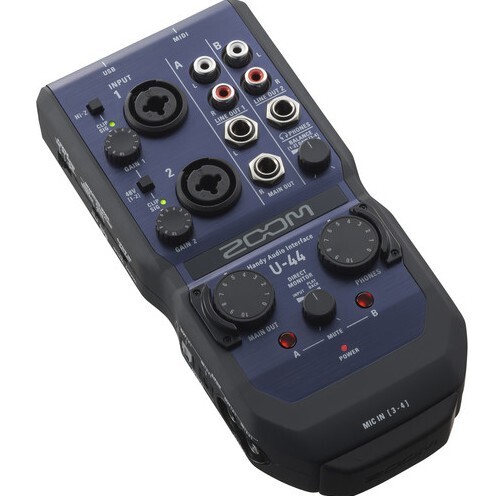

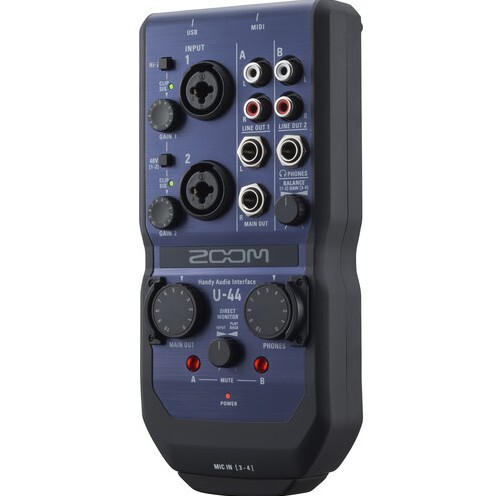

• ZOOM U-44 USB 4 In 4 Out Handy Mobile Recording and Performing Audio Interface

    $278.99
    In Stock

    Designed for mobile recording and performance, the U-44 has a portable design, making for easy connection to a laptop or an iPhone / iPad. It has ultra high recording at 24-bit/96 kHz, 2 high quality preamps XLR/TRS combo jack, MIDI, and phantom power.

    U-44 USB 4 In 4 Out Handy Mobile Recording and Performing Audio Interface
    Designed for mobile recording and performance, the U-44 has a portable design, making for easy connection to a laptop or an iPhone / iPad. It has ultra high recording at 24-bit/96 kHz, 2 high quality preamps XLR/TRS combo jack, 2 1/4" jack inputs, MIDI I/O, and phantom power. The ultimate portable sounding recording device.

    Innovative Design
    The U-44 can be bus-powered via USB and its compact form factor is perfect for use with a laptop or iPhone/iPad (Requires 2 AA batteries or optional AC adapter for power, plus an Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter for connection to iPhone/iPad). The innovative design provides quick access to connectors, knobs, and controls for effortless setup and operation.

    Pristine Recording and Playback
    The U-44 features a full array of inputs and outputs so you’ll always be prepared for any recording or live performance. Two combo inputs with independent gain knobs and multi-color level indicators provide flexibility for connecting mics, keyboards, and mixers. 48V phantom power can be supplied to inputs 1 and 2, and input 1 supports Hi-Z input for connecting passive guitars, basses, or other instruments. MIDI I/O jacks enable synchronization with devices like electronic keyboards, controllers, and synthesizer or sampler modules.

    Compatible with Zoom H series Input Capsules

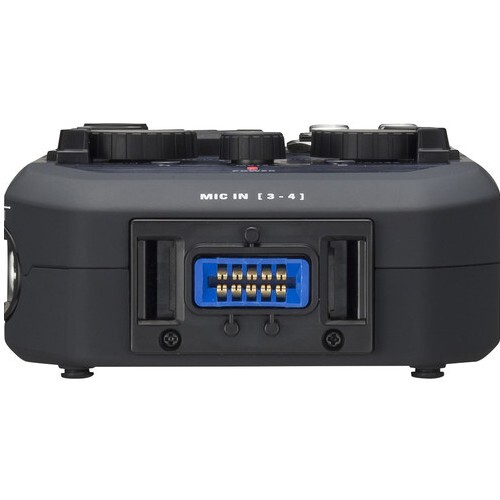

    Thanks to its 10-pin Zoom connector, the U-44 is compatible with all of our interchangeable input capsules (sold separately), representing a powerful field recording setup. Choose from six capsules—X/Y, Shock Mount X/Y, Mid-Side, Shotgun, Stereo Shotgun, and Dual XLR/TRS Combo Input—each with its own unique applications. Record the audience during your live performance, or connect our SSH-6 Stereo Shotgun for dialogue and sound design on your latest film project.

    Zero-Latency Monitoring
    The U-24 has flexible monitoring options for dialing in the perfect mix with zero latency. Balance the cue and main out signals when you’re DJ’ing, or create a mix of click track and main out signals during live performances. Each connector and knob is strategically positioned for fast access, so you can set up and control the U-24 with ease.

    In the Box:

    • U-44
    • Operation manual
    • USB Cable
    • Ableton Live 9 Lite software download code

    Features:

    • Multi-channel and stereo USB audio interface for PC/Mac
    • Connect to iPhone/iPad with Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter (sold separately), plus 2 AA batteries or optional AC adapter for power
    • Two mic/line inputs with high-performance mic preamps
    • High-quality recording and playback at resolutions up to 24-bit/96 kHz
    • Compatible with Zoom interchangeable input capsules via 10-pin connector
    • Standalone AD/DA conversion
    • Functions as a two-channel mic preamp with analog and digital outputs
    • Approximately 4 hours of operation with 2 AA alkaline batteries
    • Includes download code for Ableton Live 9 Lite
    • Four-channel simultaneous inputs
    • Hi-Z support (input 1)
    • Zero-latency direct monitoring
    • Three TRS phone jack outputs
    • Dedicated RCA L/R and headphone outputs

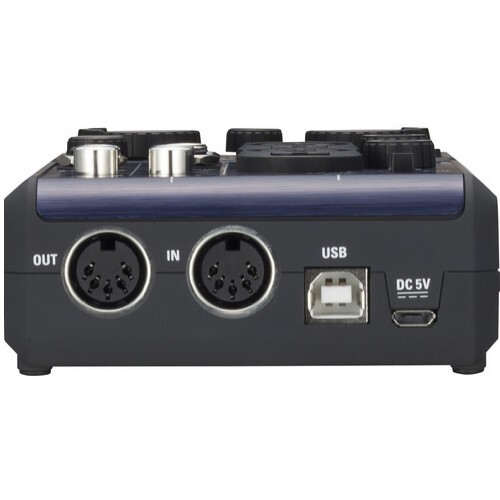

    • MIDI I/O

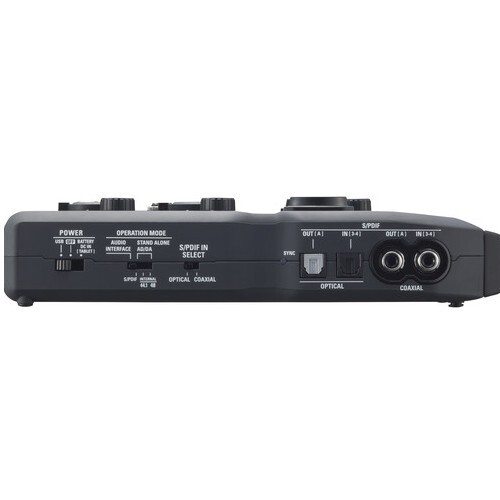

    • S/PDIF optical/coaxial input and output
    • Gain control knobs for each input
    • +48V phantom power for inputs 1 and 2
    • Accepts standard AA alkaline or NiMH rechargeable batteries

    Specifications:

    ANALOG IN: Input 1/2
    Connector:

    TRS/XLR combo jacks (XLR: 2 hot, TRS: TIP hot)

    Input gain:

    0 – 43 dB

    Input impedance:

    2.6 k Ω (MIC IN) 1.1 M Ω (when Hi-Z ON)

    Maximum input level:

    +2.7 dBu (MIC IN) /+20.7 dBu (TRS IN)

    Phantom power:

    +48V

    ANALOG IN: Mic In
    Supported Zoom Input Capsules:

    XYH-6, MSH-6, SGH-6, EXH-6, SSH-6, XYH-5

    ANALOG OUT: Main Out L/R
    Connector:

    TRS phone jacks (unbalanced)

    Maximum output level:

    +10 dBu (at 0 dBFS)

    Output impedance:

    330 Ω

    ANALOG OUT: Line Out 1/2
    Connector:

    RCA (coaxial)

    Maximum output level:

    +8 dBu (at 0 dBFS)

    Output impedance:

    1kΩ

    ANALOG OUT: Phones
    Connector:

    Standard stereo phone jack
    30 mW x 2 (into 32 Ω load)

    Maximum output level:

    +10 dBu (at 0 dBFS)

    Output impedance:

    33 Ω

    DIGITAL IN/OUT: S/PDIF Optical
    Connector:

    TOSLINK

    Supported sampling frequencies:

    96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

    DIGITAL IN/OUT: S/PDIF Coaxial
    Connector:

    RCA (coaxial)

    Supported sampling frequencies:

    96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

    Frequency characteristics:

    At 44.1 kHz: ±1.5 dB: 20 Hz - 20 kHz
    At 96 kHz: ±2 dB: 20 Hz - 40 kHz

    Input conversion noise:

    Measured EIN: -119.5 dB (IHF-A)
    at 43 dB, 150 Ω input

    Number of audio recording and playback channels:

    Recording: 4 channels
    Playback: 4 channels

    Sampling frequencies:

    96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

    Bit depth:

    24-bit

    Interface:

    USB 2.0

    MIDI IN/OUT:

    5-pin DIN jack

    Power Source:

    USB bus power (Type B)
    ZOOM AD-17 (Micro-B)
    DC 5V power supply (Micro-B)
    2 AA batteries (4 hours continuous operation with phantom power off)

    Power consumption:

    5W maximum

    Dimensions:

    198.8 mm (D) 92.3 mm (W) 42.7 mm (H)

    Weight (main unit only):

    310 g

    *0dBu=0.775Vrms

    View PDF brochure for ZOOM U-44 USB 4 In 4 Out Handy Mobile Recording and Performing Audio Interface
