• Zoom UAC-8 USB 3.0 Audio Interface

    for iOS, MAC and PC

    $1,009.99
    In Stock
    RRP $1,349.00

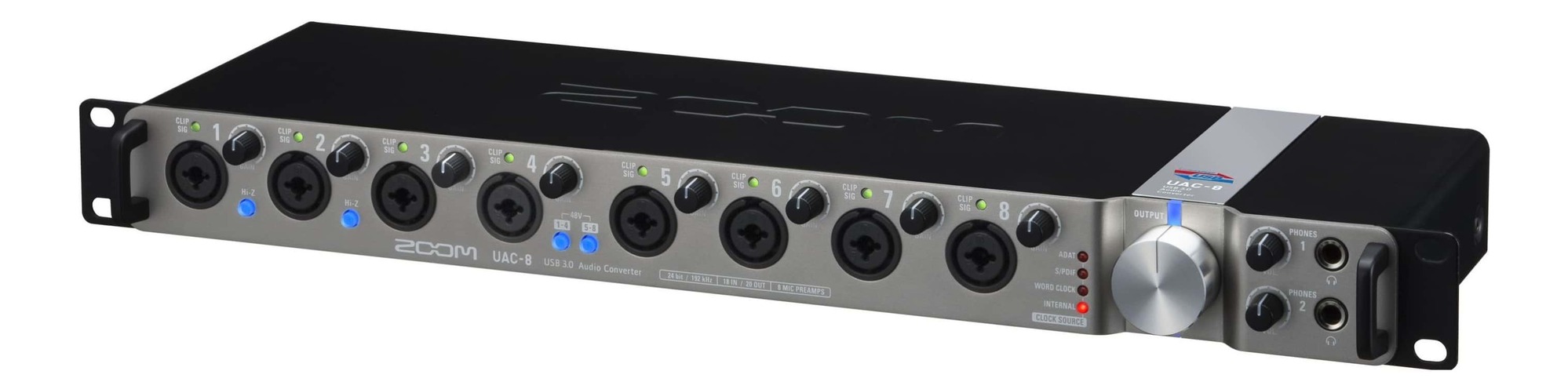

    The Zoom UAC-8 is a USB 3.0 Audio Interface, with 18 inputs and 20 outputs. Offers near zero latency and up to 24-bit/192 kHz resolution. Robust housing makes the interface perfect for studio, or portable field recording of microphones and instruments.

    Zoom UAC-8 USB 3.0 Audio Interface Converter for Mac and PC
    The Zoom UAC-8 is a USB 3.0 Audio Interface, with 18 inputs and 20 outputs. Offers near zero latency and up to 24-bit/192 kHz resolution. Robust housing makes the interface perfect for studio, or portable field recording of microphones and instruments.

    18-In, 20-Out Interface
    The Zoom UAC-8 a 3.0 Audio Interface  with 18 inputs and 20 outputs. This offers near zero latency and up to 24-bit/192 kHz resolution. The robust housing makes the interface perfect for studio and field recording of microphones and instruments, for onstage playback and audio streaming, and with its dedicated MIDI input and output connectors, it can even serve as a stable MIDI interface. Plug in a microphone, line-level device, or instrument and start bringing your ideas to life, or take the UAC-8 onstage to enable high-res audio playback.

    USB 3.0 Superspeed
    The SuperSpeed USB 3.0 transfer protocol used by the UAC-8, with a speed of 2.0 ms roundtrip @ 96 kHz / 32 samples, is ten times faster than USB 2.0 and six times faster than FireWire 800. That not only ensures low latency, it provides a data stream that's unaffected by computer jitter (slight variations in timing), so there's no need to connect an external master clock source.

    The Hardware

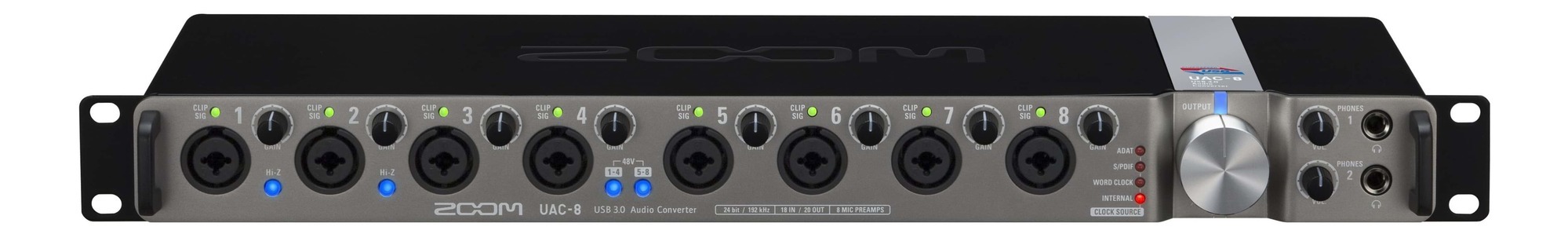

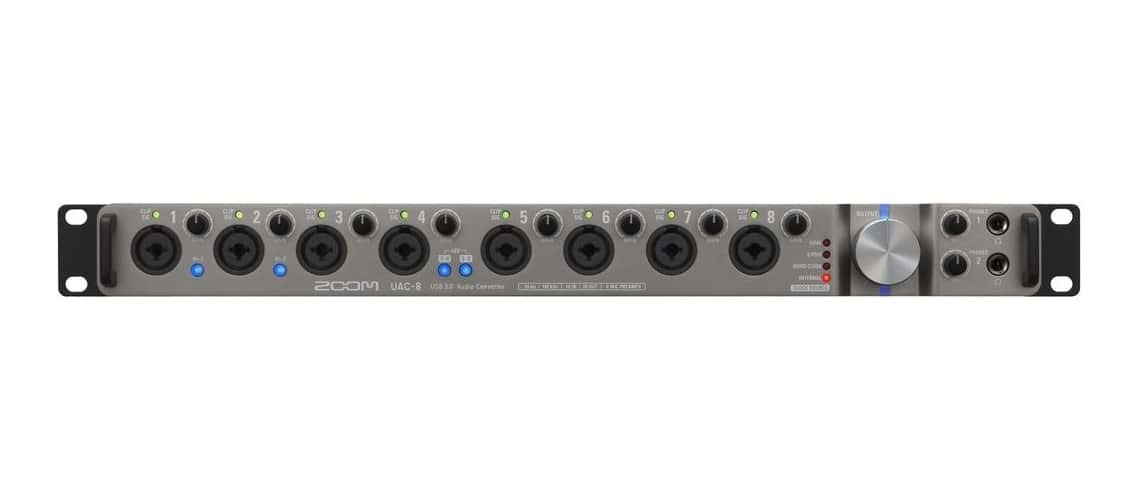

    • INPUTS - The UAC-8 provides a wide variety of both analog and digital connectors. 8 front panel combo XLR/TRS inputs accept mic- and line-level signals, and you can even plug instruments directly into Inputs 1 and 2. Dedicated input gain controls and Clip LEDs make it easy to set optimum input levels, and a Phantom Power switch enables the use of condenser microphones.

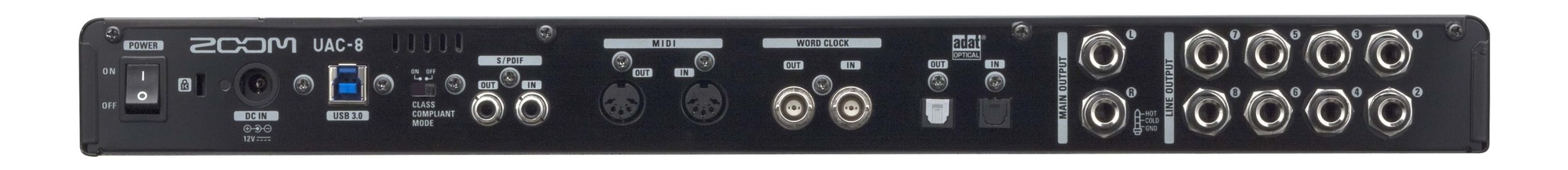

    • OUTPUTS - The UAC-8 has dual balanced analog TRS output jacks for connection to monitors, and there are also 8 discrete balanced TRS analog line outputs for multichannel monitoring or connection to external effects devices. A large front-panel Output knob offers fast control over output level, and there are two independent ¼" stereo headphone jacks, each with its own dedicated volume control, for private monitoring.
    • DIGITAL I/O - 8 ADAT and stereo S/PDIF digital inputs/outputs allow for the connection of up to 10 external channels, and built-in Word Clock enables easy integration into any system. In addition, MIDI In and Out is provided to allow interfacing with devices such as electronic keyboards and drum machines.

    Upsampling Standalone Mode
    The UAC-8 uses high-end components such as the AKM AK5388 analog-to-digital converter and AKM AK4413 digital-to-analog converter. In addition, the UAC-8 performs 4-times upsampling during both analog-to-digital and digital-to-analog conversion. In other words, when the sampling frequency is set to 44.1 kHz or 48 kHz, the UAC-8 processes the signal at high resolution 176.4 kHz or 192 kHz.

    For A/D conversion, this means less aliasing noise; for D/A conversion, this means increased clarity and fidelity. In standalone mode, the UAC-8 can be used as an 8-channel mic preamp and analog-to-digital or digital-to-analog converter without being connected to a computer.

    State of the Art Editing
    The Zoom UAC-8 comes with a free download license for Steinberg’s Cubase LE music production software, providing not just the ability to capture incredible high-resolution / low-latency audio in every box, but to do spectacular things with it. Take your recordings to a more professional level. Steinberg’s powerful and state-of-the-art audio software used by creators around the world now comes with every Zoom UAC-2 and UAC-8 purchase.
    *For information on license activation and upgrades, visit our Steinberg Software support page.

    Package Includes:
     - UAC-8
     - Operation manual
     - USB 3.0 cable (1m)
     - Cubase LE download
     - Cubase LE startup guide

    Features:

    • 18‐in/20‐out SuperSpeed USB 3.0 audio interface
    • Standalone mode allows use as an 8-channel mic preamp and A/D or D/A converter without connection to a computer
    • Support for recording and playback of up to 24‐bit/192 kHz high‐resolution audio
    • Low latency audio streaming
    • 8 combo balanced XLR/TRS analog input connectors accept both mic and line‐level signal
    • High‐performance mic preamps with up to +60 dB of amplification
    • Hi‐Z switches allow direct connection of electric guitar or bass (INPUT1, INPUT2)
    • Independent gain controls and clip LEDs for each input
    • Switchable +48V phantom power (INPUTS 1‐4, INPUTS 5‐8)
    • 10 balanced TRS output jacks for connection to mixers, amplifiers, self‐powered speakers, headphones, or effects devices
    • Dual front-panel 1/4" headphone outputs with dedicated volume controls
    • Large knob output volume control
    • 4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
    • Asynchronous transfer system unaffected by computer jitter
    • S/PDIF IN/OUT: 2IN / 2OUT, up to 24‐bit/192 kHz
    • ADAT Optical IN/OUT: 2 IN / 2 OUT at 192/176.4 kHz (S/MUX4 compatible), 4 IN/4 OUT at 96/88.2 kHz (S/MUX compatible), 8 IN / 8 OUT at 48/44.1 kHz
    • Word Clock in/out
    • Clock source indicator
    • MIDI in/out
    • Rack-mountable (1U space)
    • Robust metal housing
    • Works with all USB 3.0-equipped Mac and Windows computers and Apple iPad*
      * Apple Camera Connection kit or Lightning to USB Camera Adapter required

    Specifications:

    ANALOG INPUTS  INPUTS 1-8
    CONNECTORS XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)
    INPUT GAIN 0–60 dB (1 dB steps)
    INPUT IMPEDANCE 5 kΩ 1 MΩ (When IN1/IN2 Hi-Z on)
    MAXIMUM INPUT LEVEL +13 dBu (XLR at 0 dBFS) +21 dBu (TRS at 0 dBFS)
    PHANTOM POWER +48 V
    ANALOG OUTPUTS MASTER OUTPUTS
    L/R CONNECTORS TRS jacks (balanced)
    ANALOG OUTPUTS LINE OUTPUTS 1-8
    MAXIMUM OUTPUT LEVEL +14 dBu (at 0 dBFS)
    OUTPUT IMPEDANCE 150 Ω
    ANALOG OUTPUTS  PHONES 1/2
    CONNECTORS Standard stereo phone jacks 20 mW × 2 (into 32 Ω load)
    MAXIMUM OUTPUT LEVEL +10 dBu
    OUTPUT IMPEDANCE 33 Ω
    DIGITAL IN/OUT ADAT OPTICAL
    CONNECTORS ADAT Optical (lightpipe) 8 IN/OUT: 44.1 kHz/48 kHz 4 IN/OUT: 88.2kHz/96kHz, S/MUX compatible 2 IN/OUT: 176.4kHz/192kHz, S/MUX4 compatible
    DIGITAL IN/OUT S/PDIF OPTICAL
    CONNECTORS RCA (coaxial)
    SUPPORTED SAMPLING FREQUENCIES 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
    DIGITAL IN/OUT WORD CLOCK
    CONNECTORS BNC
    SUPPORTED SAMPLING FREQUENCIES 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
    OUTPUT IMPEDANCE 75 Ω
    Other
    FREQUENCY CHARACTERISTICS 44.1 kHz: −1.0 dB, 20 Hz–20 kHz 96 kHz: −1.0 dB, 20 Hz–40 kHz 192 kHz: −1.0 dB, 20 Hz–60 kHz
    INPUT CONVERSION NOISE Measured EIN: -125 dB (IHF-A) at 60dB, 150Ω input
    DYNAMIC RANGE AD: 120 dB typical (IHF-A) DA: 120 dB typical (IHF-A)
    SAMPLING FREQUENCIES 192 kHz, 176.4 kHz, 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
    BIT DEPTH 24-bit
    INTERFACE USB 3.0 / 2.0
    MIDI IN/OUT 5-pin DIN jacks
    POWER SUPPLY AD-19 DC12V 2A AC adapter
    EXTERNAL DIMENSIONS 6.2 in. (D) × 19 in. (W) ×  1.8 in. (H) 157.65 mm (D) × 482.6 mm (W) × 46.03 mm (H)
    WEIGHT (MAIN UNIT ONLY) 4.4 pounds / 2.02 kg
    NUMBER OF RECORDING AND PLAYBACK CHANNELS
    AUDIO INTERFACE AND STANDALONE MODES
    AT 44.1 KHZ AND 48 KHZ: Recording:   18 channels (ANALOG: 8, S/PDIF: 2, ADAT Optical: 8) Playback:   20 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 8)
    AUDIO INTERFACE AND STANDALONE MODES AT 88.2 KHZ AND 96 KHZ: Recording:   14 channels (ANALOG: 8, S/PDIF: 2, ADAT Optical: 4) Playback:   16 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 4)
    AUDIO INTERFACE AND STANDALONE MODES
    AT 176.4 KHZ AND 192 KHZ: Recording:   12 channels (ANALOG: 8, S/PDIF: 2, ADAT OPTICAL: 2) Playback:   14 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 2)
    CLASS COMPLIANT MODE AT 44.1 KHZ, 48 KHZ, 88.2 KHZ, 96 KHZ, 176.4 KHZ, 192 KHZ: Recording: 8 channels (ANALOG: 8 Playback: 10 channels (ANALOG: 10)
    UAC-8 SYSTEM REQUIREMENTS
    WINDOWS OS: Windows® 7 SP1 or later / 8 / 8.1 / 10 (32bit/64bit) CPU: Intel® Core i3 or faster* USB: USB 3.0/USB 2.0** * Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD. ** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
    MAC OS: Mac® OS X 10.9.5 or later / 10.10 / 10.11 / 10.12 / 10.13 / 10.14/ 10.15 CPU: Intel® Core i3 or faster USB: USB 3.0/USB 2.0* * Operation is not guaranteed when used with USB hubs or expansion cards.
    IPHONE/IPAD OS: iOS 7.1 or later* Apple Camera Connection kit or Lightning to USB Camera Adapter required.
    View PDF brochure for Zoom UAC-8 USB 3.0 Audio Interface
