2x SWAMP BT-12 - 2-way Passive 12" PA Speaker - 300W RMS

Stereo Pair - A/B Types

$539.99
In Stock

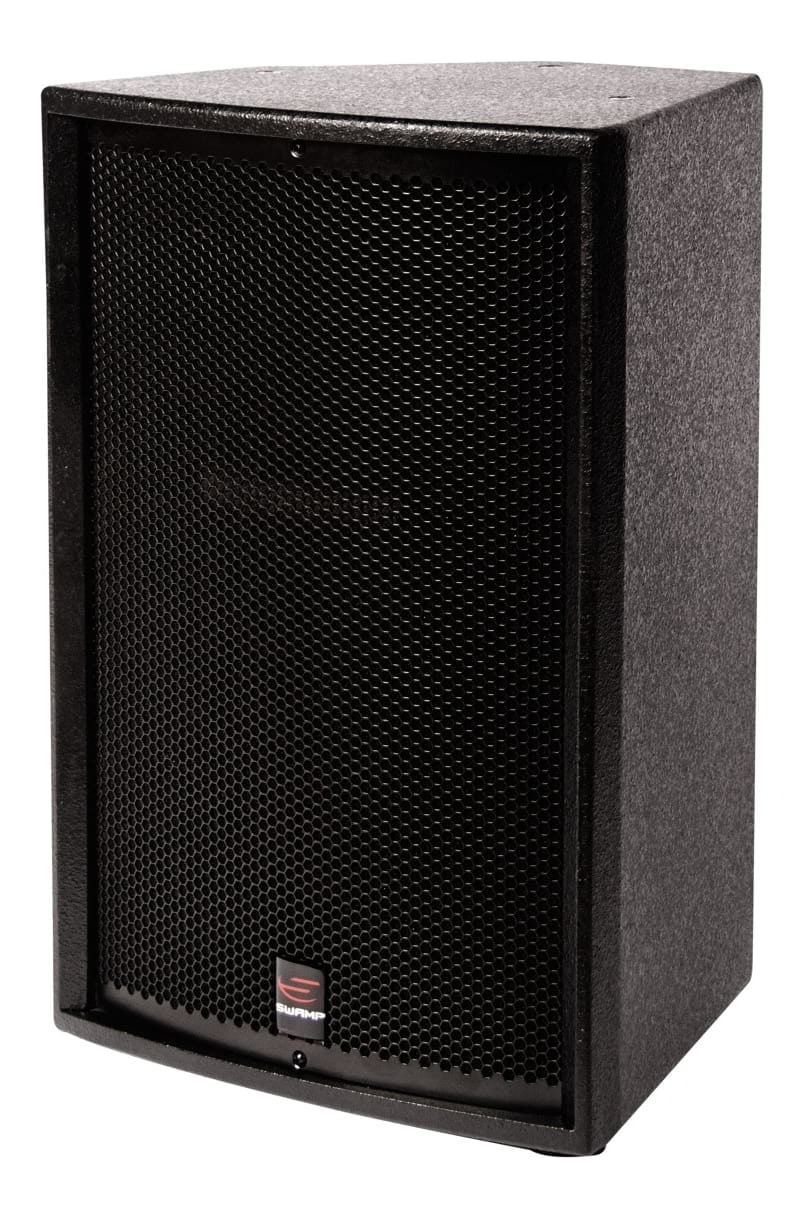

SWAMP has worked directly with the speaker manufacturer DE Acoustics to bring you the BT series. The BT-12 is a high performance two-way, full range passive loudspeaker.

2x SWAMP BT-12 - 12" 300W RMS Passive Speaker - Stereo Pair
SWAMP has worked directly with the speaker manufacturer DE Acoustics to bring you the BT series. The BT-12 is a high performance two-way, full range passive loudspeaker. It utilises a 12" bass woofer, high quality mylar HF driver and intelligent crossover, to deliver clear and powerful sound up to a 125dB max SPL. Comparable in build and sound quality to well known brands with models retailing above $400.

FOH or DJ Speaker

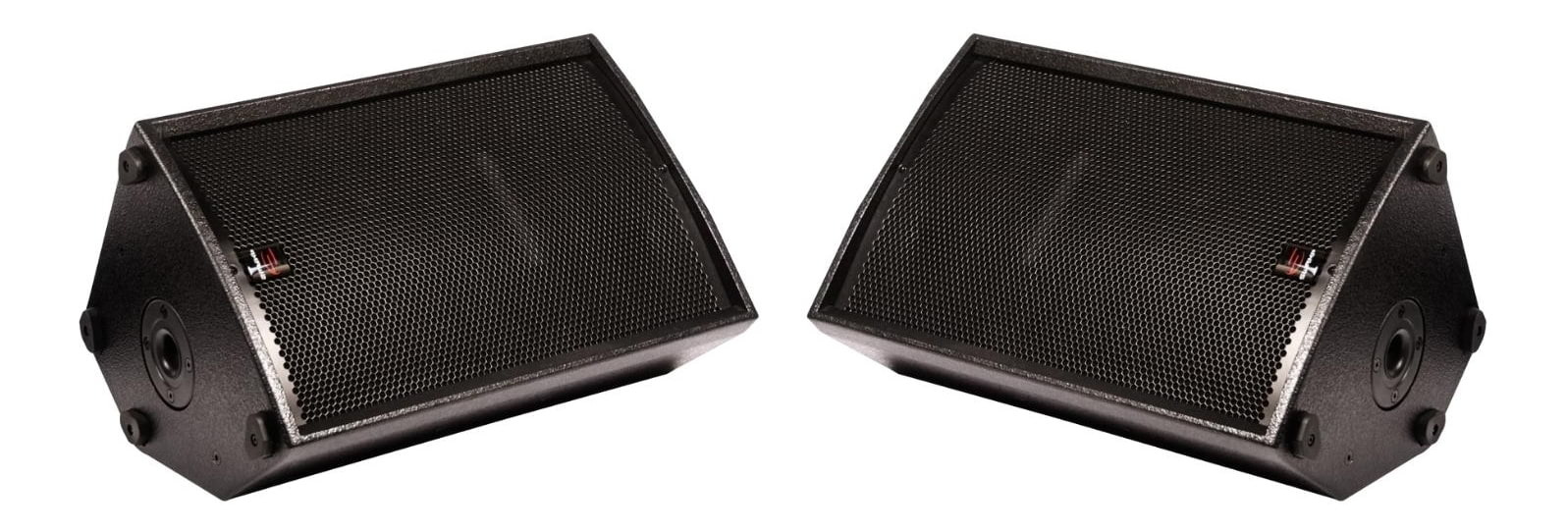

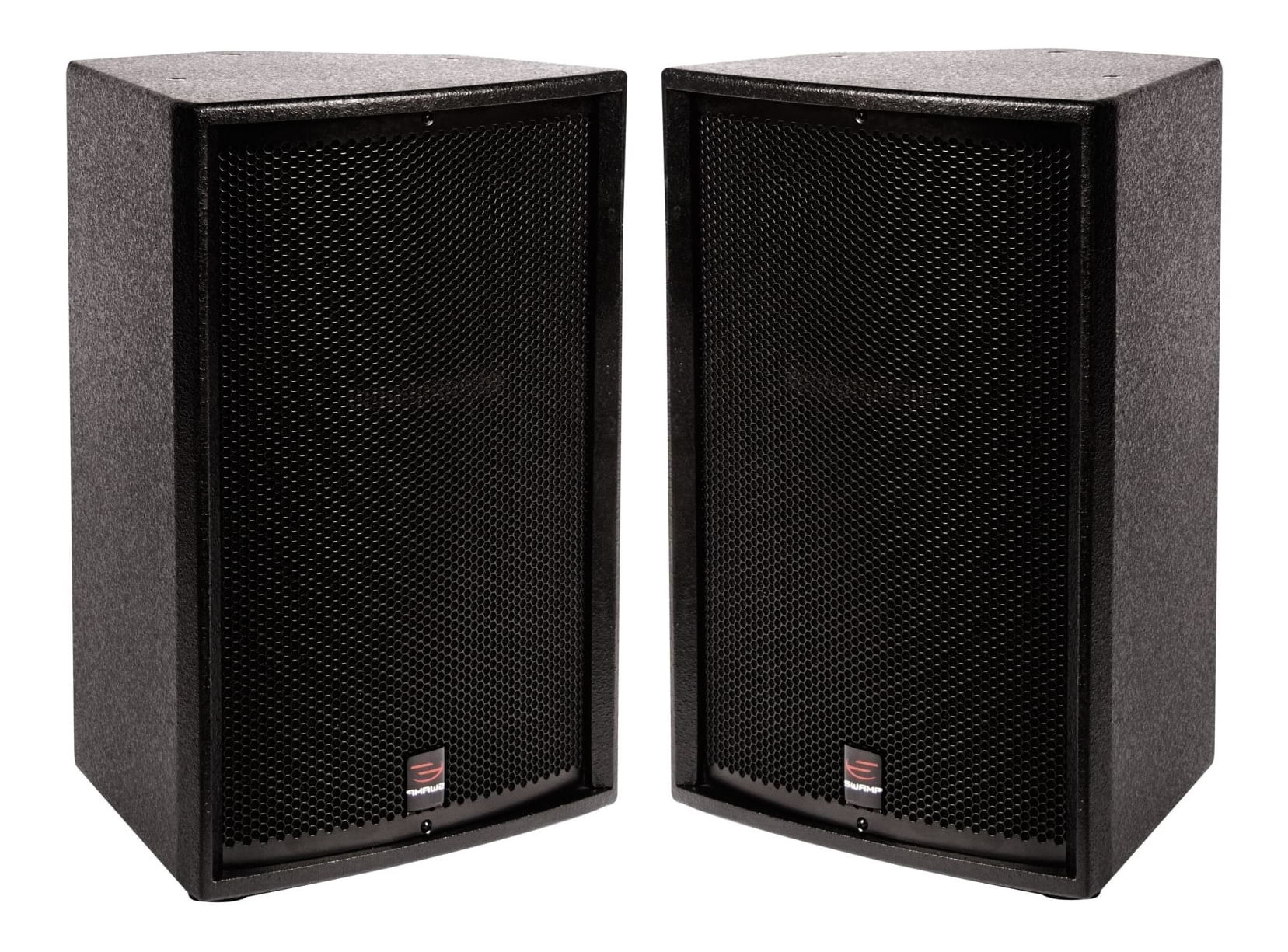

With foldback style flattened corner edges, this speaker can be used as a (passive) monitor / DJ speaker. The speaker stand hole also allows it to be mounted on any standard speaker stand to be used as a front of house PA speaker. Sold in a pair, each cabinet is a mirror image of the other, i.e. the flat side of one speaker places the tweeter on the far left, and the other on the far right.

300W RMS / 600W Peak
Rated at an impressive 300W RMS (average power), a single BT-12 has the power to deliver clear, un-distorted sound for up to 120 people. Built to handle signals peaks of up to 600W.

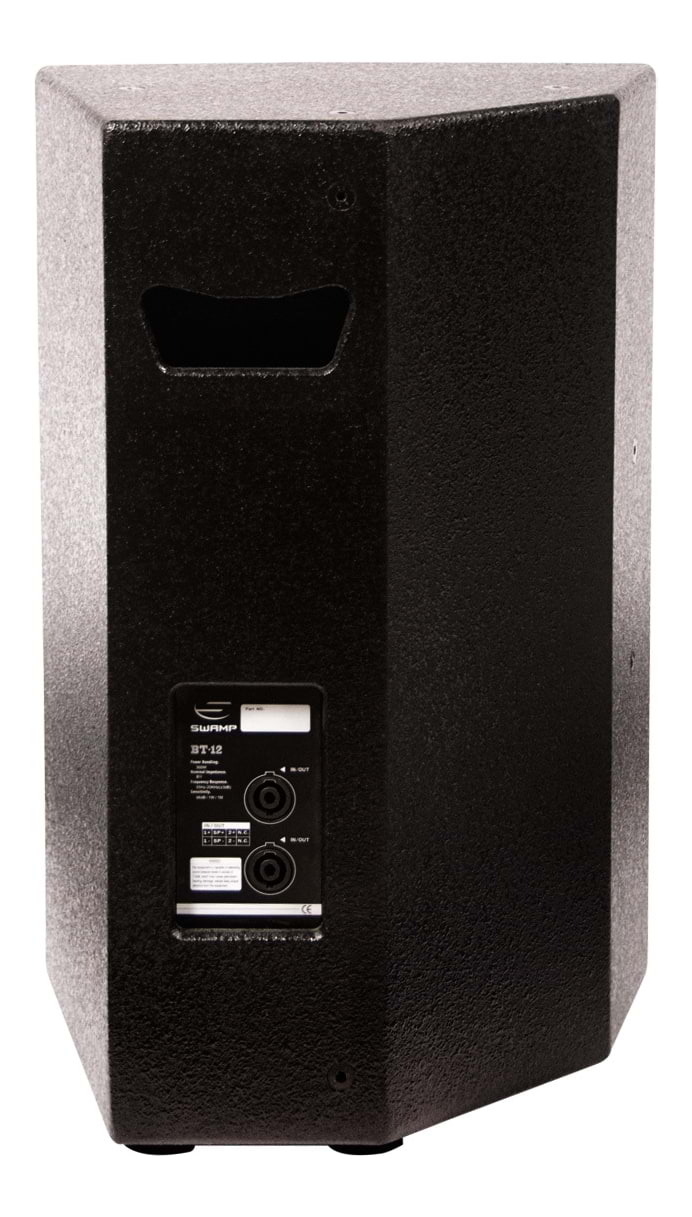

Two In/Out Sockets
Like many passive speakers, the BT-series features dual in/out speaker sockets, meaning it can be used in series with a second passive speaker, allowing you to power multiple speakers from a single amplifier channel. Perfect for stage monitors and spacial coverage in a large room.

Features:

  • Wedge / Foldback Monitor Style Box
  • 12" Bass Woofer, 1.4" HF Driver
  • Speaker Stand Mounting Hole (standard 35mm)
  • 300W RMS

Included:

  • 1x BT-12 Type-A
  • 1x BT-12 Type-B

Specifications:

  • Frequency Response: 55Hz-19KHz (-3dB)
  • Type: 12" two way, passive, full range
  • Drivers:
    - LF: 1x12" bass driver, 120mm Magnet, 2.5" voice coil overheat-proof
    - HF:1x1.4" mylar diaphragm driver
  • Sensitivity: 96dB/1W/1M
  • Rated Impedance: 8Ω
  • SPL: 119 dB continue, 125 dB peak
  • Coverage: 90 x 50 Degree
  • Construction:
    -15mm HDF (High-density fiberboard) cabinet; black paint; water proof
    -12 x M8 fitting point, 38mm standing hole
  • Monitor / Wedge angel: 30 degrees
  • Dimensions: 600mm x 380mm x 320mm
  • Weight: 18Kg
View PDF brochure for 2x SWAMP BT-12 - 2-way Passive 12" PA Speaker - 300W RMS
By: on 6 October 2015
I've paired the BT-12s with Swamp's CA-18SUB passive subs and a pair of Swamp PS-4.5 power amps (one for the BT-12s, the other for the subs). This configuration has worked perfectly and the whole set-up is ideal for small to mid-sized rooms. Their frequency response is nice and even, requiring only slight EQ tuning depending on the venue. I use a dbx Driverack PA2 for the crossover filters, limiters and tuning and the entire PA handles everything a band can throw at it. I dealt with George when working through my options for the PA, and his knowledge and willing assistance was first-rate. Very happy, and I recommend this configuration to anyone who wishes to use the traditional passive speaker/power amp configuration.
(5)
By: on 16 August 2013
Great speakers sound fantastic Incredibly quick deliver thank you.
(5)
