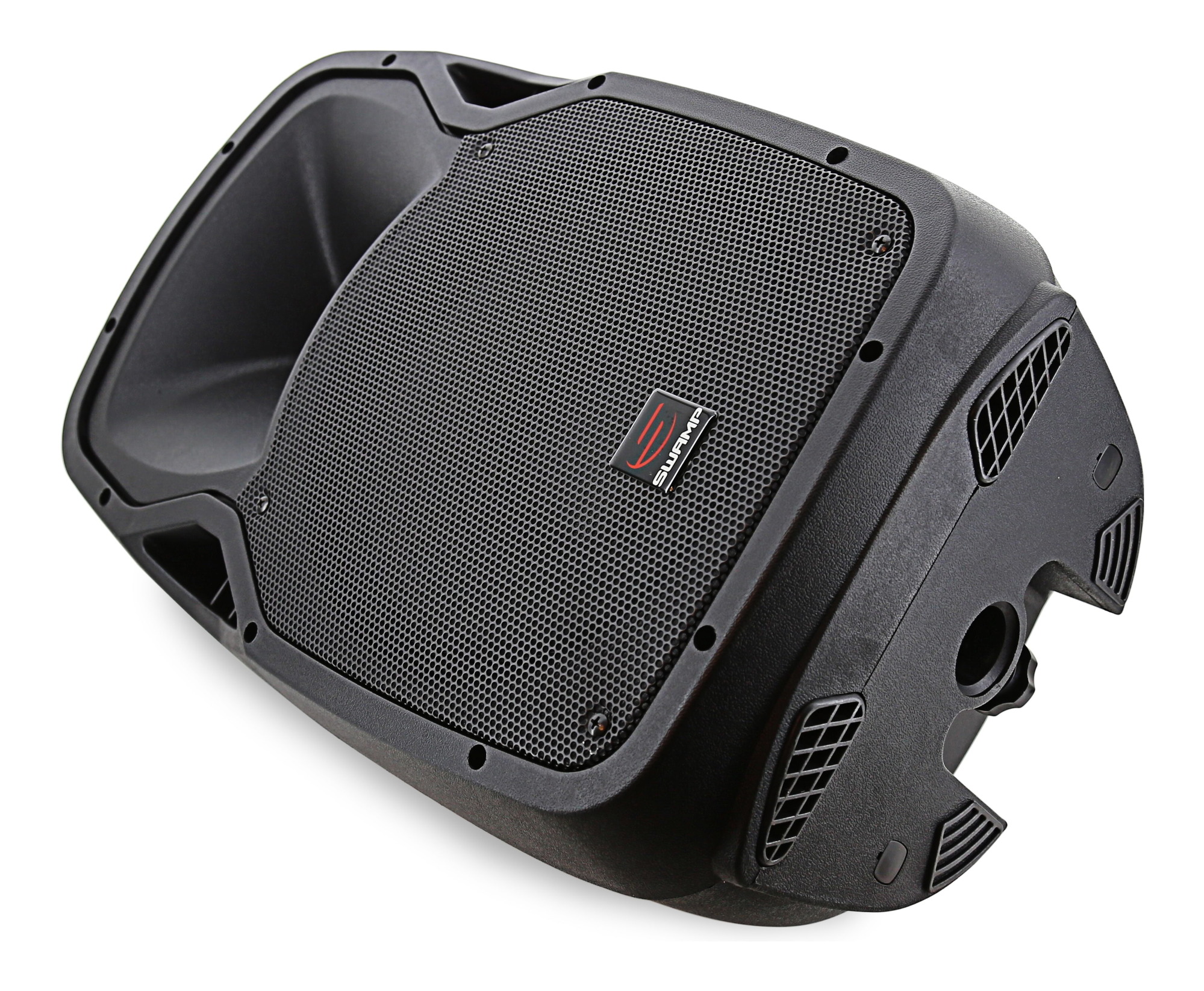

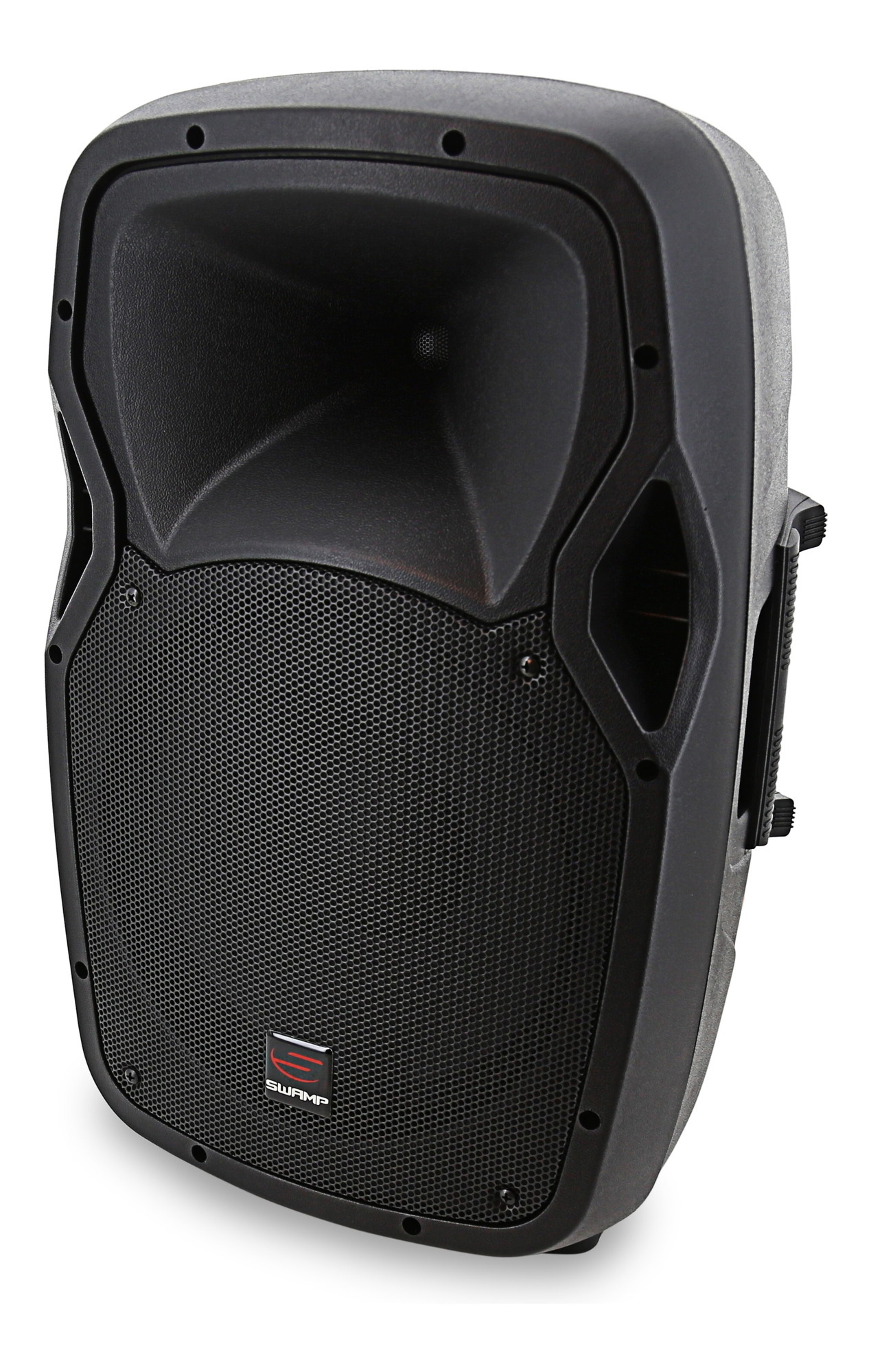

The PBO-12 is SWAMP's all-round workhorse passive PA speaker, 180W of power in a monitor / foldback option speaker box. This speaker will provide a clean high-end presence, with a tight full bottom end. Under 9kgs in weight.
Dispatched Today
| Loading... | ||||||
SWAMP 12" 2-way Passive PA Speaker - 180W RMS / 360W
The PBO-12 is SWAMP's all-round workhorse passive PA speaker, 180W of power in a monitor / foldback option speaker box. This speaker will provide a clean high-end presence, with a tight full bottom end.
FOH or DJ Speaker
The PBO-12 delivers power of 180W RMS / 360W at peak levels. A pair of PBO-12 offers plenty of thump for small pub and bar gigs, up to 120 people. Mounts on all standard speaker stands. A slanted speaker box design allows the PBO-12 to be used effectively for stage monitoring applications.
Two In/Out Sockets
Like many passive speakers, the PBO-12 features dual in/out (either can be used for input or output) speaker sockets with speakon / 1/4" connections, meaning it can be connected in parallel with a second passive speaker, allowing you to power multiple speakers from a single amplifier channel. Perfect for stage monitors and spacial coverage in a large room. Note that connecting two speakers in "parallel" means the load drops to 4ohm, so firstly check the amplifier is rated for 4ohm otherwise damage may occur.
Power from a Power Amplifier / Audio Receiver
Being a 'passive' speaker, the PBO-12 will require a 'power amplifier' to provide the audio signal and the power required to drive the speaker. Power amps are either sold as standalone units, or may be included as part of a mixing desks or audio receiver (home theatre). The PBO-12 can be powered by any type of power amplifier, providing the power output of the amp does not exceed 300W (at 8 ohm). We recommend selecting an amplifier outputting between 150W and 300W (at 8 ohm). Feel free to contact us for assistance in selecting a suitable power amp.
Features:
- Versatile General PA Speaker
- 4.5" Titanium Driver
- 12" Woofer
- Speakon and 1/4" input and output
- Side and Top Carry Handles
- Speaker Stand Mounting Hole (standard 35mm)
Specifications:
- Impedance: 8Ω / 8 Ohms
- Frequency Response: 55Hz-20KHz
- Woofer Sensitivity (1M/1W): 102 dB
- Woofer Power Rating: 150W RMS / 300 MAX @ 4Ω
- Woofer Frequency Range: 50Hz - 3.5kHz
- Tweeter Sensitivity(1M/1W): 106dB
- Tweeter Rating Power: 30W RMS / 60W MAX @ 8Ω
- Tweeter Frequency Range: 3kHz a 20kHz
- Woofer: 1×12", 2.0" Coil, 1.4kg
- Tweeter: 1×4.5", 1.3" Coil, 0.368kg
- Tweeter Driver: Titanium Compression Driver
- Dimensions: 570 x 375 x 320mm
- Connections: Speakon or 1/4" (6.35mm)
- 2x Speaker Inputs/Outputs wired in parallel (connecting 2 speakers gives 4ohm load)
- Weight: 8.85kg
