SoundKing DX20 Digital Mixer with Multi-track USB Audio Interface

SoundKing DX20 Digital Mixer with Multi-track USB Audio Interface
The SoundKing DX20 is a 20-Channel Digital Mixer featuring a 16x16 USB audio interface for multitrack recording, 24bit/48kHz AD/DA conversion, DSP with 8 Effects, 7″ Android-powered HD touch screen, 9x 100mm moving faders, built-in WiFi for Phone, Tablet, iPad or Computer remote control access via HTML5.

Remote Control via HTML5
Features built-in remote control functionality via a HTML5 interface, accessible through the WiFi hotspot created by the mixer itself. This allows users to connect directly using a smartphone, tablet, or laptop without needing an external router or internet connection. Once connected, the mixer's intuitive web-based control panel enables real-time adjustments to levels, effects, and scenes from anywhere within range—perfect for live sound engineers who need the freedom to move around the venue while fine-tuning the mix.

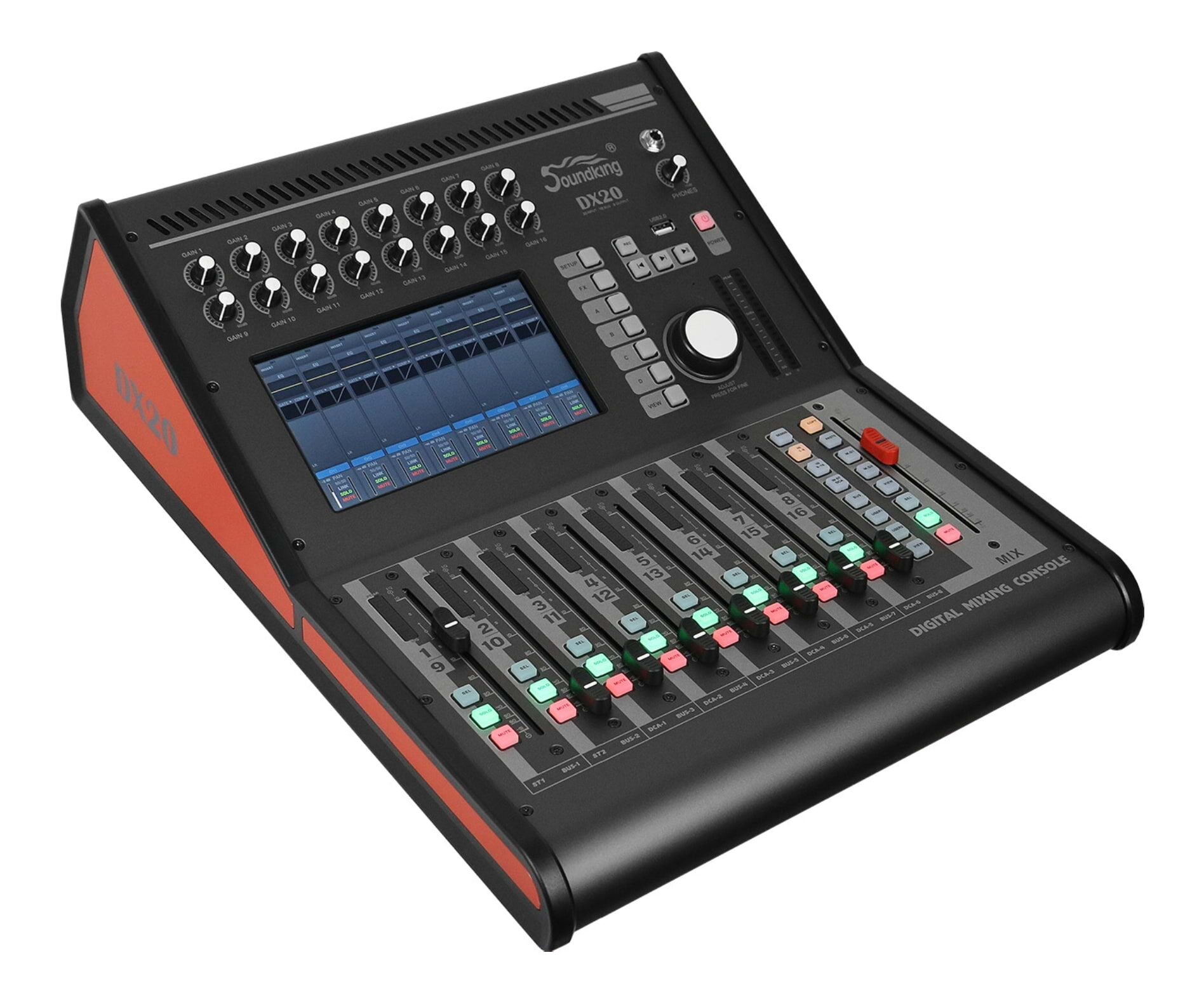

Full Featured Compact Console
The DX20 is a compact and fully functional 20-channel digital mixer that blends modern digital technology with the familiar operation of traditional mixers. It combines the advantages of high-end hardware / touch slide control and 485 operation. It features fourth-generation 40-bit SHARC floating-point processor, 24-bit/192kHz A/D and D/A conversion, 8 built-in effects with reverb, delay, modulation and GEQ, 20 inputs including 12 XLR and 4 Combo inputs and professional digital signal inputs, 16 buses including 8 custom analog and digital outputs, 4 multi-function custom buttons, 6 DCAs, 2 mute groups and 2 user-definable layers. A front USB port is installed for stereo playback, recording and scene storage. Equipped with a 7’’ HD IPS touch screen, the console has quick and intuitive operation, and is very suitable for all kinds of performances, conferences, schools, intelligent buildings, industrial and mining enterprises, and personal use.

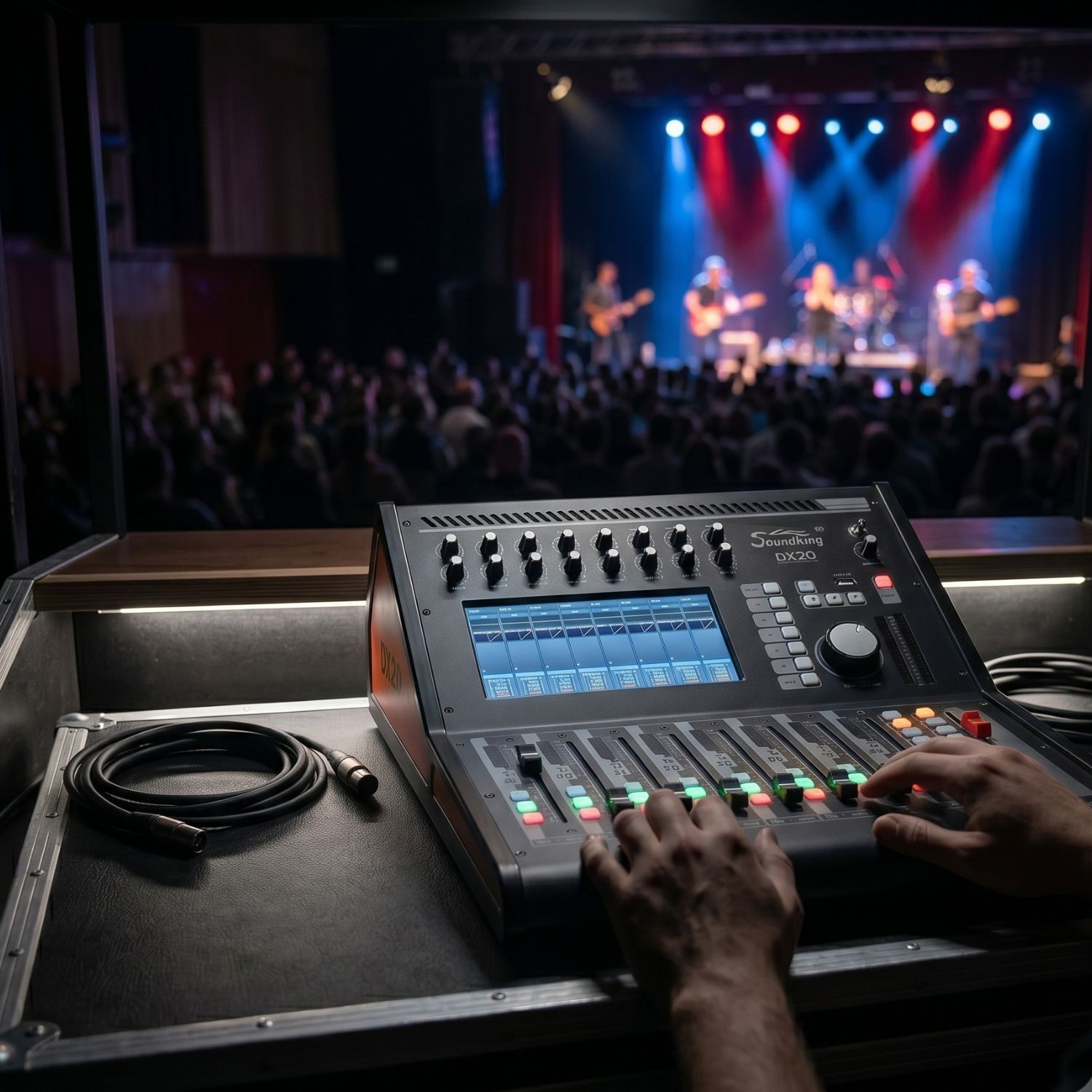

Ideal for a wide range of environments, including recording studios, live performances, conference halls, pubs, TV stations, and bands, the DX20 digital mixer delivers a professional-grade mixing experience. Its combination of advanced hardware and easy-to-use interface ensures powerful results, whether for experienced engineers or beginners.

Mutli-Track USB Audio Interface

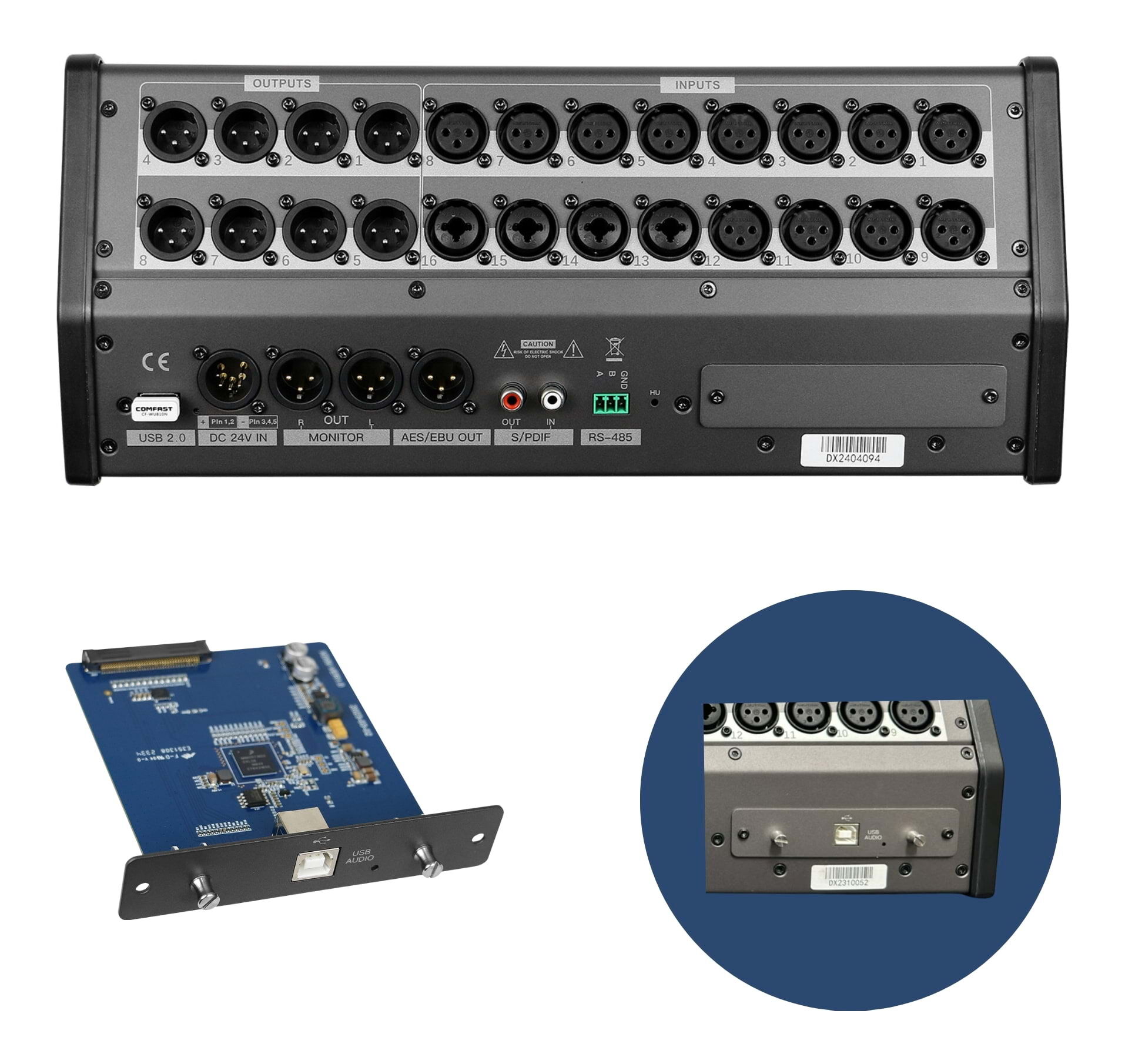

This Soundking DX20 model (DX20-USB) includes the USB Audio Interface expansion card, giving you multi-track recording and playback capabilities straight out of the box. This powerful feature adds a rear USB-B connector for direct connection to your computer, allowing the mixer to function as a multi-channel audio interface—perfect for studio recording, live capture, or virtual soundchecks. While some versions of the DX20 may be sold without this card, our DX20-USB ensures you’re ready to integrate with your DAW and record each input channel individually with no additional upgrades required.

Input Channels
The DX20 has 12-channel mono inputs, 2 analogue stereo inputs, 1 stereo S/PDIF input channel and 1 stereo USB input. The MIC input channels have five individual modules, which are Input Stage, EQ, Dynamics, Bus Send and Output Stage.

Features:

• 12 Mic inputs - 4 COMBO inputs
• 1 S/PDIF inputs/outputs and AES/EBU outputs
• 16 buses 4 Mono output buses, 5 Stereo output buses, 1 Stereo monitor bus
• 8 custom assignable XLR output ports
• 4 multi-function custom buttons
• 6 DCA
• 2 mute groups
• 2 user-defined layers
• 1 pair of Stereo monitor outputs and 1 headphone outputs

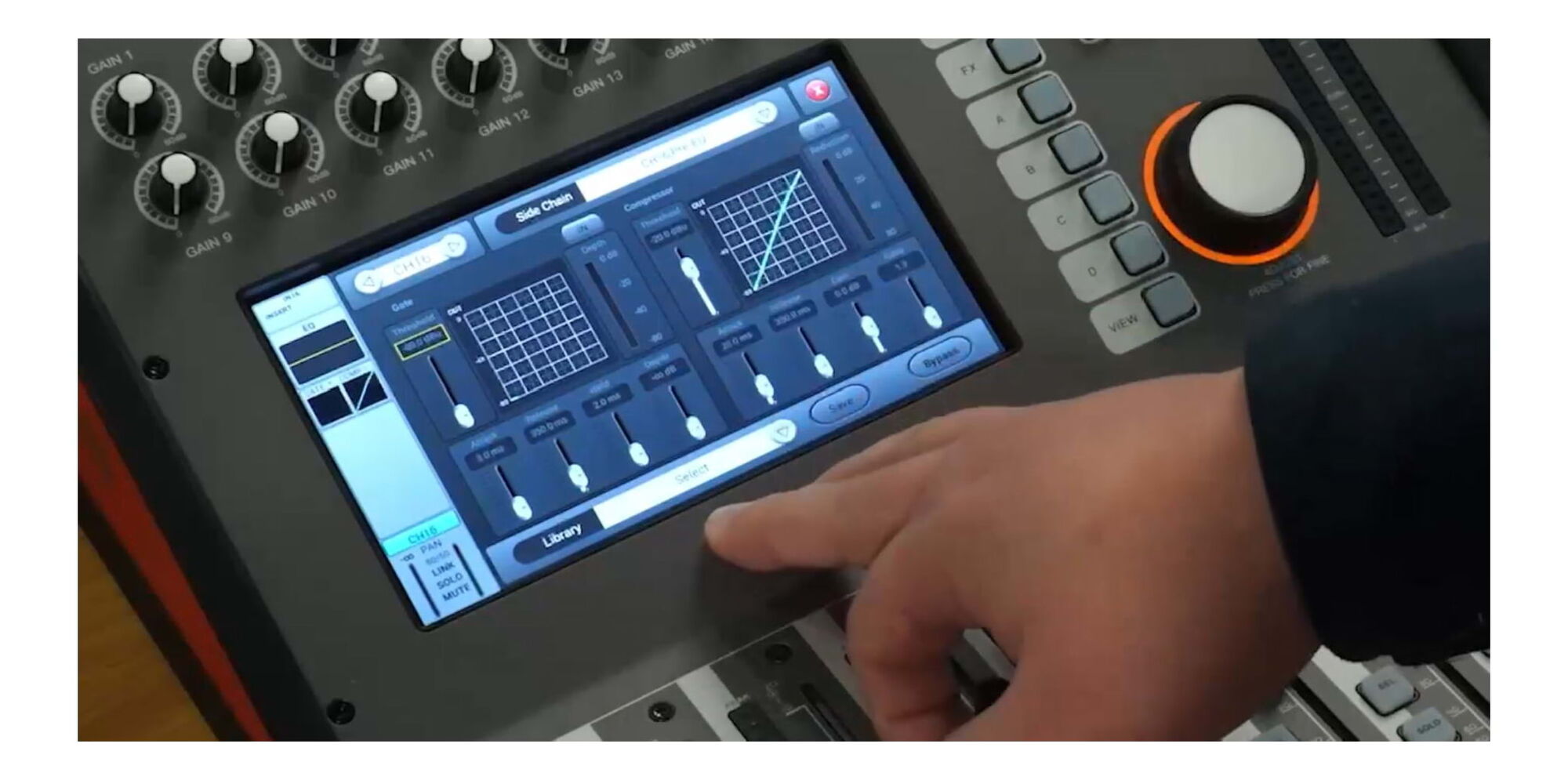

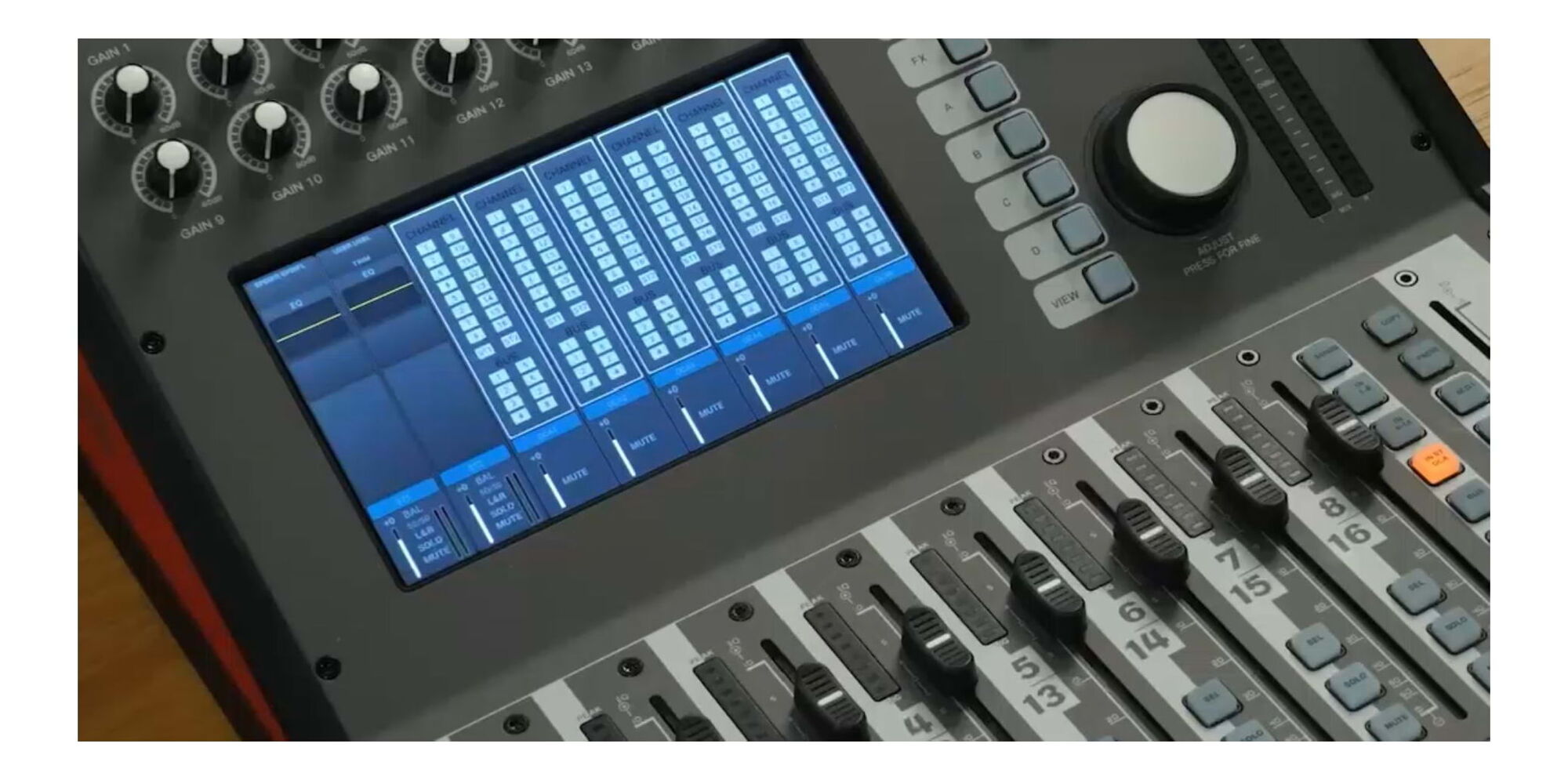

• 1 7'' 1024×600 IPS touchscreen IPS touchscreen with adjustable angle
• 8 internal effect modules
• USB port on front for stereo recording/playback/system update/scene import and export
• Comfast WiFi hotspot USB adapter
• USB audio interface for multi-track recording and playback
• Support scene memory
• Support 485 control

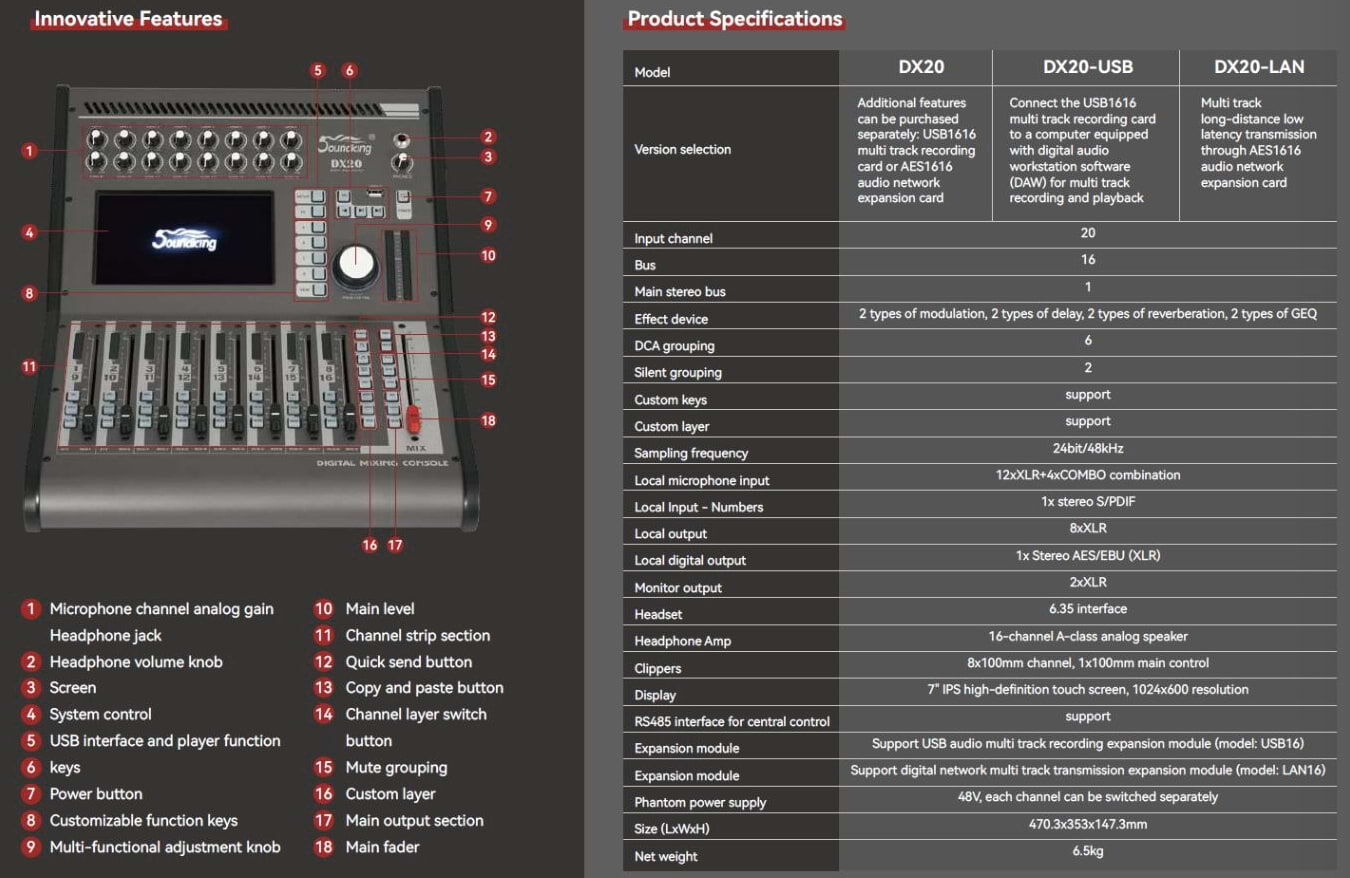

Specifications:
