Canare Twisted Pair Microphone Cable - L-2T2S - BLACK - 200m Roll

$529.99
In Stock
RRP $693.00

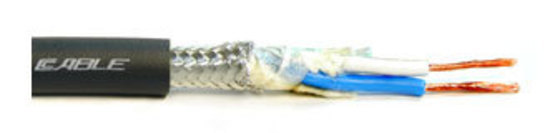

Standard diameter 2-conductor microphone cable for general purpose audio applications. The high density braided copper shield and two inner conductors (composed of 60 thin strands of copper wire), allow for maximum flexibility and reduced handling noise.

Twisted Pair Microphone cable (L-2T2S) - 200 metre Roll
Standard diameter 2-conductor microphone cable for general purpose audio applications.
The high density braided copper shield and two inner conductors (composed of 60 thin strands of copper wire), allow for maximum flexibility and reduced handling noise. A special compound PVC outer jacket resists cracking and tears even in sub-zero environments.

Features:

  • Braided Copper Shield
  • Flexible in Extreme Cold Weather
  • Reduced Handling Noise
  • Rejects EMI and RFI

Applications:

  • Microphones
  • Portable Applications
  • Audio Patch Cords
  • PA System
MECHANICAL SPECIFICATIONS
Model Std.
Lng.

ft.
(m)
Wt
Std.
Lng.
lbs
(kgs)
Nom.
O.D.

in.
(mm)
Jacket
Nom.
Thick.
in.
(mm)
Brittle
Point

(C°)
No.
of
Cond.
Insul.

Type*
Thick
mil
Cond-AWG
(Qty./mil)
Cross Sec.
Area
mil.²
Pitch
Twist
Quad
in.
(mm)

Shield
Cover-
age

L-2T2S 656ft
(200m)
20
(9)
.236
(6.00)
.039
(1.0)
-56
(-49)
2 IPE
19.7
AC - #23
(60/3.15)
465
Less than 0.79
(less than 20)
greater than 94%
TAC
Braid
*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.

ELECTRICAL PERFORMANCE
Model Cond.
D.C.R.
ohm/1000ft
(ohm/100m)
Shield
D.C.R.
ohm/1000ft
(ohm/100m)
Nom.
Cap.
***
pF/ft
(pF/m)
Nom.
Cap.

pF/ft
(pF/m)
Nom.
Imp.
ohm
Nom.
Atten.
V/1000ft
(V/100m)
Group
Delay
Time
nS/ft
(nS/m)
L-2T2S less than 19.8
(less than6.5)
less than 9.4
(less than 3.1)
22
(70)
33
(106)
88 0.9
(0.3)
1.83
(6.00)
***Capacitance between conductors.
†Capacitance between conductors to shield.
