Alctron DMC05 Active Studio Monitor Controller

Alctron DMC05 Bluetooth Monitor Controller
The Alctron DMC05 Active Studio Monitor Controller puts your whole listening setup under one large volume knob and adds Bluetooth 5.0, so you can stream from your phone, tablet or computer alongside your wired sources. Connect an audio interface or mixer, a phone or MP3 player and an RCA source, then send the signal to two pairs of powered studio monitors - one on XLR, one on 6.35mm jacks - with a switchable subwoofer output and a 3.5mm headphone output. Dedicated buttons with blue LED indicators turn each input, output and function on or off, making it a tidy control centre for home studios, mixing, podcasting and content creation.

Bluetooth 5.0 Streaming
The DMC05's Bluetooth 5.0 input gives you a stable, quick-responding wireless link, so you can play reference tracks, backing tracks or music from a phone, tablet or computer through your studio monitors without running another cable. Pairing takes one button: the PAIR indicator flashes while the DMC05 waits for a device and stays lit once it's connected, and the controller automatically reconnects to the last device you paired. To connect something new, hold PAIR for 2 seconds to clear the old pairing. The Bluetooth button brings the wireless source in or out whenever you need it.

Connect All Your Sources
Input A has a pair of 6.35mm (1/4") TRS jacks for an audio interface or mixing console, plus a 3.5mm stereo input for a phone, MP3 player or laptop. Input B takes a pair of RCA connectors for a DVD or CD player or other line-level gear. Each input has its own button and LED, so everything can stay plugged in at once and you choose what you hear from the front panel instead of swapping cables behind your desk.

A/B Monitor Switching, Subwoofer and Headphone Outputs

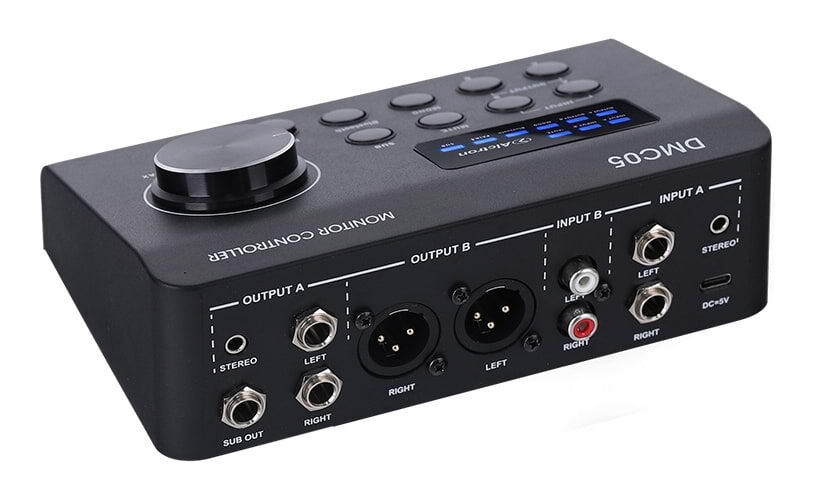

Output B sends the signal to a pair of monitors over XLR, while Output A has a pair of 6.35mm outputs for a second set of monitors, a 3.5mm stereo output for headphones and a 6.35mm SUB OUT for a subwoofer. That makes the DMC05 a handy speaker switcher: press OUTPUT A or OUTPUT B to hear your mix on a different pair of speakers and check how it translates, and press SUB to bring the subwoofer in or out when you want to hear the low end. The headphone and sub outputs are on the rear panel and follow Output A. All outputs are unbalanced line level, suited to powered (active) studio monitors and subwoofers.

Hands-On Control

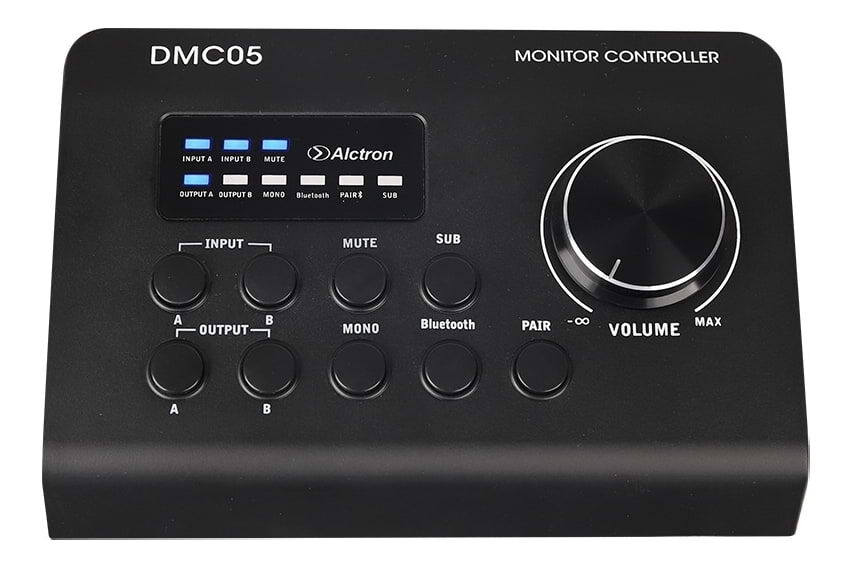

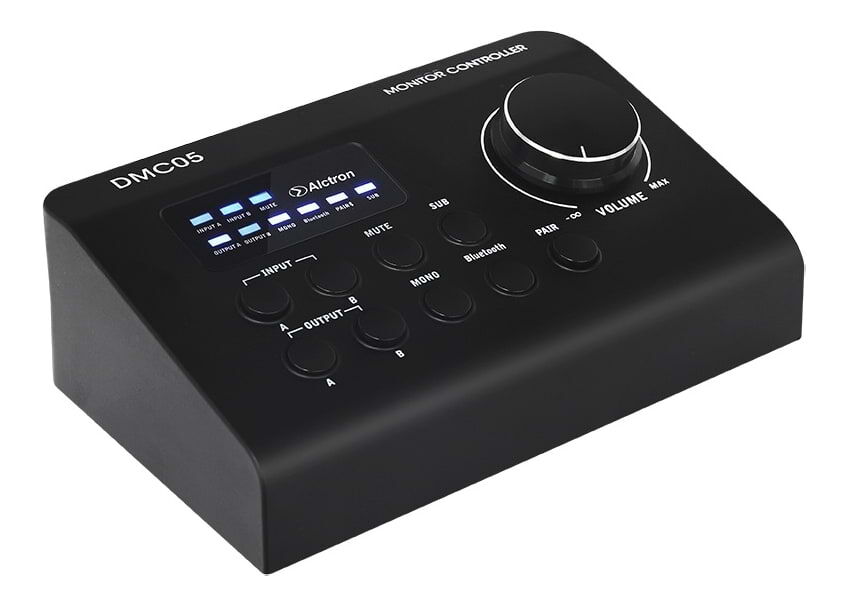

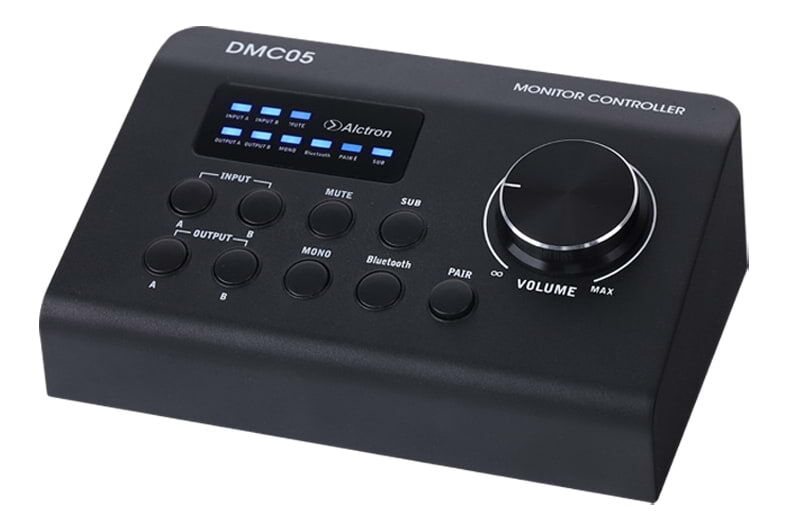

The oversized volume knob sets the level of every output at once, from fully off to maximum, for quick, precise adjustments while you work. MUTE silences all outputs instantly - handy when you take a call or change connections - and MONO is there for mono input sources. The blue LED panel shows at a glance which inputs, outputs and functions are active. The DMC05 sits on your desk in a compact, angled housing and runs on 5V DC through its USB Type-C port, powered from a standard phone charger.

Features:

• Active desktop studio monitor controller with Bluetooth 5.0 streaming
• Inputs: 6.35mm TRS left/right, 3.5mm stereo and RCA left/right, plus Bluetooth
• Outputs: XLR left/right, 6.35mm left/right, 3.5mm headphone and 6.35mm sub out
• A/B output switching for two pairs of powered studio monitors
• SUB button switches the subwoofer output on or off
• MUTE button silences all outputs at once
• MONO button for mono input sources
• Large master volume knob controls every output
• Blue LED indicators show the status of each input, output and function
• One-button pairing with auto-reconnect to the last paired device
• Runs on 5V DC via USB Type-C
• Ideal for home studios, mixing, podcasting, streaming and content creation

Specifications:

• Model: DMC05
• Inputs: 6.35mm (1/4") TRS left/right, 3.5mm (1/8") stereo, RCA left/right (all unbalanced), Bluetooth
• Bluetooth: Version 5.0, 20Hz-20kHz
• Input dynamic range: 108dB
• Input signal-to-noise ratio: >102dB
• Outputs: XLR left/right, 6.35mm (1/4") TRS left/right, 3.5mm (1/8") stereo headphone (all unbalanced)
• Subwoofer output: 6.35mm (1/4") TS, unbalanced
• Frequency response: 20Hz-20kHz
• THD+N: 0.001% (main outputs), 0.002% (subwoofer output)
• Subwoofer output signal-to-noise ratio: >102dB
• Maximum output level: +10dBu
• Controls: Volume, Input A, Input B, Bluetooth, Pair, Output A, Output B, Sub, Mute, Mono
• Power: 5V DC via USB Type-C
