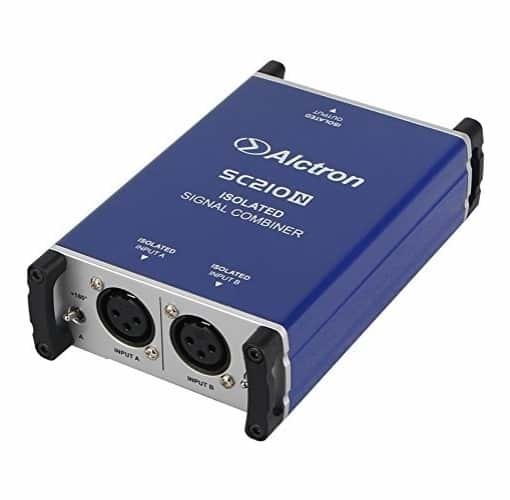

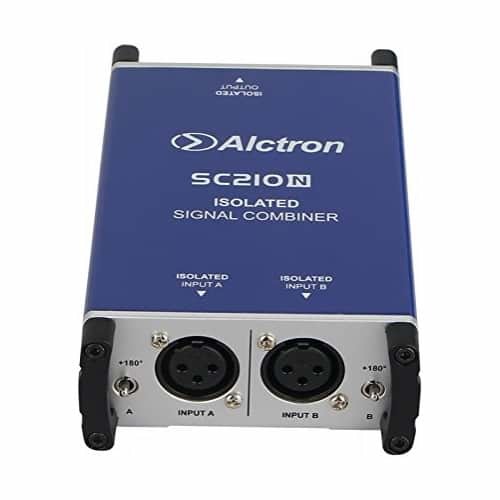

Alctron SC210N Isolated Microphone Signal Combiner

A versatile tool, the SC210N is an isolated microphone combiner that will let you combine two microphone balanced signals into one balanced microphone output. Great for anytime you have limited channels left on your mixing desk.

SC210N Isolated Microphone Signal Combiner
A versatile tool, the SC210N is an isolated microphone combiner that will let you combine two microphone
balanced signals into one balanced microphone output.  Great for anytime you have limited channels left on your mixing desk.

Genuine Isolated Signals
All inputs and outputs are fully isolated from each other via the onboard professional transformer. This allows a smooth frequency response, and low distortion. The balanced output has a ground lift switch that is fitted to help combat ground loop.

Sturdy and Quiet
The SC210N casing is made of aluminium, and its lightwieght design ensures a certain impact resistance, as well as resistance to radio interference. Each side has a protection panel to prevent damamge from accidental drops.

Phase Switch and Phantom Powering
The SC210N comes with a phase switch to prevent signal cancellation between the 2 mic signals. Phantom powering from the mixer is fed to both mic inputs via individual phantom power switches, making the device suitable for both dynamic and consender microphones.

Features:

  • Combines 2 signals quietly with its low noise circtui
  • Phantom power available individually
  • Phase switch
  • Ground / lift switch
  • High quality aluminium shell
  • Lightweight and compact

Specifications:

  • Frequency response: 20hz-20khz
  • Maxinput level: +20dBu(1%50hz)
  • Distortion: 0.002%(0dB 1khz)
  • Insertion loss: -2.5dB into 600 ohms load; <0.1 dB into 50k ohms load
View PDF brochure for Alctron SC210N Isolated Microphone Signal Combiner
