  • Alctron U48 2-in 2-out USB Audio Interface with 2 Preamps

    $134.99
      In Stock
    or interest free for up to 6 months with
    -
    +

    The Alctron U48 is a 2-in / 2-out USB audio device, which offers up to 24bit/192khz AD/DA conversion. Two great sounding mic preamps with combo jacks, and a Hi-Z switch on each channel. Ideal for singer-songwriters and home and portable studios.

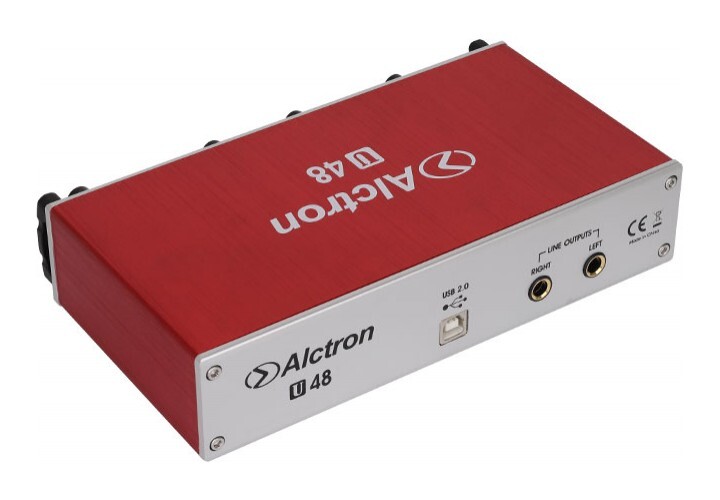

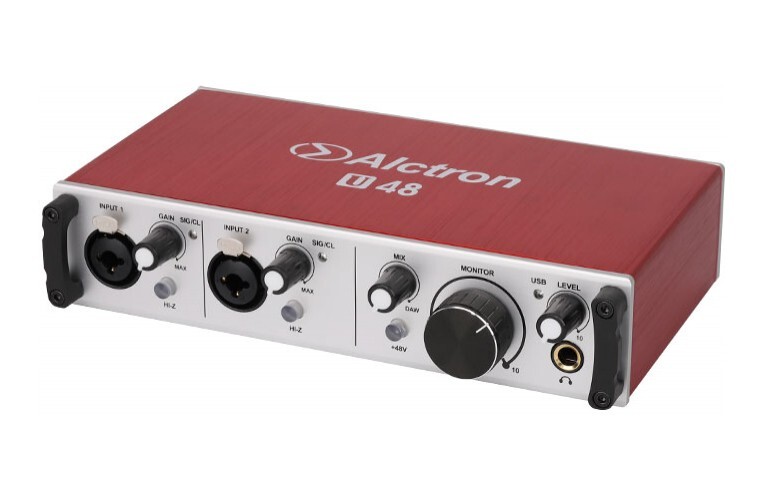

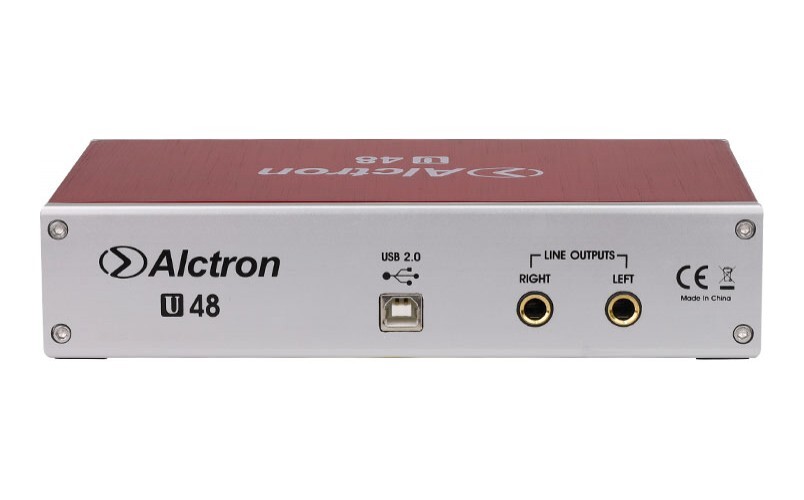

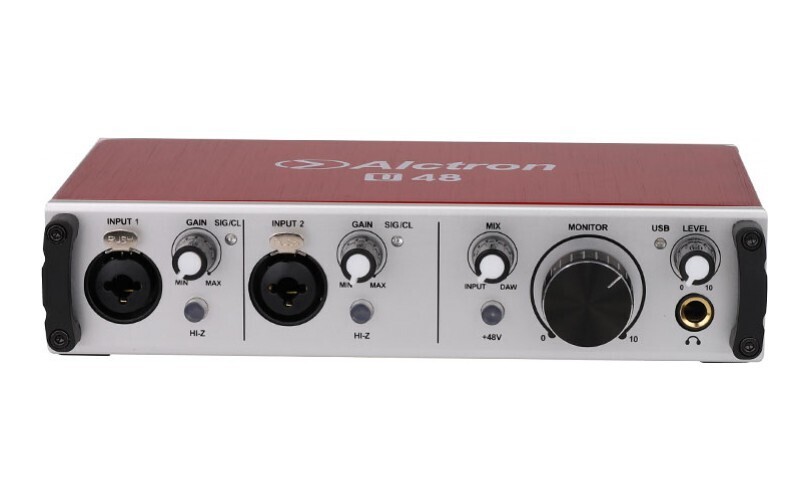

    Alctron U48 2-in 2-out USB Audio Interface with 2 Preamps
    The Alctron U48 is a 2-in / 2-out USB audio device, which offers up to 24bit/192khz AD/DA conversion. Two great sounding mic preamps with combo jacks, and a Hi-Z switch on each channel. Ideal for singer-songwriters and home and portable studios.

    Dual-Channel Sound Card
    The Alctron U48 is designed to convert analog signals into digital signals/digital signals into analog signals. The 24-bit 192khz chip ensures the original sound quality. The U48 is plug and play, no device drivers required. The inputs can be connected to dynamic microphones, condenser microphones and high impedance musical instruments. The body is designed with aluminium alloy, and is compact in size, sturdy and durable.

    Features:

    • USB audio sound card
    • Dual microphone input interface
    • 24-bit, 192khz resolution
    • Plug and play device
    • 48V phantom power switch
    • Real-time monitoring
    • Supports all professional recording software (DAW's) commonly used in the market
    • Strong compatibility and wider application scenarios

    Specifications:

    Mic Input
    Frequency response: 20Hz 20 kHz+/- 0.1 dB
    THD + N: 0.006%(min gain,input: 400mV, A-wt)
    Noise:



    Gain range: 18dB-48dB
    Instrument Input
    Frequency response: 20Hz 20 kHz+/- 0.1 dB
    THD + N: 0.01%(min gain,input: 400mV, A-wt)
    Noise: -94 dBu
    Max input level:
    Line input
    Frequency response: 20 Hz ± 0.5 dB, ± 0.1 dB
    THD + N: 0.006%(min gain,input: 400mV, A-wt)
    Noise: -95dBu
    Max input level: > +8.5 dBu
    Line Output
    Max input level: +13 dBu balance
    THD + N: -88dB
    Size:  204*100*47mm
    Net weight: 764g
    View PDF brochure for Alctron U48 2-in 2-out USB Audio Interface with 2 Preamps
