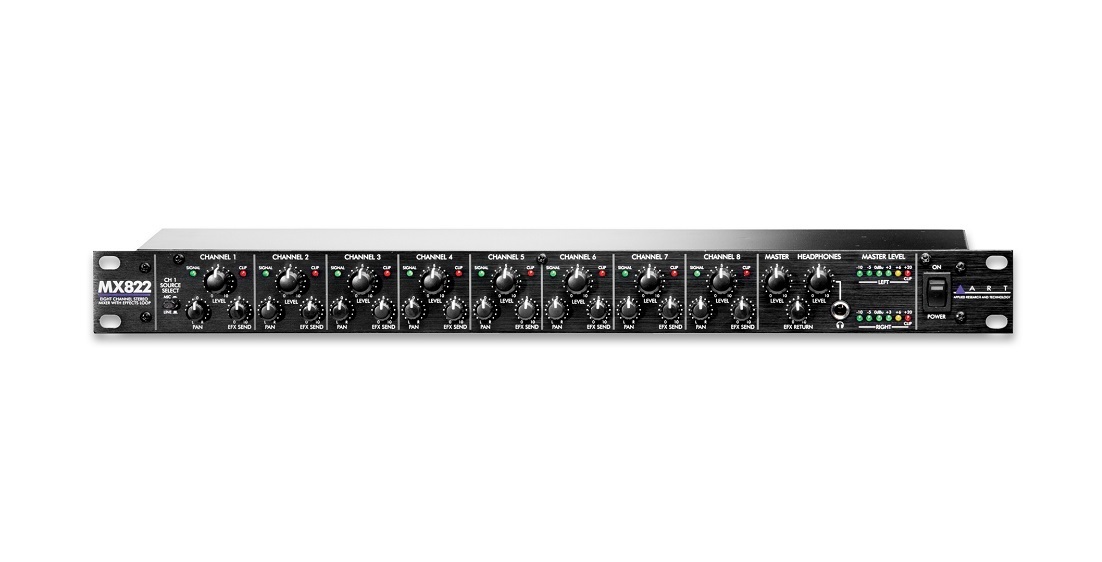

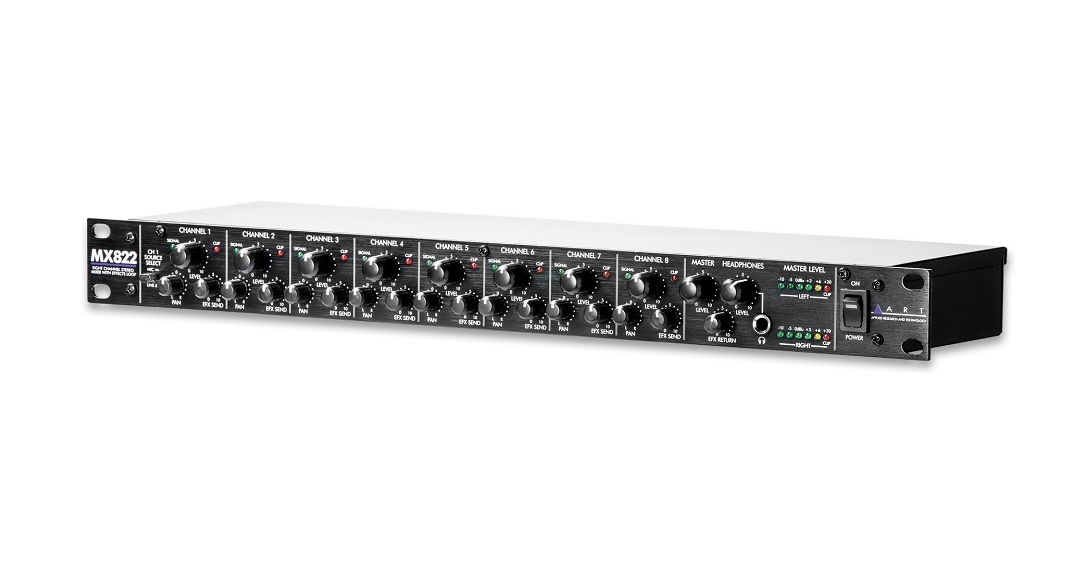

ART MX822 8-Channel Stereo Rackmount Mixer with Effects Loop

$489.99
In Stock
RRP $519.99

A very versatile unit, the ART MX822 Eight Channel Stereo Rackmount Mixer​ is an 8 input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls.

ART MX822 8-Channel Stereo Rackmount Mixer with Effects Loop
A very versatile unit, the ART MX822 Eight Channel Stereo Rackmount Mixer​ is an 8 input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls.

Versatile Line Mixer (with One Mic Channel)
Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power. Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.

Features:
  • Eight stereo/mono input channels with individual level, pan and effects send controls
  • External effects loop with independent send and return controls
  • Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control for output monitoring
  • Switchable balanced microphone XLR or 1/4-inch inputs on Channel One
  • Switchable low noise +48V phantom power for microphone input
  • Separate green and red LED signal and clip indicators for each input channel
  • Six level left and right main output metering including clip indicators
  • Balanced left and right XLR main outputs Multiple units may be chained together for additional inputs
  • Rugged 1U rack mount steel case

Specifications:

Input Connections
XLR-F balanced (MIC)
1/4″ TRS unbalanced (Ch1-Ch8, Effects Return)
1/4″ TRS stereo unbalanced (EFX Buss, Main Expand)
Output Connections
XLR-M balanced (Main)
1/4″ TRS unbalanced (Effectss Send)
1/4″ TRS stereo unbalanced (Monitor, Main Expand, Headphone)
Input Impedance
1k Ω (MIC), 5k Ω (Ch1-Ch8)
Output Impedance <1k Ω (Main, balanced), <25 Ω (Headphone)
Total Harmonic Distortion
<0.01% @ 1kHz
Signal to Noise Ratio
> 90dB typical (Ref 0dBu)
Maximum Input Level
-19dBu (MIC), +24dBu (Ch1-8)
Maximum Output Level
+24dBu (Main), +18dBu (Monitor, Effects Send)
Maximum Gain
+60dB (MIC), +14dB (Ch1-8)
Phantom Power
Switch Selectable, +48V DC, filtered, current limited
Power Requirements
USA – 95 to 125 VAC, 50-60 Hz Export units configured for country of destination
Dimensions
1.75″H x 19″W x 6″D (44.5mm x 483mm x 152mm)
Weight 6.5 lbs (2.95 kg)

View PDF brochure for ART MX822 8-Channel Stereo Rackmount Mixer with Effects Loop
