Audio-Technica AE3000 Cardioid Condenser Instrument Microphone
Includes AT8471 Isolation Clamp
CLICK HERE TO 'GET NOTIFIED' once we have stock on hand

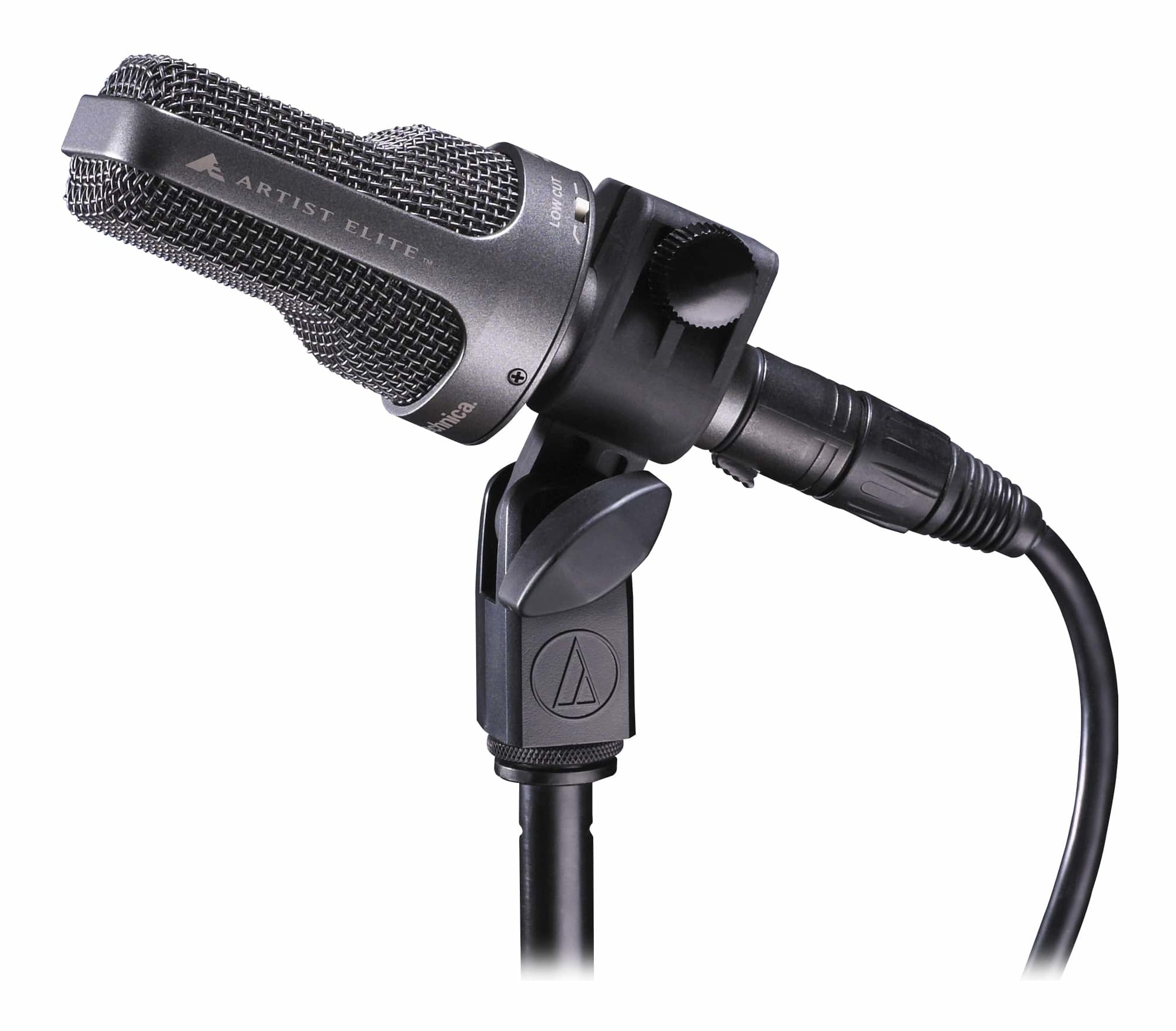

AE3000 Cardioid Condenser Instrument Microphone
For a microphone ideally designed for close positioning on parts of drum kits, it has also excelled in use for guitar cabs, brass, and even choirs. A versatile and accurate sounding condenser mic, the tapered grill allows for tight positioning. This is fantastic considering that this mic has a large diaphragm. For use predominantly in live situations, this mic will handle anything you throw at it.
Perfect for Instruments
Some engineers buy this mic specifically for snare drums, and rack and floor toms, especially as it is a side-address large-diaphragm mic. It is, however, incredibly versatile and also can be successfully used on guitar and bass cabs, acoustic guitars, brass instruments and percussion. Get two and they are ideal for choirs.
Switch and Pad
The AE3000 has a 10dB pad and a high pass filter (-12dB/octave @ 80 Hz), switchable from the mic body. This impacts the condenser capsule in the microphone.
- Excels in high-SPL applications
- Large-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open sound
- Low-profile side-address design with tapered grille allows optimal positioning of element vis-à-vis sound source
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Robust design for enduring dependability on the road
- Integral 80 Hz HPF switch and 10 dB pad
|ELEMENT||Fixed-charge back plate, permanently polarized condenser|
|FREQUENCY RESPONSE||20-20,000 Hz|
|LOW FREQUENCY ROLL-OFF||80 Hz, 12 dB/octave|
|OPEN CIRCUIT SENSITIVITY||-43 dB (7.0 mV) re 1V at 1 Pa|
|MAXIMUM INPUT SOUND LEVEL||148 dB SPL, 1 kHz at 1% T.H.D.;
158 dB SPL, with 10 dB pad (nominal)
|NOISE||11 dB SPL|
|DYNAMIC RANGE (typical)||137 dB, 1 kHz at Max SPL|
|SIGNAL-TO-NOISE RATIO||83 dB, 1 kHz at 1 Pa|
|PHANTOM POWER REQUIREMENTS||11-52V DC, 3 mA typical|
10 dB pad (nominal)
|WEIGHT||6.0 oz (170 g)|
|DIMENSIONS||4.55" (115.5 mm) long,
1.89" (48.0 mm) maximum diameter
|OUTPUT CONNECTOR||Integral 3-pin XLRM-type|

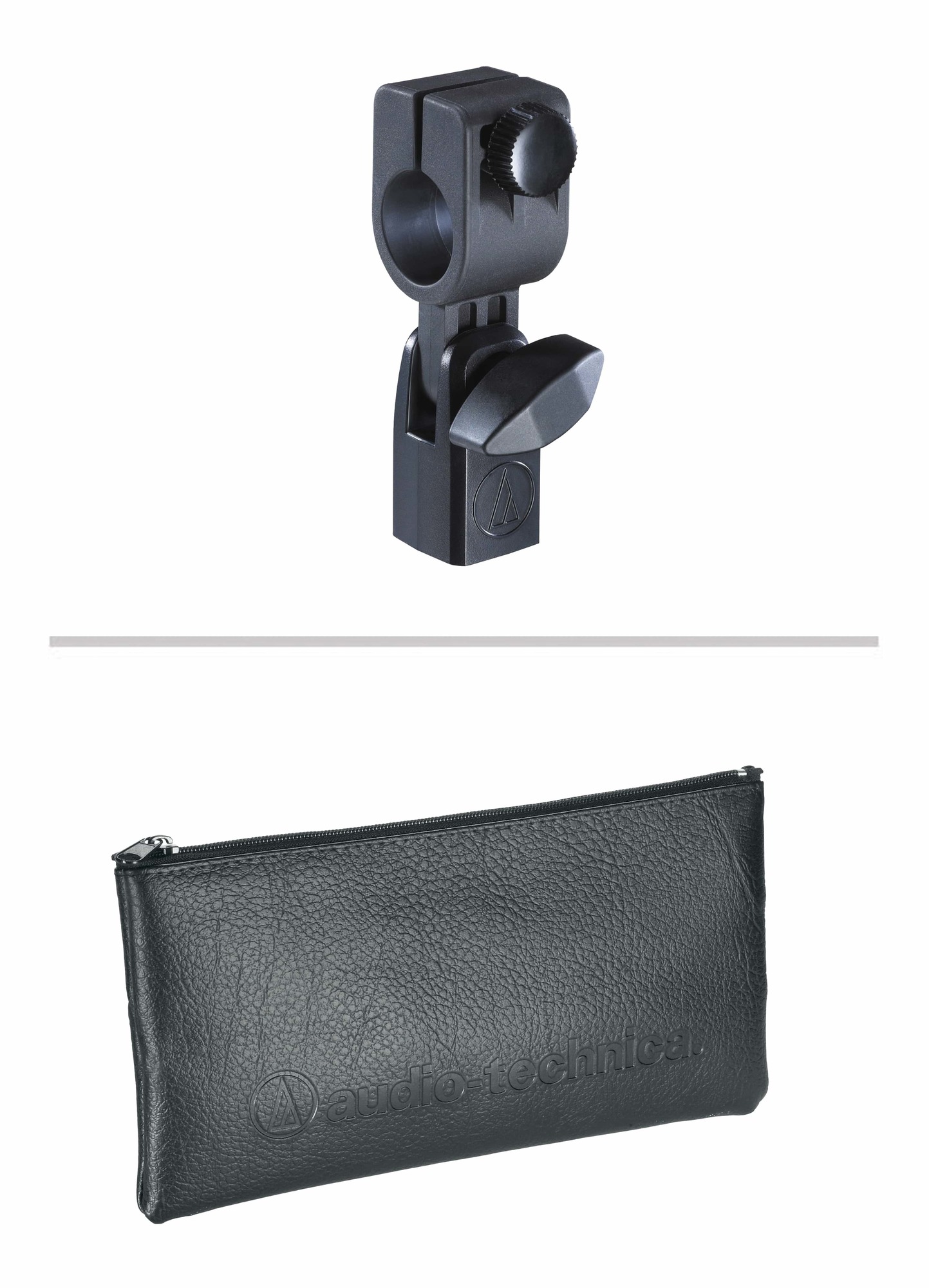

|ACCESSORIES FURNISHED||AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch|
|AUDIO-TECHNICA CASE STYLE||R6|
