Audiocenter Artist T45-DSP 1000W Active Line Array Speaker

Audiocenter

Audiocenter Artist T45-DSP 1000W Active Line Array Speaker

4x 5" LF Drivers 2x 1" HF Compression Drivers

$1,289.99
  Sold Out
Found a better Price? Price match now
or interest free for up to 6 months with
Contact us for an ETA

The Artist T45-DSP is an active line array speaker with built-in DSP. Four 5-inch LF drivers and two 1-inch compression drivers are designed with precision driver placement in a compact cab providing an SPL of 136dB. Integrated flying hardware. 1000W RMS.

Dispatch

Audiocenter Artist T45-DSP Active Line Array Speaker
The Artist T45-DSP is an active line array speaker with built-in DSP. Four 5-inch LF drivers and two 1-inch compression HF drivers are designed with precision driver placement in a compact cab providing an SPL of 136dB. Integrated flying hardware. 1000W RMS / 2000W Peak.

Line Array Speaker

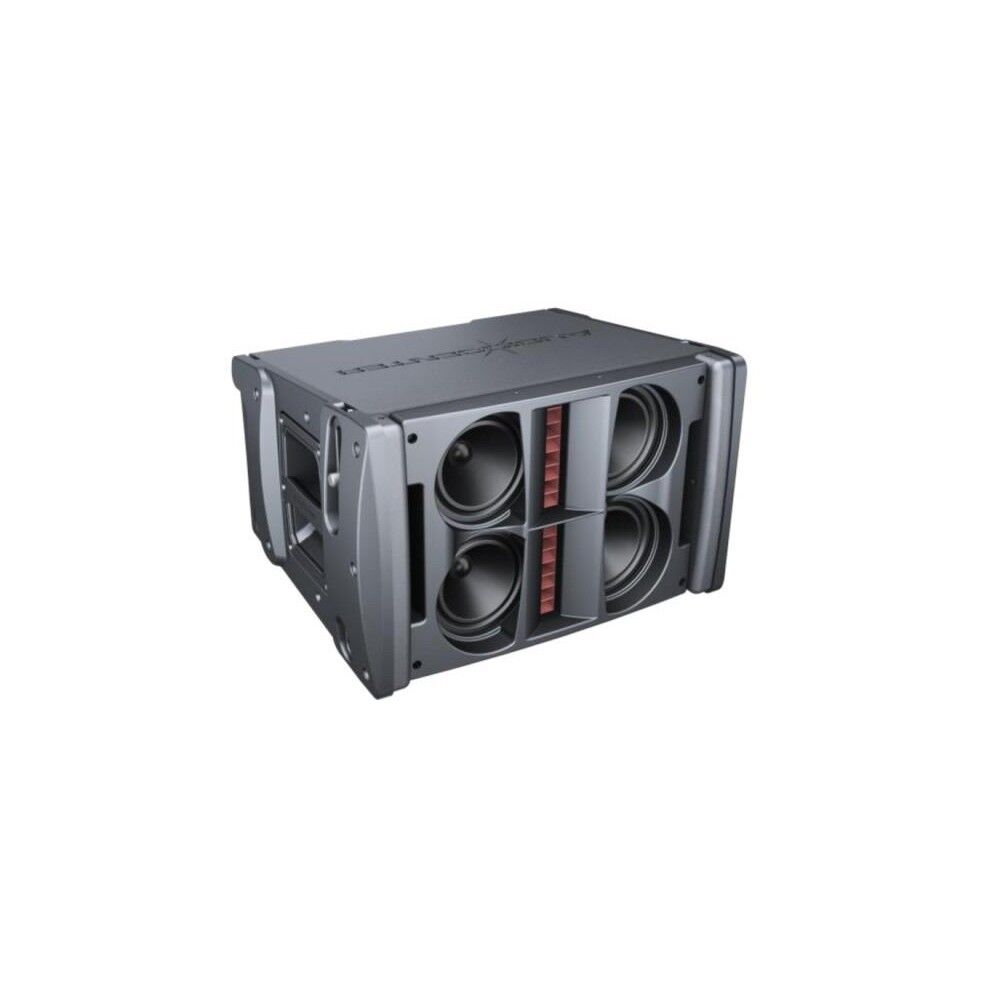

Artist T45-DSP is an active line array speaker with built-in DSP. Using the front bass reflex design and elaborate driver layout, the cabinet is very small and lightweight. Careful driver placement makes the cabinet compact yet still very high SPL. With the innovative ETE™ wave guide technology, the T45-DSP delivers optimal sound performance without excessive tuning. T45-DSP is very compact, but with very high SPL and long throw.

Fully Featured
The Artist T45-DSP is highly integrated with BrainCore technology. There are three presets that can be selected easily by switching on the rear panel. It is a plug-and-play system with ergonomically-designed accessories to ensure quick and easy installation. The angle of the fly bar can be adjusted 0.5 °, 1.5 °, 3 °, 5 °, 7 °, 10° according to different venues.

Audiocenter Artist Series
The Artist Series from Audiocenter has been created to provide a complete audio solution to a wide range of both touring and fixed applications. It comprises of speakers and line arrays along with a subwoofer, audio matrix and multichannel digital amplifier.

Braincore Technology
With its advanced technology and scientific methodology, BrainCore analyses and processes the input signal, DSP module, Class D amplifier and loudspeaker optimally, achieving excellent frequency response and audio reproduction even at high levels of SPL. This technology was researched and developed by Audiocenter.

Features:

  • Active Line Array System and DSP
  • Built-in Class D power amplifier delivering 1400W AES
  • Patented BrainCore DSP technology
  • High SPL for a compact size cabinet
  • Innovative wave guide design
  • Molded industrial design with high durability
  • Flight and stackable
  • Easy to install

Specifications:

Driver LF 4x5”    HF 2x1"
Frequency Response(-6dB anechoic chamber)
63Hz-20KHz
Power (RMS) 1000W / 2000W Peak
Maximum Calculated SPL/1M 136dB
Horizontal Coverage Angle (Symmetrical)
120°
Vertical Coverage Angle (Symmetrical) Depend on the amount of the speaker and curvature of the line array
Cabinet Material Wood + Plastic
Cabinet Color Black
Dimension (W×H×D) 458mm x 293mm x 381mm
Net Weight 18Kg
View PDF brochure for Audiocenter Artist T45-DSP 1000W Active Line Array Speaker
