Audiocenter S3218A Active DSP Controlled Dual 18" Subwoofer | SWAMP

Audiocenter

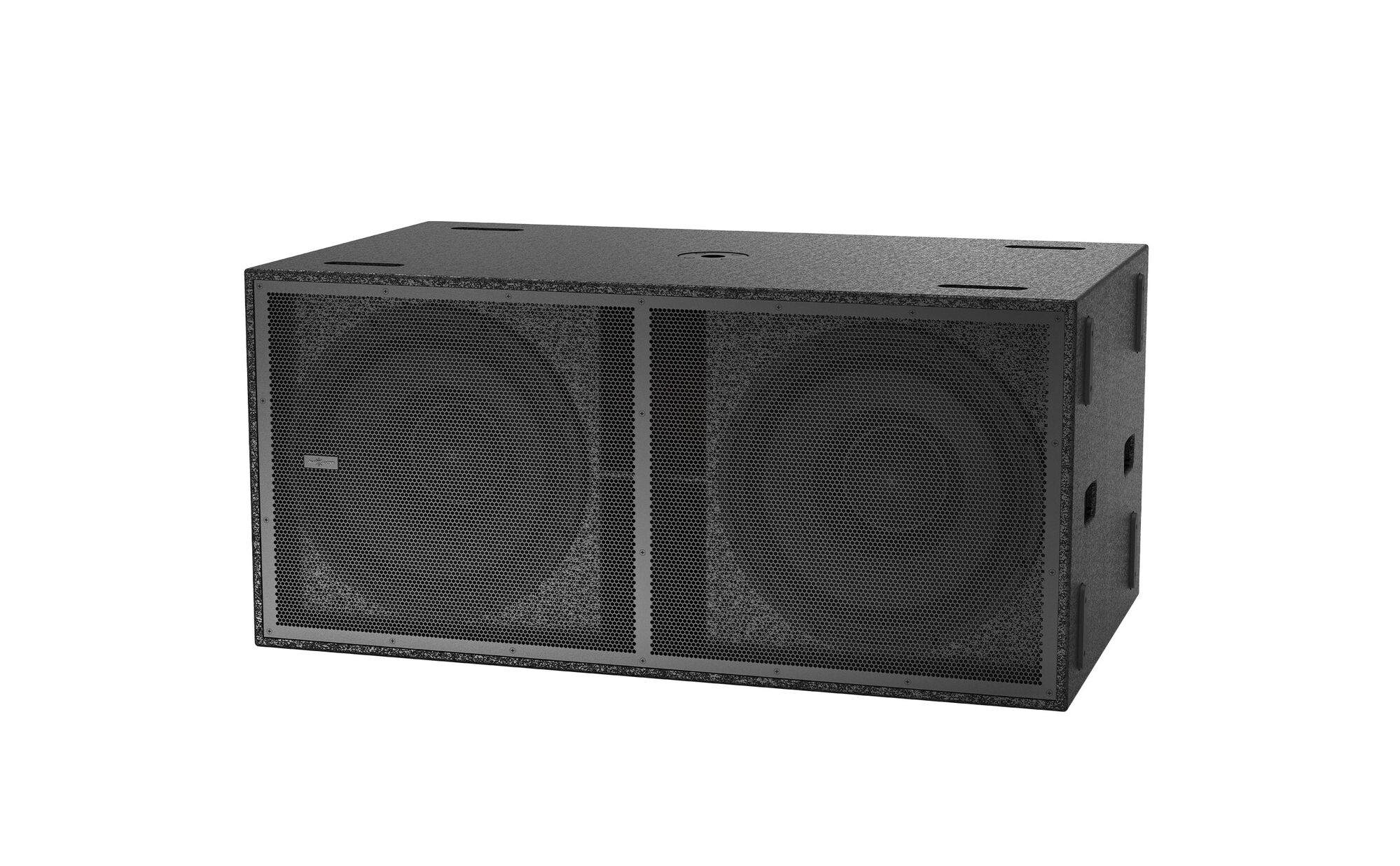

Audiocenter S3218A Active DSP Controlled Dual 18" Subwoofer

$1,699.99
  In Stock
or interest free for up to 6 months with
-
+

The Audiocenter S3218A Active DSP Controlled Dual 18" Subwoofer is ideal for installations into function centres, nightclubs, and music venues. Featuring customised dual 18" drivers, 3 low-pass filters (80Hz, 100Hz, 120Hz), RMS at 2000W / 4000W Peak.

Dispatch

Audiocenter S3218A Active DSP Controlled Dual 18" Subwoofer
The Audiocenter S3218A Active DSP Controlled Dual 18" Subwoofer is ideal for installations into function centres, nightclubs, and music venues. Featuring customised dual 18" drivers, 3 low-pass filters (80Hz, 100Hz, 120Hz), RMS at 2000W / 4000W Peak.

Features and Protections

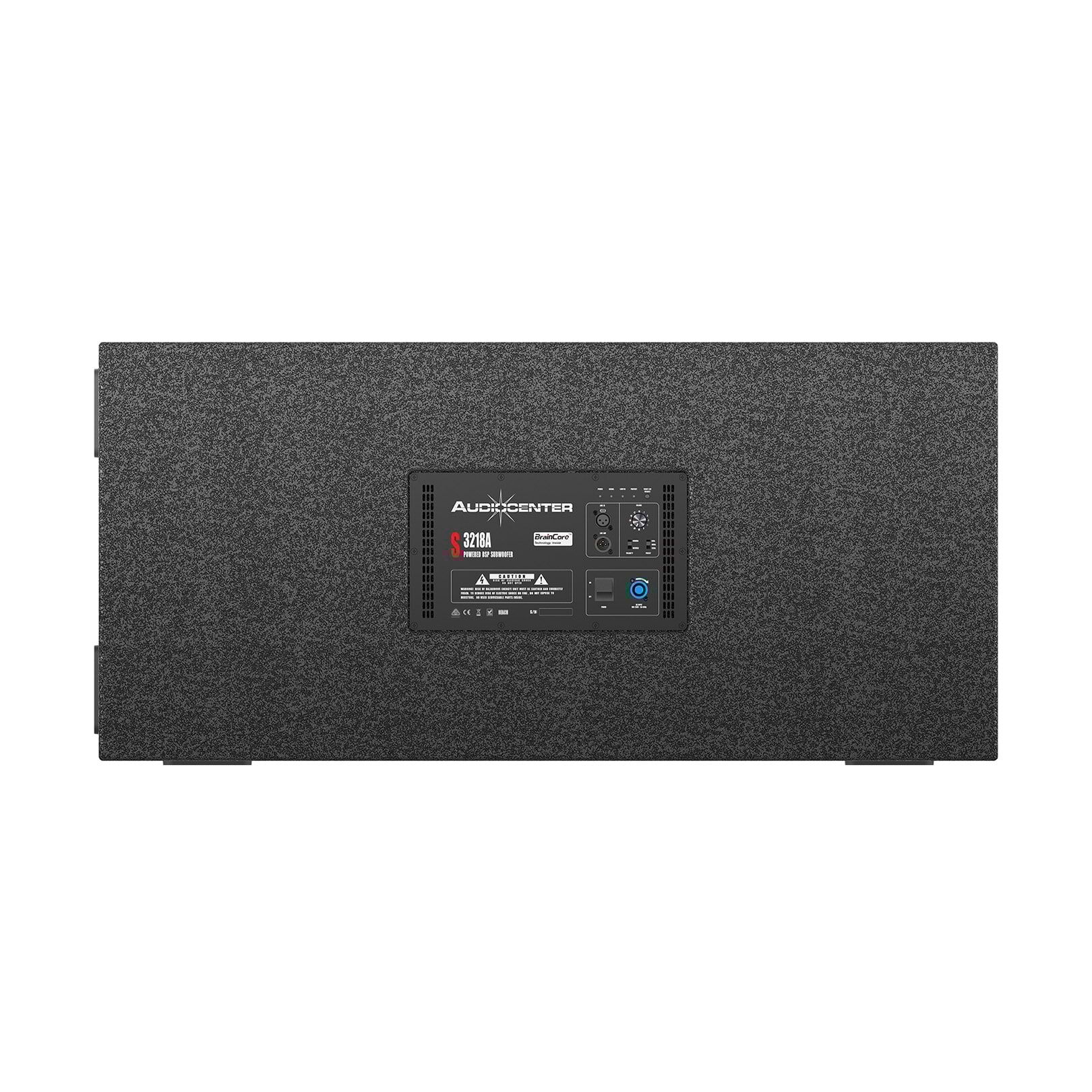

This is a serious subwoofer. SPL reading  is 134dB/140dB (Continuous/Peak). It features many protection mechanisms such as DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage and undervoltage protections. There is also a phase switch. All connectors and function buttons are on the back panel. The S3218A subwoofer has a 1-way XLR for input and output. Signals can be sent to different speakers for sound distribution.

Specifications:

Type Active DSP-controlled Compact Subwoofer
Frequency Response(-10dB) 26Hz-135Hz
Maximum Calculated SPL/1M (Continuous/Peak) 134dB/140dB
LF Driver Customized 2×18” driver, 4.0” voice coil
DSP
Processor 48kHz signal sampling frequency
Presets 80Hz, 100Hz, 120Hz
AMPLIFIER
Amplifier Circuitry Class D
Power (RMS standards) 2000W
Peak Power 4000W
Frequency Response(1W 8Ω 2ch) 20Hz-20kHz(±0.5dB)
Intermodulation Distortion <0.05%
Total Harmonic Distortion <0.05%
Cooling System Cooling with fans, air convection
Protection DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input Female XLR
Signal Output  Male XLR
Power Input Power connector
Working Voltage 100-130V~/220-240V~(±10%,50/60Hz)
Power consumption (1/8 output power) 237W
CABINET
Cabinet Material CNC machined plywood
Cabinet Color Black is the default color. Contact Audiocenter for customization
Grille Iron mesh
Handles 4 side
Pole Mount M20 base Φ35mm
Speaker Dimension (W×H×D) 1206x565x694mm
Carton Dimension (W×H×D) 651x1331x780mm
Net Weight 68.0kg
View PDF brochure for Audiocenter S3218A Active DSP Controlled Dual 18" Subwoofer

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review


MPN: AD-S3218A

ID: 334888
