SWAMP 12" Powered PA Speaker - Bi-amped - 150W + 30W RMS
suitable as FOH Speaker or Foldback Monitor
12" Powered PA Speaker - Bi-amped - 150W + 30W RMS
The PBO-12BM is SWAMP's all-round workhorse PA speaker, with a bi-amped design and Bluetooth connectivity. Featuring 2 direct inputs for microphones and 1 line level audio input, 2 band EQ control, 180W of power in a monitor / foldback option speaker box. This speaker will provide a clean high-end presence, with a tight full bottom end.
FOH or DJ Speaker
The PBO-12BM delivers power of 180W RMS (bi-amp configuration), 250W at peak levels. A pair of PBO-12BM offers plenty of thump for small pub and bar gigs, up to 120 people. Mounts on all standard speaker stands. A slanted speaker box design allows the PBO-12BM to be used effectively for stage monitoring applications.
Bi-Amped - 150W + 30W RMS
Built with a bi-amped configuration that utilises two individual amplifiers to power the woofer and the tweeter separately, making the amplifiers much more efficient resulting in more volume per watt. Using a carefully designed crossover (splitting of frequencies between the Tweeter and Woofer) ensures a clear mid range and present, but non-piecing top range. All the while layered with a fat bass sound from the 12" woofer, that can be EQ'd to your preference.

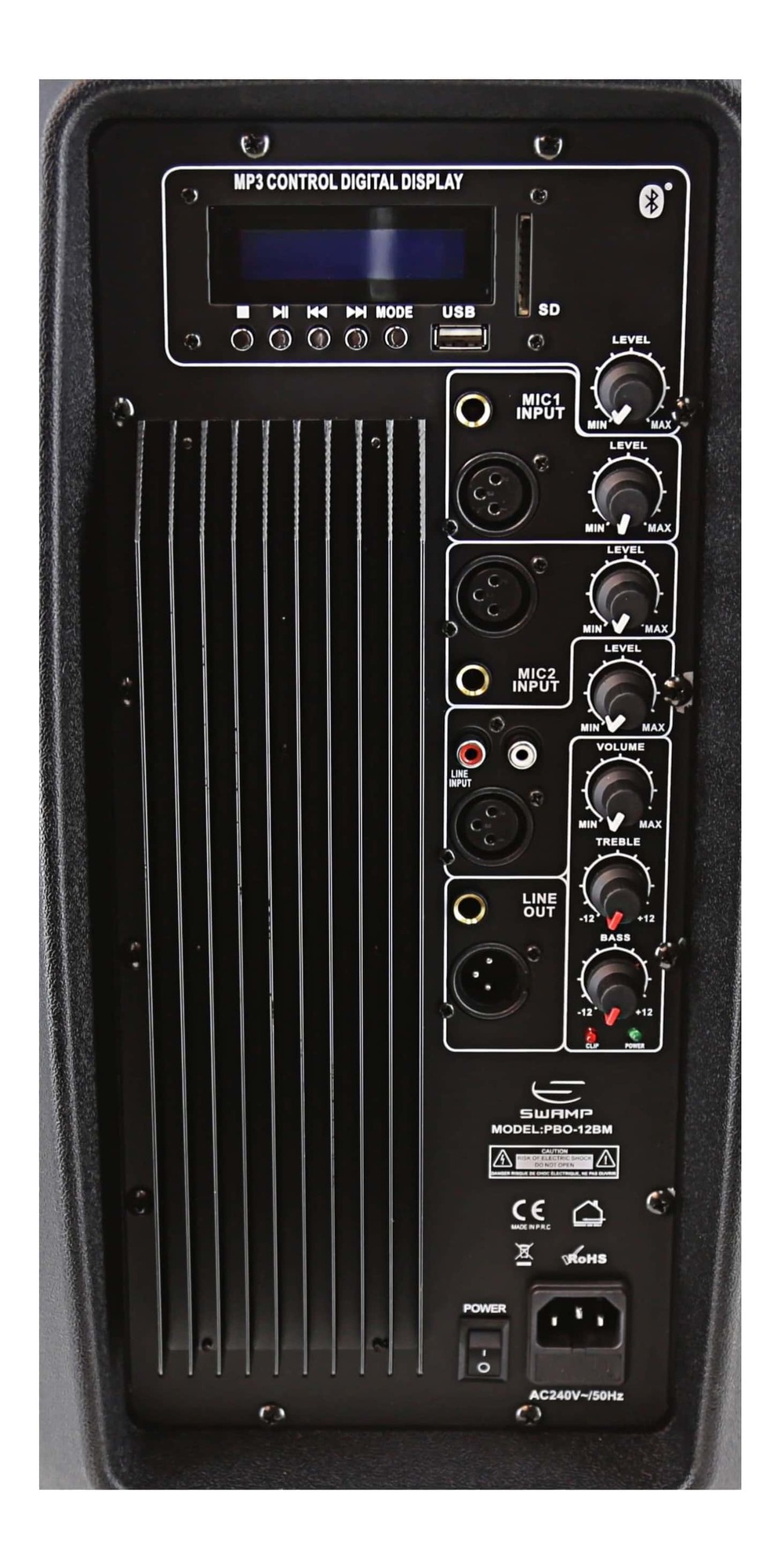

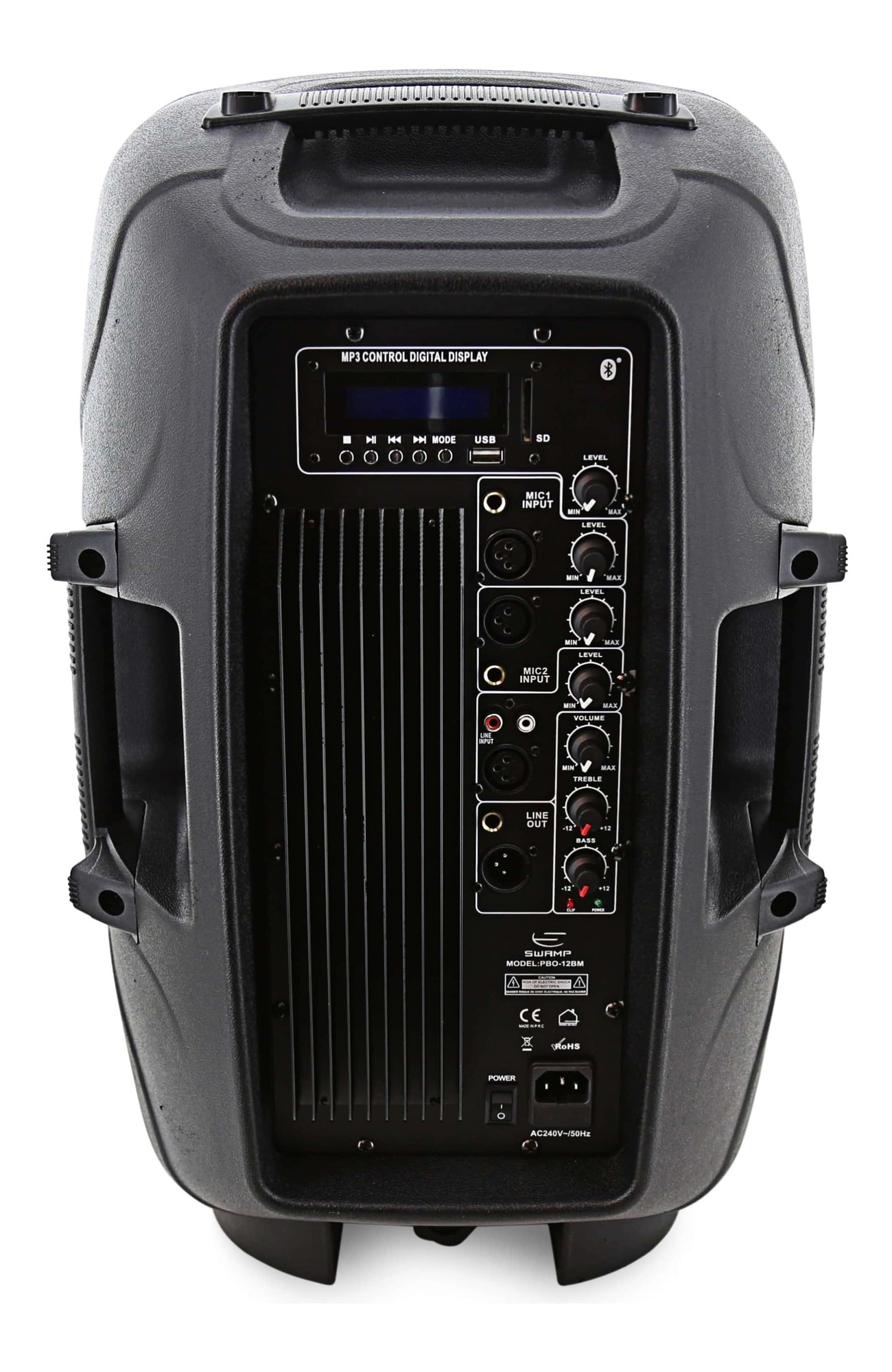

Ins and Outs
The inbuilt mixer module makes it possible to connect 2 microphones via a dedicated XLR Mic input or a jack input. A decent preamp and gain control supports the sound of your microphone. As well, there is a line input, with both XLR and RCA connections. All inputs have individual level controls. Dual RCA inputs are included to connect a DJ mixer or CD player, while the XLR Line Input enables a Balanced Line Level signal from an external mixing desk to be sent to the speaker. There is also an XLR/Jack line output, giving the ability to daisy chain the signal onto another speaker.
Bluetooth Connectivity + MP3 Player
SWAMP's PBO-BM powered speaker range features Bluetooth connectivity for wireless control of your audio playback. Simply activate bluetooth on your Smartphone and select "Bluetooth" for instant playback of your phones audio. Perfect for lining up music to play before and after a set. The module also allows for a USB flash drive or DS card to be used for MP3 playback. Included with the speaker is a remote control.
- Bluetooth Connectivity
- Versatile Rear Mixing Console
- Remote Control
- 4.5" Titanium Driver
- 12" Woofer
- Mic In x 2, DJ/CD In, Line In and Out
- 2-Band EQ - Bass, Treble
- Side and Top Carry Handles
- Speaker Stand Mounting Hole (standard 35mm, DO NOT over-tighten lock screw, this is not necessary and could lead to damage)
- Frequency Response: 55Hz-20KHz
- Woofer Sensitivity(1M/1W): 102 dB
- Woofer Power Rating: 120W RMS/ 220 MAX @ 4Ω
- Woofer Frequency Range: 50Hz - 3.5kHz
- Tweeter Sensitivity(1M/1W): 106dB
- Tweeter Rating Power: 30W RMS/ 50W MAX @ 8Ω
- Tweeter Frequency Range: 3kHz a 20kHz
- Woofer: 1×12", 2.0" Coil, 1.4kg
- Tweeter: 1×4.5", 1.3" Coil, 0.368kg
- Tweeter Driver: Titanium Compression Driver
- Dimensions: 570 x 375 x 320mm
- Weight: 12.95kg
