Cable Techniques XLR Connector CT-AX3M-K Right Angle Male

Cable Techniques

Cable Techniques CT-AX3M-K Low-Profile Right Angle Male XLR Connector - Black

$19.99
  In Stock
or interest free for up to 6 months with
Buy In Bulk & Save!
Buy 2 to 5: Pay $19.23
Buy 6 to 14: Pay $18.53
Buy 15 or more: Pay $17.87
-
+

The Cable Techniques CT-AX3M-K is a low profile, right angle male XLR 3-pin connector, allowing you to have a cable exiting 120 degrees at around 3 o'clock or 9 o'clock. Matte black shell, gold pins. Black cap colour. Accepts cable diameters up to 3.4mm.



Dispatch

Cable Techniques CT-AX3M-K Low-Profile Right Angle Male XLR Connector - Black
The Cable Techniques CT-AX3M-K is a low profile, right angle male XLR 3-pin connector, allowing you to have a cable exiting 120 degrees at around 3 o'clock or 9 o'clock. Matte black shell, gold pins. Black cap colour. Accepts cable diameters up to 3.4mm.

Available in 10 optional interchangeable Cap colours: Black, Red, Blue, Green, Yellow, Orange, White, Gray, Purple and Brown.

The supplied standard cap is compatible with popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697 and Sommer Isopod SO-F22.

Multiposition cable exit from 3 o'clock or 9 o'clock

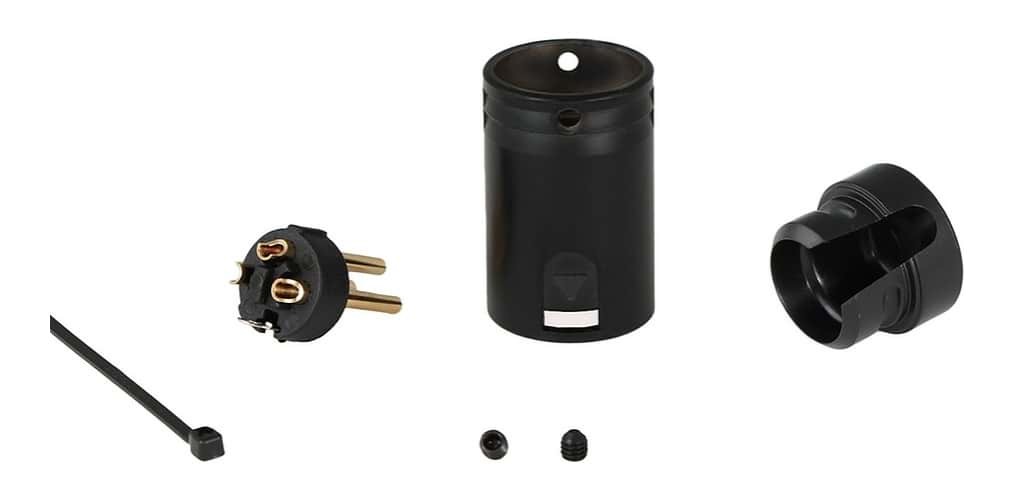

Included Components:

  • 1x Shell
  • 1x 3-pin Insert
  • 2x set screws
  • 1x zip-tie 1x colour cap

Specifications:

Termination Style Solder
Contact Material Bronze
RoHS Yes
Cable Outlet Diameter +/- 3.2mm, 3.4mm MAX
Shell Zinc Diecast
Voltage Rating 50V
Current Rating 10A
Weight 20g
Dimensions 35mm x 19mm x 19mm w/ Cap
In-Use Length 25mm exposed length in-use
Set Screw Hex Size 1.5mm
Set Screw Material Anodized Stainless Steel
Cap Angle Adjust 60° to 120° and 240° to 300°
Plastic Cap Material Molded ABS thermoplastic
Shell Colour Black
Life >1,000 operations
Thermal Range -50°C to + 80°C
View PDF brochure for Cable Techniques CT-AX3M-K Low-Profile Right Angle Male XLR Connector - Black

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review


MPN: CT-AX3M-K

ID: 275875
