Tour Grade Drum Mounted STP Cat5e Network Cable Reel
In Stock
SR-RH380M-036-30M
| Buy In Bulk & Save! | |
|---|---|
| Buy 2 to 5: | Pay $453.81 |
| Buy 6 to 9: | Pay $438.71 |
| Buy 10 or more: | Pay $424.58 |
Enter Post Code to Calculate Shipping Cost & ETA
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE
30m Length - This shielded Cat5e cable reel from SWAMP is a heavy duty STP Cat5e cable with a rugged outer-jacket that allows the cable to be laid flat. Ideal for digital audio applications at indoor or outdoor events.
Cable Filter: Alternative Options
SWAMP Tour Grade STP Cat5e Cable Reel - Designed for Digital Audio and Lighting
A tour ready drum reel of heavy duty shielded Cat5e cable, built for the long stage-to-FOH runs of live sound and touring rigs, with a tough flat-laying PVC jacket and pure copper conductors.
Live Sound / Digital PA Systems
With the rise of digital mixing desks and digital stage boxes such as the Behringer X32 comes the need for long runs of high quality, durable Cat5e cable to carry digital audio from the stage to the FOH mixing console.
Suitable for all Cat5e Applications
The drum reel makes this an ideal solution for a touring sound rig, and it suits any other application that needs a temporary Cat5e run: digital lighting, large LED screens, long distance video, PC runs and general AV.
High Quality Cat5e Mobile Performance Cable
Carefully selected Cat5e cable designed for touring events and mobile performance. The tough PVC outer jacket lays flat across the ground, helping on runs where cable ramps are not provided.
Analogue Audio Snakes and Phantom Power
The reel also suits passive (analogue) XLR-to-RJ45 audio snakes and stage boxes. On these boxes the cable's foil shield and drain wire carry the ground (pin 1) that phantom power returns on, so a shielded cable is what lets condenser microphones work down the line - unshielded (UTP) cable will not pass phantom power. Both fitted RJ45 plugs on the reel are shielded, so the shield stays connected end to end and phantom power passes through the reel as supplied.
Cable Features:
- Twist pitch stays intact after long term use
- Controlled pair spacing minimises and stabilises crosstalk
- Robust construction resists damage from crushing and rolling
- STP (S/UTP) shielding helps maintain signal integrity

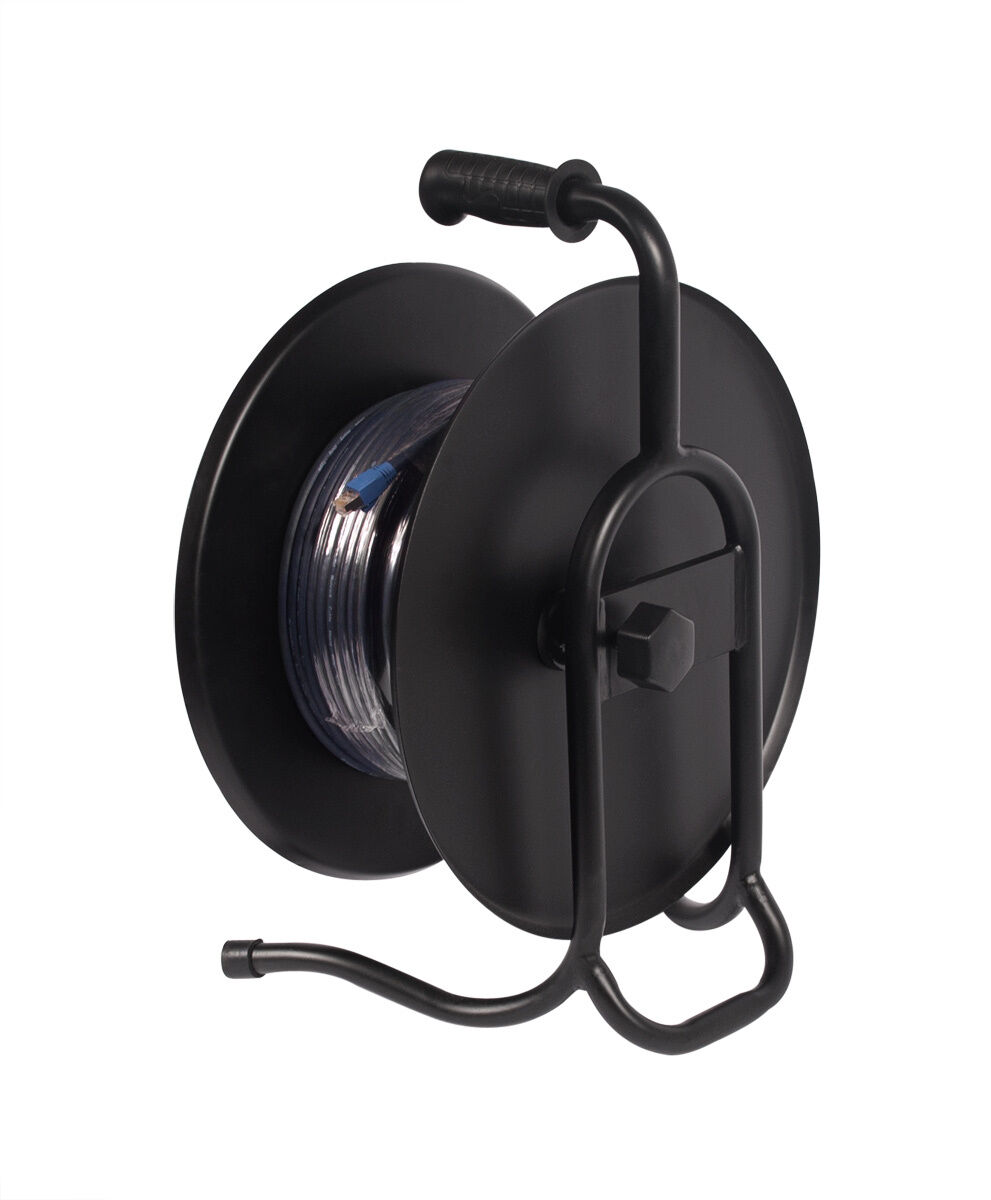

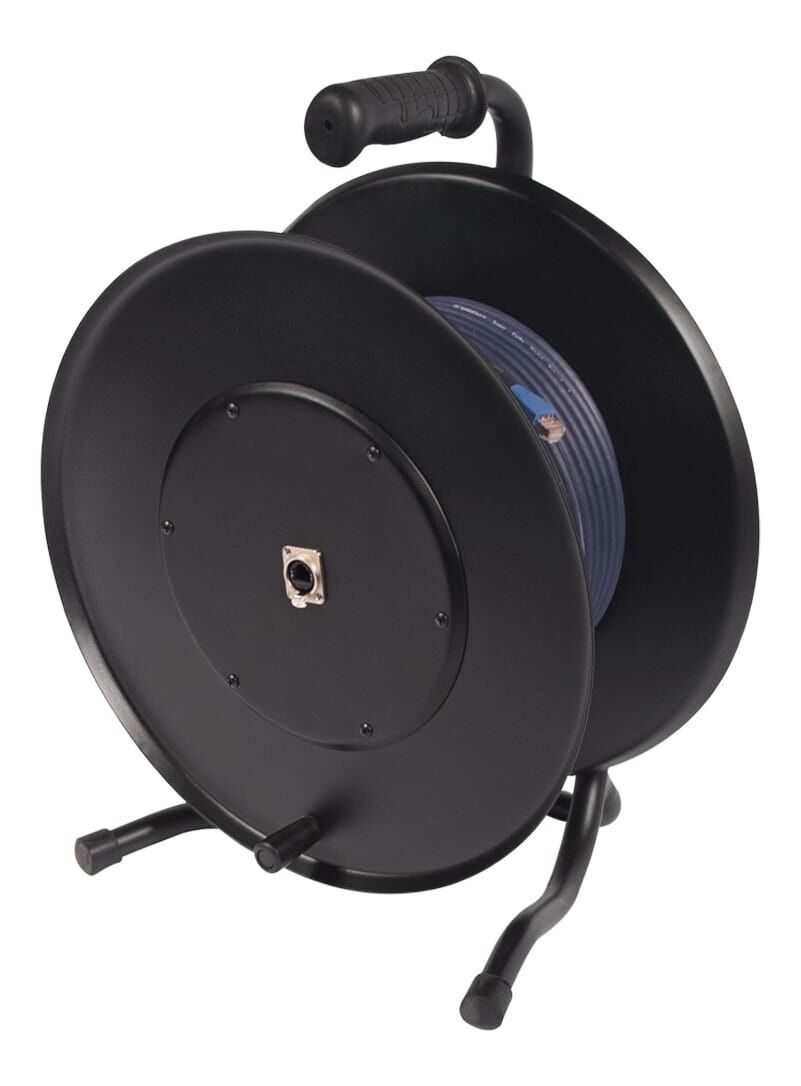

Drum Reel Features:
- Tour ready cable drum

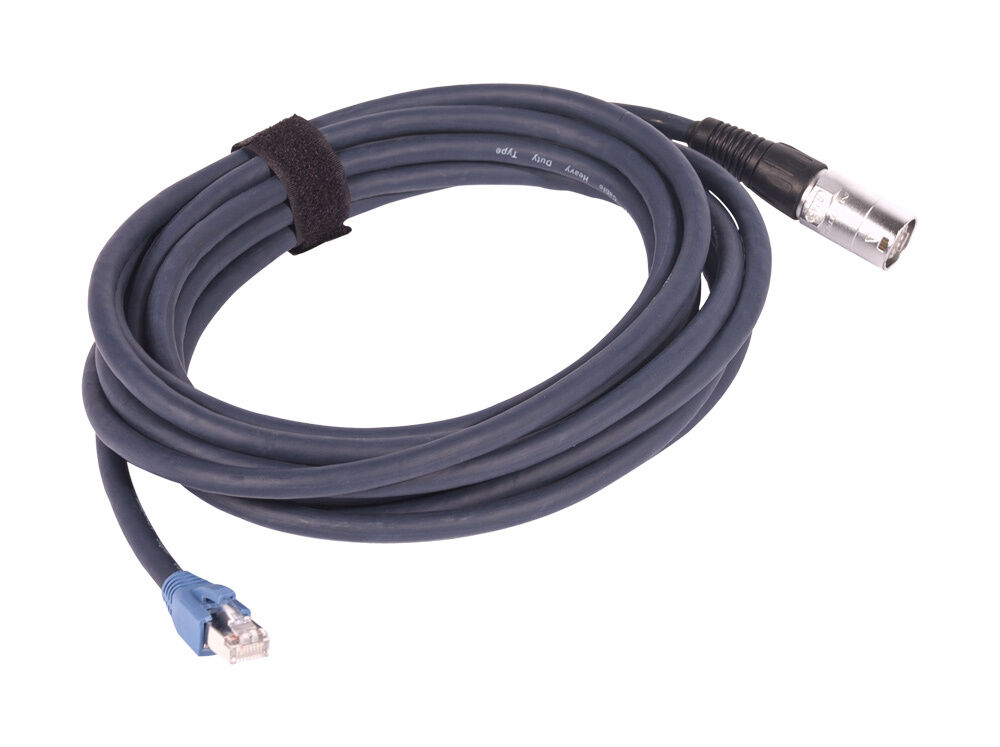

- Standard RJ45 connection at one end and Sunrise locking RJ45 connection at the other
- Sturdy base design
- Rear drum brake
- Easy lift handle
- Total height: 50cm
- Drum width: 38cm
- Weight: 8.5kg
- Cable length: 30m

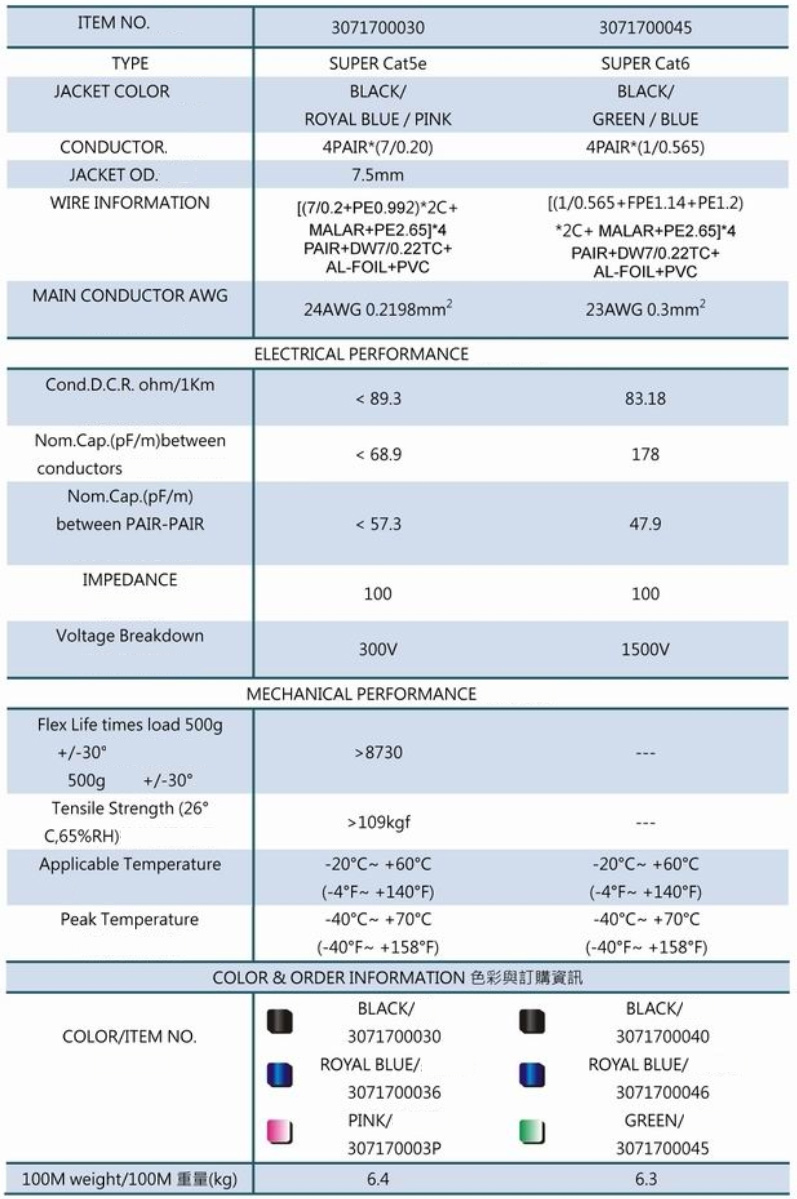

Cat5e Cable Specifications:
- Category: Cat5e
- Colour: Royal Blue
- Conductor material: Copper
- Conductors: 4 twisted pairs, 24AWG (0.21mm2) stranded, 7 x 0.20mm per conductor
- Shielding: STP (S/UTP) - overall aluminium foil shield with tinned copper drain wire
- Wire information: [(7/0.20+PE0.992)*2C+MALAR+PE2.65]*4 PAIR+DW7/0.22TC+AL-FOIL+PVC
- Jacket: PVC, 7.5mm outer diameter
- Nominal capacitance: <68.9 pF/m (between conductors)
- Tested: Fluke DTX-1800, TIA Cat5e Channel limits, PASS over 70m (see the test report below)
- Conductor DC resistance: <89.3 ohm/km
- Capacitance pair to pair: <57.3 pF/m
- Impedance: 100 ohm
- Voltage breakdown: 300V
- Operating temperature: -20 to +60 degrees C
- Weight: 6.4kg per 100m
- Sun Rise item no.: 3071700036 (Royal Blue)
Test Report (Fluke DTX-1800, TIA Cat5e Channel, 70m - PASS)
