CUSTOM XLR(f) to 3.5mm TRS - 'Balanced to Stereo' and Balanced Options

Custom Made by our Technician in Canberra

$28.99
Sold Out
Contact us for an ETA
Type

2m Length - CUSTOM MADE - SWAMP Stereo 3.5mm (Mini-Jack) to Mono XLR(f) Cable. Stereo 3.5mm to Mono/Unbalanced XLR. This cable will combine the LEFT and RIGHT audio channels from a 3.5mm / 1/8" output, such as on a iPod, iPhone, Laptop or MP3 player.

Custom Made - SWAMP XLR(f) to 3.5mm (Mini-Jack) Cable
This cable has been constructed by our local cable technician in Canberra, due to low stock or lack of stock for other similar models we usually have stocked. Due to the custom nature of the cable and being built with Australia, our costs are higher than for standard pre-made cables we produce in bulk in our overseas factory.

XLR female to Stereo 3.5mm - 'Balanced to Stereo' Wiring Option
This cable will send the 'hot' (unbalanced, main signal) to both the LEFT and RIGHT audio channels of a stereo 3.5mm / 1/8" input. Often required for sending a line level signal from a XLR output on a mixing desk or audio device to a stereo 3.5mm input.

XLR female to Stereo 3.5mm - 'Balanced' Wiring Option
This cable is wired 'pin to pin' with standard balanced mic cable wiring, used for sending a balanced microphone signal into 3.5mm balanced mic input.

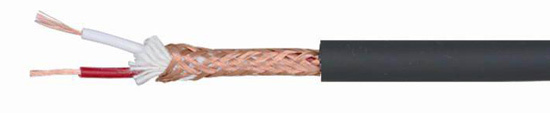

Specifications:

  • Conductor Gauge: 2x (0.12mm*20)
  • Conductor Cores: 2x (0.12mm*50)
  • Ground Cores: BRAIDED (0.12mm*2*16)
  • Connectors: 3.5mm (1/8") - XLR(m) (Yongsheng YS231L-BG, YS136N)
  • Balanced Wiring: (Pin1 - Sleeve, Pin2 - Tip, Pin3 - Ring)
  • Balanced to Stereo Wiring: (Pin1 - Sleeve, Pin2 - Tip+Ring, Pin3 - Sleeve)
View PDF brochure for CUSTOM XLR(f) to 3.5mm TRS - 'Balanced to Stereo' and Balanced Options
