ICM MF-11 USB Audio Interface with 1 Class A Mic Preamp

24bit/96kHz with FET Guitar Preamp

$109.99
In Stock

Featuring a Class A mic preamp, a FET Guitar pre, and 24bit/96kHz resolution, this superb audio interface by ICM is built to be portable and compact, yet road-ready tough. Great for gigging, home studios, and commercial setups for professional results.

ICM MF-11 USB Audio Interface with 1 Class A Mic Preamp
Featuring a Class A mic preamp, a FET guitar pre, and 24bit/96kHz resolution, this superb audio interface by ICM is built to be portable and compact, yet road-ready tough. Great for gigging, home studios, and commercial setups for professional results.

Class A Preamp
The microphone preamp in the MF-11 is designed offers extremely low and distortion, and a very high dynamic range at 98dB. This is ideal for commercial and professional applications. Naturally, true 48v is provided for your condenser microphones, and there is seperate gain control for the XLR input.

FET Guitar Preamp
The preamp designed for direct guitar/bass inputs allow for quick setups ensuring ideal signals for recording, with a maximum gain of 46dB. This setup allows for excellent noise reduction. It also is an ideal pathway to connect your acoustic instruments, especially if using piezo pickups. FET preamps are for ensuring no impedance issues, and operate in a manner somewhat analogous to vacuum tubes.

Quality Connections and Recordings

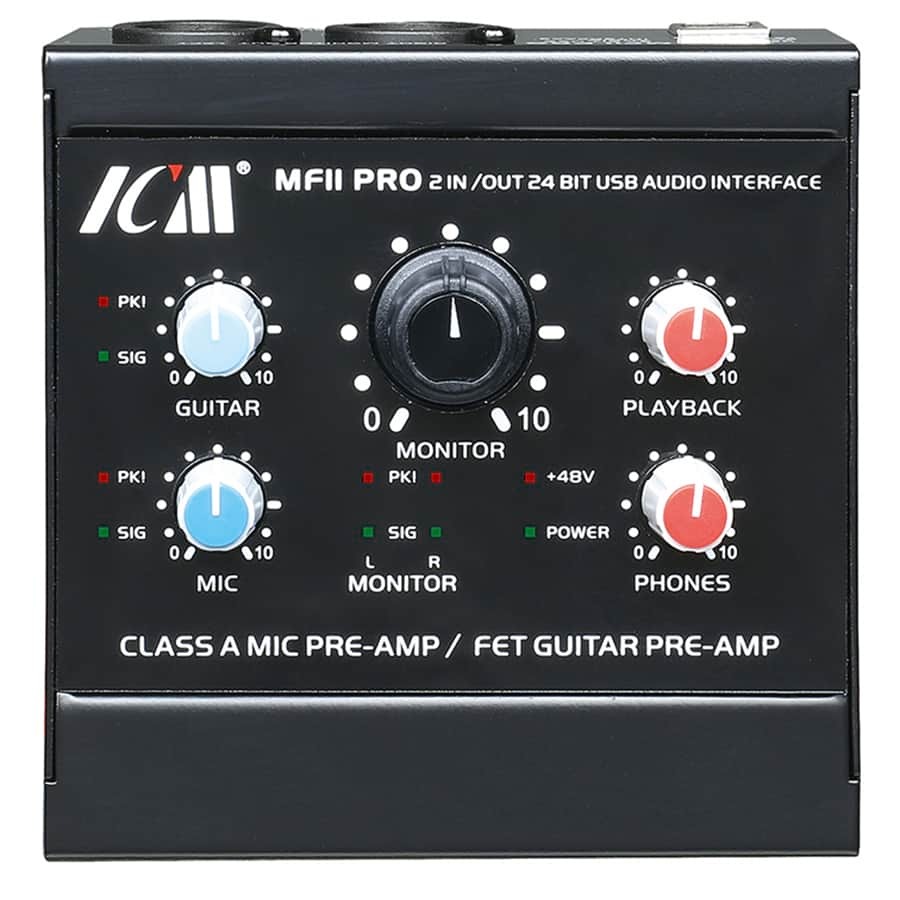

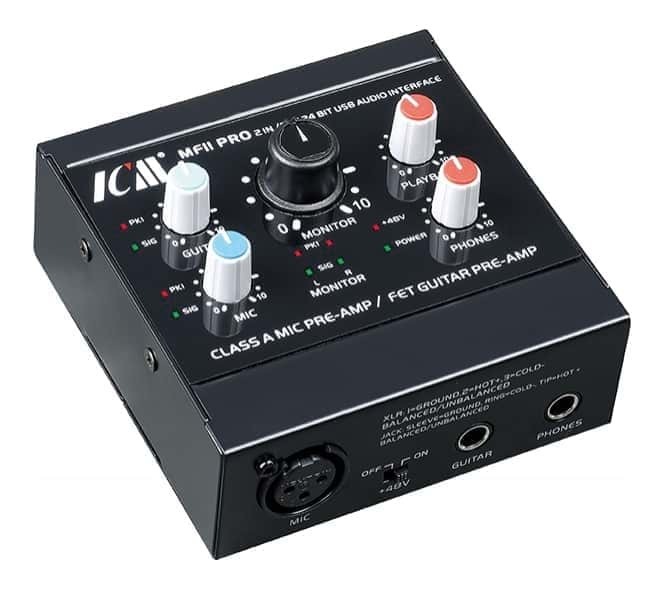

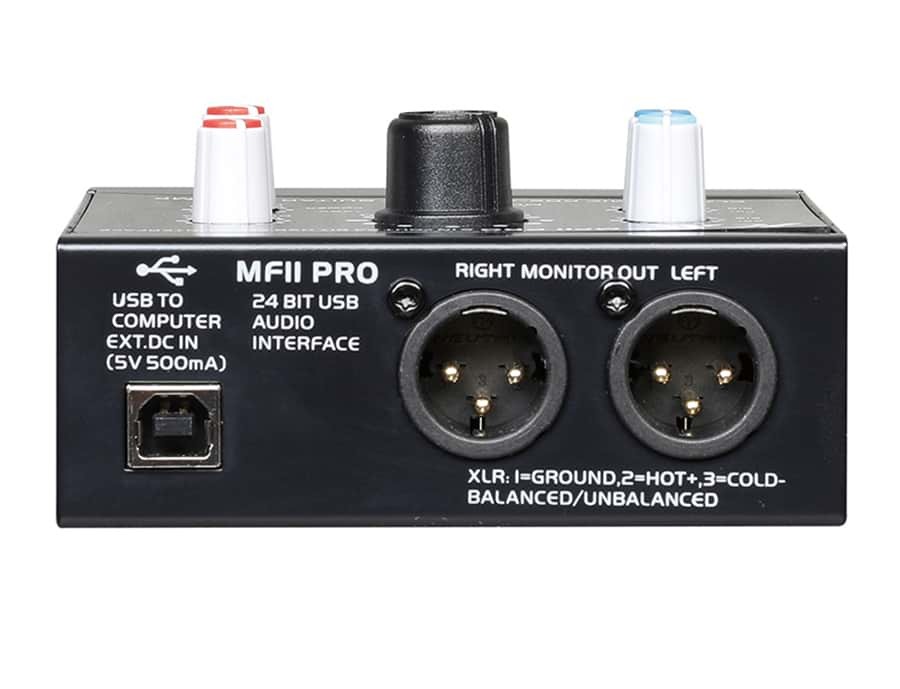

The MF-11 features an XLR mic input, a 1/4" guitar jack input and a TRS 1/4" headphone input. The outputs are XLR connections. Connect your laptop or computer via the USB 2.0 input. The pots on the top of the MF-11 offer seperate gain controls for the mic and guitar inputs. There are also control pots for the monitor, the USB playback and headphone level. A 48v switch is featured as well. Peak and signal lights for the input are there, as well as for the monitor control and 48v. The sturdy tough metal housing makes this ideal for gigging on the road. The MF-11 is powered via the USB bus, however you can also choose to use a DC 5V, 500mA power supply (not included).

Features:

  • Class A microphone preamp
  • FET guitar preamp
  • 24bit/96kHz resolution
  • Headphone amp with output control
  • Adjust playback levels
  • USB 2.0 connectivity, heavy duty USB cable supplied
  • 48v power for your condenser mics
  • Balanced XLR outputs
  • Tough metal casing

Specifications:

  • Mic input: Max 56dB gain
  • Guitar input: Max 46dB gain
  • USB Audio: 2.0 Class compliant
  • Sampling Frequency: 24bit / 96kHz
  • Level Meter: 2x2 LED
  • Frequency response: 20-20,000Hz
  • Dynamic range: 98dB
  • THD+N @ 1KHz: <0.03%
  • Stereo crosstalk: 92dB
  • Power requirements: DC 5V, 500mA (not supplied)
  • Power consumption: Max. 2.5W
  • Dimensions: 103mm x 103mm x 38mm
  • Net weight: 470g
View PDF brochure for ICM MF-11 USB Audio Interface with 1 Class A Mic Preamp

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review

Product Enquiry Form Complete this form to email us your enquiry.




MPN: MF-11

Label: ICM-MF-11

ID: 255105
